MuxLab IMU-500759-TX-DANTE - 4K HDMI over IP Transmitter with Dante
The MuxLab 500759-TX-DANTE is a professional transmitter designed for distributing high-quality audio and video signals over IP networks. This device allows you to send HDMI video signals with resolutions up to 4K Ultra HD and 2-channel Dante digital audio over standard Cat5e/6 network cabling, eliminating the distance limitations of conventional HDMI cables. Thanks to its advanced technology, it is the ideal solution for professional, commercial, and residential audiovisual installations that require flexibility, scalability, and exceptional performance.
This transmitter can handle video resolutions up to 4K at 30Hz (4:4:4) and 4K at 60Hz (4:2:0) , and is also HDR10 (High Dynamic Range) compatible, delivering superior image quality with more vibrant colors and enhanced contrast. It uses visually lossless video compression (JPG 2000) with extremely low latency, typically one frame (16 ms), making it ideal for real-time applications where synchronization is critical. Transmission can reach up to 100 meters without signal degradation.
Dante audio integration allows high-fidelity audio to be distributed to hundreds of compatible devices on the same network, offering unprecedented flexibility for complex sound systems. It also features a mini-jack audio input for inserting an external audio source. Power over Ethernet (PoE) greatly simplifies installation by eliminating the need for an external power supply at each transmitter, although one can be purchased separately if required.
Main features
-
4K over IP transmission: Sends HDMI video up to 4K@60Hz (4:2:0) and Dante audio over a standard LAN network.
-
Long Range: Reaches a distance of up to 100 meters using a single Cat5e/6 cable.
-
Superior Image Quality: Compatible with HDMI 2.0b, HDCP 2.2 and HDR10 for an immersive viewing experience.
-
Integrated Dante Audio: Enables independent audio distribution to hundreds of Dante-compatible devices on the network.
-
Minimal Latency: Latency of only one frame (16-33 ms) thanks to JPG 2000 compression, ideal for live applications.
-
PoE power supply: It is powered directly from a PoE-enabled network switch (IEEE 802.3af), simplifying installation.
-
Configuration Flexibility: Supports point-to-point, point-to-multipoint, and multipoint-to-multipoint configurations, including the creation of large-scale Video Walls.
-
Extended Control: Offers bidirectional control via RS232 and IR passthrough to remotely manage end devices.
-
Centralized Management: Compatible with the MuxLab Pro Digital network controller (500811), the MuxControl application, and third-party applications for easy management.
Product benefits
The MuxLab 500759-TX-DANTE transmitter is designed for system integrators and AV professionals seeking a robust and versatile solution. It enables the construction of scalable AV-over-IP distribution systems, from simple point-to-point extensions to complex video and audio matrices with hundreds of sources and destinations. The ability to send 4K video and Dante audio simultaneously over the same network infrastructure reduces costs, simplifies cabling, and offers unparalleled design flexibility to adapt to any future need.
Use cases
This device is ideal for a wide range of professional applications, such as conference rooms, control centers, digital signage, educational facilities, stadiums, sports bars, and high-end residential entertainment systems. Its ability to create dynamic video walls and distribute high-quality audio makes it the perfect choice for any environment requiring reliable, high-performance audiovisual content distribution.
Frequently Asked Questions
What type of network cable is recommended?
It is recommended to use Cat5e or Cat6 twisted pair cable to ensure optimal performance and reach the maximum distance of 100 meters at 4K resolutions.
Do I need a power supply for this device?
Not necessarily. The transmitter is PoE (Power over Ethernet, IEEE 802.3af) compatible, so it can be powered by a network switch that offers this feature. The power supply is optional and sold separately.
Can I create a video wall with these transmitters?
Yes, video wall systems can be configured with hundreds of screens, depending on network bandwidth. One receiver (500759-RX) is required for each screen, and a network controller such as the MuxLab 500811 is needed for easy management.
What software do I need to manage Dante audio?
Dante audio connections are managed through Audinate's free Dante Controller software.
Project description

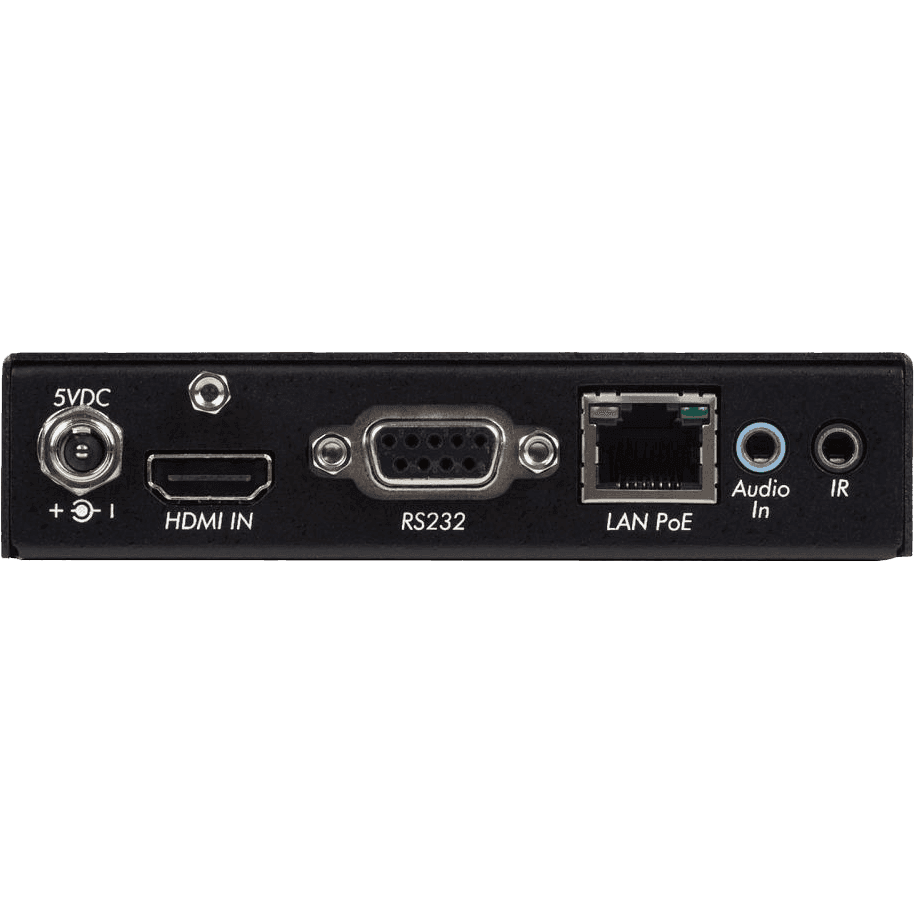

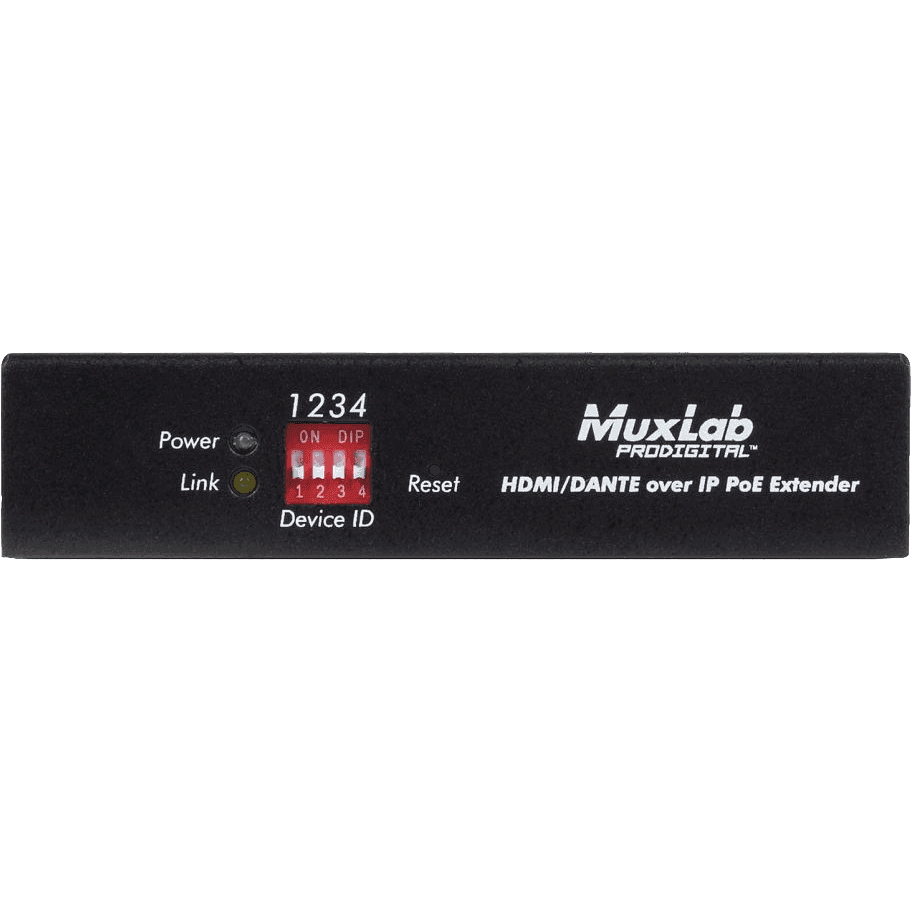

HDMI over IP transmitter capable of transmitting video at resolutions up to 4K@60Hz (4:2:0) and 2-channel Dante audio over distances of up to 100 meters via Cat5e/6 cabling. Compatible with HDMI 2.0b, HDCP 2.2, and HDR10. Features HDMI, 3.5mm minijack audio, RS232, and IR inputs. The unit uses JPG 2000 compression with a latency of 16-33 ms. Supports Power over Ethernet (PoE) (IEEE 802.3af) from a network switch. Configurable via DIP switch and compatible with the 500812 network controller for centralized management. RJ45 output for network connection. Dimensions: 112 x 144 x 25 mm. Weight: 0.77 kg.
