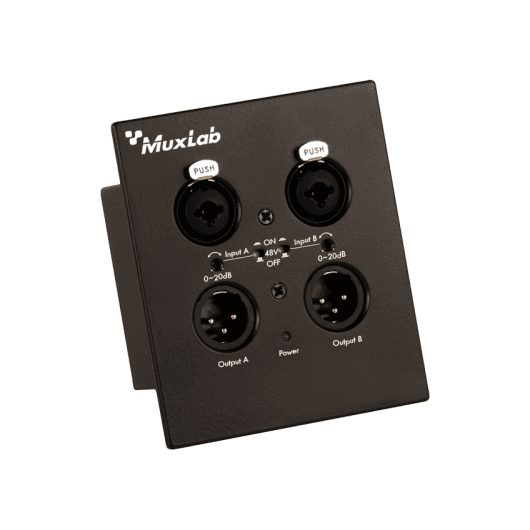

MuxLab IMU-500558 - Dante Wall Panel Audio Interface (2x2 Channels) with PoE
The MuxLab IMU-500558 is a professional audio interface solution designed to bridge the gap between traditional analog equipment and modern digital audio-over-IP networks. This wall-mounted panel acts as a bidirectional bridge, allowing microphones, instruments, and other analog audio sources to be integrated directly into a Dante network, while also providing analog outputs to power speakers or local monitoring systems. Its robust and functional design makes it a key component for audiovisual installations seeking clean cabling and superior signal transmission.
This device stands out for its high-fidelity conversion capabilities, operating at a 48 kHz sampling rate and 24-bit resolution, ensuring that the captured audio retains its original integrity and nuances without the degradation typical of long analog cable runs. Thanks to its Power over Ethernet ( PoE ) capability, the IMU-500558 eliminates the need for external power supplies, drastically simplifying installation by transmitting both data and power over a single Cat5e/6 network cable.
Its wall-mount form factor allows for discreet and aesthetically pleasing integration into any architectural environment. Equipped with hybrid (Combo) input connectors and dedicated XLR outputs, this unit offers unparalleled versatility for system engineers and installers who require reliable and easily accessible audio connection points in walls or floor boxes.
Main Features
The MuxLab IMU-500558 is loaded with advanced technical features designed for the professional environment:
-
2x2 Bidirectional Interface: It has 2 input channels to send audio to the Dante network and 2 output channels to receive audio from the network, allowing smooth communication in both directions.
-
Versatile Combo Inputs: Its input connectors support both XLR for professional microphones and TRS (1/4") jack for instruments or line sources, offering maximum connection flexibility.
-
PoE power (IEEE 802.3af): It is powered directly from a PoE-compatible network switch, facilitating deployment in locations where there are no nearby power outlets.
-
Studio Audio Quality: High-performance A/D and D/A conversion with a sampling rate of 48 kHz and 24 bits, ensuring crystal-clear sound with no perceptible latency.
-
Pro Audio Features: Includes support for Phantom Power (48V) on the condenser microphone inputs and gain adjustments (depending on the model configuration) to optimize signal levels.
-
AES67 Compatibility: Ready to work with the audio over IP interoperability standard, ensuring compatibility with other network audio ecosystems.
Benefits for the User and Installer
Implementing the MuxLab IMU-500558 in an audiovisual infrastructure provides significant advantages:
-
Noise and Interference Elimination: By converting the analog signal to digital at the point of origin (the wall), hum, ground loops and signal degradation common in long runs of analog cable are avoided.
-
Simplified Installation: A single Ethernet cable handles all input/output audio traffic and power, reducing labor and material costs.
-
Scalability: As part of the Dante network, audio connected to this panel can be routed to any other Dante device on the network via software, without the need to physically rewire anything.
-
Professional Aesthetics: Its black design and recessed format provide a clean and tidy finish, ideal for spaces visible to the public.
Use Cases
This wall panel is extremely versatile and adapts to multiple scenarios:
-
Conference and Meeting Rooms: To connect desktop or laptop microphones at one end and active speakers at the other, all managed by the corporate network.
-
Auditoriums and Theaters: As a digital stage box to send instrument signals to the mixing console and receive monitor sends.
-
Educational Institutions: In large lecture halls to allow teachers to easily connect their local audio sources to the building's public address system.
-
Hospitality and Events: In ballrooms or event areas to provide robust connection points for DJs or guest bands.
Frequently Asked Questions
Do I need an external power supply to use this equipment?
No, the device is designed to operate exclusively with PoE (Power over Ethernet). It must be connected to a PoE network switch or use a PoE injector.
Can I connect condenser microphones?
Yes, the MuxLab 500558 inputs support phantom power (48V), allowing the use of professional condenser microphones directly connected to the panel.
Is it compatible with any Dante control software?
Yes, the device is detected and managed through the Dante Controller software, allowing input and output signals to be routed to any other compatible device on the network.
What type of wall box do I need?
Due to its dimensions (123 x 79 mm), this model is designed to fit into standard American-type double gang (double width) wall boxes or surface boxes compatible with these measurements.
Project description
Two-channel Dante bidirectional audio interface wall panel with A/D and D/A conversion. The device features two analog inputs via XLR/TRS combo connectors and two balanced analog outputs via XLR male connectors. It supports PoE (IEEE 802.3af) for single-cable operation. It offers a 48 kHz sampling rate with 24-bit resolution. Power and status LED indicators are included. AES67 compliant and designed for installation in dual-gang (2-gang US) wall boxes. Panel dimensions: 123 x 79 x 35 mm. Black finish.
