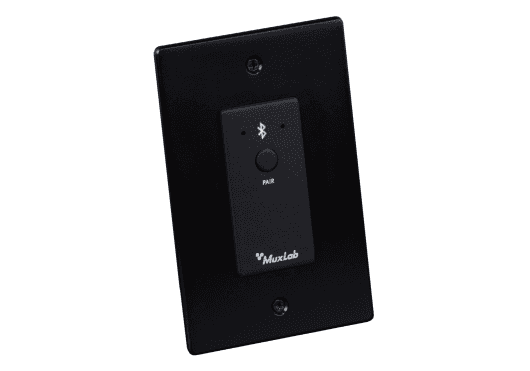

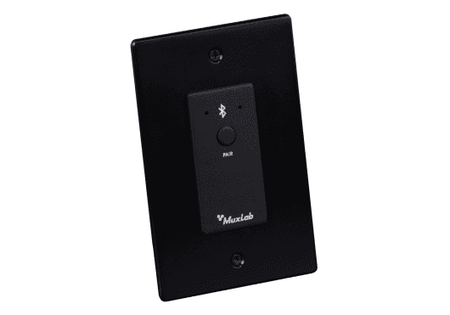

MuxLab 500554 - Bluetooth to Dante Interface Panel (Black)

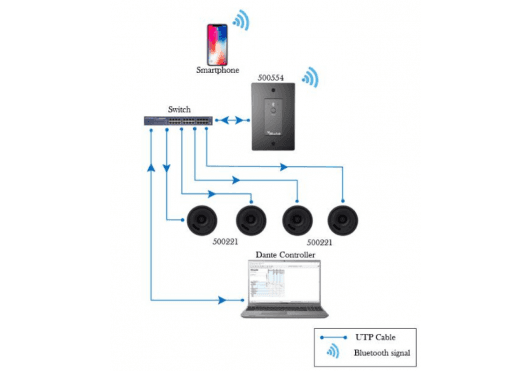

The MuxLab 500554 is a cutting-edge professional solution designed to reliably integrate the flexibility of wireless audio into Dante digital networks. This wall panel acts as a bidirectional bridge, allowing mobile devices such as smartphones, tablets (iOS and Android), and laptops to connect directly to an existing Dante audio infrastructure. Its sleek black design and compatibility with standard US 1-Gang electrical boxes make it a discreet and functional addition to any modern architectural environment.
Unlike traditional analog connections, this device completely eliminates common problems such as ground loops or cable-induced noise, guaranteeing a pure and crystal-clear digital signal transmission. Thanks to its Bluetooth 5.0 technology, it offers extended coverage range and superior connection stability, ensuring uninterrupted audio even in large spaces. Furthermore, its installation is drastically simplified by using a single network cable to transmit audio, control data, and power via PoE (Power over Ethernet) .
This panel is more than just a receiver; it facilitates two-way audio communication, making it ideal for conference applications where audio needs to be sent from the mobile device to the room system and received on the mobile device. With intuitive LED indicators for connection status and an easily accessible pairing button, the MuxLab 500554 democratizes access to professional audio systems for any user, without requiring advanced technical knowledge.
Main features
-
Advanced Bluetooth 5.0 Connectivity: Provides faster pairing, greater range (up to 23 meters under optimal conditions) and a more robust connection than previous versions.
-
Native Dante Integration: Converts Bluetooth signals directly to digital for transport over the Dante network, also supporting the AES67 interoperability standard.
-
Simplified PoE Power: Compliant with the IEEE 802.3af standard, allowing the device to be powered through the same Ethernet cable that carries the data, eliminating the need for external power supplies.
-
Two-way audio: Allows both music playback from a mobile device and participation in conference calls (stereo audio input and output).
-
Intuitive User Interface: It has a front pairing button and LED status lights (Red for disconnected, Blue for connected) that facilitate immediate operation.
-
Professional Design: 1 Gang US wall mount format, compatible with Decora-type faceplates, ideal for clean and tidy fixed installations.
Benefits for the professional environment
The MuxLab 500554 transforms how users interact with professional AV systems. For integrators, it offers quick and easy installation thanks to the Dante ecosystem and PoE. For end users, it eliminates the frustration of searching for cables, dongles, or dealing with noisy analog connections. Its ability to handle high-quality audio (24-bit/48kHz) ensures that sound fidelity remains intact, delivering a premium listening experience for background music or critical communications.
Use cases
-
Conference and Meeting Rooms: Allows attendees to connect their mobile phones to make conference calls using the room's high-quality speaker and microphone system.
-
Educational Facilities and Auditoriums: Teachers and speakers can play multimedia content from their tablets or laptops without being tethered to the lectern by cables.
-
Gyms and Fitness Centers: Instructors can wirelessly and securely link their own music to the room's general sound system.
-
Hospitality and Retail: Ideal for areas where ambient music control is required from staff mobile devices, keeping the audio infrastructure secure and hidden.
Frequently Asked Questions
Do I need an additional power supply?
No, the device is powered by PoE (Power over Ethernet). It requires a PoE-compatible network switch or a PoE injector.
Is it compatible with any Bluetooth device?
Yes, it is compatible with the vast majority of modern Bluetooth-enabled devices, including Apple and Android smartphones, tablets, and laptops.
Can I customize the Bluetooth device name?
Yes, the name that appears when searching for the Bluetooth device can be changed through the management software, which is useful in buildings with multiple rooms to correctly identify each panel.
What is the range of the Bluetooth connection?
The typical range is 15 to 23 meters (50 - 75 feet), although this can vary depending on physical obstacles and interference in the environment.
Project description
Black Bluetooth-to-Dante bidirectional wall-mounted audio interface panel. The device must convert Bluetooth 5.0 audio signals to Dante and vice versa, supporting AES67 RTP audio transport. It must have a frequency response of 20Hz to 20kHz, a 48kHz/24-bit sampling rate, and a THD of less than 0.005%. The unit must be powered exclusively via PoE (IEEE 802.3af), with a maximum power consumption of 2W, and have a mounting form factor compatible with standard US single-gang electrical boxes (Decora type). It must include LED status indicators and an accessible front-facing pairing button.
