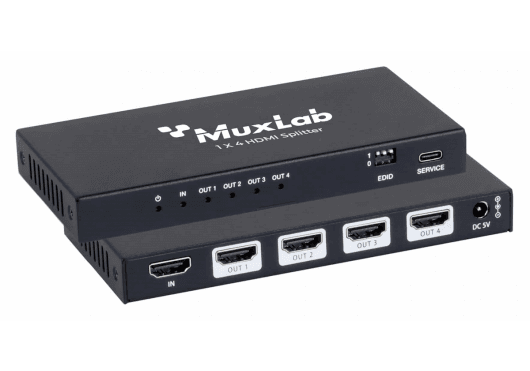

MuxLab 500511 - HDMI 2.1 1x4 Splitter with Downscaling and 48Gbps Bandwidth
The MuxLab 500511 represents the cutting edge in audiovisual signal distribution, specifically designed to meet the demands of the most demanding installations requiring the HDMI 2.1 standard. This high-performance splitter takes a single HDMI video source and replicates it simultaneously on four different displays without loss of quality or latency, ensuring that signal integrity remains flawless from source to display.
With an impressive 48 Gbps bandwidth (FRL), this device is ready to handle the highest resolutions on the market today and in the future, including 8K at 60 Hz and 4K at 120 Hz . This makes it the ideal centerpiece for environments where image fidelity and motion smoothness are critical, such as next-generation gaming setups, high-end home theaters, or professional digital signage. Furthermore, its HDCP 2.3 compatibility ensures playback of protected content from major streaming platforms and UHD Blu-ray players.
One of the MuxLab 500511's greatest strengths is its intelligent signal management. It incorporates advanced automatic downscaling functions, allowing you to connect an 8K or 4K source and distribute the signal to displays with lower resolutions (such as 1080p) without the main source having to reduce its quality for everyone. It also manages automatic HDR-to-SDR conversion, facilitating the integration of older monitors into modern systems.
Main features
-
Real HDMI 2.1 Performance: Supports the full 48 Gbps bandwidth required for next-generation technologies.
-
Advanced Gaming Protocols: Compatible with VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), QFT (Quick Frame Transport) and QMS (Quick Media Switching), eliminating tearing and stuttering in video games.
-
Intelligent Scaling Management: Ability to downscale from 8K to 4K, or from 8K/4K to 1080p on any of its outputs independently.
-
Full HDR Support: Compatible with all major dynamic formats, including Dolby Vision , HDR10+, HDR10 and HLG pass-through.
-
Immersive Audio: Allows the pass-through of high-definition audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Atmos , DTS-HD Master Audio and DTS:X.
-
Equalization and EDID: Advanced EDID management and cable equalization to ensure compatibility and stability of the connection between various devices.
Benefits for the user
For the professional installer or the audiovisual enthusiast, the MuxLab 500511 eliminates the usual headaches of video distribution. Its ability to mix displays of different resolutions thanks to automatic scaling means there's no need to replace all the TVs in an installation to enjoy an 8K source. Furthermore, its robust metal chassis and compact design allow for efficient heat dissipation and discreet installation behind furniture or in technical racks, ensuring long-lasting durability even under continuous 24/7 operation.
Use cases
-
E-Sports Rooms and Gaming Centers: Distribution of next generation consoles (PS5, Xbox Series X) or PC Gaming to multiple monitors at 120Hz without lag.
-
Retail and Digital Signage: Display of promotional content in ultra high definition on four simultaneous screens to capture the customer's attention in maximum detail.
-
Corporate and Medical Environments: Displaying detailed graphics, plans, or medical images where pixel accuracy and 12-bit color depth are vital.
-
Luxury Home Cinema: Distribution of content from movie servers or AV receivers to different rooms (multiroom) while maintaining Dolby Vision and Atmos quality.
Frequently Asked Questions
-
Does this splitter support 4K at 120Hz for gaming?
Yes, it is fully compatible with 4K signals at 120Hz, making it ideal for taking full advantage of next-gen consoles and PC graphics cards.
-
Can I connect a 4K TV and a 1080p TV at the same time?
Yes, thanks to its auto-downscaling function, the device can send the 4K signal to the compatible TV and scale the signal down to 1080p for the Full HD screen, without affecting the quality of the former.
-
Does it require an external power supply?
Yes, it includes an external power supply to ensure the necessary power for signal processing and stable transmission at 48 Gbps.
-
Is it compatible with Dolby Atmos?
Absolutely, it supports pass-through of advanced audio formats such as Dolby Atmos and DTS:X.
Project description
HDMI 2.1 1x4 signal distributor with support for 48 Gbps FRL and 18 Gbps TMDS bandwidth. The device allows the distribution of one HDMI input to four simultaneous outputs, supporting resolutions up to 8K@60Hz (4:2:0 12-bit) and 4K@120Hz (4:4:4 12-bit). Compatible with HDCP 2.3 and HDMI 2.1 protocols including VRR, ALLM, QMS, QFT, and SBTM. Features include advanced EDID management, cable equalization, automatic HDR-to-SDR conversion, and independent automatic downscaling (8K to 4K or 1080p) per output. Supports pass-through of LPCM 7.1, Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio audio formats. Metal chassis with passive heatsink and external 5V DC power supply.
