MuxLab 500457 - HDMI and USB 2.0 HDBaseT KVM Extender Kit (4K/60Hz up to 100m)
Optimize your audiovisual and control installations with the MuxLab 500457 , a professional signal extension system designed to overcome the distance limitations of conventional HDMI and USB cabling. This transceiver kit utilizes robust HDBaseT technology to send uncompressed high-definition video signals, USB 2.0 data, and IR control over a single Cat 5e or Cat 6 network cable, ensuring a clean and efficient installation.
Ideal for environments where the control console or server must be located far from the workstation, the MuxLab 500457 offers a complete KVM (Keyboard, Video, and Mouse) solution. With its ability to transmit 4K UHD resolutions up to 100 meters away, this device ensures pristine image quality, free from latency and compression artifacts—critical for digital signage, medical, and post-production applications.

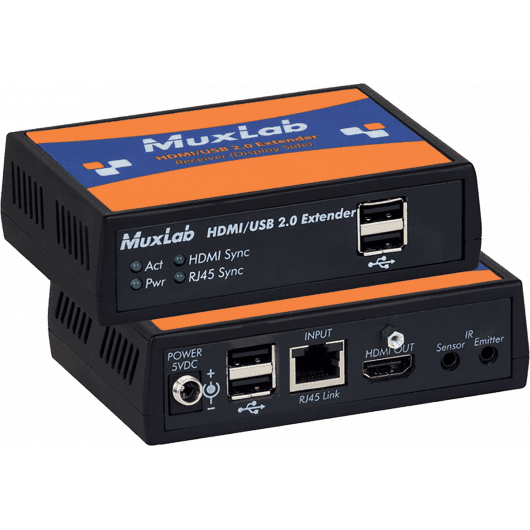

The kit's receiver integrates a 4-port USB 2.0 hub , allowing multiple peripherals to be connected simultaneously at the remote end. From keyboards and mice to interactive touchscreens, flash drives, or webcams (bandwidth dependent), the system provides versatile and seamless connectivity for the end user. Its compact design and metal casing ensure durability and easy integration into technical furniture or behind displays.
Main features
-
HDBaseT technology: Stable and long-range transmission of video, audio and data over a single twisted-pair cable (Cat 5e/6), simplifying the infrastructure.
-
4K Ultra HD Resolution: Supports resolutions up to 4K (3840x2160) at 30Hz with 4:4:4 color subsampling, or 4K at 60Hz (4:2:0), plus Full HD 1080p at 60Hz.
-
Enhanced USB 2.0 Connectivity: Offers a USB data channel with a bandwidth of up to 250 Mbps. The receiver acts as a hub with four USB Type-A ports for peripherals.
-
Extended Range: Capable of sending signals up to 100 meters away, for both 1080p and 4K video, offering total flexibility in space design.
-
Bidirectional IR Control: Allows control of the video source from the screen or vice versa using infrared emitters and receivers, facilitating remote management of equipment.
-
Uncompressed transmission: Maintains the original integrity of the video signal, vital for professional environments that require pixel-perfect visual accuracy.
Benefits for the user
Implementing the MuxLab 500457 transforms workspace management by centralizing noisy or bulky equipment (such as PCs or servers) in a secure, climate-controlled rack room, while the user enjoys a quiet environment with only the necessary monitor and peripherals. Its plug-and-play installation reduces technical setup time, and compatibility with standard structured cabling significantly lowers costs compared to long-distance HDMI cables or more complex fiber optic extenders.
Use cases
-
Classrooms and Education: Connecting interactive whiteboards (Smartboards) and 4K projectors located far from the teacher's computer.
-
Control and Security Rooms: Remote management of servers and viewing of high-resolution security cameras from remote operator stations.
-
Medical Environments: Displaying diagnostic images in operating rooms or consultation rooms with the computer equipment hygienically isolated.
-
Corporate Boardrooms: Clean integration into conference tables, allowing you to connect laptops and control the main screen without cables visible on the floor.
-
Digital Signage: Distribution of interactive advertising content in shopping malls or hotel lobbies.
Frequently Asked Questions
-
What type of network cable is recommended?
It is recommended to use solid-core Cat 5e or Cat 6 cable to ensure maximum performance and distance. In environments with electrical interference, shielded cable (STP) is recommended.
-
Is it compatible with any USB device?
The system supports USB 2.0 with a shared bandwidth of up to 250 Mbps. It is ideal for HID devices (keyboards, mice), touchscreens, and flash storage. Very high-bandwidth devices, such as some uncompressed 4K webcams, may experience limitations.
-
Does it require power at both ends?
Yes, the kit includes the necessary power supplies to ensure signal stability and proper power to the receiver's USB ports.
-
Does it support HDCP?
Yes, the device is compatible with digital rights management, allowing the transmission of protected content (such as Blu-ray or streaming services) without problems.
Project description

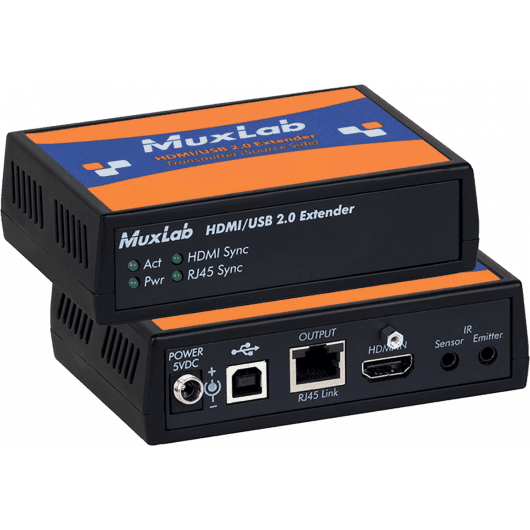

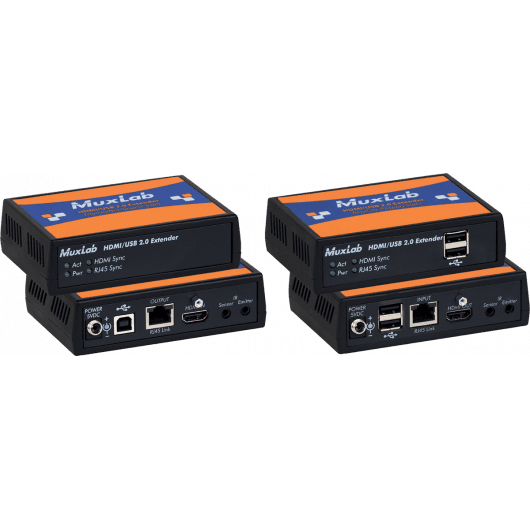

HDBaseT KVM extender kit consisting of a transmitter and receiver for HDMI 1.4 and USB 2.0 signals. It can transmit uncompressed video up to 4K@30Hz (4:4:4) or 4K@60Hz (4:2:0) resolutions and 1080p@60Hz at a maximum distance of 100 meters using a single Cat 5e/6 cable. The system offers USB bandwidth up to 250 Mbps and includes a 4-port USB hub in the receiver unit for connecting peripherals (HID, storage, touchscreens). It supports bidirectional IR pass-through and embedded audio (LPCM, Dolby TrueHD, DTS-HD Master Audio). The kit features a metal housing with an included external power supply.
