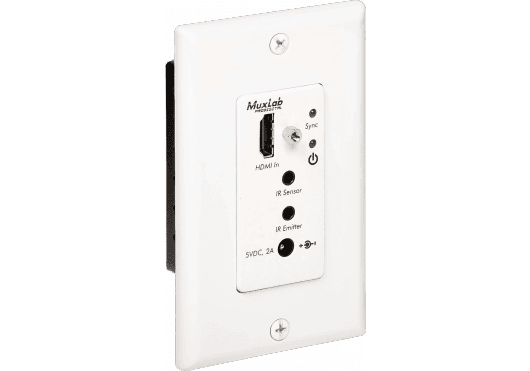

MuxLab 500451-WP-DEC-TX - HDBaseT UHD-4K Wall HDMI Transmitter (Decora Format)
The MuxLab 500451-WP-DEC-TX is a professional video extension solution designed to integrate audiovisual connectivity directly into any room's infrastructure. This device is more than just an extender; it's a wallplate transmitter that combines the power of HDBaseT technology with a sleek and functional design. Ideal for installations where aesthetics and organization are paramount, this transmitter allows you to send high-definition and control signals over long distances using a single network cable, eliminating cable clutter and centralizing connections in a discreet, recessed access point.
Designed specifically for the Decora form factor (US standard 1-unit), this device integrates seamlessly into standard wall boxes, offering a clean finish in brushed aluminum or metal that withstands continuous use in commercial and educational environments. Its ability to handle UHD 4K resolutions ensures pristine image quality with no visible compression or latency, guaranteeing a premium viewing experience for presentations, digital signage, or home theater.
Main features
-
Single-cable HDBaseT technology: Forget about heavy and expensive HDMI cable runs. This transmitter uses a standard Cat 5e or Cat 6 cable to send video, audio, and control signals, dramatically simplifying installation in conduits and walls.
-
Extended and flexible range: It can transmit 1080p Full HD signals up to 70 meters . For ultra-high-definition content, it supports 4K UHD (3840x2160) up to 40 meters , covering most needs in meeting rooms and large classrooms.
-
Superior image quality: Supports 4K resolutions at 30Hz with 4:4:4 chroma subsampling, as well as 4K at 60Hz (4:2:0), ensuring compatibility with modern video sources and state-of-the-art displays.
-
Infrared (IR) Control: Includes ports for IR emitters and sensors, enabling bidirectional control. This means you can control the display from the source or vice versa, providing complete remote system management.
-
Versatile power supply: The kit includes its own external power supply, ensuring stable operation regardless of the power supplied by the receiver, adding an extra layer of reliability to the system.
Benefits for the integrator and the end user
For systems integrators, the MuxLab 500451-WP-DEC-TX represents reliability. By using structured cabling (Ethernet), it reduces material costs and labor time compared to long-distance active HDMI cables, which are prone to failure. Its metal chassis provides efficient heat dissipation and protection against electromagnetic interference.
For the end user, the main benefit is simplicity and aesthetics . Instead of having cables dangling behind a TV or sticking out haphazardly from a table, the user simply plugs their laptop or player into the wall plate. The room stays tidy, professional, and ready to use in seconds, without any technical hassle.
Use cases
-
Conference rooms and boardrooms: Installed near the meeting table or on a lectern, it allows presenters to easily connect their laptops to project onto the main screen without visible cables crossing the room.
-
Educational classrooms and auditoriums: Ideal for teachers' podiums, allowing quick connection of computers or document cameras that transmit to the ceiling projector located at a great distance.
-
Hospitality and digital signage: Perfect for hotel lobbies or sports bars where the video source is in a server room away from the wall-mounted screens.
-
High-end home cinema: For users who want to centralize their equipment (Blu-ray, consoles) in a technical cabinet and only have the television mounted on the wall, maintaining an impeccable interior design.
Frequently Asked Questions
Do I need a special receiver for it to work?
Yes, this is a transmitter (TX) and must be paired with a compatible MuxLab HDBaseT receiver (such as the 500451-RX model or compatible arrays) to decode the signal at the other end.
Is it compatible with standard European wall boxes?
The format is "Decora" (US 1-Gang type), which is narrower and taller (43x110 mm) than the standard European square (86x86 mm). Installation in Europe generally requires a US-type junction box or a specific conduit frame adapter.
Does the device support HDR?
The device supports UHD 4K resolutions. Specific HDR compatibility will depend on the total bandwidth; generally, HDBaseT of this class supports HDR at 24Hz or 30Hz depending on the color depth, but it is recommended to check the entire equipment chain.
Can I use Cat 5e cable or do I have to use Cat 6?
Although it works with Cat 5e, the use of solid copper Cat 6 or Cat 6a cable, and if possible shielded (STP), is strongly recommended, especially for long distances or 4K transmissions, to ensure signal integrity against interference.
Project description
Decora (1-Gang US) HDMI over HDBaseT wall plate transmitter. This device extends video, audio, and control (IR) signals over a single Cat5e/6 twisted-pair cable. It supports resolutions up to 4K UHD (3840x2160) at 30Hz (4:4:4) or 60Hz (4:2:0) up to 40 meters, and 1080p resolutions up to 70 meters. It includes an HDMI input and an IR sensor port. The unit is housed in a metal chassis measuring 43x110x38 mm. It is powered by an included external 5VDC power supply and is compatible with HDBaseT receivers in the same series.
