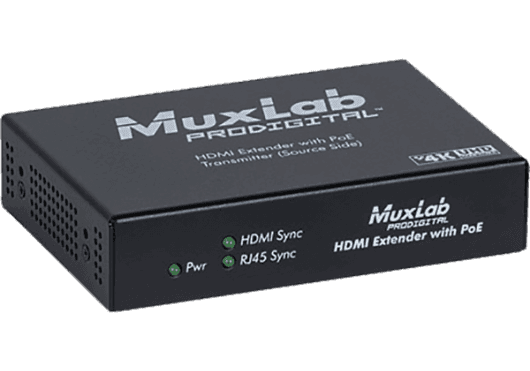

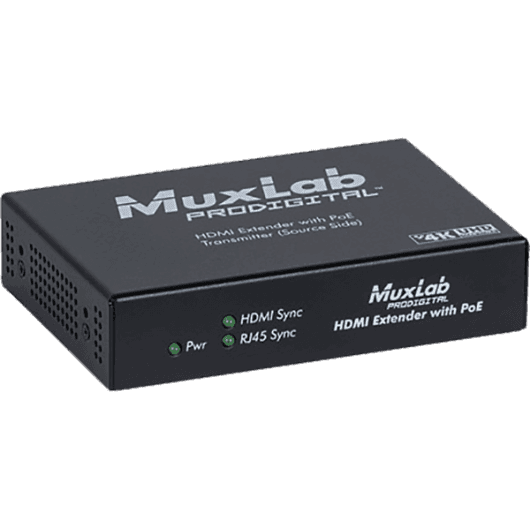

MuxLab IMU-500451-TX - HDMI HDBaseT UHD 4K Transmitter - Professional Signal Extension up to 70 Meters
The MuxLab IMU-500451-TX is a high-performance HDMI transmitter designed to overcome the distance limitations of conventional HDMI cables, offering a robust and reliable solution for professional audiovisual installations. Utilizing advanced HDBaseT technology, this device enables the transmission of uncompressed 4K UHD video and digital audio signals over a single Cat 5e or Cat 6 network cable, dramatically simplifying cabling infrastructure in residential and commercial projects.
This transmitter is the ideal component for integrators seeking stability and image quality over long distances. Capable of extending 1080p Deep Color signals up to 70 meters and 4K (3840x2160) resolutions up to 40 meters , the 500451-TX ensures pristine signal integrity with no perceptible latency or visual degradation. Its compact metal chassis not only facilitates installation in confined spaces or behind displays but also offers superior protection against electromagnetic interference, guaranteeing continuous operation in demanding environments.
In addition to its video capabilities, this transmitter is designed to remotely control devices. Thanks to its HDBaseT architecture, it supports bidirectional IR and RS232 signal transmission (depending on the kit configuration), enabling remote control of video sources or displays. This adds an essential layer of functionality to control rooms and automation systems. With its included external power supply, the device offers efficient and reliable power management.
Main Features
-
HDBaseT Technology: Stable transmission of video, audio and control over a single twisted pair cable (Cat 5e/6), eliminating cable clutter.
-
UHD 4K Resolution: Supports resolutions up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0), ideal for the latest generation of screens and projectors.
-
Extended Range: Transmits 1080p signals up to 70 meters and 4K signals up to 40 meters, covering most needs in buildings and large rooms.
-
Uncompressed Audio: Compatible with high-definition audio formats such as LPCM, Dolby TrueHD, and DTS-HD Master Audio for an immersive sound experience.
-
Robust Design: Durable metal casing designed to dissipate heat and protect internal components in permanent installations.
-
IR and RS232 pass-through: Facilitates integration with universal control systems, allowing the operation of equipment hidden in racks or false ceilings.
Benefits for the Integrator and the End User
The MuxLab 500451-TX is more than just an extender; it's a connectivity solution. For the audiovisual integrator , it offers significant savings in labor and material costs, as network cabling is more economical and easier to terminate in the field than long-distance HDMI. For the end user , the benefits lie in aesthetics and reliability: visible cables disappear, and the signal drops common in long passive HDMI runs are avoided. Furthermore, its support for 3D and Deep Color ensures that content is displayed exactly as intended.
Use Cases
-
Digital Signage: Sending advertising and informational content to screens located in lobbies, shopping centers or airports away from the multimedia player.
-
Classrooms and Auditoriums: Reliable connection between the teacher's podium and the ceiling projector located at a great distance.
-
Corporate Meeting Rooms: Clean integration into conference tables, sending the signal to wall monitors without bulky cables in sight.
-
Home Cinema: Centralization of equipment (Blu-ray, decoders) in a ventilated technical rack, sending only the necessary signal to the projector or TV in the living room.
-
Medical Information Systems: Transmission of high-resolution images in operating rooms or diagnostic rooms without loss of detail.
Frequently Asked Questions
What type of network cable should I use?
It is recommended to use Cat 5e cable as a minimum, although the use of Cat 6 or higher cable is preferable, especially for long distances or environments with possible electrical interference, to ensure maximum HDBaseT performance.
Does this device include the receiver?
No, this product is the transmitter (TX) . To complete the link, you will need a compatible MuxLab HDBaseT receiver (such as model 500451-RX).
Does it support 4K content at 60Hz?
Yes, it supports 4K at 60Hz with 4:2:0 chroma subsampling. For 4K at 30Hz, it supports the full 4:4:4 color spectrum.
Does it need electrical power?
Yes, the transmitter includes its own external power supply to ensure stable operation regardless of the cable load.
Project description

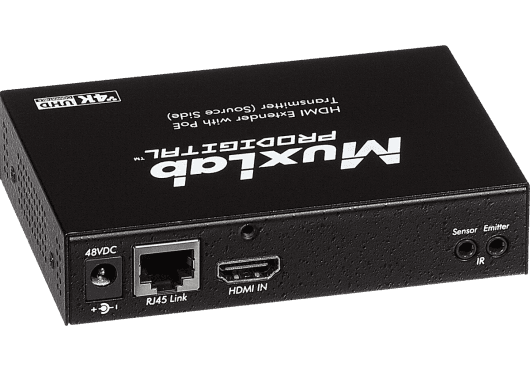

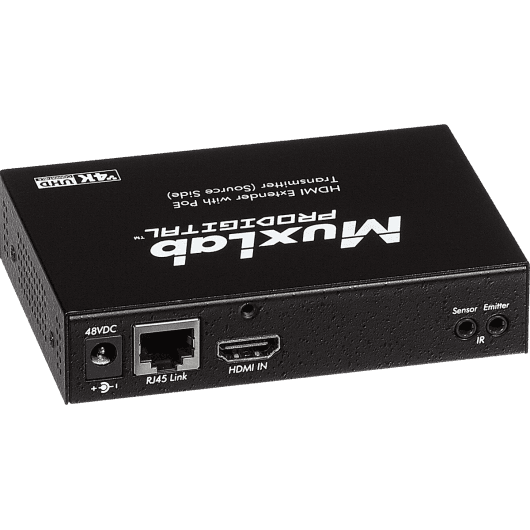

HDMI over HDBaseT transmitter designed for extending uncompressed video and audio signals over a single Cat5e/6 cable. The device supports resolutions up to 4K (3840x2160) at 30Hz (4:4:4) or 60Hz (4:2:0) with a maximum range of 40 meters, and 1080p Deep Color resolutions up to 70 meters. Compatible with HDMI 1.4 and HDCP, it supports bidirectional IR and RS232 signal pass-through. It includes an HDMI Type A input connector and an RJ45 output for HDBaseT connectivity. Housed in a 112x76x25 mm metal chassis and powered by an included external power supply.
