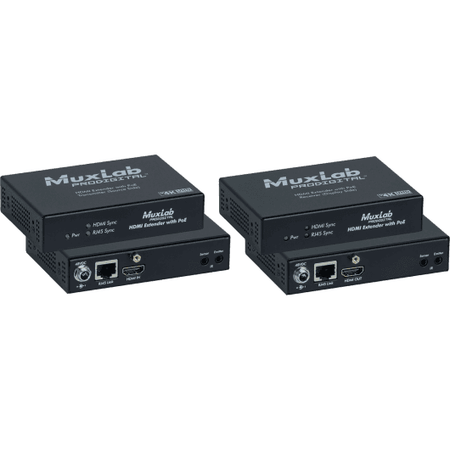

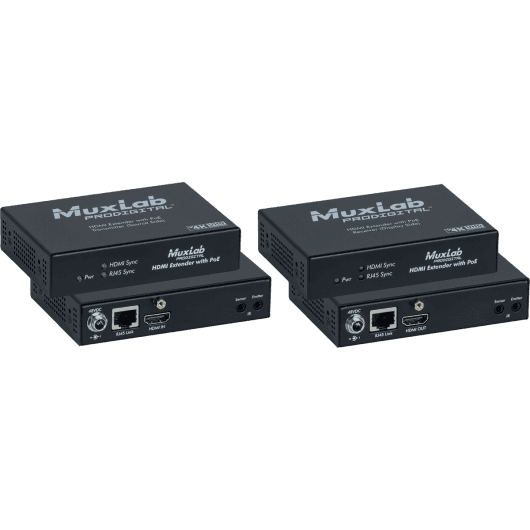

MuxLab IMU-500451-POE - 4K HDBaseT HDMI Extender Kit and IR Control with PoE Power (Up to 70 Meters)
The MuxLab IMU-500451-POE is a professional connectivity solution designed to overcome the distance limitations of conventional HDMI cables. Utilizing advanced HDBaseT technology, this kit allows you to transmit ultra-high-definition (4K UHD) video signals, multi-channel digital audio, and infrared (IR) control over a single Cat5e or Cat6 network cable. It is the ideal choice for system integrators and demanding audiovisual environments where reliability and a clean installation are paramount.
This system stands out for its integration capabilities thanks to Power over Ethernet (PoE) technology. The kit eliminates the need to connect power supplies at both ends of the installation; a single external power supply is sufficient to power both the transmitter and receiver via the network cable. Its compact metal housing design ensures durability and interference protection, guaranteeing stable signal transmission with no perceptible latency.
Main features
The MuxLab 500451-POE is designed to deliver superior performance in AV signal extension. Its technical capabilities allow for complete flexibility in residential and commercial projects.
-
HDBaseT Lite technology: Robust transmission of video, audio and long-distance control using a single twisted-pair cable (Cat5e/6), drastically reducing cabling costs.
-
High Resolution Support: Capable of sending 4K UHD (3840x2160) signals at 30Hz (4:4:4) or 60Hz (4:2:0) up to a distance of 40 meters .
-
Extended Range in Full HD: For 1080p resolutions, Deep Color and 3D content, the range is extended up to 70 meters , covering most needs in large spaces.
-
PoE Power System: Simplifies electrical installation by allowing power to travel through the network cable. This is crucial when there are no power outlets available near the screen or projector.
-
Two-way IR control: Includes infrared emitter and receiver, allowing control of the video source (such as a Blu-ray or PC) from the screen location, or vice versa.
-
Pure Digital Audio: Transparent support for all digital audio modes, including LPCM, Dolby TrueHD, and DTS-HD Master Audio.
Benefits of professional installation
Integrating the MuxLab IMU-500451-POE provides significant operational and aesthetic advantages for any audiovisual project:
-
Clean and professional aesthetics: Thanks to PoE, bulky transformers behind wall-mounted TVs or ceiling projectors are eliminated, achieving a minimalist finish.
-
Infrastructure savings: Using network cable (Cat5e/6) is considerably cheaper and easier to handle through narrow conduits than long-distance HDMI cables.
-
Fail-safe reliability: The metal casing not only dissipates heat better, but also provides additional shielding against electromagnetic interference (EMI) in corporate or industrial environments.
-
Control versatility: The ability to manage devices remotely via IR improves the end-user experience, centralizing equipment control in a technical cabinet or rack.
Ideal use cases
This extender is extremely versatile and adapts perfectly to various scenarios:
-
Conference and meeting rooms: To connect a laptop from the meeting table to the ceiling projector or main screen without visible cables.
-
Digital Signage: Ideal for shops, hotels or airports where the media player is housed in a server room away from the information screens.
-
Classrooms and auditoriums: Facilitates the connection between the teacher's desktop and the classroom projection system.
-
Home Cinema: Allows you to centralize all the equipment (consoles, decoders) in a ventilated cabinet and send only the signal to the television or projector in the living room.
Frequently Asked Questions
Do I need two plugs for the kit to work?
No, thanks to PoE technology, you generally only need to connect the power supply to one end (usually the receiver, although it depends on the specific configuration), powering the other unit through the network cable.
What type of network cable should I use?
It is recommended to use high-quality Cat5e or Cat6 cable, preferably solid copper (not stranded). For environments with high electrical noise, the use of shielded cable (STP) is highly recommended to ensure image integrity.
Does it support 3D content?
Yes, the device is compatible with the HDMI 1.4a standard, which includes full support for 3D transmissions.
Does the IR control work both ways?
The system supports bidirectional IR pass-through, allowing flexibility to configure remote control from the source to the display or from the display to the source.
Project description
The HDBaseT Lite HDMI extender kit consists of a transmitter and receiver for transmitting video, audio, and control signals over a single Cat5e/6 twisted-pair cable. It supports resolutions up to 4K UHD (3840x2160) at 30Hz (4:4:4) and 60Hz (4:2:0) at a maximum distance of 40 meters, and 1080p Deep Color/3D resolutions up to 70 meters. It incorporates PoE (Power over Ethernet) technology for remote power delivery via the network cable, eliminating the need for dual power supplies. It includes bidirectional IR pass-through with an integrated emitter and sensor. Compatible with LPCM, Dolby TrueHD, and DTS-HD Master Audio digital audio. The video bandwidth is 340 MHz. Housed in a compact metal enclosure measuring 112 x 76 x 25 mm, it is designed for continuous operation in professional environments.
