MuxLab IMU-500451 - 4K HDBaseT HDMI Extender Kit with IR (70m)
The MuxLab IMU-500451 is a professional signal extension solution designed to overcome the distance limitations of conventional HDMI cables. This transmitter and receiver kit utilizes robust HDBaseT Lite technology to send ultra-high-definition (UHD) video, multi-channel digital audio, and infrared control signals over a single Cat5e or Cat6 network cable. It is the ultimate tool for integrators and AV professionals seeking reliability and performance in commercial, educational, or residential installations.
Thanks to its advanced engineering, this system allows you to connect HDMI sources such as Blu-ray players, computers, game consoles, or media servers to displays located at a great distance without any loss of quality or perceptible latency. Its metal housing design ensures efficient heat dissipation and superior durability in demanding environments, guaranteeing seamless transmission for the end user.
Main Features
The MuxLab 500451 kit stands out for its ability to maintain signal integrity over long distances. While a standard HDMI cable typically fails after 10 or 15 meters, this extender significantly extends that range:
-
Extended Range in 4K and 1080p: It is capable of transmitting 1080p Deep Color and 3D signals up to 70 meters . For Ultra High Definition (4K UHD) content, it offers a solid range of up to 40 meters , supporting resolutions of 4K@30Hz (4:4:4) and 4K@60Hz (4:2:0).
-
HDBaseT Lite Technology: Uses a reliable transmission standard that unifies video, audio and control into a single strand of twisted-pair cable, simplifying cabling infrastructure and reducing installation costs.
-
Two-Way Remote Control (IR): Includes infrared emitters and receivers that allow remote control of the source (such as a DVD player) from the display location, or vice versa. This eliminates the need for visible equipment, allowing for clean and concealed installations.
-
Uncompressed Digital Audio: Compatible with all standard HDMI digital audio modes, ensuring that the sound experience is as immersive as the visual one.
User Benefits
The implementation of the MuxLab IMU-500451 transforms the way audiovisual content is managed in any space:
-
Simplified Installation: By using standard network cable (Cat5e/6), which is much more flexible, economical and easier to connect than HDMI, it facilitates the passage of cables through narrow conduits and walls.
-

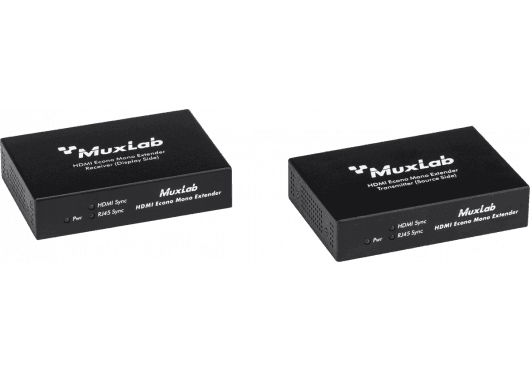

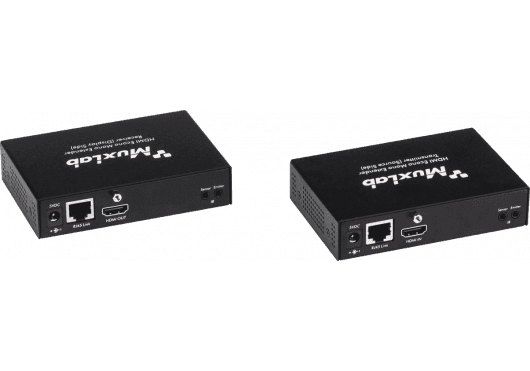

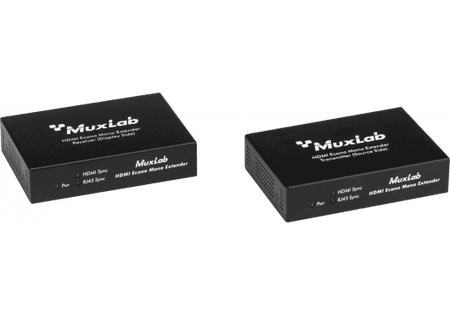

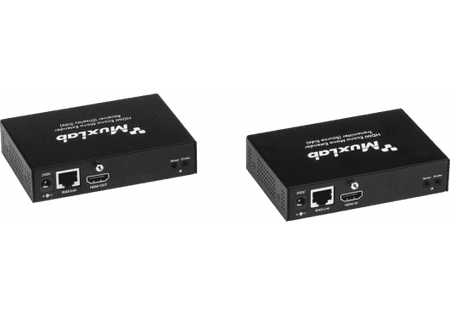

Professional Reliability: High-quality HDMI and RJ45 connectors, along with diagnostic LED indicators (power, HDMI sync, and RJ45 link), allow you to check the connection status at a glance, reducing maintenance time.
-
Signal Integrity: Enjoy crisp images without artifacts, flickering, or digital "snow" – common problems with low-quality extenders.
Use Cases
This extender is extremely versatile and adapts to multiple scenarios:
-
Digital Signage: Ideal for shops, shopping centers or airports where the media player needs to be secure in a server room while the screens are in the public area.
-
Classrooms and Auditoriums: Allows the teacher's laptop on the podium to connect to the ceiling projector located dozens of meters away.
-
Corporate Boardrooms: Facilitates a clean connection from a conference table to a main screen without visible cables or bulky equipment on the table.
-
Home Cinema Systems: Perfect for centralizing all equipment (amplifiers, consoles, decoders) in a ventilated cabinet and sending only the video signal to the living room TV or projector.
Frequently Asked Questions
Do I need power at both ends?
Yes, this standard model (IMU-500451) includes two external power supplies, one for the transmitter and one for the receiver, ensuring maximum signal stability.
What type of cable should I use?
The use of high-quality Cat5e or Cat6 cable is strongly recommended, preferably solid copper and, if the environment has electrical interference, shielded (STP) cable.
Does it support 3D content?
Yes, it is fully compatible with 3D formats under the HDMI 1.4a specification, allowing three-dimensional transmissions up to 70 meters.
Project description
The MuxLab 500451 is an HDMI over HDBaseT Lite extender kit consisting of a transmitter and receiver, designed for point-to-point transmission of uncompressed video and audio signals. It supports resolutions up to 4K@30Hz (4:4:4) and 4K@60Hz (4:2:0) at a maximum distance of 40 meters, and 1080p Deep Color/3D resolutions up to 70 meters using a single Cat5e/6 UTP cable. The system offers a bandwidth of 340 MHz, HDMI 1.4 compliance, and a bidirectional infrared (IR) gateway with included accessories. It features a metal housing and requires an external 5VDC power supply for both units.
