MuxLab 500445 - 6x1 4K/60 HDMI/DP/VGA/USB-C Multimedia Presentation Selector
Optimize your meetings and presentations with the MuxLab 500445 , an advanced 6x1 multimedia presentation selector designed to centralize and manage multiple video sources in corporate and educational environments. This professional device solves the common problem of connection incompatibility in conference rooms, allowing you to connect everything from the latest laptops to legacy equipment, always guaranteeing a smooth, high-quality projection.

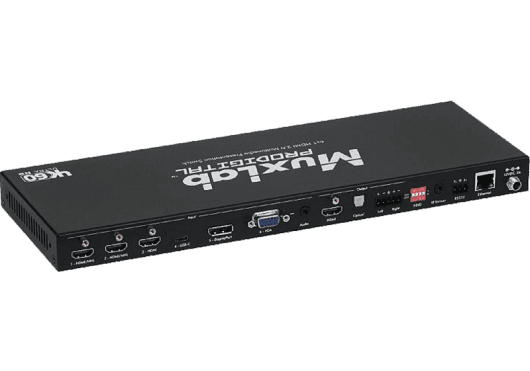

The MuxLab 500445 stands out for its exceptional versatility of inputs. It features three HDMI ports, one DisplayPort, one USB-C port, and one VGA input (with associated 3.5mm analog audio). This 6-in-1 combination ensures that any user, regardless of their device (PC, Mac, tablet, or media player), can connect and present instantly without the need for complicated external adapters.
Equipped with a powerful internal scaler , this selector converts and scales any input signal to match the native resolution of your display or projector, supporting output up to 4K UHD at 60Hz (4:4:4) . This ensures crisp images, legible text, and vibrant colors, taking full advantage of the capabilities of modern displays, even if the original source has a lower resolution.
To simplify daily operation, the device offers an Auto-Switching mode, which detects the last active source connected and automatically displays it on the screen, eliminating the need for the remote control. Furthermore, for more complex installations, it allows full control via LAN (IP), RS-232, and infrared (IR) , facilitating integration with third-party control systems in automated rooms.
Main features
-
6x1 connection versatility: Centralizes 6 different video sources (3x HDMI, 1x DisplayPort, 1x USB-C, 1x VGA) to a single HDMI output.
-
4K/60 Upscaling: Ensures that the output signal is always of the highest quality (up to 3840x2160 @ 60Hz), regardless of the input resolution.
-
Professional Audio Management: Ability to de-embezzle (extract) the audio from the HDMI signal to analog (3.5mm) or optical digital (Toslink) audio outputs, ideal for connecting to external amplifiers or sound bars.
-
Full compatibility: Supports HDMI 2.0 and complies with the HDCP 2.2 content protection standard, ensuring playback of protected content.
-
HDR Support and Advanced Audio: Compatible with HDR10 and passthrough of high-end audio formats such as Dolby Atmos and DTS:X.
Benefits for the professional environment
The MuxLab 500445 is designed with efficiency in mind. It eliminates cable clutter and the frustration of not having the right cable before a meeting. Its USB-C capability makes it compatible with the latest ultrabooks and tablets, while the VGA input protects your investment in older equipment. The audio extraction feature is vital in large rooms where the projector's sound isn't sufficient, allowing you to redirect audio to a dedicated PA system with crystal-clear clarity.
Use cases
-

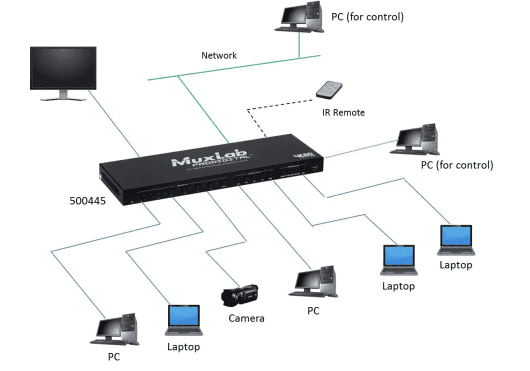

Corporate Boardrooms: Allows multiple presenters to connect their devices (laptops, tablets) and switch between them seamlessly.
-
University Classrooms and Auditoriums: Facilitates the connection of different teaching sources for teachers, from a desktop PC to a guest laptop.
-
Training Centers: Ideal for alternating between software demonstrations (via HDMI/DP) and document cameras.
-
High-End Home Cinema Installations: For users who need to manage multiple consoles and players towards a 4K projector with an external sound system.
Frequently Asked Questions
-
Does the USB-C port charge the connected laptop?
The USB-C input is primarily designed for video and data transmission. It is recommended to check the power specifications, although its main function in this selector is as a video interface.
-
Can I control the device remotely?
Yes, it includes an IR remote control, but it can also be integrated into professional control systems using RS-232 commands or via the LAN network (web interface or Telnet).
-
What happens if I connect a 1080p source and I have a 4K projector?
The MuxLab 500445's internal scaler will enhance the 1080p signal to adapt it to the projector's 4K resolution, optimizing image quality.
-
Does it support the ARC function?
This model focuses on extracting audio from the source to external systems and advanced audio pass-through, but it is not specifically designed as a TV return ARC manager.
Project description

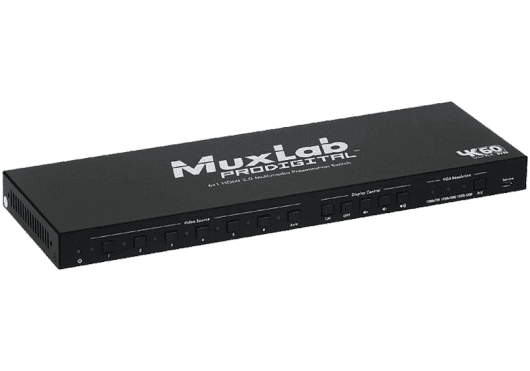

Presentation selector and 6x1 multimedia scaler with support for resolutions up to 4K UHD @ 60Hz (4:4:4). It features six selectable video inputs: 3x HDMI 2.0, 1x DisplayPort 1.2a, 1x USB Type-C, and 1x VGA (with associated 3.5mm stereo audio input). The unit has one HDMI 2.0 output and simultaneous de-embedded audio outputs in analog stereo (3.5mm jack) and digital optical (Toslink) formats. It supports EDID, HDCP 2.2, HDR10, and Dolby Atmos/DTS:X audio passthrough. Control options include front panel buttons, IR remote, RS-232, and LAN (IP). Metal chassis with an external 12VDC power supply.
