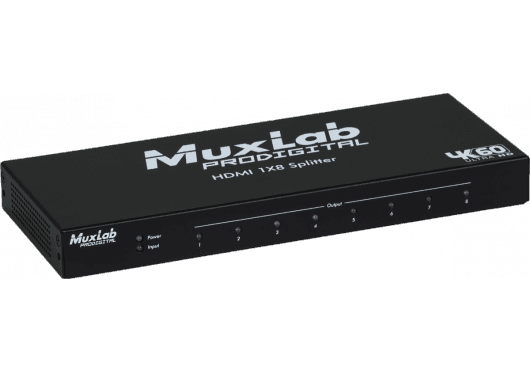

MuxLab IMU-500427 - HDMI Distributor 1x8, 4K/60 - Professional solution for ultra high definition signal distribution
The MuxLab 500427 is a high-performance 1x8 HDMI splitter designed to meet the demands of the most demanding audiovisual environments. This device allows you to connect a single HDMI 2.0 source, such as an Ultra HD Blu-ray player, high-performance PC, next-generation consoles, or media servers, and simultaneously distribute the signal to eight HDMI displays. Thanks to its advanced technology, it guarantees flawless transmission of 4K Ultra HD signals at 60Hz (4:4:4) , maintaining data integrity with no perceptible latency and complete transparency for the end user.

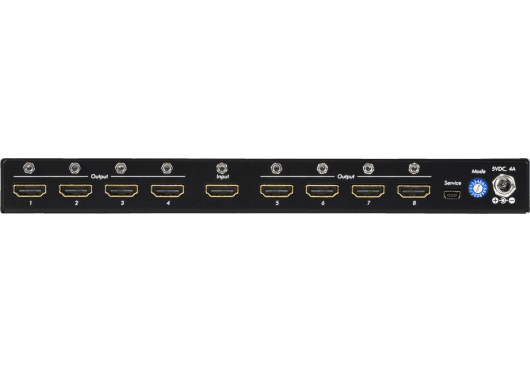

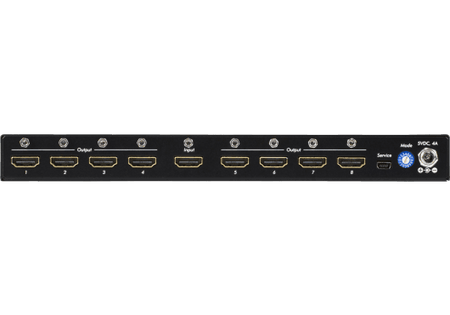

One of the most outstanding features of this device is its ability to manage mixed display environments thanks to its independent downscaler on each output. This means it can send a native 4K signal to compatible monitors while automatically downscaling the signal to 1080p for older displays connected to the same system, without affecting the image quality of the 4K monitors. Furthermore, its robust metal housing and the placement of all connectors on the rear panel facilitate a clean, organized, and professional installation in any rack or audiovisual cabinet.
Main features
-
HDMI 2.0 and HDCP 2.2 support: Fully compliant with the latest content protection regulations and bandwidth up to 18 Gbps, allowing 4K @ 60Hz resolutions.
-
Advanced EDID Management: Incorporates a 16-position rotary switch that allows you to select and manage the EDID (Extended Display Identification Data) to ensure maximum compatibility between the source and the displays.
-
Intelligent Down-Scaling Technology: Each HDMI output can independently scale a 4K signal to 1080p, allowing the integration of displays of different resolutions without conflicts.
-
High Fidelity Audio Support: Compatible with immersive audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X.
-
Visual Diagnostics: Front LED indicators for power and input/output link status, facilitating quick detection of connection problems.
-
High Dynamic Range (HDR): Supports 8, 10 and 12-bit HDR and Deep Color for images with greater contrast and color realism.
Benefits for the integrator and the end user

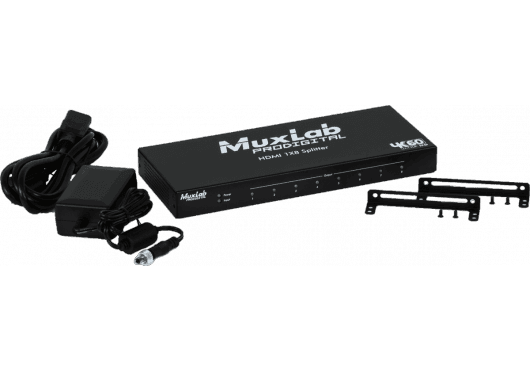

The MuxLab 500427 is more than just a signal multiplier; it's a troubleshooting tool for system integrators. Its ability to mix 4K and 1080p displays in a single installation eliminates the need to upgrade the entire monitor array simultaneously, resulting in significant cost savings. Support for HDR and advanced audio formats ensures a cinematic and immersive user experience, ideal for product demonstrations or high-end home entertainment. Furthermore, the included mounting ears and rear-mounted connector design greatly simplify cable management, reducing visual clutter and stress on HDMI cables.
Use cases
-
Digital Signage: Distribution of advertising content in 4K to multiple screens in shopping centers, airports or corporate lobbies.
-
Corporate Environments and Boardrooms: Simultaneous viewing of presentations or videoconferences on multiple monitors or projectors distributed throughout the room.
-
Training and Education Classrooms: Replicating the instructor's screen on multiple desks or wall monitors to facilitate viewing for all students.
-
Medical Facilities: Distribution of high-resolution diagnostic images to multiple viewing stations without loss of detail.
-
Retail and Showrooms: Demonstration of televisions and monitors showing the same high-quality source simultaneously for direct comparisons.
Frequently Asked Questions
Does the splitter support 4K and 1080p signals simultaneously?
Yes, thanks to its independent upscaling function, it can send 4K to compatible displays and convert the signal to 1080p for Full HD displays connected to other ports, all simultaneously from a single 4K source.
Which version of HDCP does it support?
The device is compatible with HDCP 1.4 and HDCP 2.2, ensuring playback of protected content from the latest sources.
Does it require an external power supply?
Yes, the equipment includes an external 5V DC power supply to ensure stable operation and the power required for signal transmission to multiple outputs.
Can it stream Dolby Atmos audio?
Yes, the MuxLab 500427 supports passthrough of advanced audio formats, including Dolby Atmos and DTS:X.
Project description
Professional 1x8 HDMI splitter compatible with HDMI 2.0 and HDCP 2.2, capable of transmitting resolutions up to 4K UHD (3840x2160) at 60Hz (4:4:4) with a bandwidth of 18 Gbps. The unit features one HDMI input and eight HDMI outputs, with independent downscaling from 4K to 1080p per port to manage mixed display environments. It supports HDR, 12-bit Deep Color, and LPCM 7.1 audio formats, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X. It includes EDID management via a 16-position rotary selector, diagnostic LED indicators, and a metal housing with rear connectors. Dimensions: 242 x 97 x 25 mm; Weight: 1.45 kg; External power supply included.
