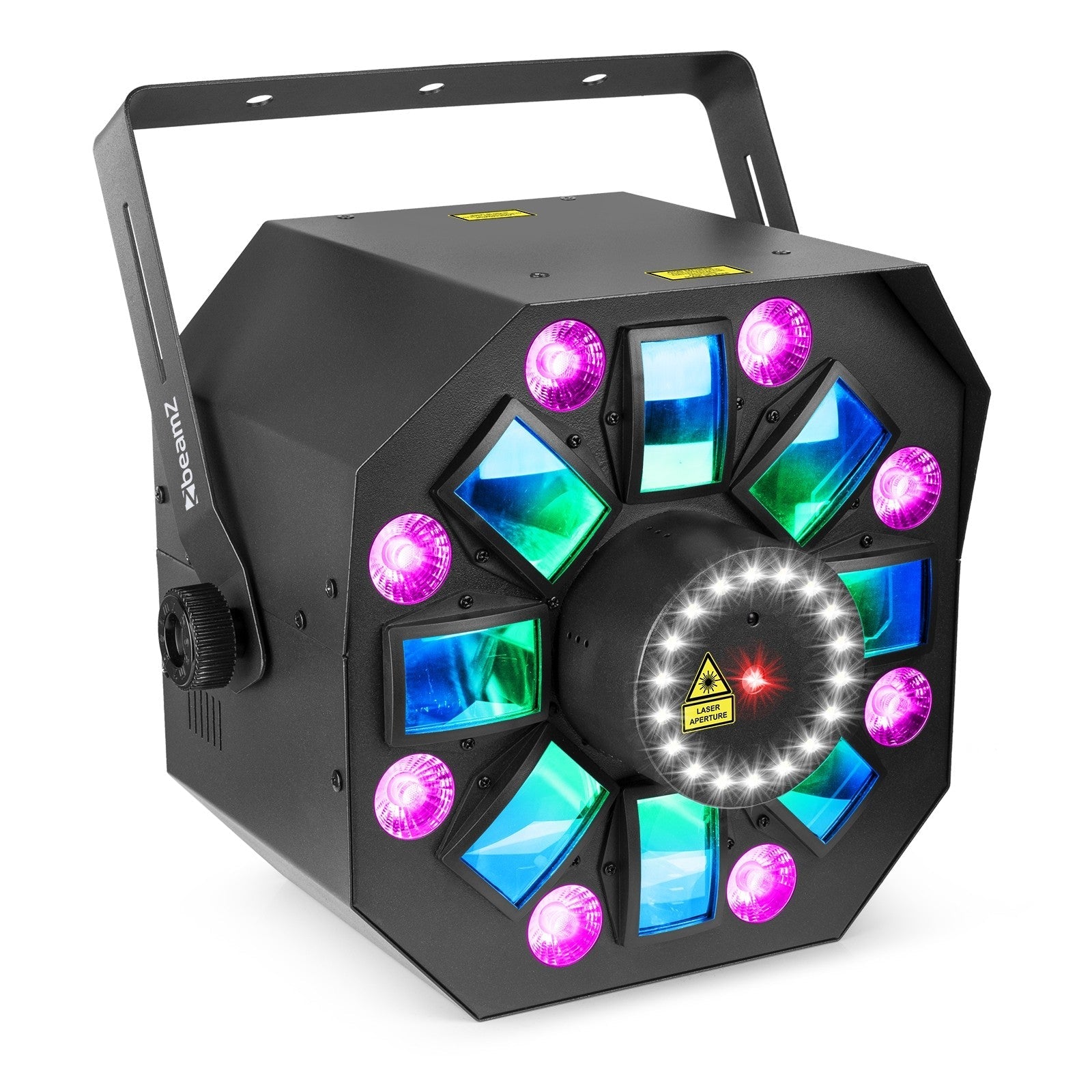

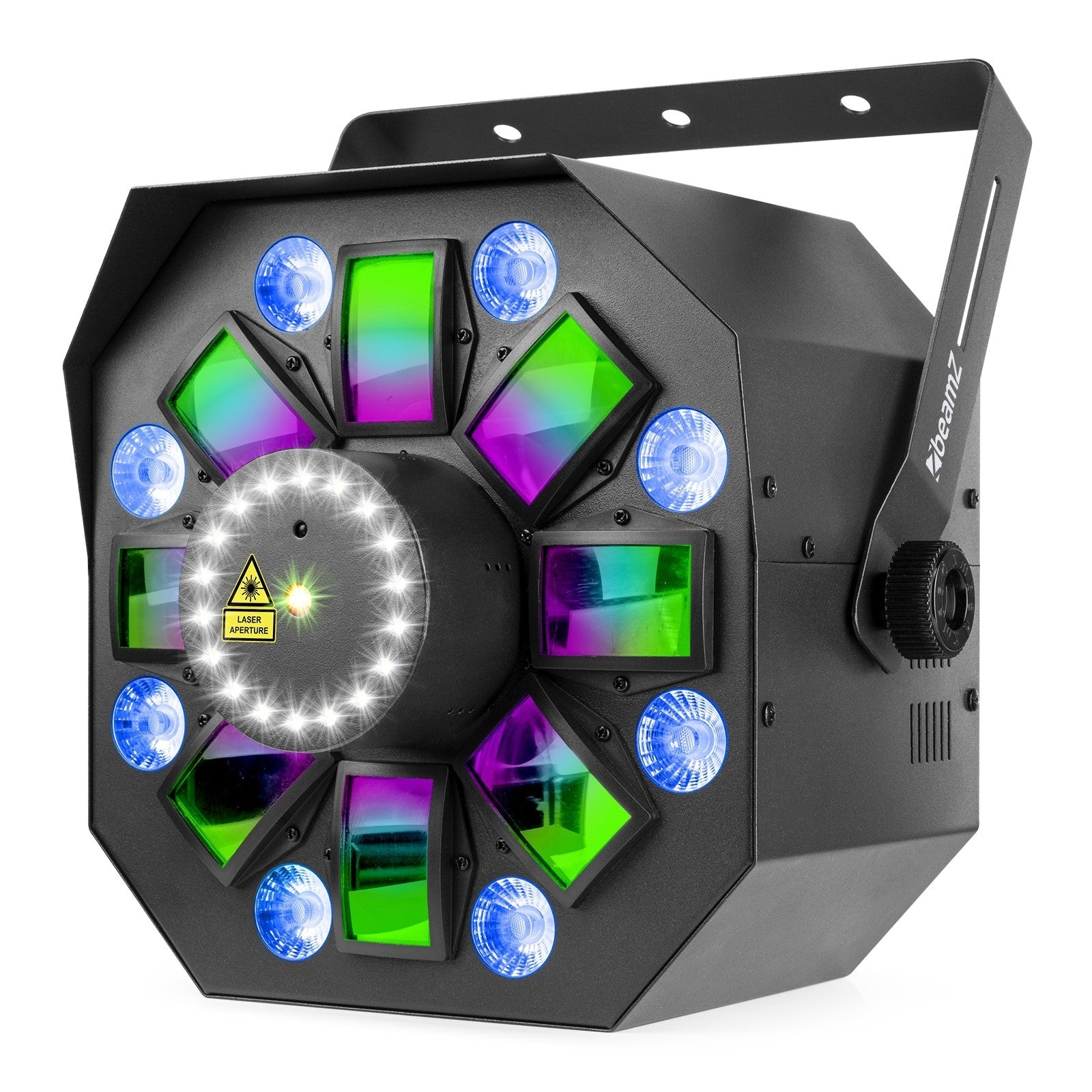

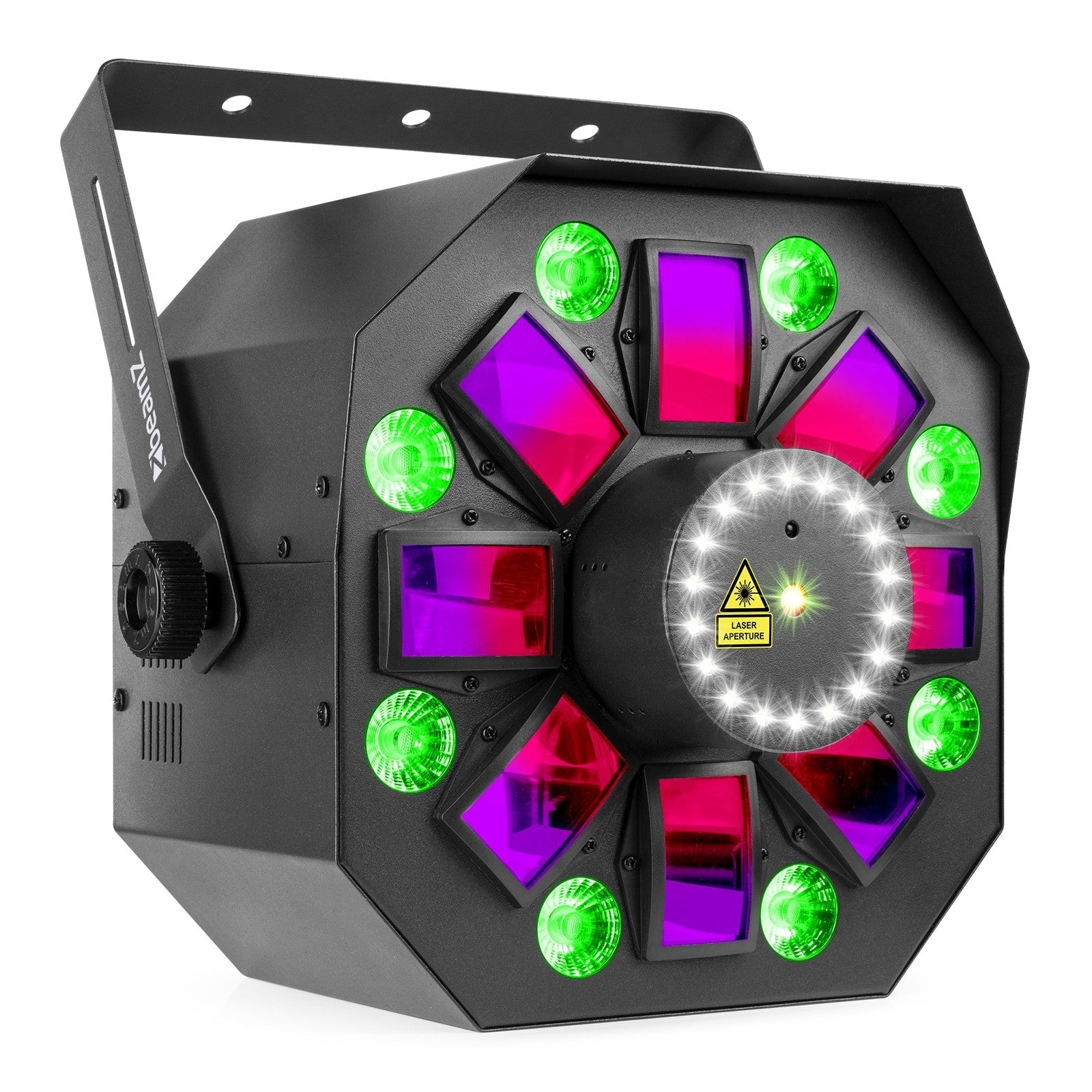

beamZ MultiBox 100W - 4-in-1 Effect (Derby, RGB-UV PAR, RG Laser and SMD Strobe) with DMX and IR

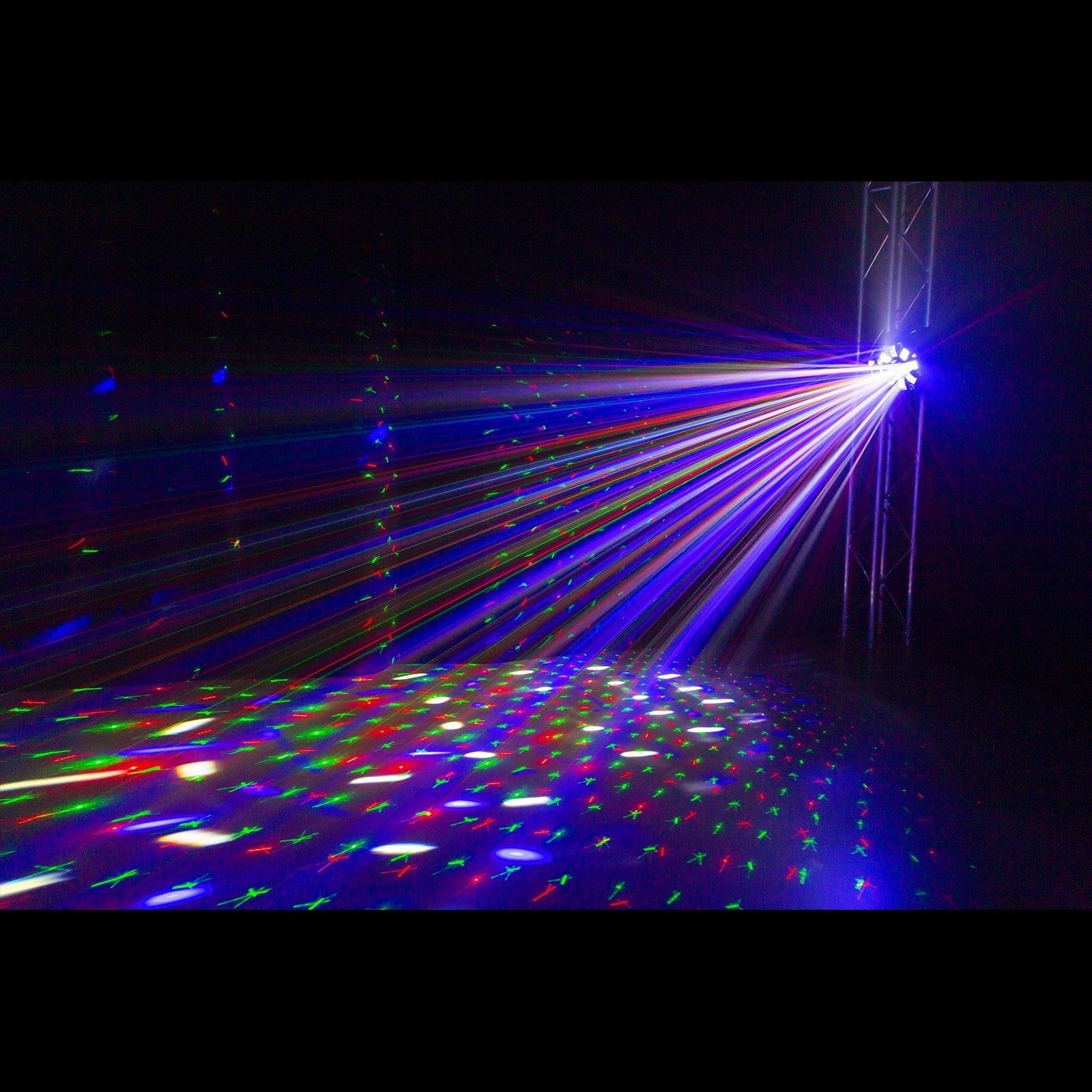

The beamZ MultiBox 100W combines four essential effects into a single unit to liven up any event: multi-color Derby , high-power RGB-UV PAR , red/green laser , and SMD strobe . With pre-programmed shows , a sound-activated mode with adjustable sensitivity, and DMX control (3/11/19 channels), it offers everything from plug-and-play operation to advanced programming. All effects are individually controlled, allowing you to combine Derby beams , UV color washes , strobe bursts , and laser shapes on a single compact bar.
The Derby module integrates 6 x 3W RGBWAP (red, green, blue, white, amber, and pink) for intense beams; the PAR adds 8 x 8W RGB-UV (with true ultraviolet) for powerful washes ; the strobe uses 18 white SMD LEDs with a speed of 1–24 Hz ; and the laser combines 100mW red (650nm) + 50mW green (532nm) . Control is via the LED display , the included IR remote , or DMX ; it supports Master/Slave configurations and daisy-chaining via 3-pin XLR DMX and power input/output . Its design is ideal for mobile DJs , entertainment, and fixed installations seeking maximum versatility with a single power source.
Main features
-
4-in-1 Effect : Derby, PAR RGB-UV , red/green laser and SMD strobe .
-
Derby : 6 x 3W LEDs in RGBWAP (R/G/B/W/Amber/Pink) with color control.
-
PAR : 8 x 8W 4-in-1 LEDs ( RGB-UV ) for intense color baths with ultraviolet.
-
Strobe : 18 × white SMD LEDs, 1–24 Hz (from subtle to aggressive).
-
Laser : 100 mW red (650 nm) + 50 mW green (532 nm) .
-
Control : DMX 3/11/19 channels, IR , Auto and Sound ; all effects controllable separately.
-

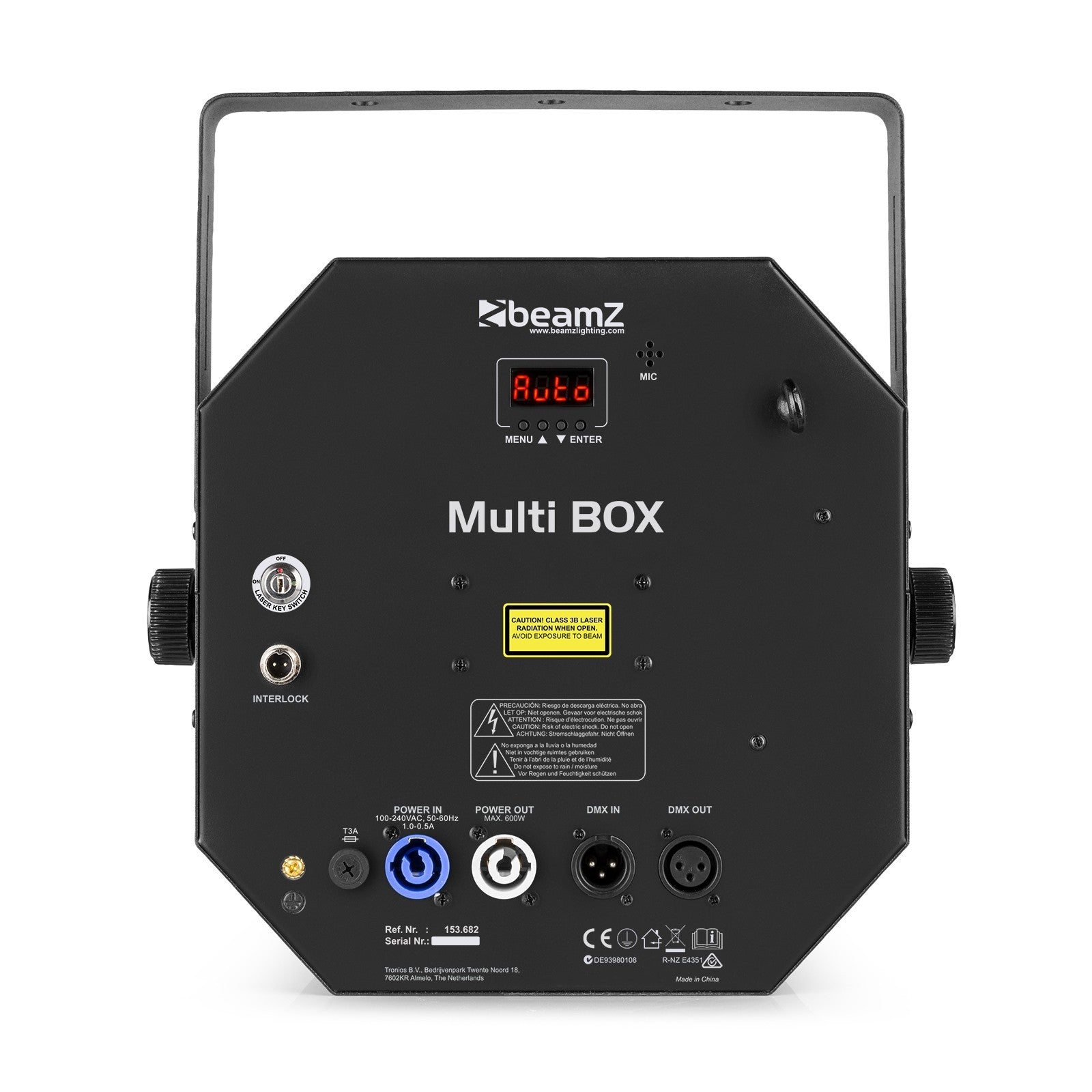

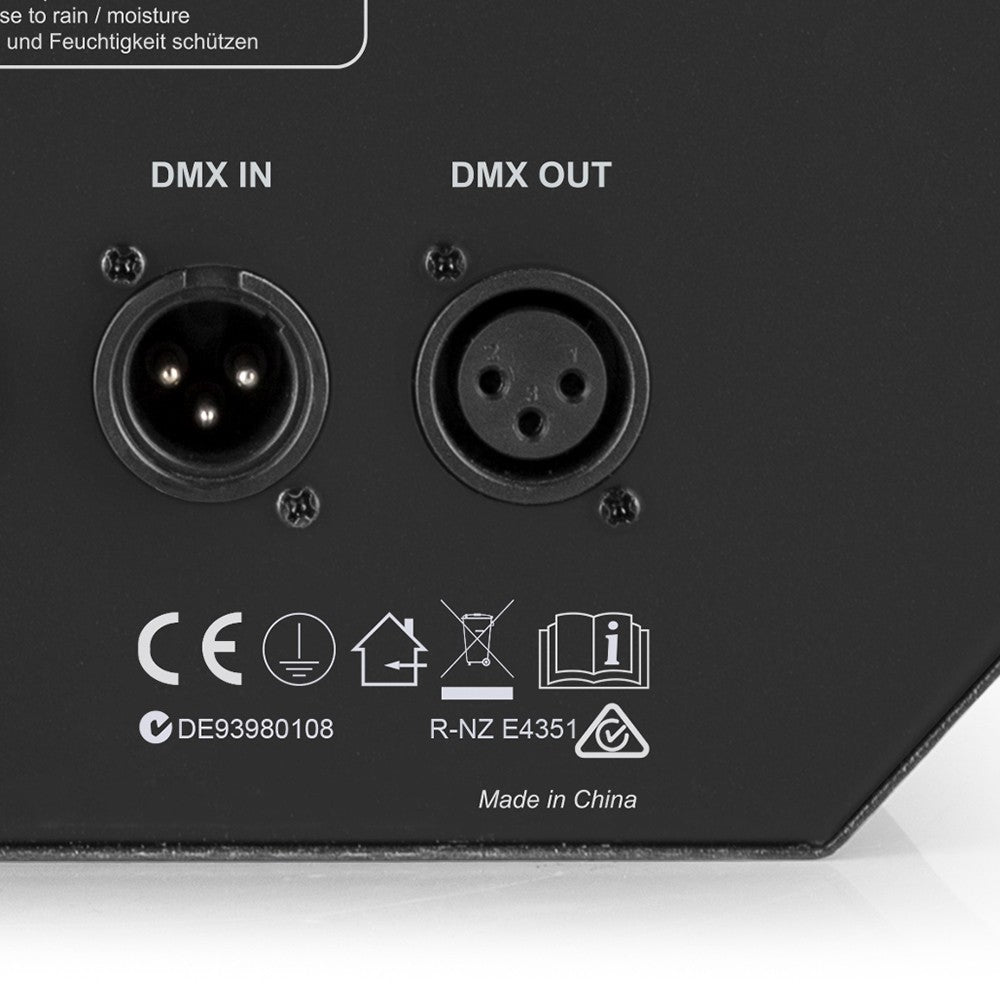

Connectivity : DMX in/out XLR 3 pin; power link in/out for daisy-chaining units.
-
Operation : Master/Slave , LED display and pre-programmed shows ready to use.
-
Format : 275 × 320 × 350 mm; 4.6kg ; black casing.
Product benefits
-
Space and cabling savings : four effects in a single unit with a single power point.
-
Ready for action : Auto and Sound modes with adjustable sensitivity for immediate results.
-
Scalable and professional : DMX control and Master/Slave to synchronize multiple units.
-
Maximum versatility : ideal for mobile DJs , entertainment venues, bars, clubs and corporate events.
Use cases
-
Mobile DJ and entertainment : weddings, birthdays, schools and local festivals.
-
Leisure venues : clubs and bars seeking visual impact with quick setup.
-
Fixed installations : youth centers, clubs and multipurpose rooms with DMX programming.
Frequently Asked Questions
-
Can I use it without a DMX console? Yes. It has automatic programs and a sound-activated mode with an included IR remote.
-
What DMX modes does it offer? 3, 11 or 19 channels , from basic control to detailed control of each effect.
-
Can multiple units be linked? Yes, via DMX XLR 3-pin and power in/out for clean wiring.
-
Does it include ultraviolet? Yes, the PAR is RGB-UV with real UV.
-
Is it suitable for outdoor use? Designed for indoor use .
DMX Control (Summary)
-
3 channels : master dimmer, strobe/auto, program speed.
-
11 channels : control of RGB-UV PAR , strobe and basic Derby/Laser parameters.
-
19 channels : full control: PAR (R, G, B, UV) , strobes (wash and SMD), Derby (R, G, B, W, Amber, Pink + rotation), laser (red, green, both and rainbow effect + rotation), program selection and speed.
Laser safety and best practices
- Avoid pointing the laser at people or highly reflective surfaces; comply with current local regulations.
- Install at a safe height, with a secondary safety cable, and test the programs before opening to the public.
Project description
4-in-1 LED effect for indoor use, reference 153.682 : Derby 6 × 3 W RGBWAP ; PAR 8 × 8 W RGB-UV ; strobe 18 × SMD white ( 1–24 Hz ); red laser 100 mW @ 650 nm + green laser 50 mW @ 532 nm ; DMX control 3/11/19 , Auto , Sound , Master/Slave ; DMX in/out XLR 3-pin; power in/out ; IR remote, bracket and cable included; power supply 100–240 V~ 50/60 Hz ; consumption 0.96–0.48 A ; dimensions 275 × 320 × 350 mm ; weight 4.6 kg ; color black.
