LuppaLED DYNAMIC LP-DYN3-9L - Professional Indoor Rental LED Screen

LuppaLED DYNAMIC LP-DYN3-9L - Professional Indoor Rental LED Screen

The LuppaLED DYNAMIC LP-DYN3-9L is a high-performance LED display solution designed specifically for the demanding rental and indoor event production market. Part of the advanced DYNAMIC series, this screen combines exceptional image quality with unprecedented mounting flexibility, allowing creatives and technicians to build impactful video surfaces with complete freedom.

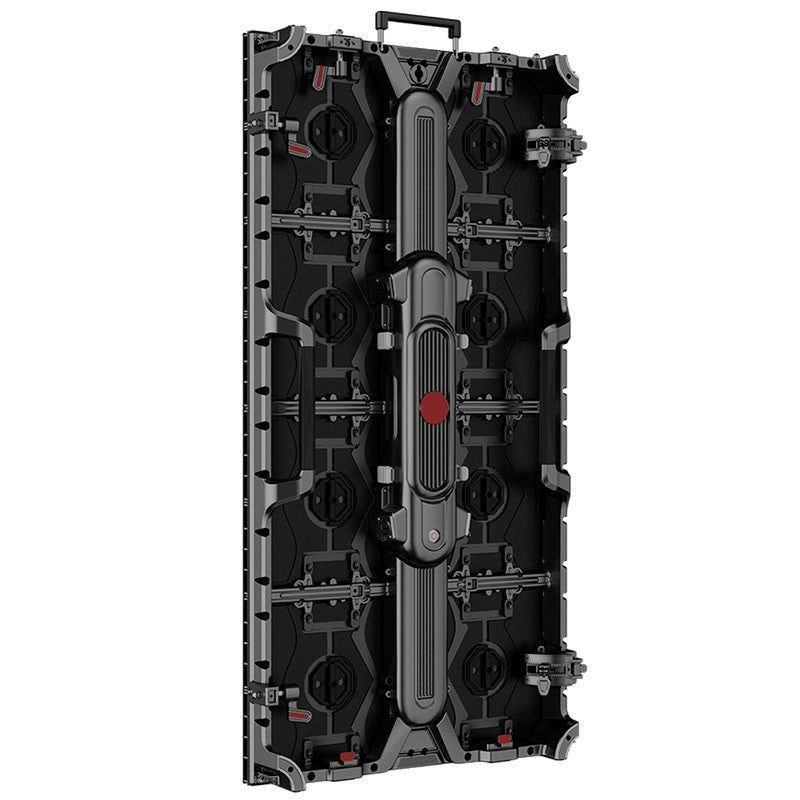

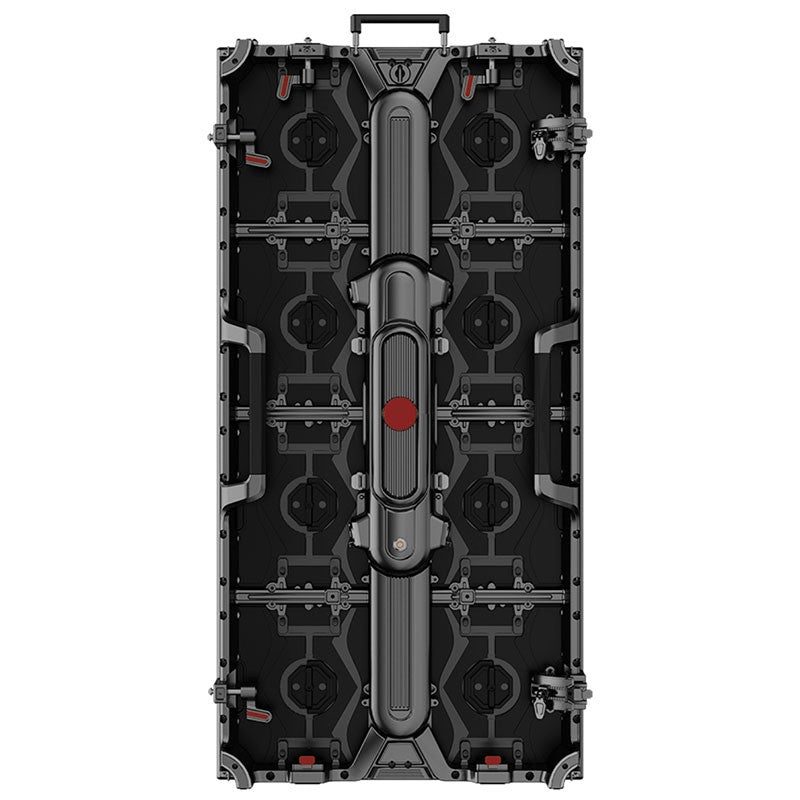

Its design focuses on modularity and operational efficiency. Each cabinet is constructed from die-cast aluminum, a material that ensures a robust yet lightweight structure, facilitating transport and assembly at height. Weighing only 12.5 kg per 500x1000 mm panel, up to 20 cabinets can be safely stacked vertically, creating large-format displays without compromising stability.

Main Features

• Superior Resolution: With a pixel pitch of 3.91 mm, the screen offers a sharp and detailed resolution, ideal for viewing at short and medium distances in corporate events, trade shows and television studios.
• High Image Quality: Enjoy smooth, flicker-free video playback thanks to its high 3840Hz refresh rate. Its 14-bit grayscale processing capability ensures smooth color transitions and superior color depth.
• Adaptive Brightness: Although the manufacturer's information indicates a brightness of 4000-4500 cd/m², which makes it exceptionally visible even in environments with high ambient lighting, the standard parameters for indoor use are between 600-700 nits, guaranteeing comfortable viewing without eye strain.
• Wide Viewing Angle: Its 140° viewing angles both horizontally and vertically ensure that the image is perfectly visible from virtually any point, without color distortion or loss of contrast.
• Intelligent Modular Design: Both the LED modules and the "power box" (power and control box) are completely modular and quickly replaceable, radically simplifying maintenance tasks.
• Dual Maintenance: Offers full access for maintenance from both the front and the back, providing great versatility for all types of installations, including those where the screen is mounted close to a wall.

Flexibility and Creative Design without Limits

The DYNAMIC series was created to bring even the most ambitious ideas to life. Its innovative, high-precision curved locking system allows for adjusting the angle between cabinets from -10° (concave) to +15° (convex). This, combined with the compatibility between the 500x1000 mm panels and other sizes in the series, such as 500x500 mm or 45° corner panels, opens up a wide range of creative possibilities for forming circular screens, cubes, 90° corners, and complex waves.

Use Cases

Thanks to its versatility, durability, and image quality, the LuppaLED DYNAMIC LP-DYN3-9L is the perfect choice for a wide range of professional indoor applications, such as:

• Conferences and trade fairs
• Concerts and festivals in enclosed venues
• Corporate events and product launches
• Television studios and audiovisual productions
• Digital set design for theaters and shows
• Fixed installations in auditoriums and convention centers

Frequently Asked Questions

Is it possible to combine this 500x1000 mm panel with other sizes?

Yes, one of the great advantages of the DYNAMIC series is its complete compatibility. You can mix and match 500x1000 mm panels vertically and horizontally with 500x500 mm panels and other formats from the same series to create custom configurations.

What kind of curved shapes can be created?

The high-precision locking system allows for the creation of concave curves with an angle of up to -10° and convex curves of up to +15° between each cabinet, enabling everything from smooth arcs to complete circular configurations.

Does front-end maintenance require special tools?

No, the system is designed for quick service. The modules and power box can be easily removed and replaced from the front, minimizing downtime during an event.

What is the appropriate brightness level for an indoor event?

For most indoor applications, a calibrated brightness between 600 and 700 cd/m² (nits) is more than sufficient and comfortable for the eyes. The maximum range of 4000–4500 cd/m² offers extra power for situations with exceptionally high ambient light.

Project description

Modular LED display for indoor rental, reference LP-DYN3-9L from the DYNAMIC series. Composed of 500 x 1000 mm die-cast aluminum cabinets. Features a 3.91 mm pixel pitch, a 3840 Hz refresh rate, 14-bit grayscale, and a maximum brightness of 4000-4500 cd/m². Viewing angles are 140° (H) and 140° (V). Includes a locking system that allows for curvature adjustment from -10° to +15° between panels. The design allows for complete front and rear maintenance. The IP rating is IP40 on the front and IP21 on the rear.
