Luppaled Dynamic Pro LP-DYNP3-9 - Curved LED Display for Rental Indoor 3.91mm

Luppaled Dynamic Pro LP-DYNP3-9 - Curved LED Display for Rental Indoor 3.91mm

The Luppaled Dynamic Pro LP-DYNP3-9 screen redefines versatility in the audiovisual rental and staging market. Designed specifically for indoor applications, this LED screen combines exceptional image quality with unprecedented structural flexibility, enabling the creation of dynamic and creative visual surfaces. Its robust construction and modular design make it the ideal solution for corporate events, concerts, trade shows, and broadcast productions that demand flawless visual performance and efficient logistics.

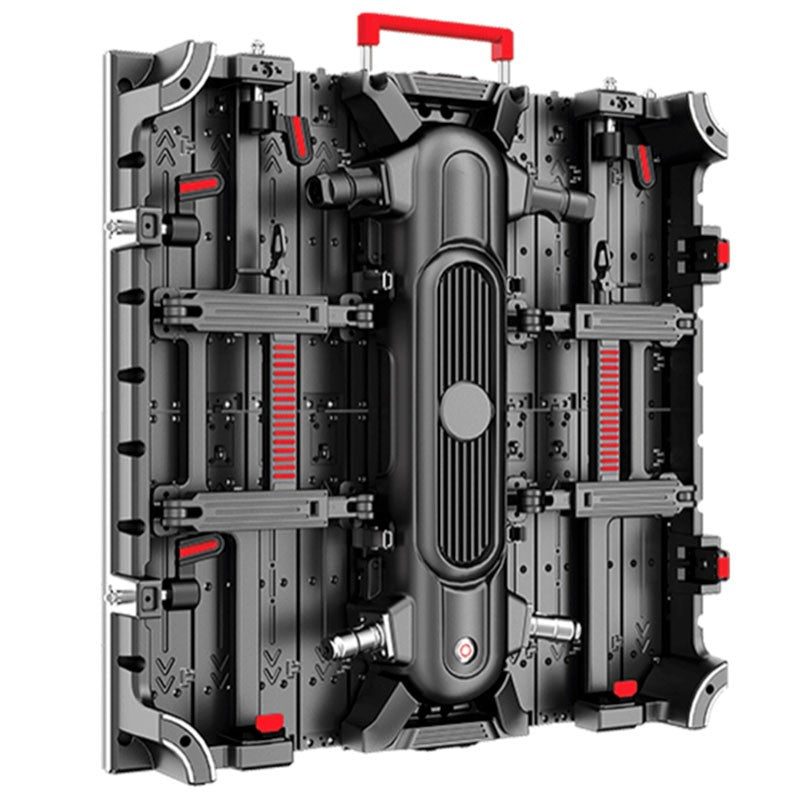

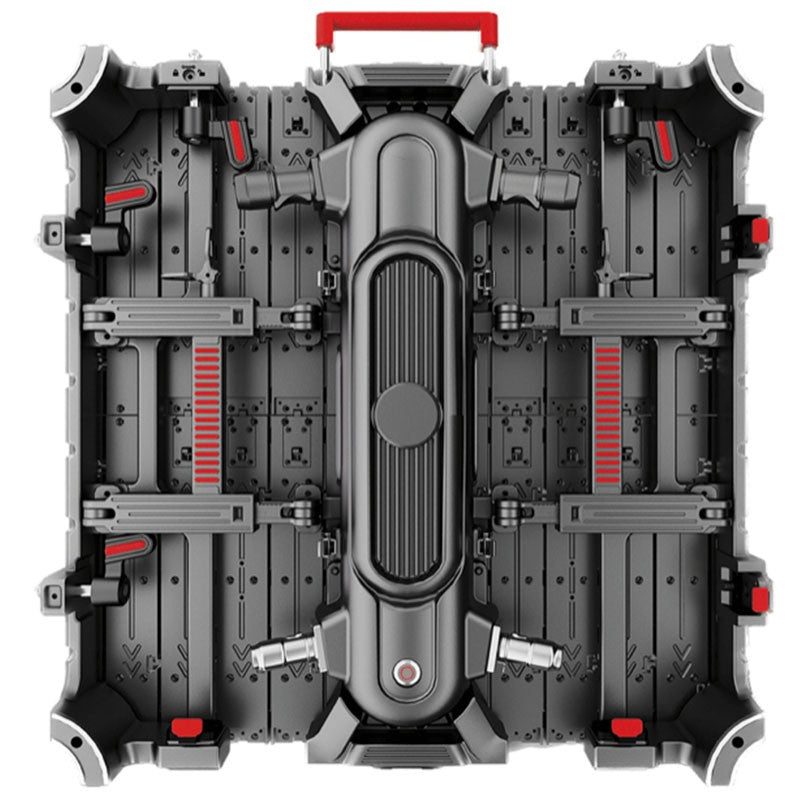

Manufactured from high-precision die-cast aluminum, each 500x500 mm cabinet is lightweight yet robust, weighing just 7.5 kg. This design not only facilitates transport and assembly but also allows up to 20 cabinets to be stacked securely in a single vertical column. Its key appeal lies in its ability to form curves, with an impressive arc range of -45° to +45°, enabling the construction of concave, convex, circular (O, C, S, U shapes), and other custom configurations with a minimum diameter of 1.27 meters.

Main Features

• Unlimited Creative Flexibility: Its adjustable curvature mechanism allows an arc range of -45° to +45° per cabinet, facilitating the creation of concave and convex video walls, as well as complex shapes for unique stage designs.
• Superior Image Quality: With a 3.91 mm pixel pitch, this display delivers crisp resolution even at short viewing distances. Its high 3840 Hz refresh rate ensures smooth, flicker-free video playback, ideal for camera recordings and live streaming. Furthermore, its 14-bit grayscale provides exceptional color depth and chromatic gradations.
• Robust Design for the Rental Sector: Each panel is constructed from high-quality cast aluminum, ensuring durability and heat dissipation. Its lightweight design (7.5 kg) and quick-locking systems are designed to expedite assembly and disassembly.
• Efficient Maintenance: The screen is designed with a rear maintenance system and a modular cover, simplifying and speeding up access to internal components for any adjustment or replacement.
• Professional Visual Performance: Offers a brightness of 600-700 nits, perfect for controlled indoor environments, and a wide 140° viewing angle both horizontally and vertically, ensuring the image is perfect from any perspective.

Benefits for Rental and Event Companies

The Dynamic Pro series is designed to maximize the profitability and operational efficiency of rental companies. Its ability to create curved and customized shapes allows for high-impact visual solutions that differentiate your services from the competition. Its robust design, along with an estimated lifespan of 100,000 hours, ensures a long-term return on investment. The lightweight cabinets and the quick-release mounting system drastically reduce assembly time and labor costs.

Use Cases

Thanks to its versatility and performance, the Luppaled Dynamic Pro is the perfect choice for a wide range of indoor applications, such as:

• Venues for concerts, festivals and tours.
• Conferences, trade fairs and corporate presentations.
• Television studios, broadcast productions and streaming events.
• Immersive visual installations in exhibitions and museums.
• Stage backdrops for sporting events and ceremonies.

Frequently Asked Questions

What does it mean that the refresh rate is 3840 Hz?
A refresh rate of 3840 Hz means the image is updated 3840 times per second. This is crucial for productions that will be filmed, as it eliminates flickering and black lines that can appear on camera, ensuring professional image quality for broadcast and high-speed recordings.

Is it possible to combine these panels with others from the Dynamic series?
Yes, one of the strengths of this model is its ability to be flexibly interconnected with other products in the Dynamic Series, allowing for the creation of hybrid and complex configurations tailored to each need.

What is the minimum diameter that can be formed when creating a complete circle?
The screen can be joined together to form both internal and external arc rings, with a minimum diameter of only 1.27 meters, offering great versatility for circular and semicircular designs.

Project description

Luppaled Dynamic Pro LP-DYNP3-9 modular LED display for indoor use. Composed of 500x500x80 mm die-cast aluminum cabinets. Features a 3.91 mm pixel pitch, 64x64 pixel resolution per panel, 600-700 cd/m² brightness, 3840 Hz refresh rate, and 14-bit grayscale. Each panel weighs 7.5 kg and offers an adjustable curvature range of -45° to +45°. Maintenance is performed from the rear, and it has an IP40 (front) / IP21 (rear) protection rating.
