LUPPALED DYNAMIC PRO LP-DYNP2-9 - Curvable Modular LED Display for Rental Indoor

LUPPALED DYNAMIC PRO LP-DYNP2-9 - Curvable Modular LED Display for Rental Indoor

The LUPPALED DYNAMIC PRO LP-DYNP2-9 display is a high-performance visual solution designed specifically for the demanding rental and indoor event setup market. With a fine pixel pitch of 2,976 mm, this LED panel delivers exceptional image quality, with crisp details and vibrant colors, ideal for applications where close viewing proximity demands maximum resolution. Its modular 500x500 mm die-cast aluminum cabinet construction ensures a lightweight yet robust structure, as well as quick assembly and efficient transport.

The most outstanding feature of the DYNAMIC PRO series is its incredible flexibility. Thanks to an advanced locking system that allows an arc range of -45° to +45°, the panels can be joined together to create concave and convex surfaces, as well as complex shapes such as full circles, waves (S), and other custom configurations. This versatility opens up a world of creative possibilities for stage designers, trade show organizers, and corporate event designers, enabling them to build dynamic and immersive visual structures that capture the audience's attention.

Main features

• Superior Image Quality: With a high refresh rate of 3840 Hz, this screen guarantees completely smooth, flicker-free video playback, a critical factor for television broadcasts and video recordings. Its 14-bit grayscale ensures smooth color transitions and high contrast for stunning images.
• Unprecedented Creative Flexibility: Its ability to curve in a range of -45° to +45° per panel allows the creation of screens in 'O', 'C', 'S', 'U' shapes and arcs with a minimum diameter of 1.27 meters, offering unparalleled design freedom.
• Robust and Lightweight Construction: Made from high-quality cast aluminum, each 7.5 kg cabinet is easy to handle, yet strong enough to allow vertical stacking of up to 20 units, ensuring safety in large-format assemblies.
• Modular and Efficient Design: The 500x500 mm panels and 250x250 mm modules, along with a modular back cover, simplify assembly, disassembly and maintenance tasks, which are carried out from the rear.
• Optimized Brightness for Indoors: A brightness level of 600-700 cd/m² (nits) provides perfect visibility in indoor environments, from auditoriums with controlled lighting to well-lit trade fair halls.

Benefits for the event professional

For audiovisual equipment rental companies, the LUPPALED DYNAMIC PRO LP-DYNP2-9 represents a smart investment. Its modular design and flexible connection system not only speed up setup and teardown, reducing labor costs, but its durability and reliability also guarantee a long-term return on investment. The versatility to create both flat and curved configurations with the same product expands the range of solutions offered to customers without requiring additional inventory.

Use cases

Thanks to its flexibility and high image quality, this LED screen is the perfect choice for a wide range of indoor applications, such as:

• Concerts and Festivals: Creation of dynamic and immersive stage backdrops that accompany the performance.
• Trade Fairs and Exhibitions: Design of striking and attractive stands that stand out from the competition.
• Television Studios and Virtual Productions: High-resolution, flicker-free backgrounds, ideal for recording with professional cameras.
• Conferences and Corporate Events: Crisp and visually appealing presentations in venues of any shape and size.
• Product Launches and Fashion Shows: Creative sets that enhance the product or collection presented.

Frequently Asked Questions

Is it possible to create a completely circular screen with these panels?
Yes, the arc adjustment capability of up to +45° per panel allows for the formation of complete rings and circles, with a minimum diameter of 1.27 meters.

Is this screen suitable for outdoor use?
No. With an IP40 rating on the front and IP21 on the back, this display is designed exclusively for indoor use, protected from dust and without exposure to moisture or rain.

What type of maintenance does it require?
Module maintenance is performed from the rear. The modular design of the back cover allows quick and easy access to internal components for inspection or replacement.

Why is the high refresh rate of 3840 Hz important?
A high refresh rate is essential to avoid flickering or banding when recording the screen with a camera. 3840 Hz ensures the image appears sharp and stable to both the human eye and any video camera, which is crucial for live-streamed or recorded events.

Project description

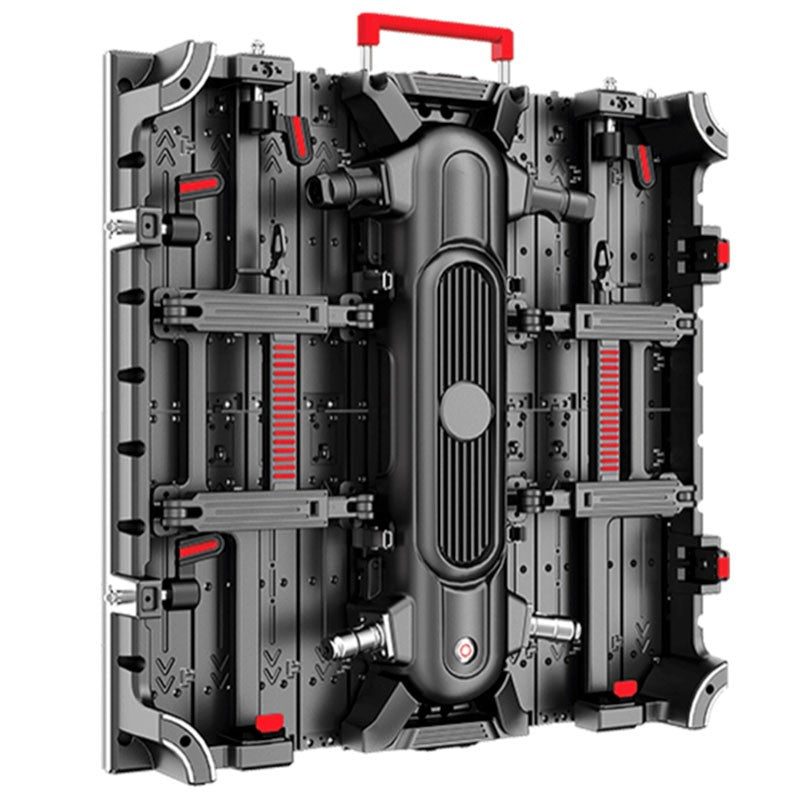

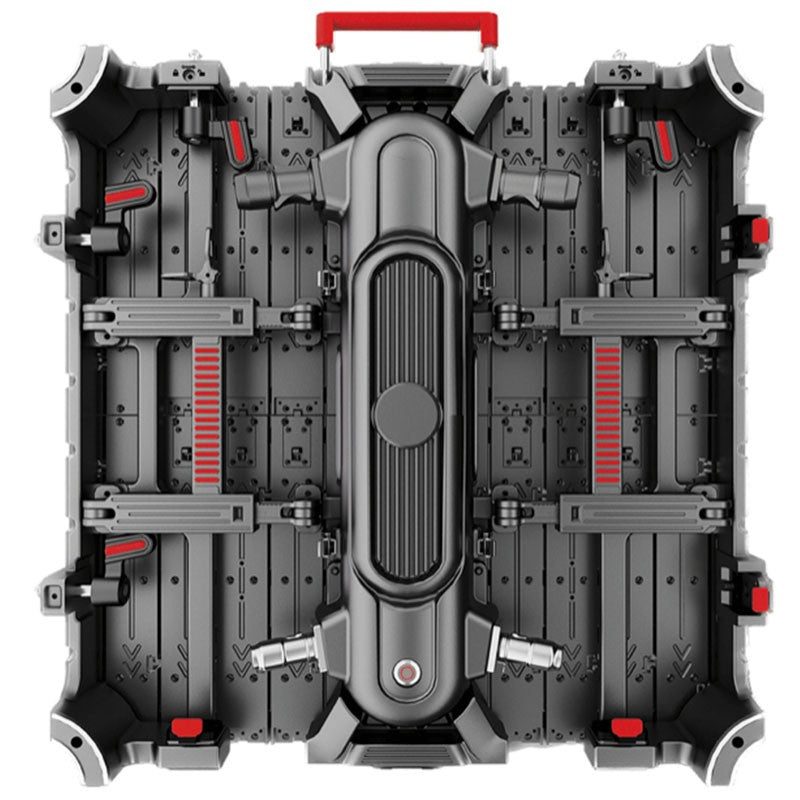

Modular LED panel for indoor use, model LP-DYNP2-9 from the Dynamic PRO series. Cabinet dimensions: 500 x 500 mm, made of die-cast aluminum. Pixel pitch: 2.976 mm, with a resolution of 84 x 84 pixels per panel. Adjustable brightness from 600 to 700 cd/m², refresh rate of 3840 Hz, and 14-bit grayscale. Offers a 140° viewing angle horizontally and vertically. Panel curvature capability from -45° to +45°. IP40 protection rating (front) and IP21 (rear). Module maintenance is accessible from the rear.
