LUPPALED ARCO PRO LP-ARCP-6 - Low Consumption and High Performance Outdoor LED Screen

LUPPALED ARCO PRO LP-ARCP-6 - Low Consumption and High Performance Outdoor LED Screen

The LUPPALED ARCO PRO LED display, model LP-ARCP-6, is designed to deliver exceptional visual performance in fixed outdoor installations. This 960 x 960 mm panel has established itself as a leading solution for digital advertising, signage, and outdoor events, thanks to its combination of energy efficiency, durability, and superior image quality. With a 6.67 mm pixel pitch, it ensures clear and sharp viewing at medium and long distances, ideal for capturing the public's attention in any urban or commercial environment.

One of its most outstanding innovations is its energy-efficient system. Thanks to a dual-voltage power supply and the use of low-power components, this display achieves a bright 6000 to 7500 cd/m² (nits) brightness with an average power consumption of only 166 W/m², significantly reducing long-term operating costs. Furthermore, its self-cooling design with an aluminum casing efficiently dissipates heat, eliminating the need for additional air conditioning systems and further contributing to energy savings.

Main features

• Fully enclosed modules: Each module features a sealed aluminum housing, offering superior weather protection and an IP65 rating that ensures operation in adverse weather conditions such as rain, dust, or humidity.
• High image quality: With a brightness of up to 7500 nits, a high refresh rate of 3840 Hz and a 14-bit grayscale, the screen reproduces vivid and fluid colors, without flickering, even in direct sunlight.
• Self-cooling design: The module's aluminum structure allows for passive and highly effective heat dissipation, eliminating the need for fans or air conditioning, resulting in quiet operation and lower power consumption.
• Flexible maintenance: The smart modular design allows quick and easy access for maintenance tasks from both the front and the rear, facilitating repairs and minimizing downtime.
• Robust and standardized construction: Made with a profiled aluminum cabinet, this screen is lightweight (29.5 kg) yet durable. Its standardized design allows for combining modules with different pixel pitches within the same series, offering great versatility in projects.
• Intelligent monitoring: Integrated smart modules allow real-time monitoring of temperature and voltage, facilitating remote detection of potential points of failure for proactive maintenance.

Benefits for the installer and the end customer

For installers, the ARCO PRO series offers exceptional ease of assembly thanks to its modular design and front and rear service access. Compatibility between different pixel pitches within the same series simplifies planning for large-scale projects. For the end customer, the benefits are clear: a long-lasting and cost-effective investment with a low total cost of ownership, thanks to its outstanding energy savings, lifespan of up to 100,000 hours, and minimal maintenance requirements. Superior image quality ensures that advertising or informational content is always displayed with maximum visual impact.

Use cases

Thanks to its robustness, high brightness and efficiency, the LUPPALED ARCO PRO display is the perfect choice for a wide variety of outdoor applications, including:

• Digital billboards and advertising displays (DOOH).
• Information screens in stadiums and sports venues.
• Shop windows of large stores and shopping centers.
• Digital signage in transport stations and airports.
• Venues for outdoor events and concerts.

Frequently Asked Questions

Is this screen completely resistant to rain and dust?

Yes, it has an IP65 rating on both the front and back, guaranteeing complete protection against dust and water jets, making it ideal for any outdoor climate.

Do you need an air conditioning system to cool down?

No. Its self-cooling design with an aluminum casing allows for very efficient passive heat dissipation, eliminating the need for expensive and noisy air conditioning systems.

What does a "pixel pitch" of 6.67 mm mean?

The pixel pitch is the distance between the centers of two adjacent pixels. A value of 6.67 mm indicates that the screen offers optimal resolution for viewing distances of approximately 7 meters and beyond, perfect for most outdoor applications.

Can maintenance be performed from the front?

Yes, its design allows full access for maintenance from both the front and the rear, offering great installation flexibility, especially in locations where rear access is limited.

Project description

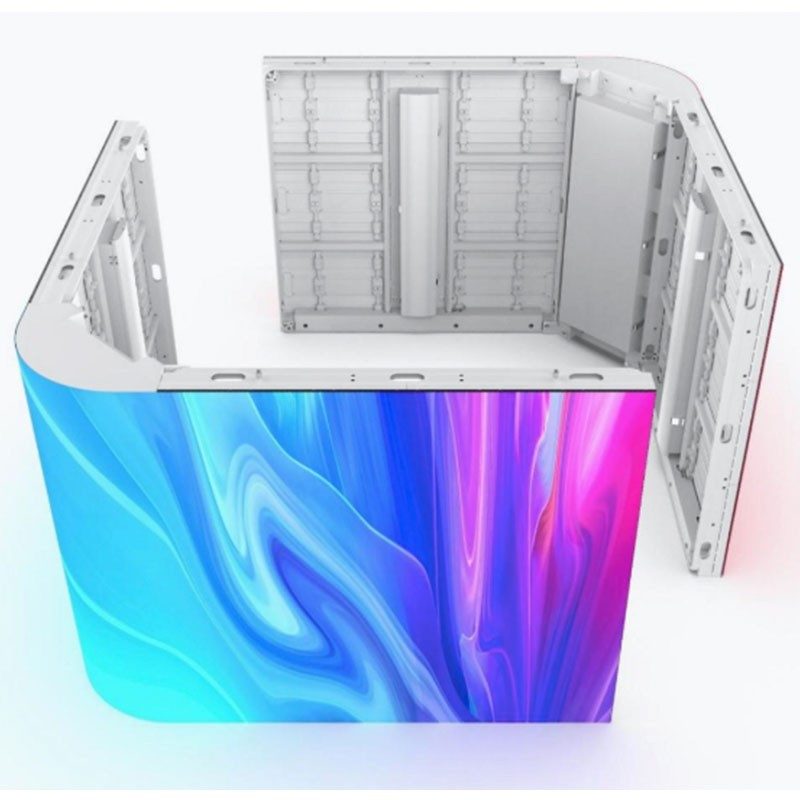

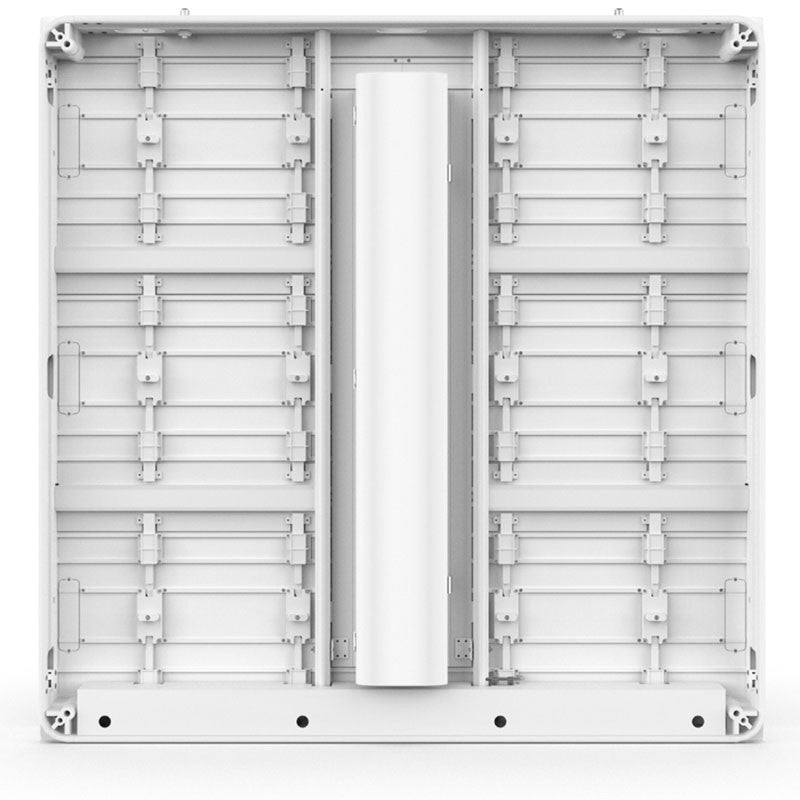

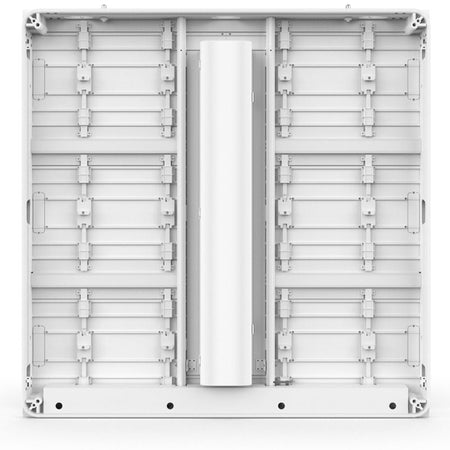

The LP-ARCP-6 outdoor LED display from the ARCO PRO series features a 960 x 960 mm aluminum cabinet weighing 29.5 kg. It has a 6.67 mm pixel pitch and a 144 x 144 pixel panel resolution. Operating brightness ranges from 6000 to 7500 cd/m² with a 3840 Hz refresh rate and 14-bit grayscale. The 320 x 320 mm module is fully enclosed with an IP65 protection rating. It incorporates a self-cooling system and a dual-voltage power supply, allowing for an average power consumption of 166 W/m² and a maximum of 500 W/m². It is accessible from both the front and rear for maintenance and operates within a temperature range of -20 to 50 °C.
