LUPPALED ARCO PRO LP-ARCP-5 - Low Consumption Outdoor LED Screen 960x960mm P5.71

LUPPALED ARCO PRO LP-ARCP-5 - Low Consumption Outdoor LED Screen 960x960mm P5.71

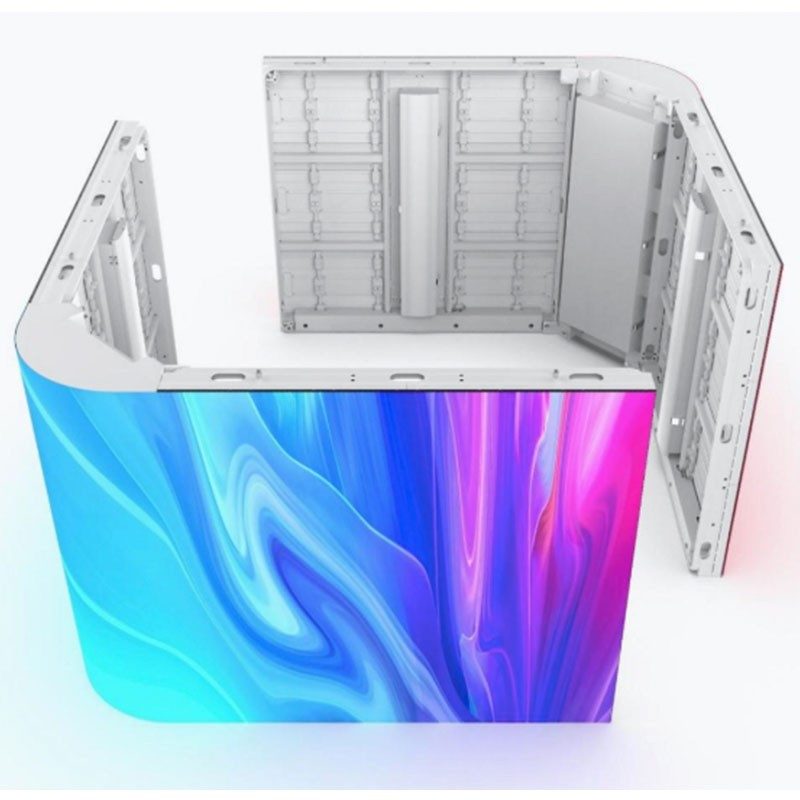

The LUPPALED ARCO PRO LP-ARCP-5 LED display is a high-performance outdoor display solution designed to deliver exceptional image quality and unmatched reliability under the most demanding conditions. With a cabinet size of 960 x 960 mm and a pixel pitch of 5.71 mm, this display is ideal for fixed installations requiring clear visibility at medium and long distances. Its engineering focuses on energy efficiency and durability, making it a smart and sustainable investment for any digital signage or outdoor advertising project.

One of its most outstanding features is its innovative, fully enclosed module design with an aluminum housing. This not only provides IP65 protection, guaranteeing complete defense against dust and water, but also acts as a passive self-cooling system. The aluminum structure efficiently dissipates heat without the need for fans or additional air conditioning systems, resulting in quiet operation, lower power consumption, and significantly reduced long-term maintenance costs.

Main Features

• Superior Image Quality: Thanks to a brightness of 6,000 cd/m², a high refresh rate of 3840 Hz and a 14-bit grayscale, the screen offers sharp, smooth images with vibrant colors, guaranteeing perfect visibility even in direct sunlight.
• Advanced Energy Efficiency: Equipped with a dual voltage power supply and low-consumption lamps, it achieves excellent light performance with an average energy consumption of only 155 W/m², positioning itself as one of the most efficient options on the market.
• Rugged Outdoor Design: The sealed module and IP65-certified cabinet ensure complete protection against adverse weather conditions, from heavy rain to dust storms, guaranteeing a long lifespan of up to 100,000 hours.
• Front and Rear Maintenance: Its intelligent modular design allows for convenient and quick access for maintenance from both the front and the rear. This flexibility greatly facilitates installation on various structures, such as facades or monopoles, and streamlines any service task.
• Self-Cooling System: The aluminum casing of each module is designed for optimal heat dissipation, eliminating the need for active ventilation systems. This reduces noise, power consumption, and potential points of failure.
• Intelligent Monitoring: Integrated smart modules allow real-time monitoring of key parameters such as temperature and voltage, facilitating early detection of potential faults and optimizing overall display performance.

Benefits for your Business

Investing in the LUPPALED ARCO PRO LP-ARCP-5 display means investing in reliability and profitability. Reduced power consumption translates directly into savings in operating costs. Its robust construction and extended lifespan minimize the need for replacements and repairs, guaranteeing a solid return on investment. Stunning image quality ensures your advertising or informational message effectively captures the public's attention, maximizing the impact of your campaigns. Furthermore, easy installation and simplified maintenance reduce the costs and time associated with setting up and maintaining the equipment.

Use Cases

The versatility and performance of the ARCO PRO series make it perfect for a wide range of outdoor applications, including:

• Digital billboards on highways and urban areas.
• Facades of corporate buildings, shopping centers and stores.
• Information screens in stadiums, sports arenas and convention centers.
• Venues for concerts, festivals and outdoor events.
• Digital signage for airports, train stations and transport terminals.

Frequently Asked Questions

Is this screen visible properly in bright daylight?

Yes. Its high brightness level of 6,000 cd/m² (nits) has been specifically designed to offer clear visibility and vivid colors even under direct sunlight.

Is it necessary to install an air conditioning system for this screen?

No. Its self-cooling design, based on heat dissipation through the aluminum casing of the modules, is sufficient to maintain an optimal operating temperature without the need for external cooling systems.

What type of maintenance does it require?

Maintenance is minimal thanks to its sealed design with no moving parts like fans. If needed, internal components can be accessed from both the front and rear, offering great flexibility and convenience.

Is the screen resistant to rain and dust?

Absolutely. It has an IP65 rating, which means it's completely protected against dust and pressurized water jets from any direction, making it ideal for any outdoor environment.

Project description

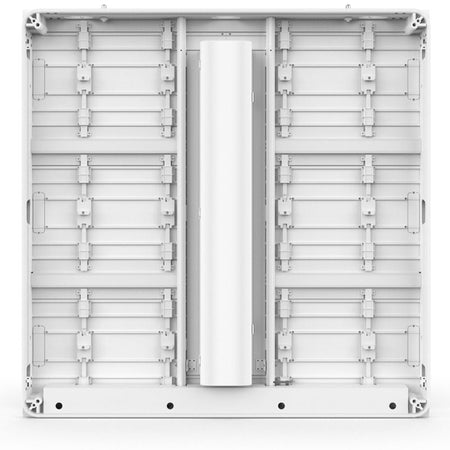

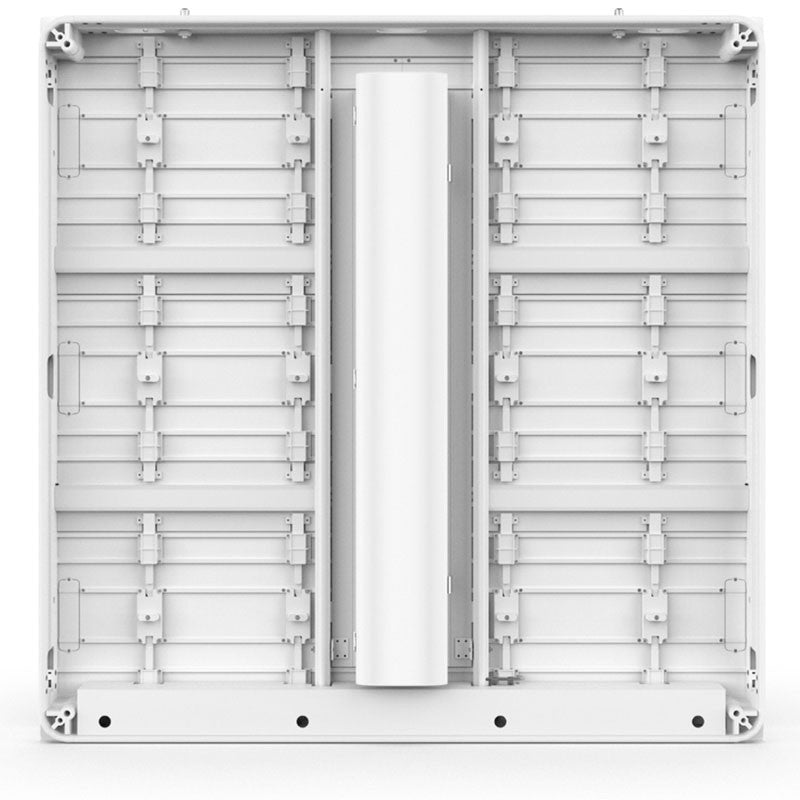

Outdoor LED display, model LP-ARCP-5 from the Arco PRO series. The 960x960 mm cabinet is made of aluminum profile. It features a 5.71 mm pixel pitch, 6,000 cd/m² brightness, and a 3840 Hz refresh rate with 14-bit grayscale. The fully enclosed modules have an IP65 protection rating and a passive self-cooling system. It allows for dual maintenance, from the front and rear. The average power consumption is 155 W/m² and the maximum is 500 W/m². It operates on 220V AC and within a temperature range of -20 to 50 °C.
