LUPPALED ARCO LP-ARC10 - High Brightness 10mm Pitch Outdoor LED Screen

LUPPALED ARCO LP-ARC10 - High Brightness 10mm Pitch Outdoor LED Screen

The LUPPALED ARCO LP-ARC10 LED display is a high-performance display solution designed specifically for fixed outdoor installations. Part of the ARCO PRO series, this cabinet combines robust construction, exceptional image quality, and superior energy efficiency, making it the ideal choice for digital advertising projects, large-venue signage, and building facades where visibility and reliability are crucial.

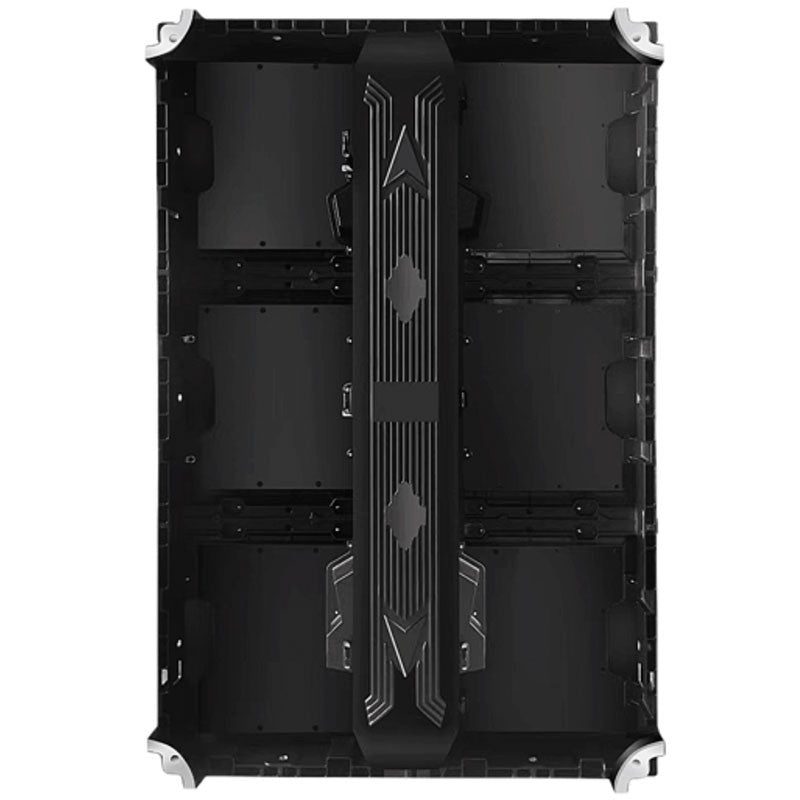

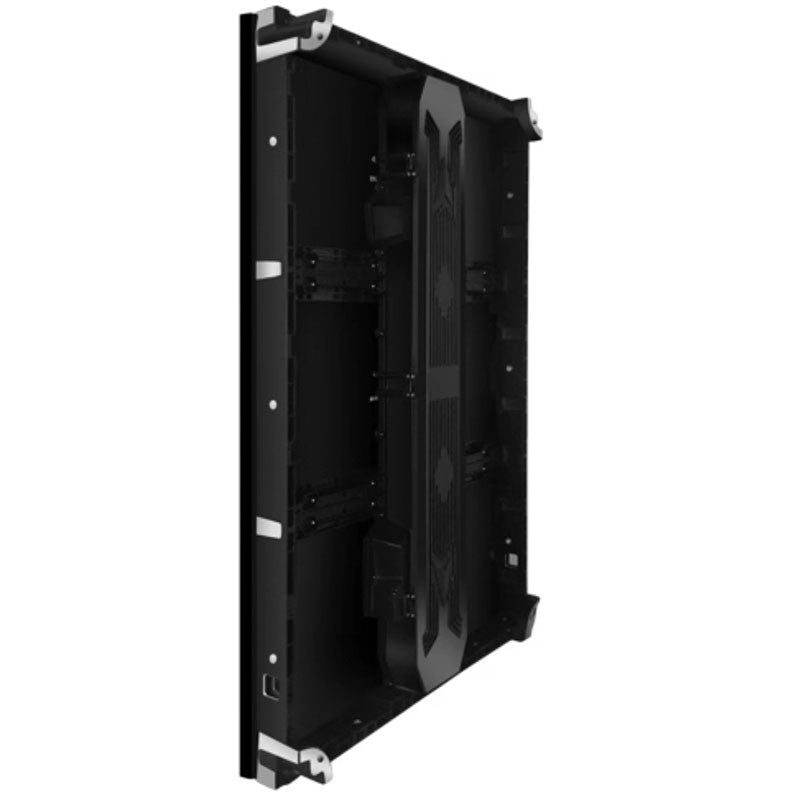

Built on a 640 x 960 mm die-cast aluminum cabinet, the LP-ARC10 offers exceptional durability against the harshest weather conditions. Its slim design, at just 100 mm thick, and optimized weight of 20 kg facilitate clean architectural integration and a faster installation process. Furthermore, its innovative dual maintenance system, accessible from both the front and rear, provides unparalleled versatility for any type of installation, whether wall-mounted or freestanding.

Main Features

• Superior Outdoor Image Quality: With a 10mm pixel pitch and 6000 nits (cd/m²) brightness, the screen ensures perfect visibility even in direct sunlight. Its high 3840Hz refresh rate guarantees smooth, flicker-free video playback, ideal for broadcasting and recording, while the 14-bit grayscale delivers rich and accurate color reproduction.
• Robust Construction and IP65 Protection: The cabinet and modules are made of die-cast aluminum, which not only provides exceptional strength but also optimizes heat dissipation. The IP65 rating certifies that the display is completely dustproof and protected against water jets, ensuring reliable operation in rain, wind, and snow.
• Advanced Energy Efficiency: Designed to reduce operating costs, the ARCO PRO series offers energy savings of over 50% compared to similar products. Its average consumption of only 300 W/m² minimizes environmental impact and optimizes long-term return on investment.

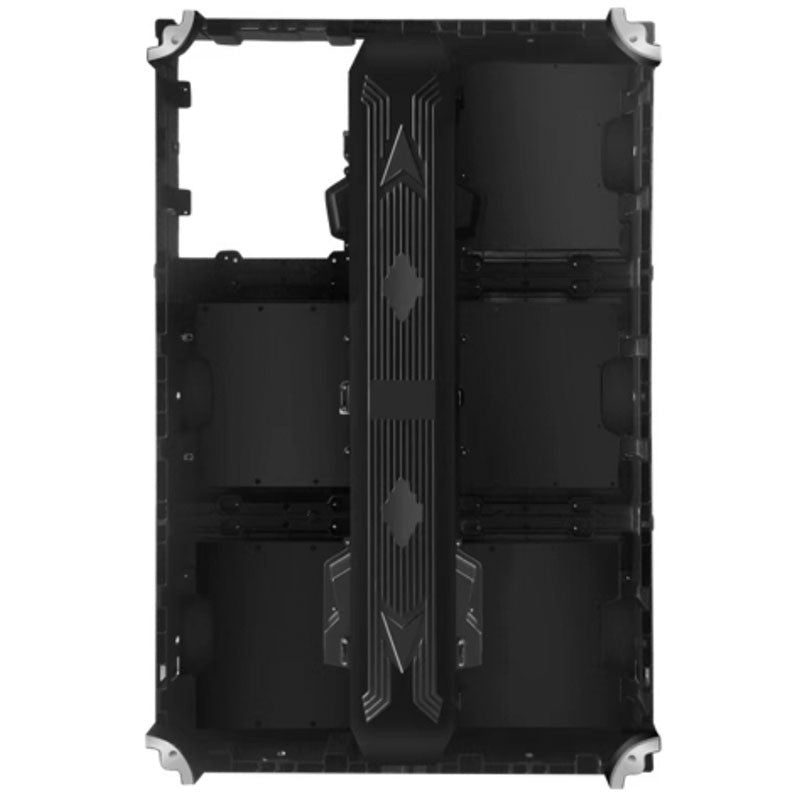

• Simplified Installation and Maintenance: Dual access (front and rear) allows technicians to perform any maintenance or module replacement task quickly and safely, reducing downtime. Universal 320 x 320 mm modules (not divided into left and right) simplify logistics and spare parts inventory.

Product Benefits

The LUPPALED ARCO LP-ARC10 display is designed to deliver maximum performance with a reduced total cost of ownership. Its long lifespan of up to 100,000 hours, combined with low energy consumption, makes it a sustainable and cost-effective solution. Excellent image quality and wide 120° viewing angles, both horizontally and vertically, ensure that content is impactful and legible from any perspective, maximizing the reach of advertising or informational messages.

Use Cases

Thanks to its versatility and robustness, this screen is the perfect solution for a wide range of outdoor applications, including:

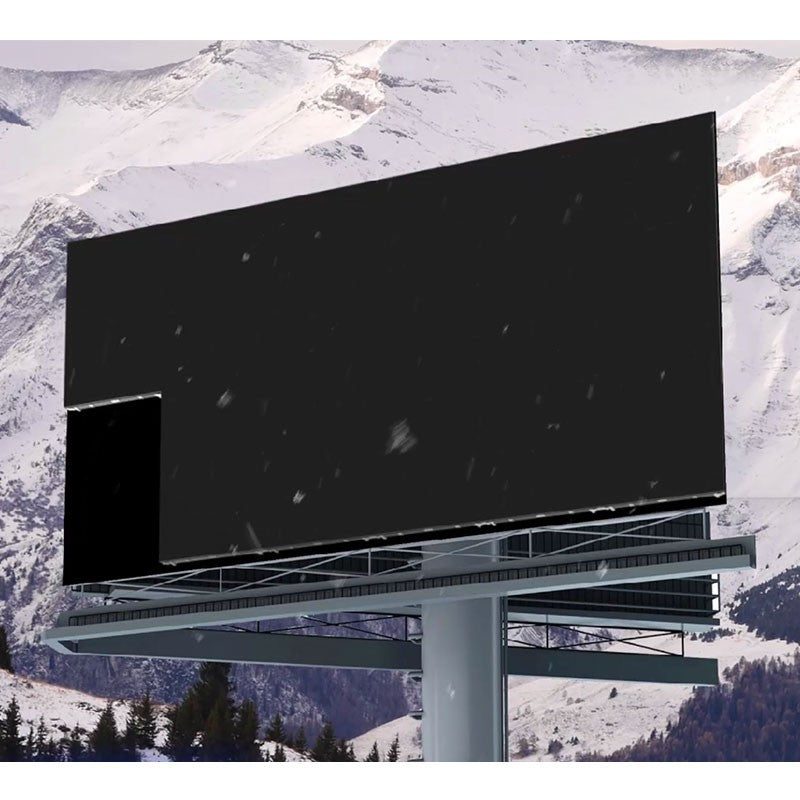

• Digital billboards and monopoles (DOOH).
• Scoreboards and perimeter screens in stadiums and sports venues.
• Facades of shopping centers, stores and corporate headquarters.
• Information screens at airports, stations and transport centers.
• Fixed stages for outdoor events and concerts.

Frequently Asked Questions

What does the IP65 protection rating mean?

The IP65 rating indicates that the screen is fully protected against dust ingress (the number '6') and can withstand low-pressure water jets from any direction (the number '5'). This ensures its durability and safe operation in outdoor environments exposed to rain and other inclement weather.

Is front-end maintenance complicated?

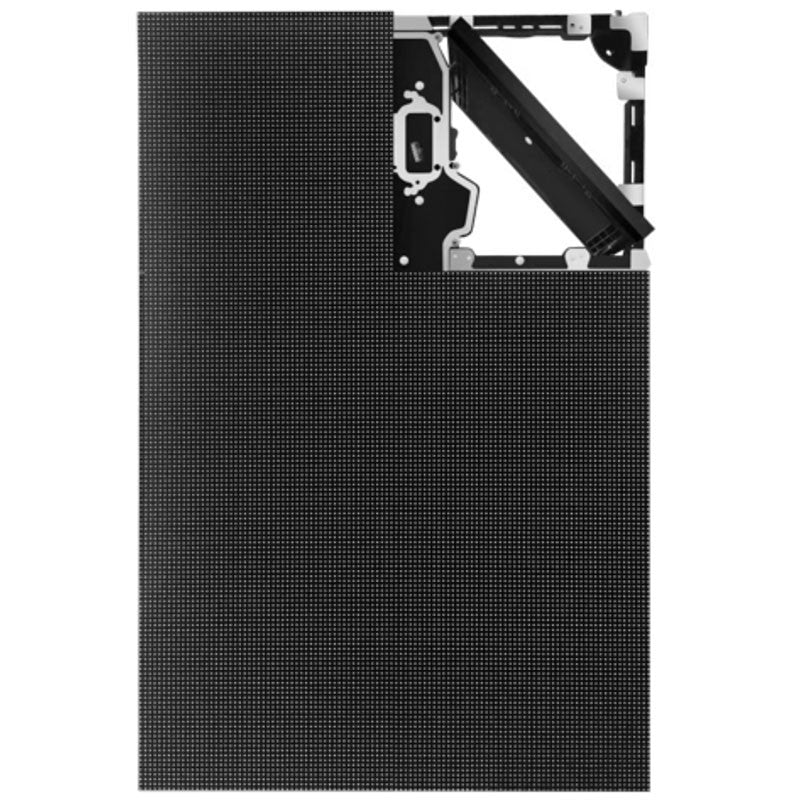

No, quite the opposite. The front maintenance system is designed to be quick and easy. It allows technicians to access and replace any module from the front of the display without disassembling the structure, which is especially useful when the display is mounted directly on a wall.

Is the screen visible in direct sunlight?

Yes. With a brightness level of 6000 nits (cd/m²), this screen is specifically designed to deliver a clear, sharp image with vibrant colors even on the sunniest days and under direct sunlight.

What is the lifespan of the LEDs in this screen?

The screen is designed to offer a lifespan of up to 100,000 hours of operation, which is equivalent to more than 11 years of continuous operation, ensuring a long-lasting and reliable investment.

Project description

The LP-ARC10 outdoor LED display from the ARCO series features a 10mm pixel pitch and 6000 nits of brightness. The die-cast aluminum cabinet measures 640 x 960 x 100 mm and weighs 20 kg. The panel resolution is 32 x 32 pixels. It offers IP65 protection and allows for front and rear access for maintenance. The refresh rate is 3840 Hz, with 14-bit grayscale and a 120° viewing angle (H/V). Average power consumption is 300 W/m², and maximum consumption is 850 W/m². The estimated lifespan is 100,000 hours.
