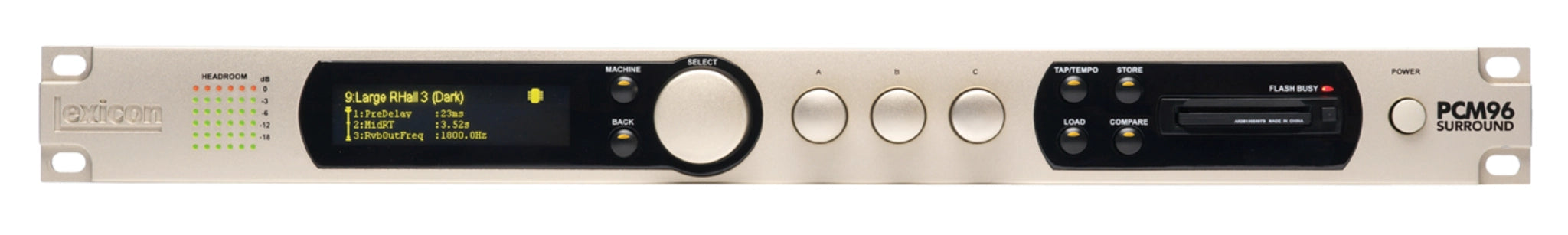

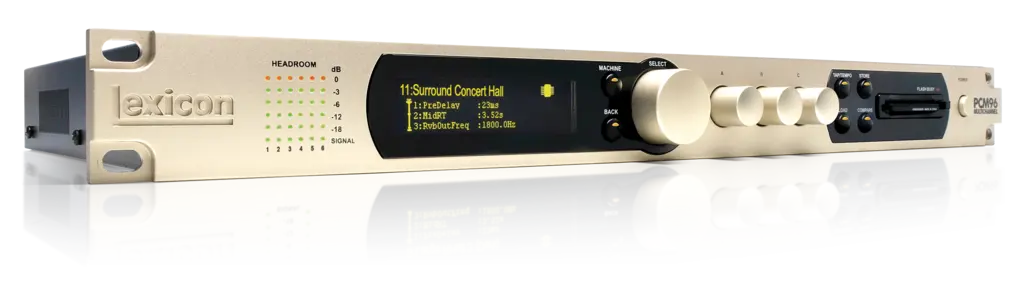

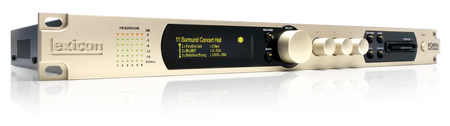

Lexicon PCM96 Surround A - Stereo and surround reverb processor

Lexicon PCM96 Surround A - Stereo and surround reverb processor

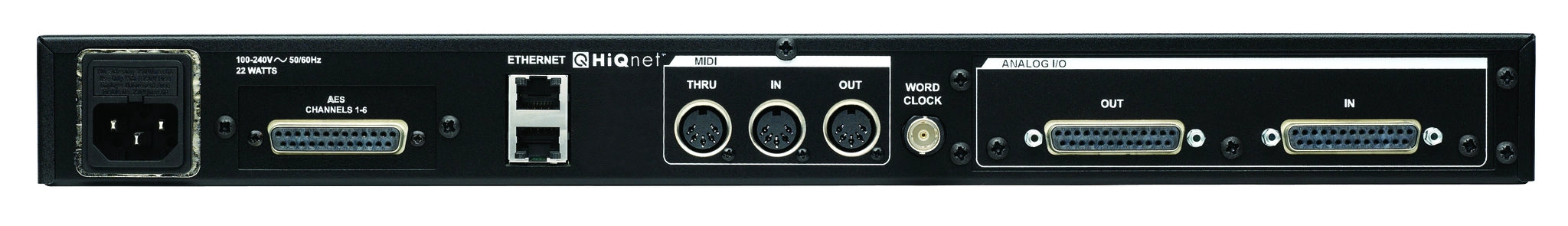

The Lexicon PCM96 Surround A expands the acclaimed PCM96 line with processing capabilities for both stereo and surround configurations. It offers 50 reverb, delay, and modulation algorithms, including the new “Surround Room” for creating extremely realistic three-dimensional environments. With over 2,200 factory presets and space for 768 user settings (expandable to 2,048 via Compact Flash), its 32-bit floating-point engine and sampling rates up to 96 kHz ensure maximum sonic fidelity. The Surround A version integrates analog and digital I/O on DB-25 connectors, MIDI, Ethernet, Wordclock, and Remote Control, all in a 1U rack format.

Main features

• 50 reverb, delay, and modulation algorithms (including Surround Room and new pitch algorithms)
• Over 2,200 factory presets; 768 user presets (expandable to 2,048 via Compact Flash)
• 32-bit floating-point processing
• Sampling frequencies from 44.1 to 96 kHz
• Analog I/O: 2 DB-25 connectors, 6 channels each
• AES/EBU Digital I/O: 1 x 6-channel DB-25 connector
• MIDI In/Out/Thru and Ethernet control (HiQnet System Architect)
• BNC Wordclock input for external synchronization
• High-resolution OLED display and soft-key keyboard for intuitive navigation
• 1 U rack format (483 × 44.5 × 280 mm) and approximate weight of 3.9 kg

Product benefits

• Immersive spatial modeling that maintains the integrity of the original signal
• Flexible integration into studios, theaters, and AV systems thanks to multiple I/O options
• Full control and automation via MIDI, Ethernet and Wordclock
• Unlimited preset expansion with Compact Flash
• Clear interface and easy handling even in low-light environments

Use cases

• Reverberation and effects in professional recording studios
• Surround sound processing in high-end home theaters and cinemas
• Audio post-production for film, television and video games
• Installations in theaters, auditoriums and immersive multimedia spaces

Frequently Asked Questions

• How do I switch between stereo and surround modes? Select the desired setting from the “Config” menu on the OLED display.
• Can I use it as a plug-in in my DAW? Yes, it has remote control via Ethernet and allows integration with compatible DAWs.
• How do I expand the preset memory? Insert a Compact Flash card to store up to 2,048 presets.
• What's the latency? Approximately 0.6 ms at 48 kHz and 0.3 ms at 96 kHz.

Description for projects

Parallel Stereo/Surround Reverb and Effects Processor with 50 algorithms, 2,200+ presets, 32-bit float, up to 96 kHz sampling, analog and AES/EBU I/O on DB-25, MIDI, Ethernet, Wordclock, OLED display, 1U rack.
