Showtec LAMPY 20 1U - DMX console with 20 faders and 1 universe

Showtec LAMPY 20 1U – DMX console with 20 faders and 1 universe

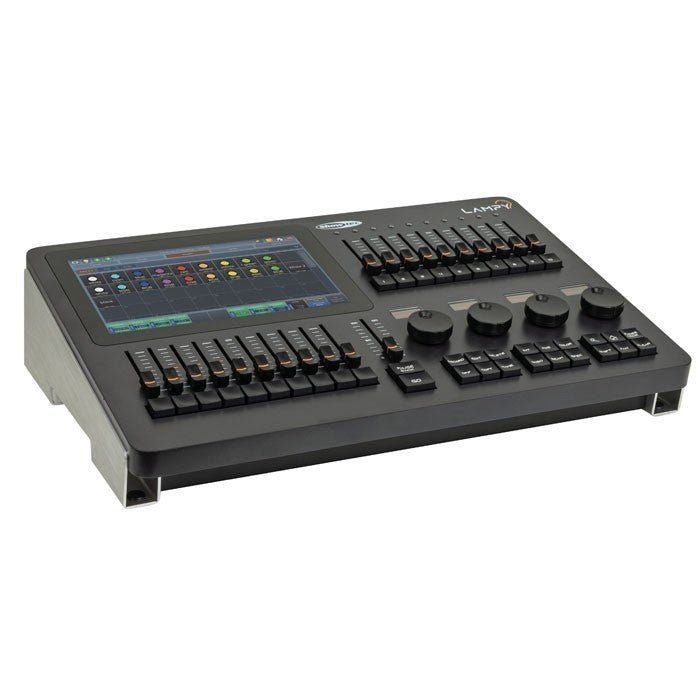

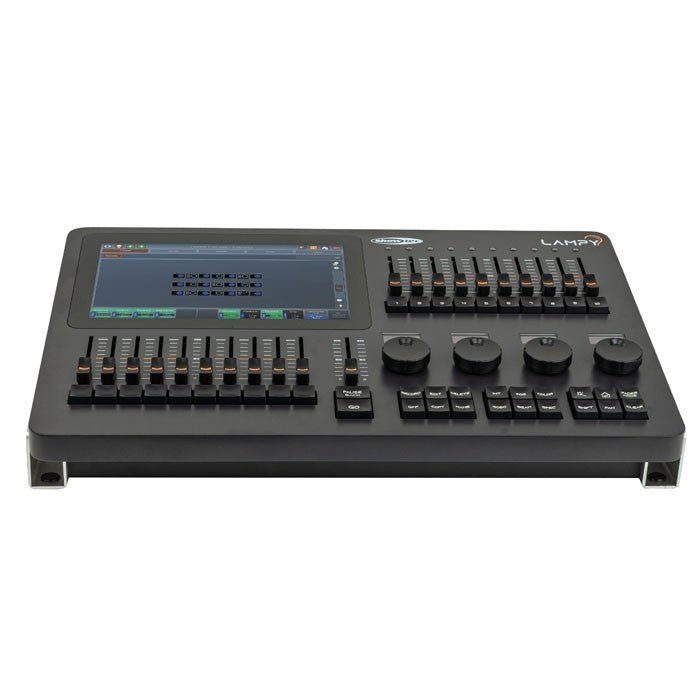

The Showtec LAMPY 20 1U is a professional 512-channel DMX console designed to deliver precise and agile control of conventional, moving, or static lighting in theaters, concert halls, corporate events, and studios. Its design combines 20 physical faders (10 multifunction and 10 playback) with a 10.1-inch Full HD touchscreen, featuring integrated Fixture View and Quick Color Picker for intuitive luminaire organization and selection. Four jog wheels with a 1.3-inch OLED display and multi-color LED indicators show parameter status at a glance. Thanks to its integrated effects engine, OSC compatibility, and the option to connect a second external monitor, the LAMPY 20 1U allows complex shows to be created without the need for additional software.

Main features

• 512 DMX channels: A universe with 3 and 5-pin XLR outputs.
• 20 physical faders: 10 multifunction + 10 playback with 9 pages and 90 cue lists.
• 10.1″ Full HD touchscreen: 1920 × 1080 resolution with Fixture View and Quick Color Picker.
• 4 OLED encoder wheels: Wheels with 1.3″ display for fine-tuning parameters.
• Built-in effects engine: Quickly create looks without external equipment.

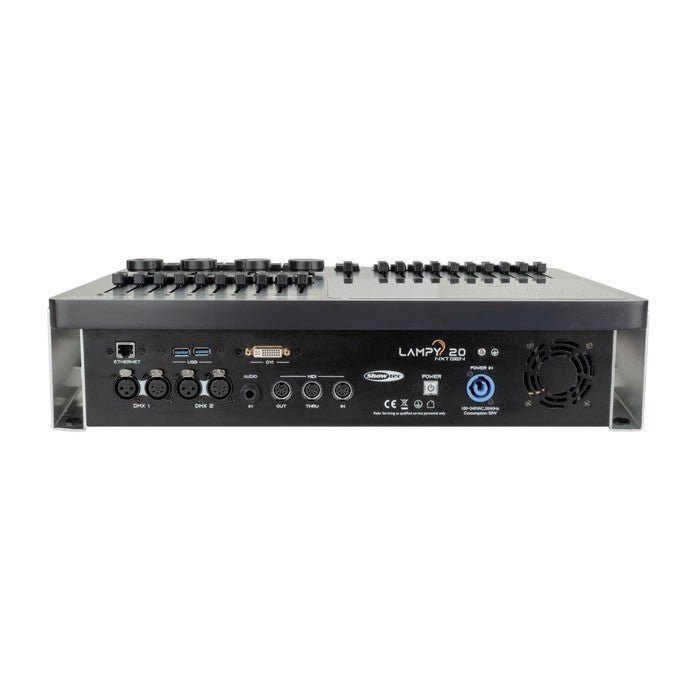

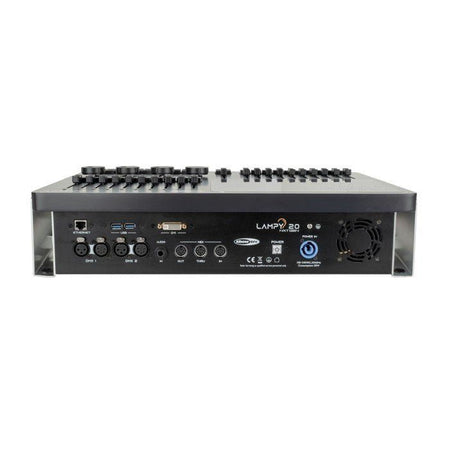

• Advanced connectivity: DMX, OSC for remote control, USB, MIDI and Ethernet.

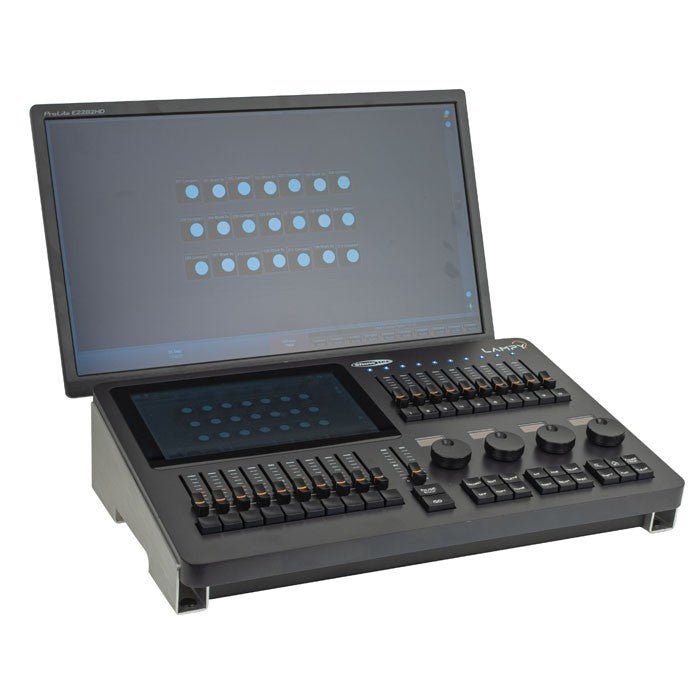

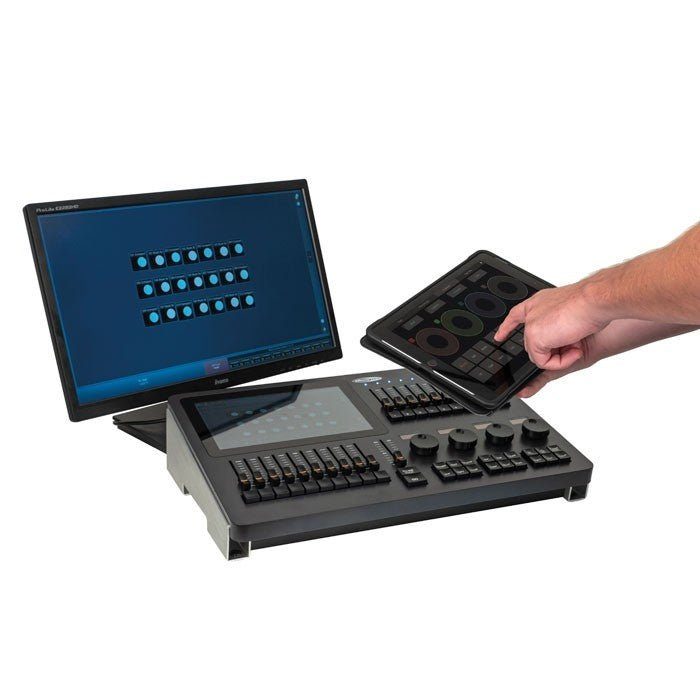

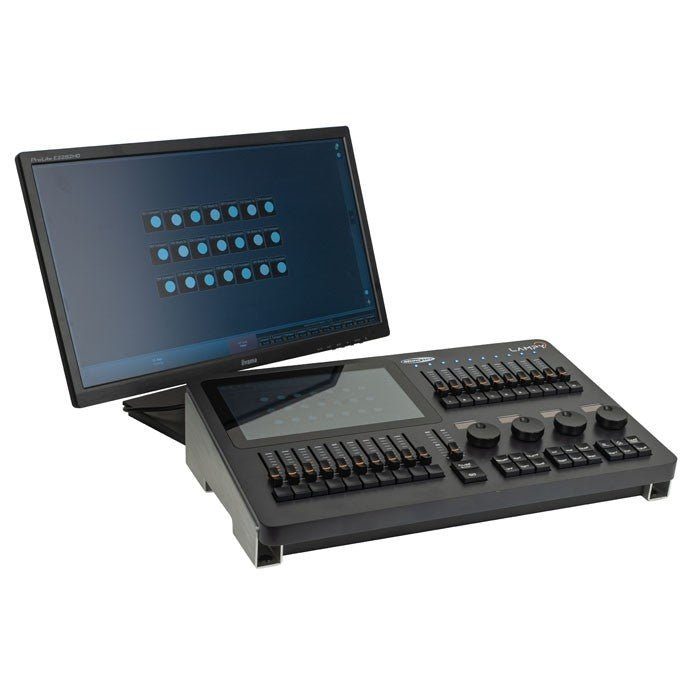

• External monitor output: DVI/HDMI Full HD (optional touchscreen).
• Rugged chassis: Metal and plastic housing, IP20 rating (indoor only).

User benefits

• Streamlined Workflow: Hybrid touch and physical interface that speeds up programming.
• Control versatility: From small events to professional productions with 512-channel management.
• Scalability: Add a second universe and Art-Net/sACN protocols with the LAMPY DNGL key.
• Portability and robustness: Weight of 8.8 kg and compact dimensions (505 × 345 × 128 mm).
• Intuitive visual interface: Multi-color LEDs and Fixture View for clear monitoring.

Use cases

• Programming of shows in theaters and concert halls.
• Mobile lighting control for tours and corporate events.
• Fixed installations in auditoriums, television studios and sound stages.
• Equipment rental projects for fairs and exhibitions.

Frequently Asked Questions

• How do I expand to 2 universes?
  With the LAMPY DNGL (Showtec 50737) 512 additional channels are added and Art-Net and sACN are enabled.
• Does it require drivers or software?
  Works plug & play without drivers: DMX, OSC, USB and MIDI integrated.
• Is it suitable for outdoors?
  Its IP20 rating limits it to indoor or tent environments.

Description for projects

512-channel 1U DMX console; 10 multifunction faders + 10 playback faders; 10.1″ Full HD touchscreen; 4 x 1.3″ OLED encoders; built-in effects engine; 3/5-pin DMX, OSC, MIDI, USB, Ethernet connections; DVI/HDMI external monitor option; metal/plastic chassis; dimensions 505 × 345 × 128 mm; weight 8.8 kg; consumption 50 W; IP20.
