HK Audio LINEAR 5 MKII 110 XA - 2-way self-powered full-range system with 80° × 60° speaker and DSP

HK Audio LINEAR 5 MKII 110 XA — 2-way self-powered full-range system with 80° × 60° speaker and DSP

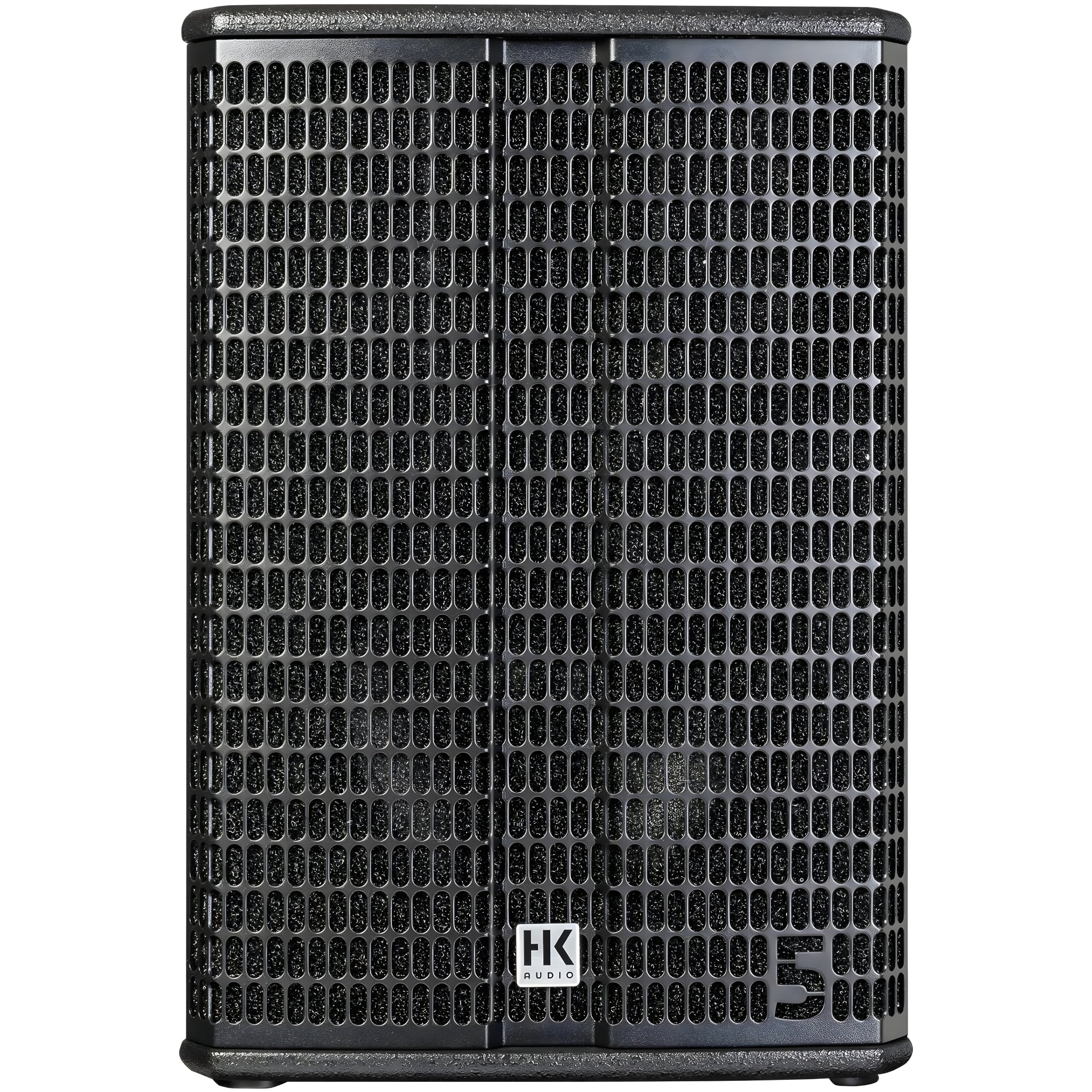

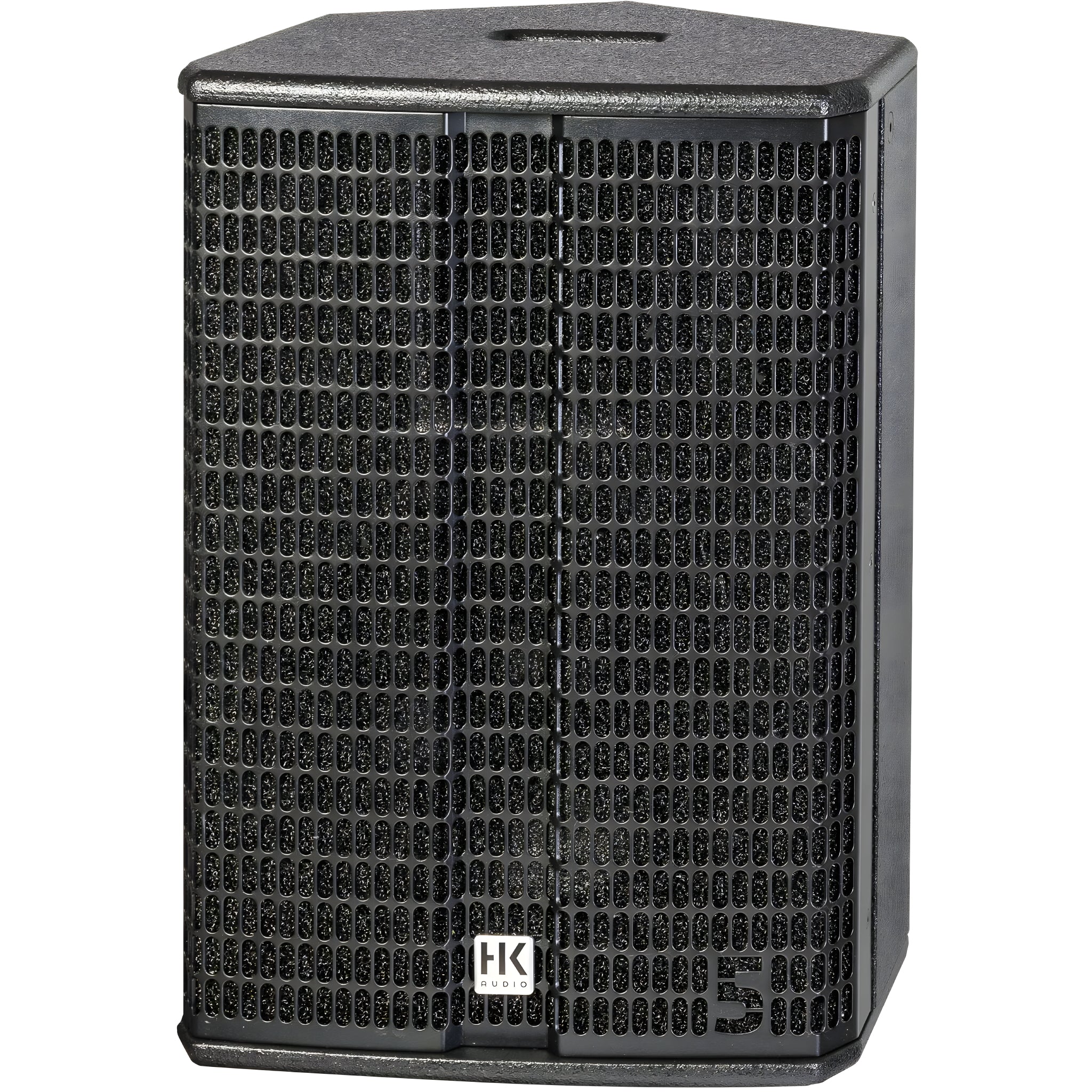

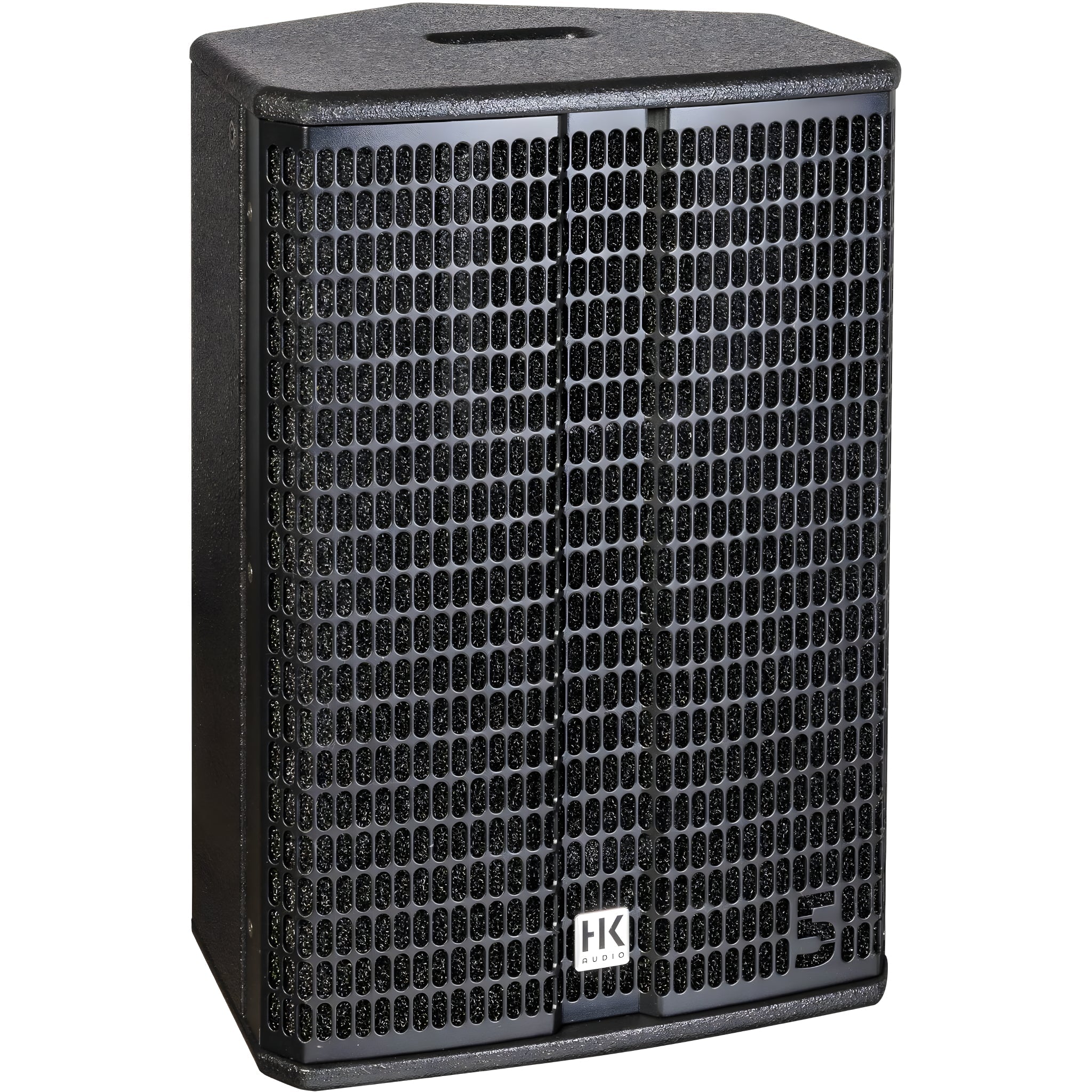

The HK Audio LINEAR 5 MKII 110 XA is an extremely compact and versatile 10" + 1" active PA speaker designed for professional live sound reinforcement, clubs, and installations. The multi-function enclosure allows for vertical or horizontal use, and as a stage monitor (31° wedge). The 80° × 60° rotatable horn controls coverage for mid-distance clarity and easy pair or cluster mounting. With 600 W RMS / 1,200 W peak Class D, a max SPL of 135 dB peak , and a high-performance DSP (48 kHz) with FIR filter, it delivers defined, punchy sound with quick setup thanks to direct presets . EtherCon network control (Windows/macOS) and DSP Out simplify integration into 2.1 systems with LINEAR 5 MKII series subwoofers.

Main features

• 2-way architecture : LF 1 × 10" (2" coil) + HF 1" (1.4" coil).
• Power and pressure : 600 W RMS / 1,200 W peak (Class D bi-amplified); max SPL 135 dB peak .
• Frequency response : 74 Hz – 12 kHz (±3 dB) / 68 Hz – 19 kHz (–10 dB).
• Constant Directivity : 80° × 60° rotatable horn to adapt vertical or horizontal coverage.
• FIR Crossover : 2.1 kHz with 72 dB/oct slope for precise and coherent transitions.
• Professional DSP (48 kHz, < 2 ms): 10-band parametric EQ, HPF/LPF, polarity, level, delay , limiter, mute .
• Direct panel presets : Flat, Monitor, Low Cut and Remote.

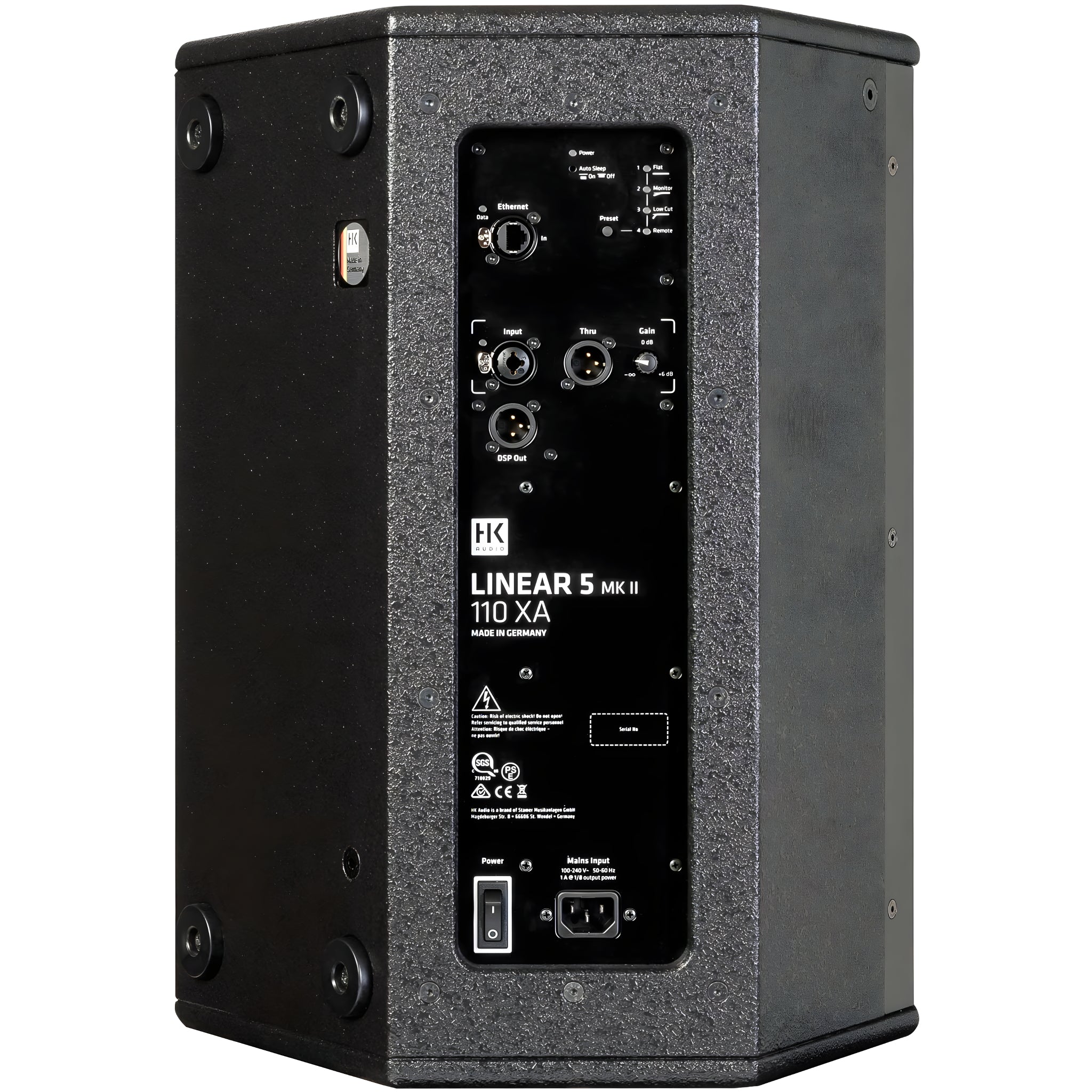

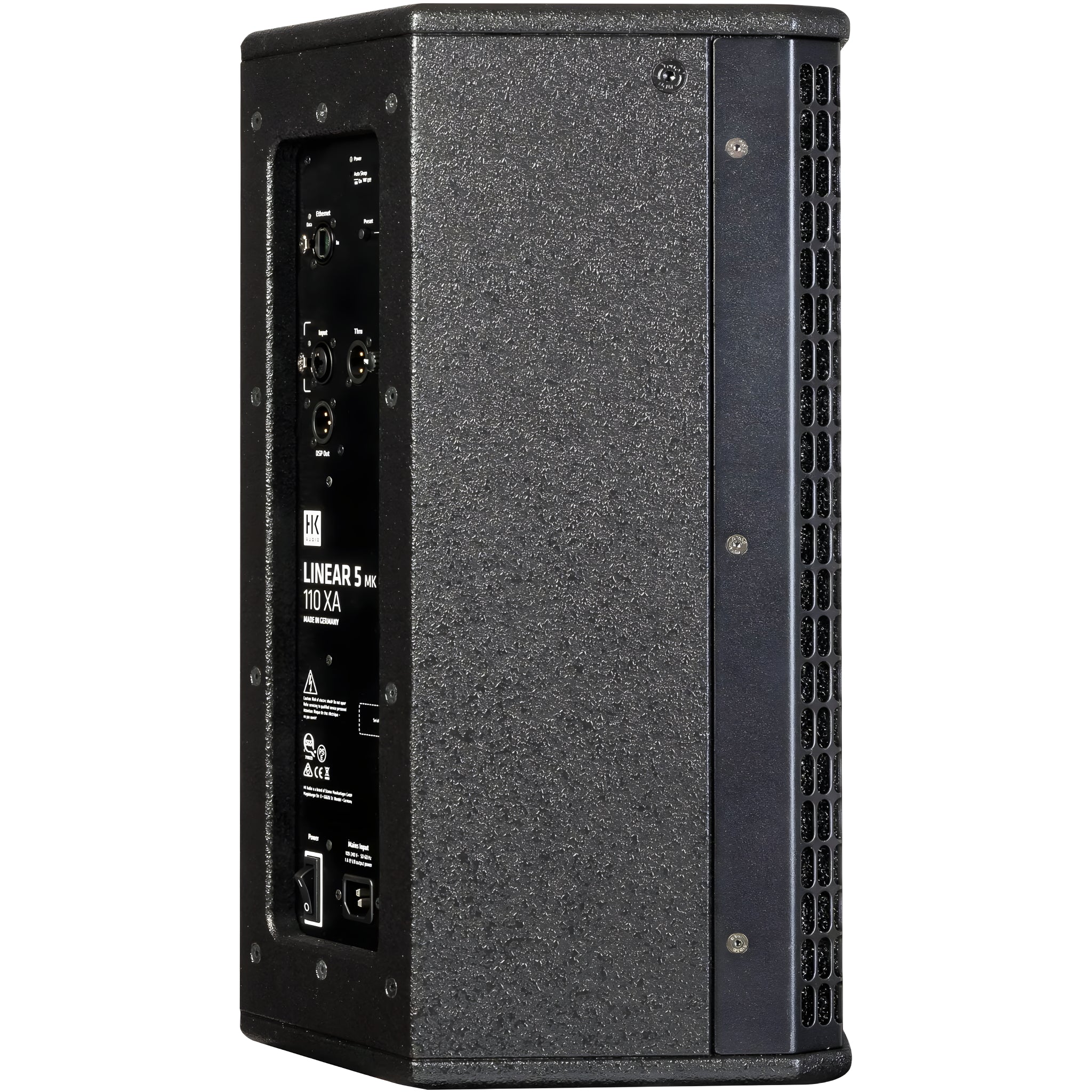

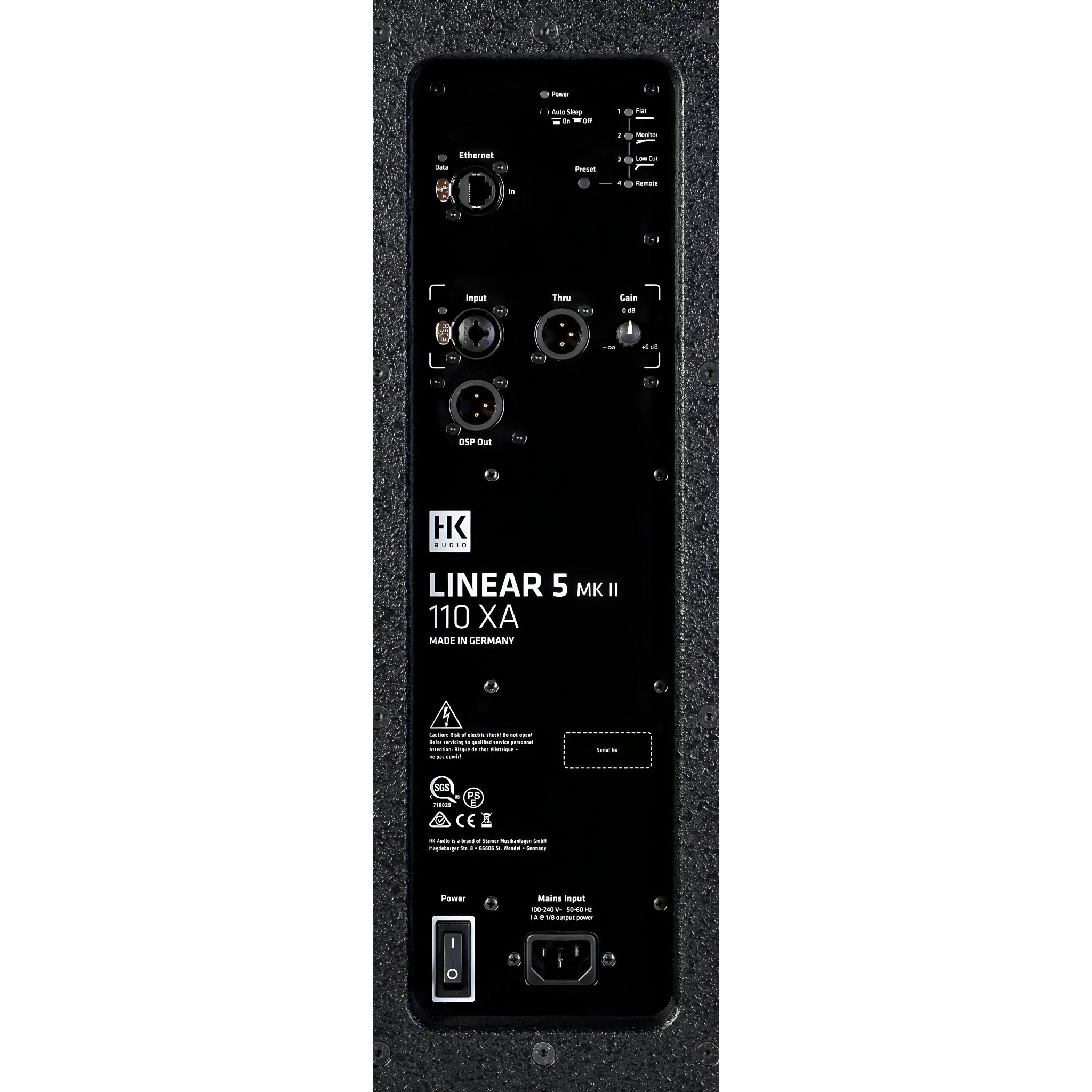

• Connectivity : 1 × XLR/TRS combo (In), 1 × XLR Thru, 1 × XLR DSP Out , 1 × EtherCon RJ45 (In) for control.

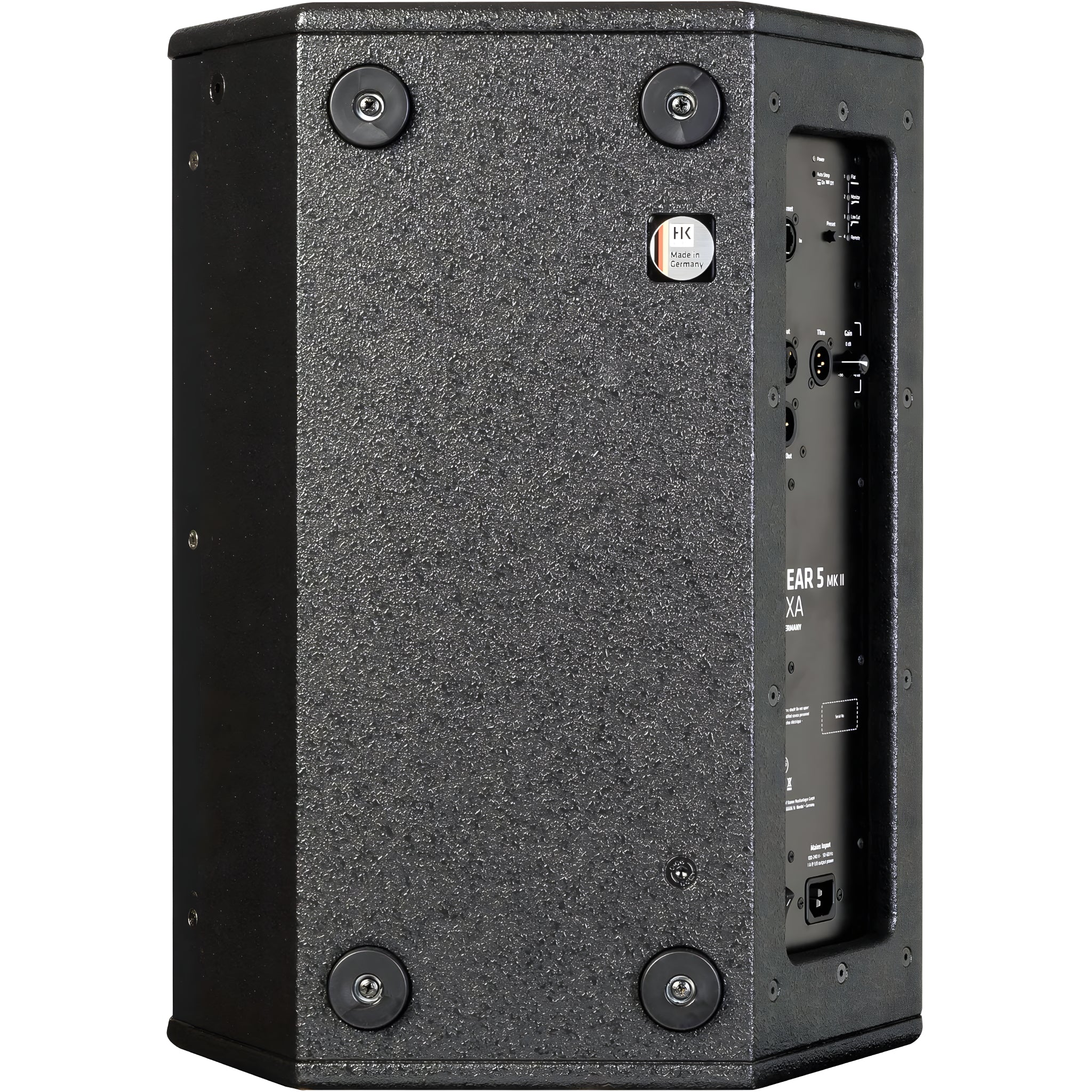

• Touring construction : low-resonance birch/MDF hybrid enclosure, 2mm grille with acoustic foam and black finish.

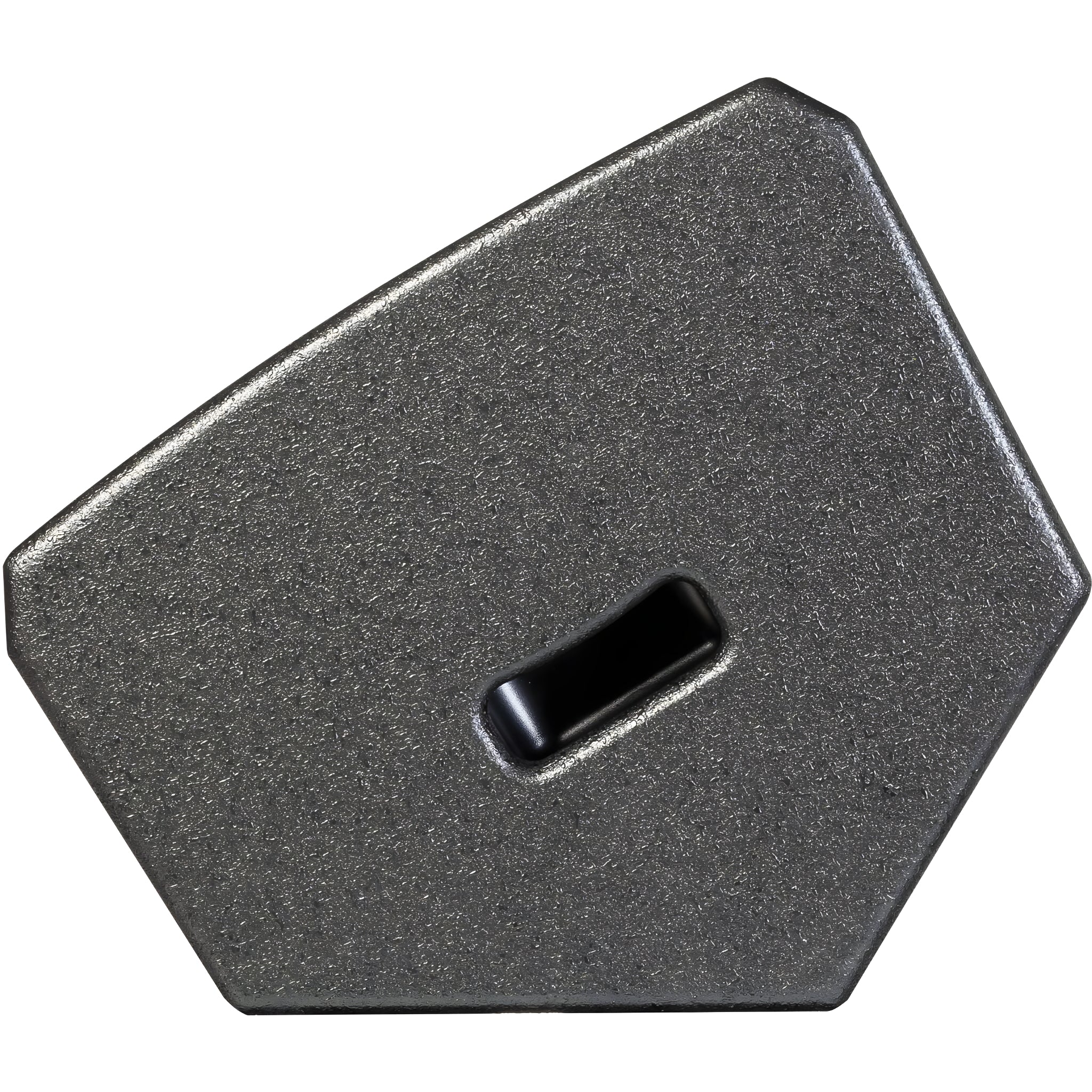

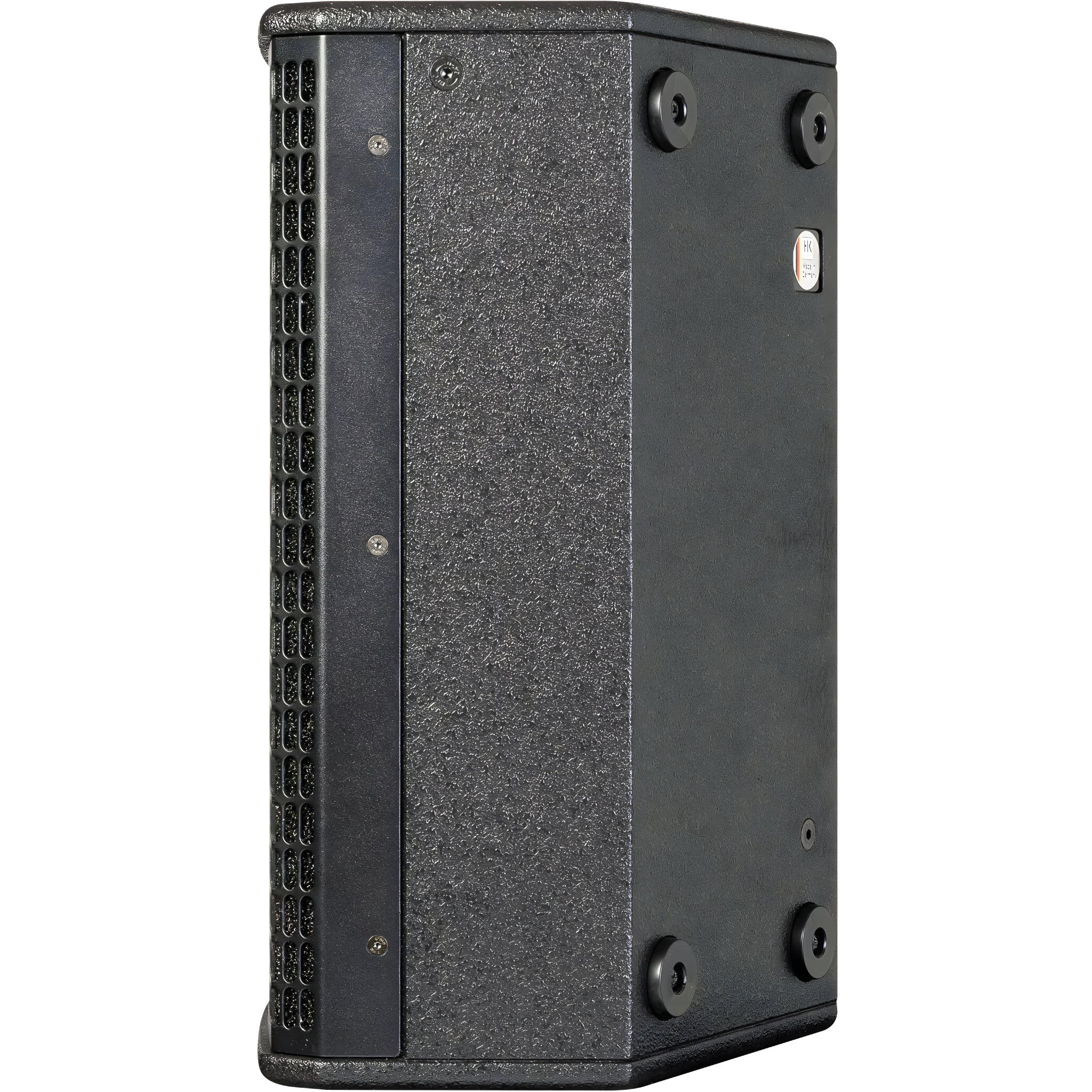

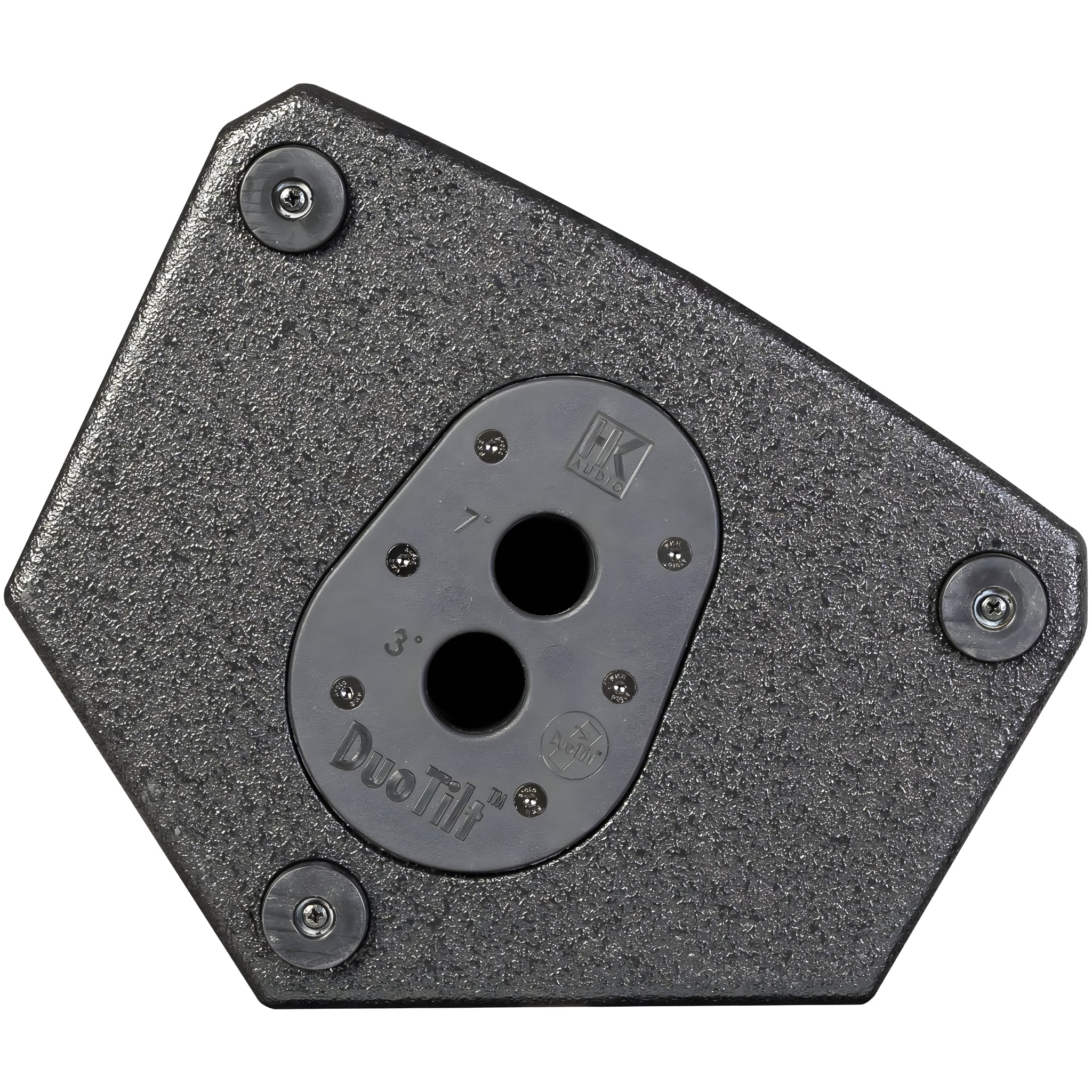

• Ergonomics : DuoTilt 3°/7° , 3 M8 points, 1 SingleGrip handle and IEC cable with V-Lock .

Product benefits

• Projection and intelligibility in medium-sized spaces thanks to the 80° × 60° guide and FIR filtering.
• True versatility : top full range, 31° monitor or combined with LINEAR 5 MKII subwoofers (115/118) in 2.1 systems.
• Agile configuration : ready presets, DSP Out to link boxes without a network and centralized control by HK Audio DSP CONTROL .
• Durability and professional aesthetics: wood, rigging-ready hardware, and a durable finish.

Use cases

• Main reinforcement in bars, clubs, venues and corporate events.

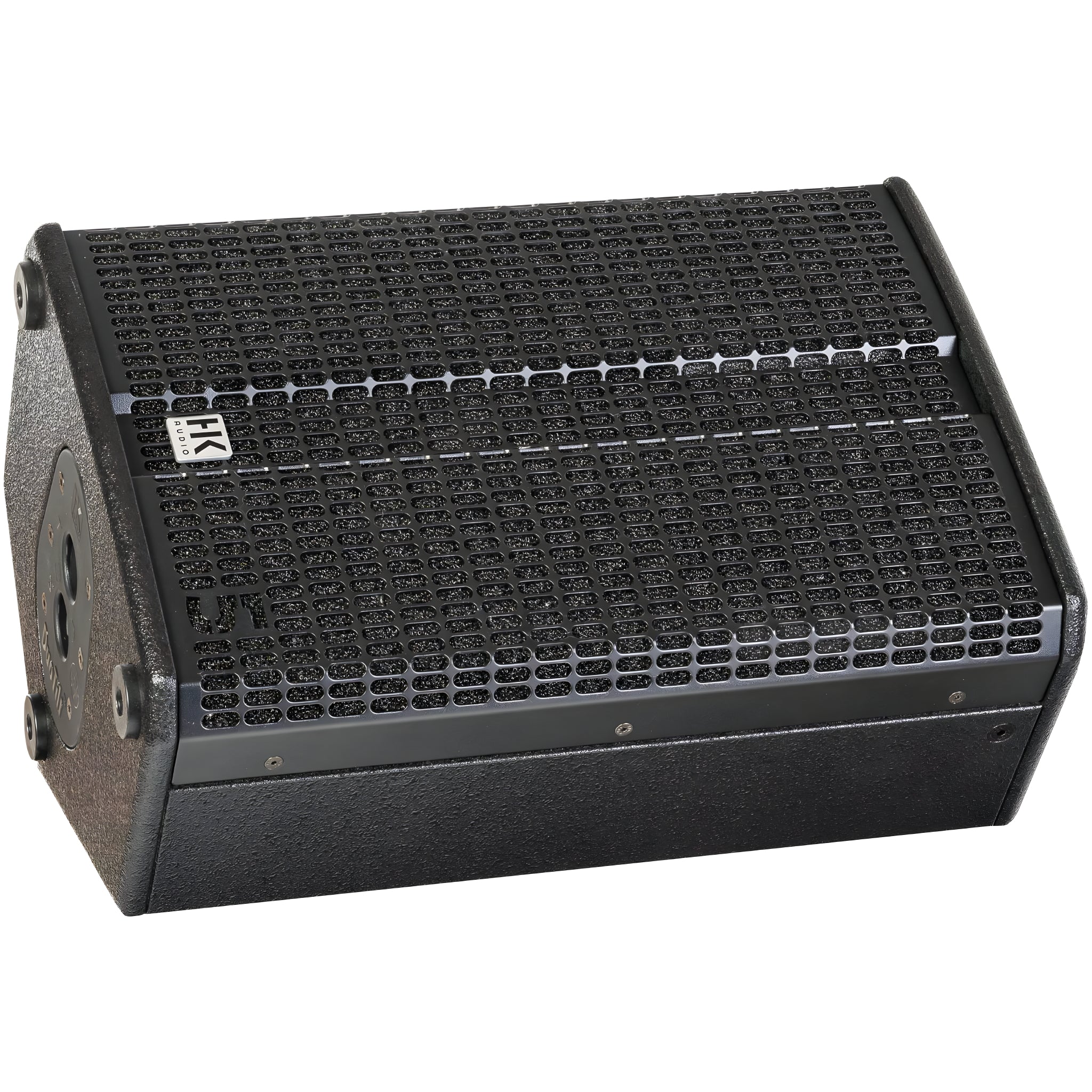

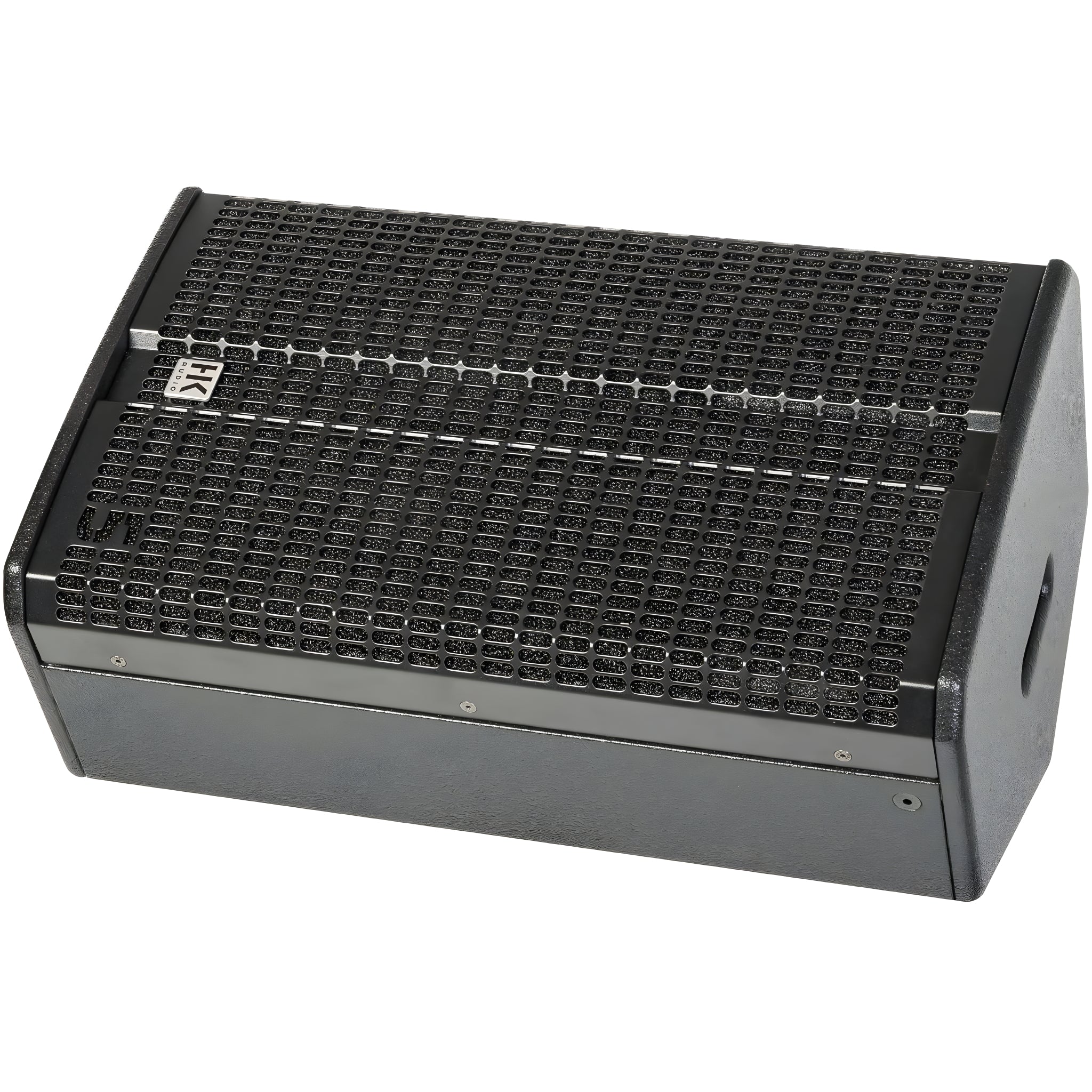

• Stage monitor for vocals and instruments ( Monitor preset).
• Compact 2.1 systems with LINEAR 5 MKII subwoofers.

Frequently Asked Questions

• Does the RJ45 port transmit digital audio? No. The EtherCon RJ45 is used for DSP control ; analog audio is provided via XLR/TRS In/Thru and DSP Out .
• Can the speaker be rotated? Yes, the 80° x 60° angle can be rotated to optimize coverage or create a cluster.
• Does it support high-output signals? Yes, maximum input level of +20 dBu .

Description for projects

2-way active loudspeaker: 10" (2" voice coil) + 1" (1.4"); 600 W RMS / 1,200 W peak; max. SPL 135 dB peak; response 74 Hz–12 kHz (±3 dB) / 68 Hz–19 kHz (–10 dB); FIR X-over 2.1 kHz (72 dB/oct); 1 × XLR/TRS In, 1 × XLR Thru, 1 × XLR DSP Out, 1 × EtherCon RJ45 (In); DSP 48 kHz (< 2 ms) with 10-band EQ, HPF/LPF, polarity, level, delay , limiter, mute ; hybrid birch/MDF cabinet; DuoTilt 3°/7°, 3 × M8; wedge 31°; 36 × 52.5 × 30 cm; 14.9 kg; black finish.
