HK Audio L3 112 XA - 12” Active PA Speaker with DSP and FIR Crossover

HK Audio LINEAR 3 L3 112 XA – 12” Active PA Speaker with DSP and FIR Crossover

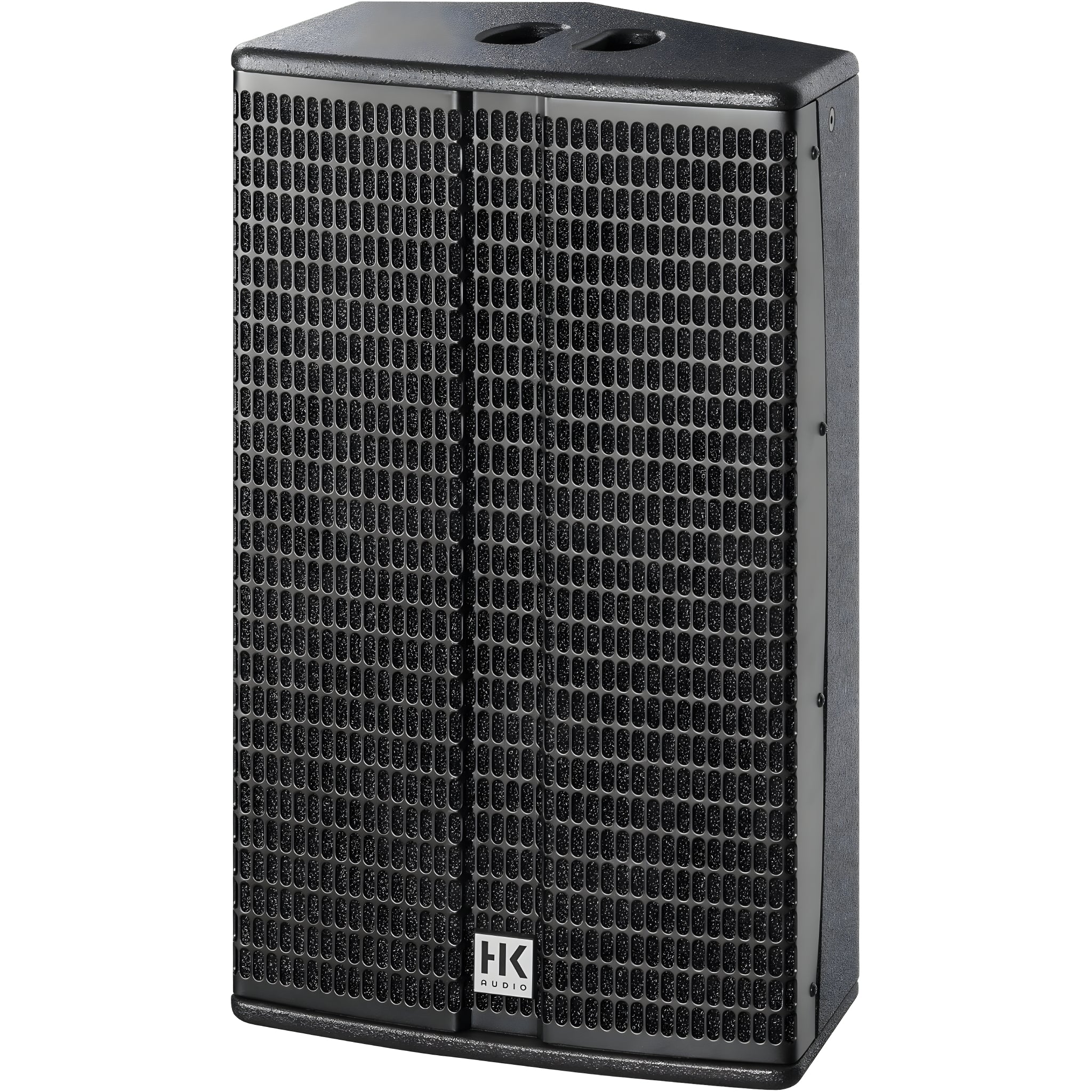

The HK Audio L3 112 XA is a compact , self-powered, full-range 2-way system that delivers power, clarity, and an extremely versatile configuration for use as a main PA or stage monitor . Its 16 mm MDF enclosure with trapezoidal design and integrated monitor angle (33°) reduces resonances and allows vertical or horizontal placement depending on the application. Featuring 1200 W (peak) bi-amplified Class D amplification , a max. SPL of 135 dB (peak, half-space) , and a 67 Hz – 18 kHz (±3 dB) response, this enclosure is DSP -optimized with a FIR crossover at 2.3 kHz (72 dB/oct slope) for precise transitions between ways and a uniform 90° × 55° coverage thanks to its constant directivity horn. It integrates seamlessly with the LINEAR SUB series subwoofers, especially the L SUB 1500 A and L SUB 1800 A , to extend low-frequency extension.

Digital processing includes an intelligent multi-band limiter , subsonic filter and a host of protections (undervoltage, thermal, short circuit, overcurrent, peak/RMS limiters and thermal look-ahead control) that guarantee stability even during extended sessions. Operation is direct via two EQ switches with Bass Boost/Flat (LF) and Flat/Contour (MHF) presets, making it easy to adapt to different playing styles and venues. Connectivity includes 2 combo XLR mic/line inputs (Line/Mic switch on input A), 1 stereo RCA input , 2 XLR Thru outputs and 1 XLR Mix Out ; input sensitivity is +4 dBu with the gain control on the center click. For mounting, it includes a 3°/7° DuoTilt plinth , 4 M8 (AP-8) rigging points , 1 SingleGrip handle and 1 MultiGrip handle , as well as a metal grille with black acoustic foam and an acrylic enamel finish. Its compact dimensions ( 39.5 × 66 × 34 cm ) and 20.6 kg weight make it easy to transport without sacrificing performance.

Main features

• 2-way active system (12” + 1”) with multifunctional design for front PA or monitor.
• 1200W (peak) bi-amplified Class D amplification with a maximum SPL of 135 dB .
• Frequency response: 67 Hz – 18 kHz (±3 dB); 62 Hz – 18 kHz (-10 dB).
• FIR crossover at 2.3 kHz with a slope of 72 dB/oct for maximum accuracy in track summing.
• Coverage: 90° × 55° with constant directivity diffuser.
• Advanced DSP with multi-band limiter, subsonic filter and Bass Boost/Flat (LF) and Flat/Contour (MHF) presets.

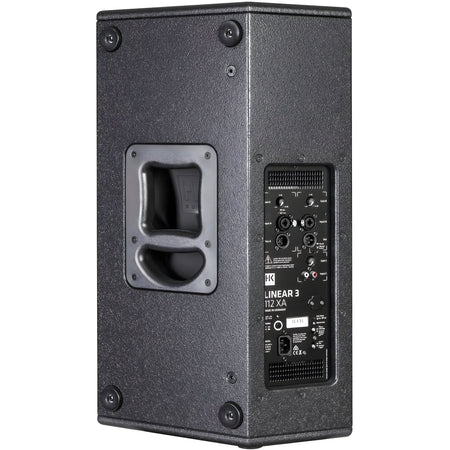

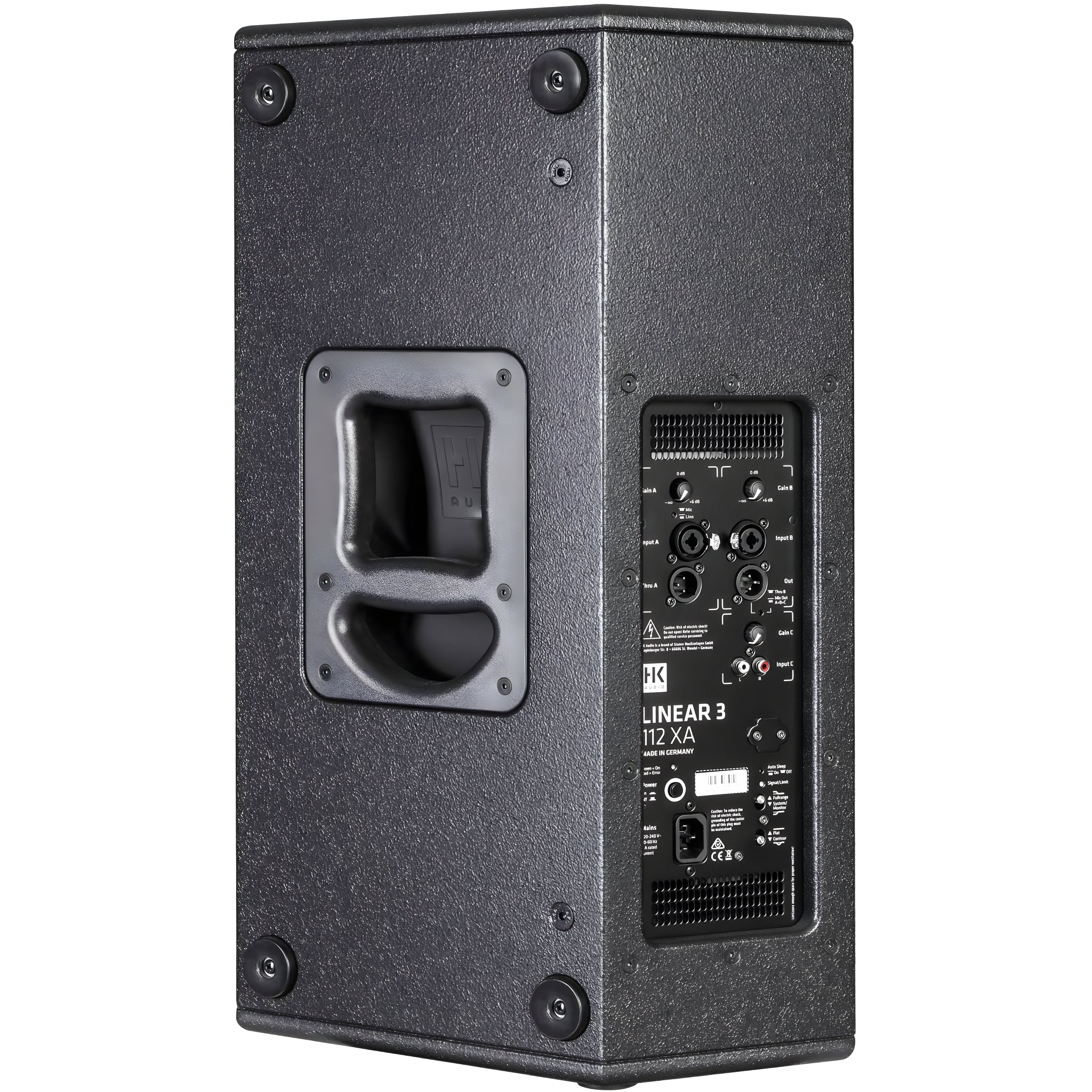

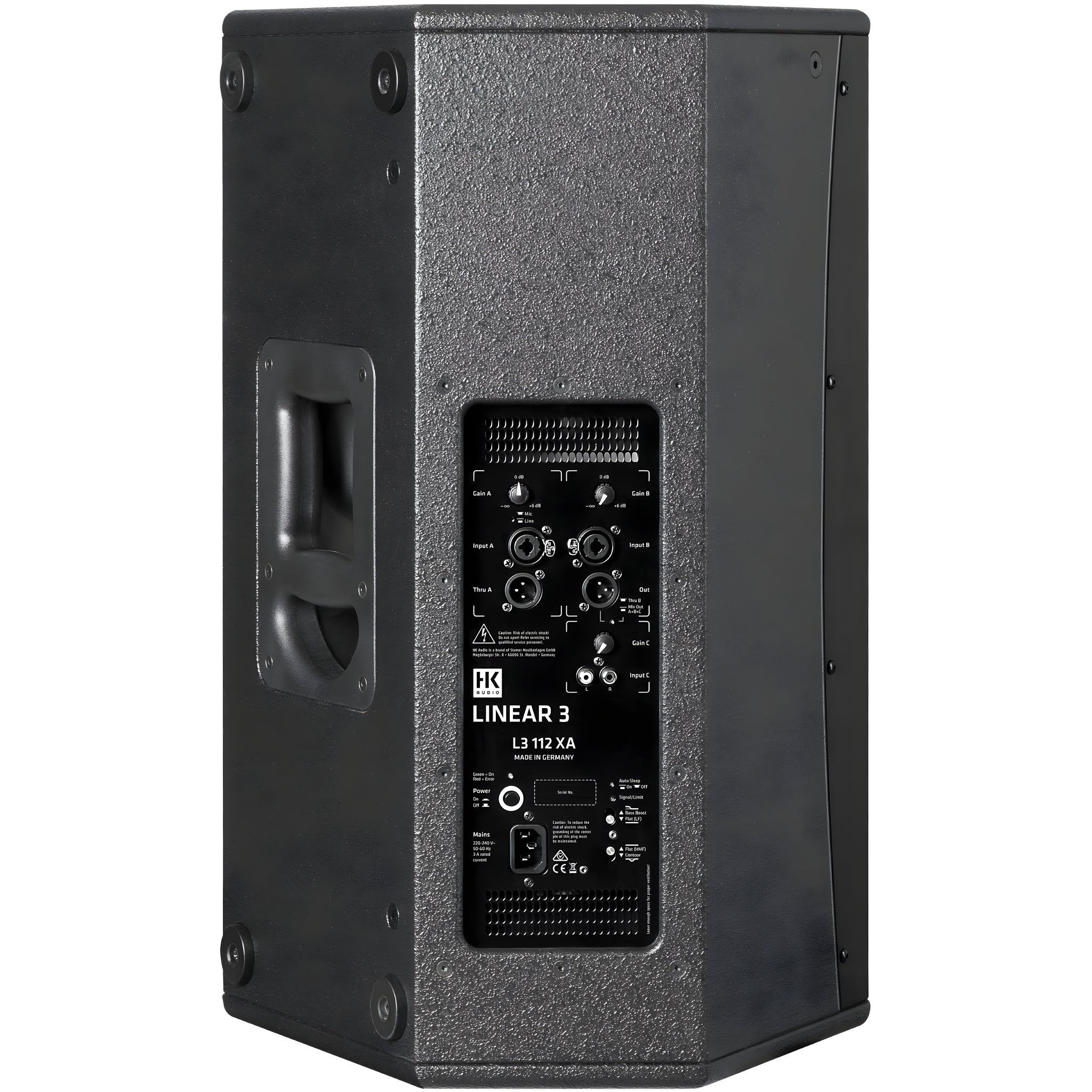

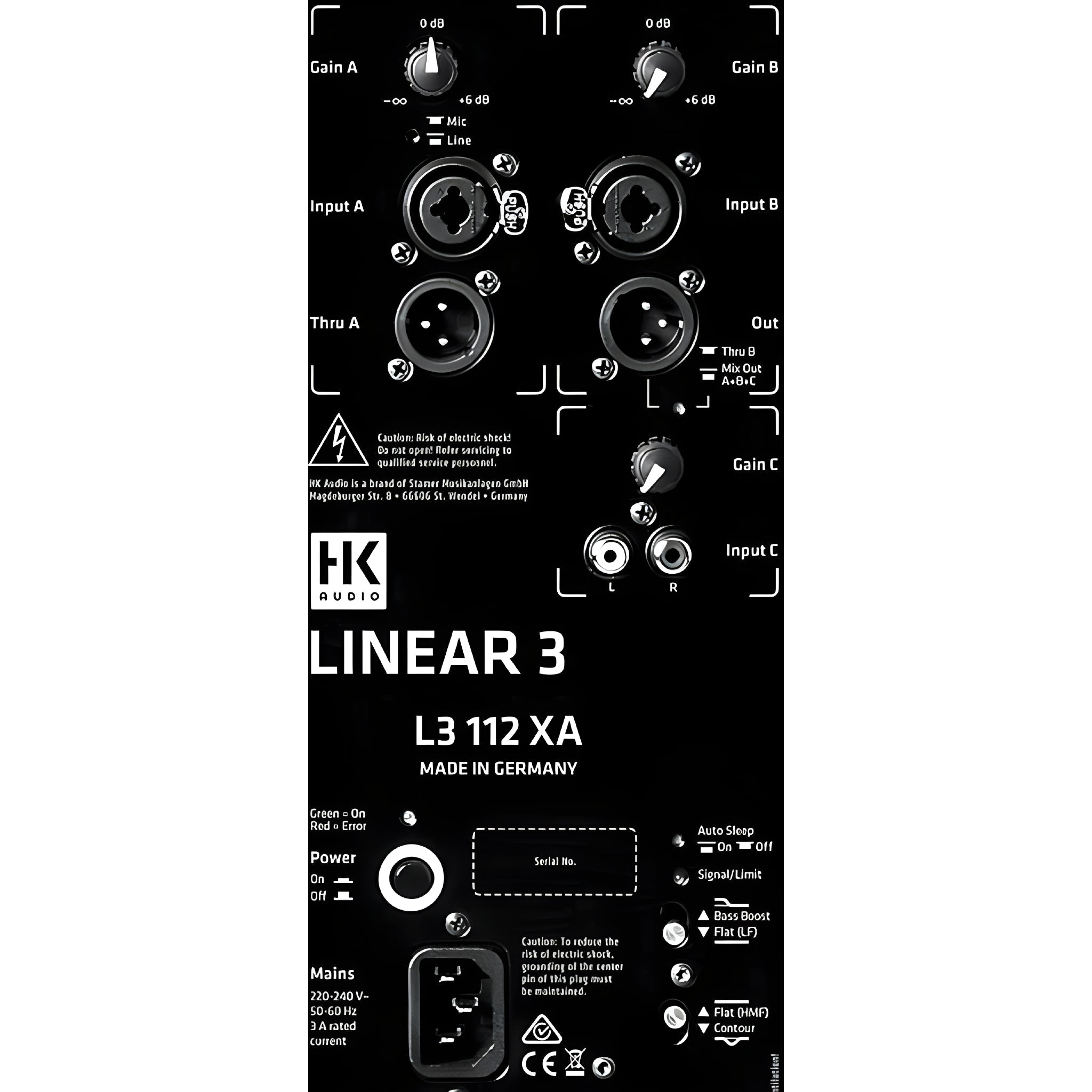

• Full connectivity: 2 × XLR combo mic/line (Line/Mic in A), 1 × stereo RCA, 2 × XLR Thru, 1 × XLR Mix Out.
• Active protections: undervoltage, thermal, short circuit, overcurrent, peak/RMS limiters, multiband and look-ahead temperature control.
• Robust enclosure: 16mm MDF, steel grille with acoustic foam, black acrylic enamel finish.

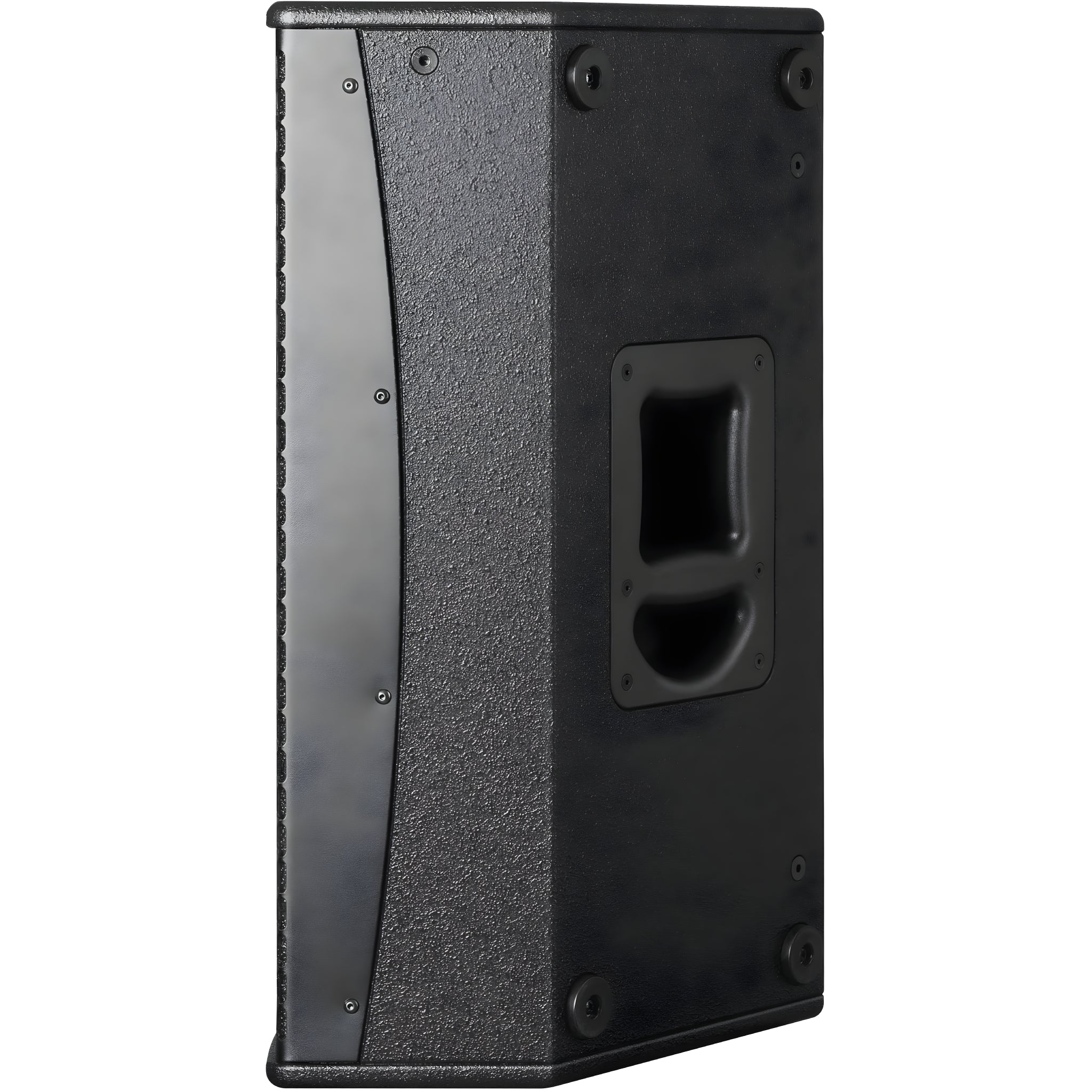

• Versatile mounting: DuoTilt 3°/7° socket, 4 × M8 (AP-8), SingleGrip and MultiGrip handles, 33° monitor angle.
• Dimensions and weight: 39.5 × 66 × 34 cm; 20.6 kg .

Product benefits

• Consistent Clarity and Projection: The combination of FIR crossover and 90° × 55° guide delivers defined voices and consistent coverage across the entire listening area.
• Instant adjustment to your environment: EQ presets allow you to optimize in seconds for DJ, vocals, band, or monitor use without external processors.
• Professional reliability: comprehensive electronic protections and predictive thermal management to maintain performance under demanding conditions.
• Easy subwoofer integration: direct compatibility with L SUB 1500 A and L SUB 1800 A for 2.1 systems and higher-power stacks.
• True Portability: Solid construction and 20.6 kg, with handles designed for quick assembly and transport.

Use cases

• Main PA for mobile events , rental and technical production.

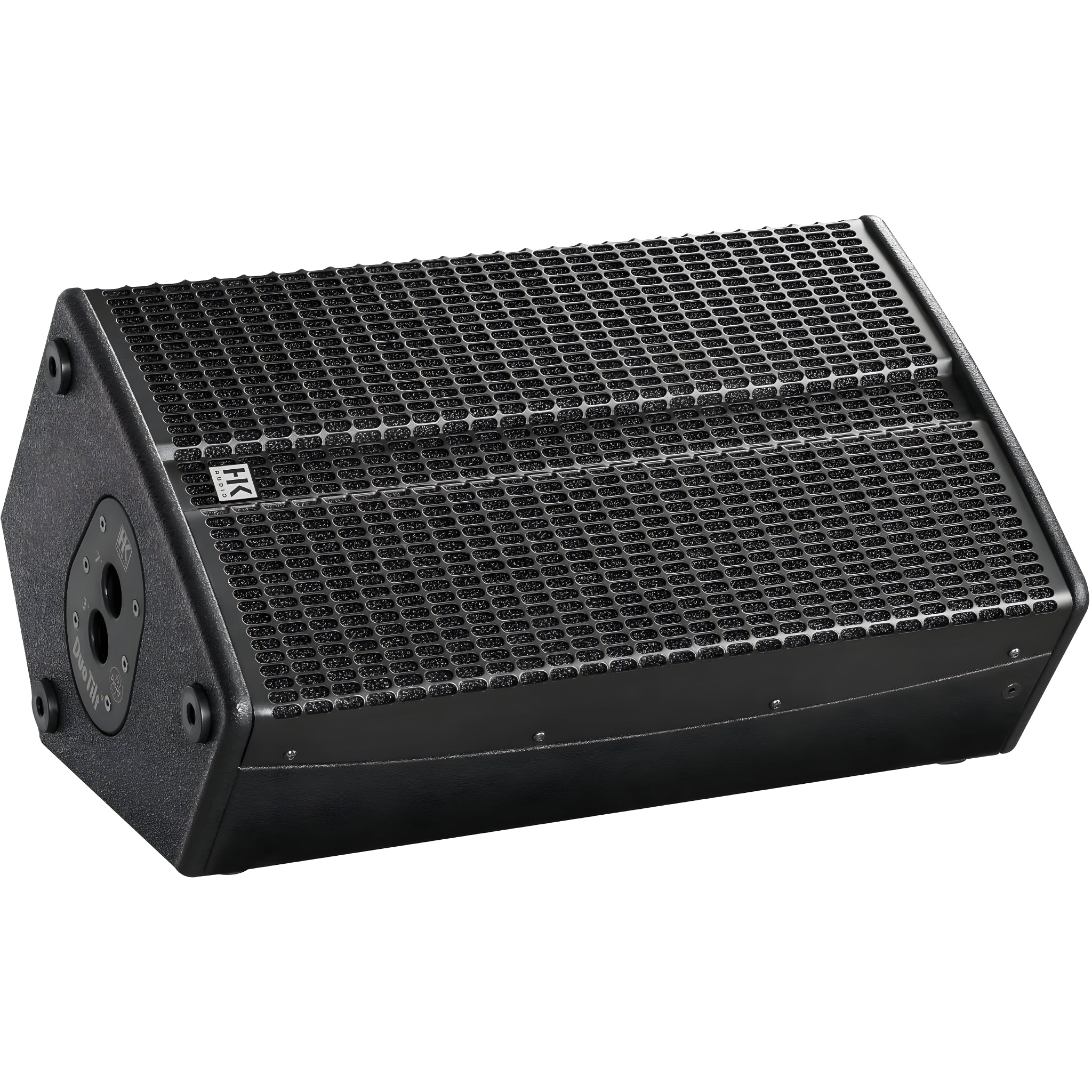

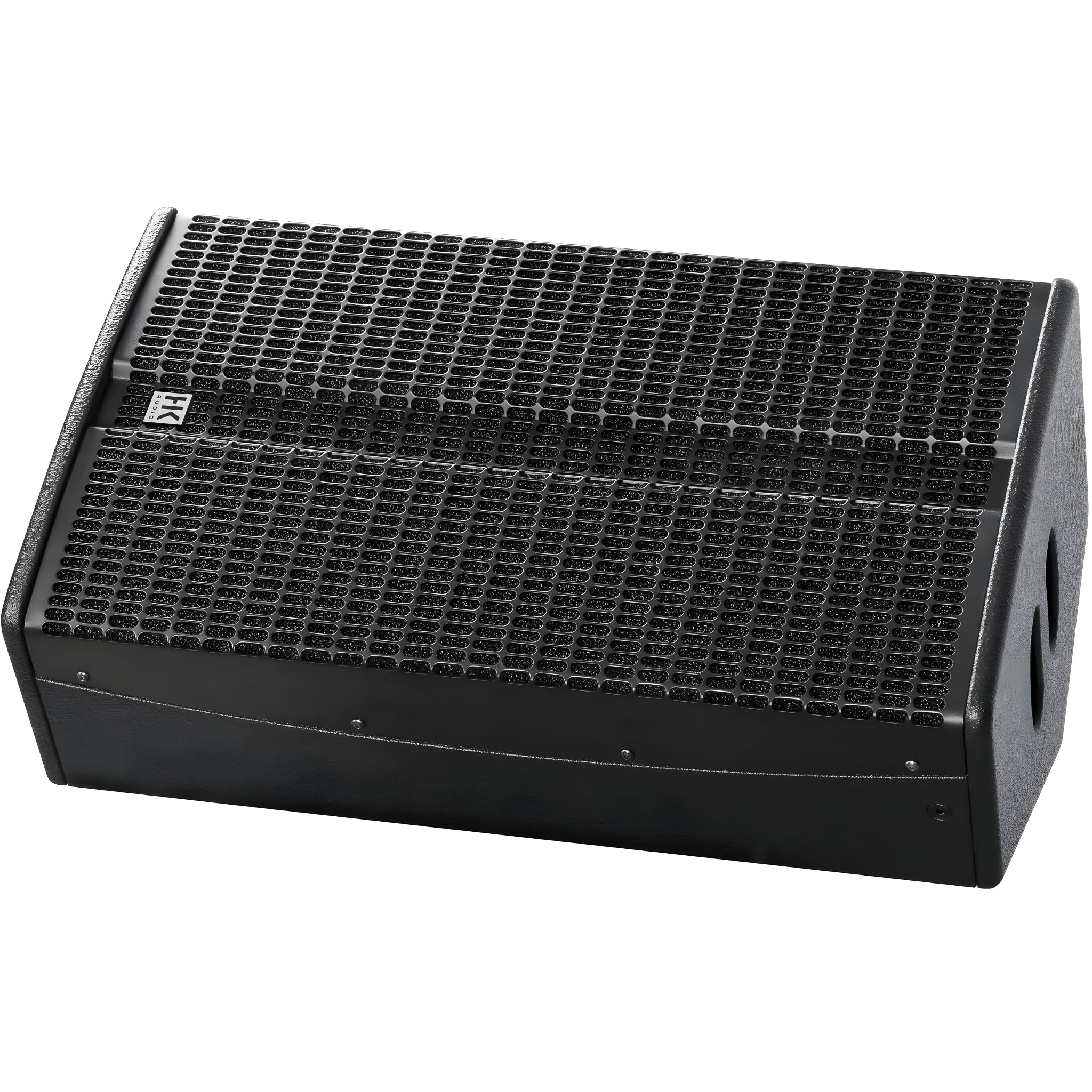

• Stage monitor with adjustable response and 33° angle.
• Reinforcement of live music , DJ and corporate presentations.
• Fixed installations requiring high SPL and coverage control.

Frequently Asked Questions

• Can it work as both a monitor and a PA? Yes. Its multi-angle enclosure and DSP with presets allow it to be used as a floor monitor or as a main speaker.
• Can I combine it with subwoofers? Yes, it's designed to work with LINEAR SUB series subwoofers, specifically the L SUB 1500 A and L SUB 1800 A.
• What quick settings does it include? Two EQ switches: Bass Boost/Flat for the low end and Flat/Contour for the mid-highs.
• What input level does it support? Input sensitivity of +4 dBu with the gain control on the center click; input A allows you to select Line/Mic.

Description for projects

2-way active loudspeaker with 12” woofer and 1” driver; DSP with FIR crossover at 2.3 kHz (72 dB/oct); 90° × 55° coverage; response 67 Hz – 18 kHz (±3 dB) / 62 Hz – 18 kHz (-10 dB); bi-amplified Class D amplification power 1200 W (peak); max. SPL 135 dB (peak, half-space); EQ by presets (Bass Boost/Flat and Flat/Contour); inputs 2 × XLR combo mic/line (Line/Mic in A) + 1 × stereo RCA; outputs 2 × XLR Thru + 1 × XLR Mix Out; sensitivity +4 dBu; protections (undervoltage, thermal, short circuit, overcurrent, subsonic, peak/RMS/multiband limiters and look-ahead thermal control); 16 mm MDF enclosure; 3°/7° DuoTilt plinth; 4 × M8 (AP-8); SingleGrip and MultiGrip handles; metal grille with acoustic foam; dimensions 39.5 × 66 × 34 cm; weight 20.6 kg.
