JBL Professional VTX-V25-PB - Pull Back Accessory for V25 Arrays (Compression and Rear Motor)

JBL Professional VTX-V25-PB - Pull Back Accessory for V25 Arrays (Compression and Rear Motor)

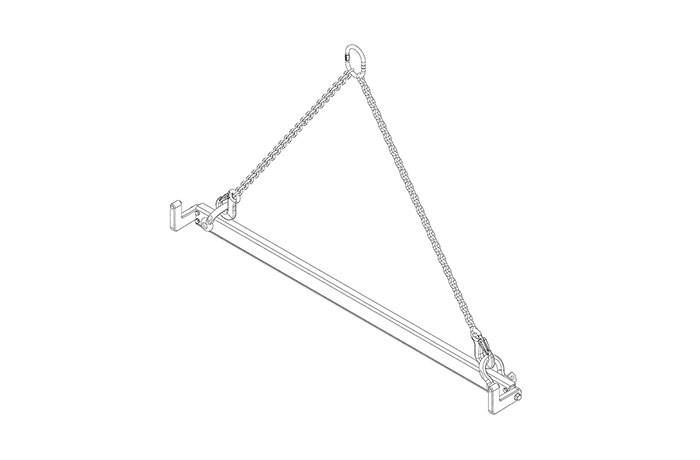

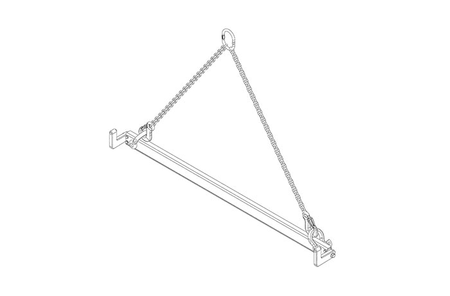

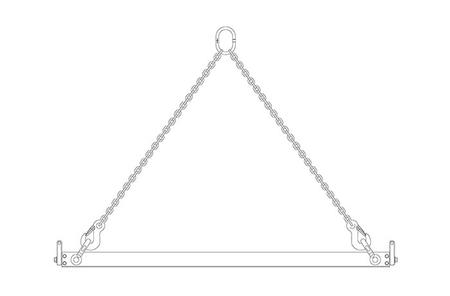

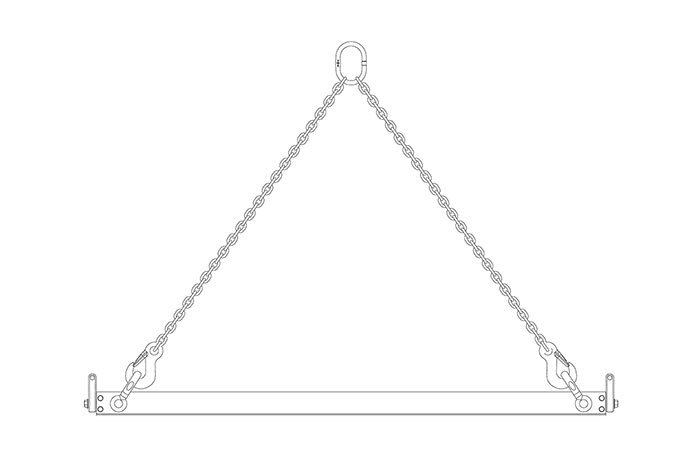

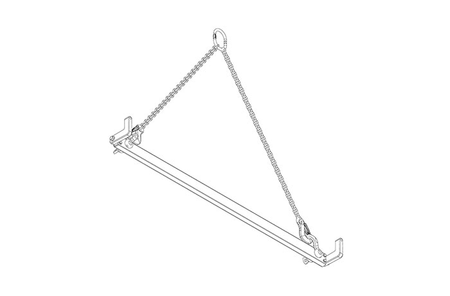

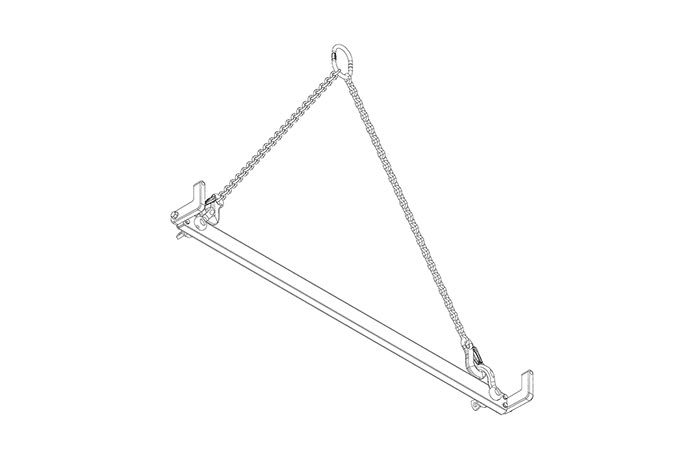

The JBL VTX-V25-PB is the official Pull Back accessory for attaching to the lower enclosure of VTX V25 arrays, facilitating compression suspension of V25-II-CS / V25-CS systems or use as a rear motor pullback with a rear lifting point. It can work with a VTX-V25-LH lever hoist or with a chain motor coupled to the VTX-V25-AF-EB extension bar . It is designed in steel with a black powder coat finish , supports up to ≈907 kgf of pulling force ( 2000 lb ) and is delivered with 5/8" (≈15.9 mm) shackles and double-strand chain bridle with safety hooks for fast, safe and repeatable compression in touring.

Main features

• Compatibility : VTX V25-II , V25-II-CS , V25 and V25-CS ; also valid for non-Compression Suspension configurations in rear motor mode.
• Operating modes : compression with the VTX-V25-LH or with a chain-driven motor on the VTX-V25-AF-EB ; alternatively with a rear suspension point (rear motor).
• Pulling capacity : up to ≈907 kgf (2000 lb).
• Hardware included : center pull back bar with L/R adapters, 2 × 5/8" shackles and 24" double-end chain bridle with safety hooks and top master link.
• Construction : Steel with black powder coat finish ; direct integration into the V25 lower enclosure.
• Dimensions (H × W × D): 858 × 1222 × 110 mm ; Net weight : 8.2 kg .

Benefits for the PA technician

• Rigging speed : controlled and repeatable compression of V25 columns, reducing assembly times.
• Safety and control : OEM accessories, shackles and bridle included, and certified pulling capacity.
• Versatility : compression option via extension bar or rear engine depending on logistics and capacity.
• Full compatibility with V25 variants and the JBL VTX rigging ecosystem.

Use cases

• VTX V25-II-CS / V25-CS array compression on tours, festivals and concert halls.
• Configurations with rear motor pullback when the venue design requires it.
• Operates with VTX-V25-LH or chain motor on VTX-V25-AF-EB to adjust curvature and tension of the array.

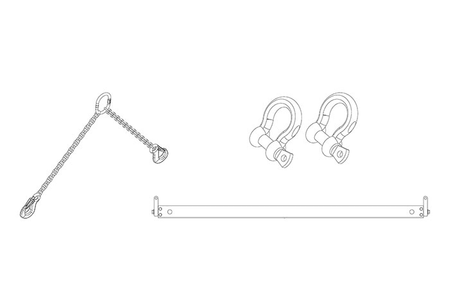

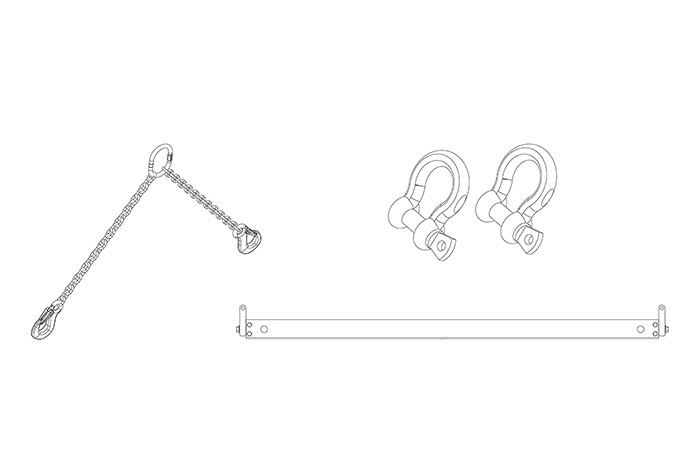

Package contents

• 1 × central pull-back bar with 2 × left/right brackets (attachment to the V25 lower enclosure).
• 2 × 5/8" (≈15.9 mm) shackles .
• 1 × 24" chain bridle (double leg) with safety hooks and top master link.

Description for projects

JBL VTX-V25-PB — Pull Back accessory for attachment to the bottom enclosure of VTX V25 arrays; compatible with V25-II / V25-II-CS / V25 / V25-CS; use with VTX-V25-LH hoist or chain motor to VTX-V25-AF-EB , or in rear motor pullback . Steel construction with black finish ; pulling capacity ≈907 kgf (2000 lb); 5/8" shackle included; dimensions 858 × 1222 × 110 mm ; weight 8.2 kg ; includes center bar + L/R adapters, 2 shackles and 24" chain bridle.
