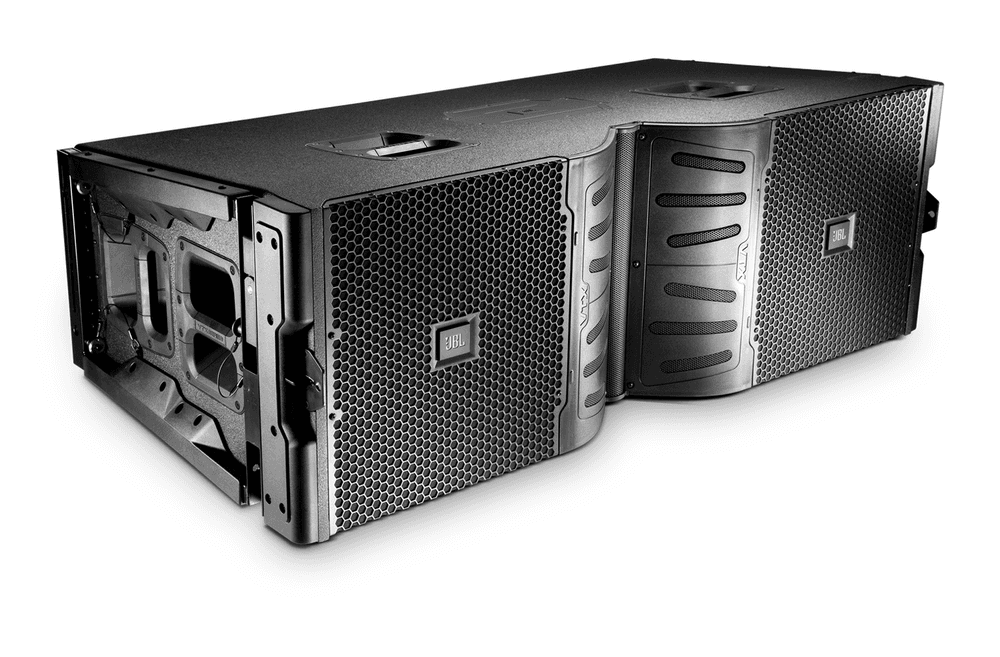

JBL Professional VTX-V25-II - Full-size 3-way line array with fixed-angle ASM suspension (SAFE)

Out of stock
SKU: VTX-V25-II EAN13: 691991013102
Regular price 30.697,08 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

The VTX V25-II is a large, high-directivity, 3-way line array element featuring a new 4th generation waveguide for improved long-distance performance, wavefront control, and is a better power match for the Crown IT4x3500HD. The transducer complement for the VTX V25-II includes two 15" 2000W Differential Drive® woofers mounted in cast aluminum baffles, four 8" Differential Drive midrange transducers firing through a patented Radiation Boundary Integrator® (RBI), and three revolutionary dual-diaphragm, dual-voice-coil D2 compression drivers loaded into the newly designed waveguide. The system is complete with proprietary matching, Crown I-Tech HD amplification with BSS® OmniDriveHD V5 processing, and JBL HiQnet Performance Manager® configuration and control software. Features New 4th-generation HF waveguide technology? Revolutionary D2 dual-diaphragm voice-coil compression driver? JBL's patented RBI (Radiation Boundary Integrator®)? Cardioid subwoofer enclosure models? Aluminum front baffles for reduced cabinet height and weight and improved heat transfer? Patented JBL SAFE Suspension System? V5 processing with Crown I-Tech HD or VRACK? JBL HiQnet Performance Manager system setup and control? Available with fixed-angle tension suspension (V25-II) or compression suspension (V25-II-CS) hardware
  • Brand:JBL Professional
  • Model:VTX-V25-II
  • Guy:High directivity 3-way line array element

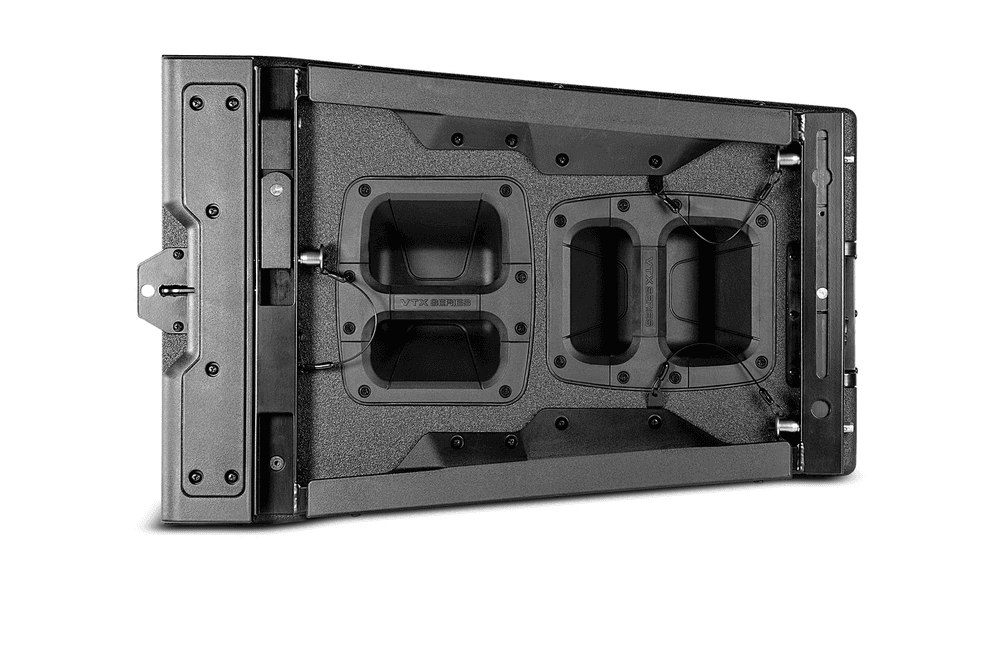

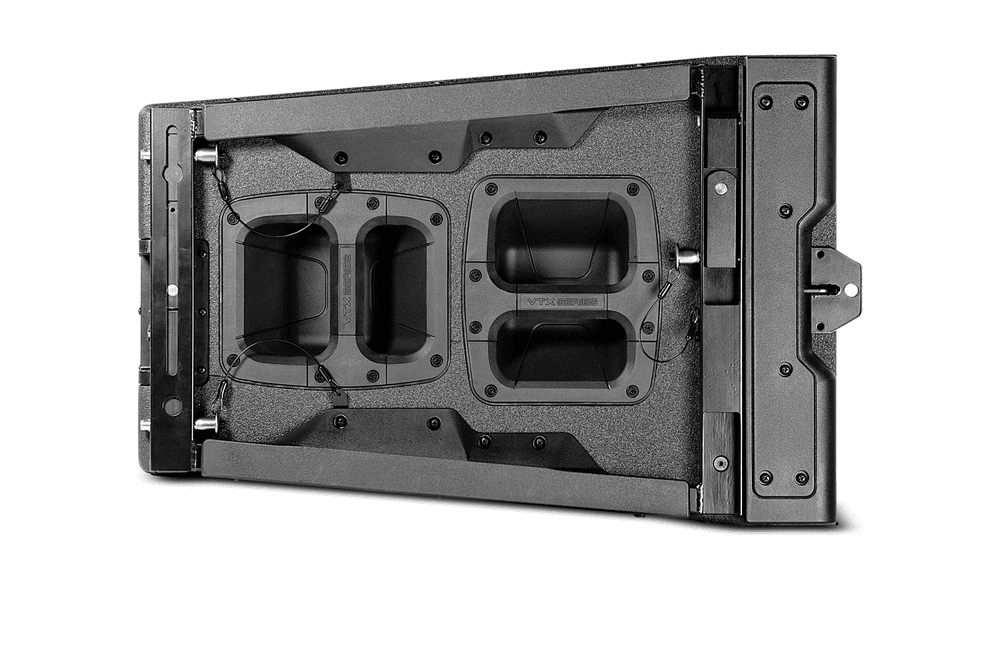

  • Suspension system:SAFE withASMfixed angle (tension)
  • Angles between enclosures:0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10°

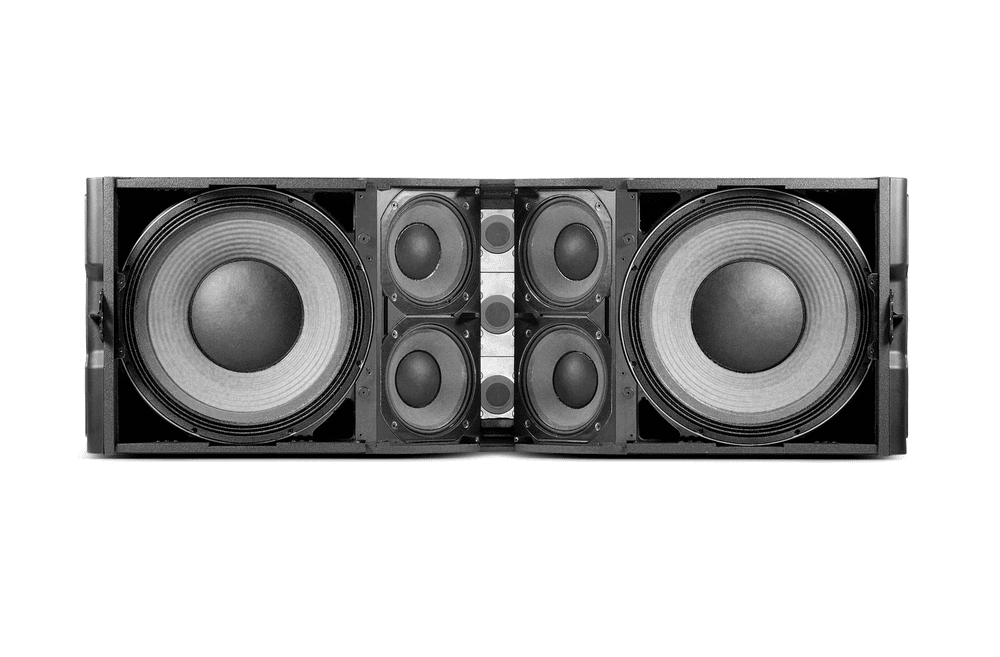

  • LF Transducers:2 × 15" JBL 2267H (Differential Drive®, Direct Cooled™)
  • MF Transducers:4 × 8" JBL 2169H (Differential Drive®, Direct Cooled™)
  • HF Transducers:3 × JBL D2 2430K (dual diaphragm, dual coil, 1.5" output)
  • RBI:Frontier Radiation Integrator (patented) for the MF/HF section
  • Frequency range (−10 dB):35 Hz – 18 kHz
  • Horizontal coverage (−6 dB):90° (200/300 Hz – 16 kHz, depending on mode)
  • AES continuous power (2 h):LF 2 × 2000 W; MF 1400W; HF 600W
  • Maximum peak SPL (calculated):LF 141 dB; MF 140.5 dB; HF 149.5 dB
  • Nominal impedances:LF 2 × 8 Ω; MF 8Ω; HF 8Ω

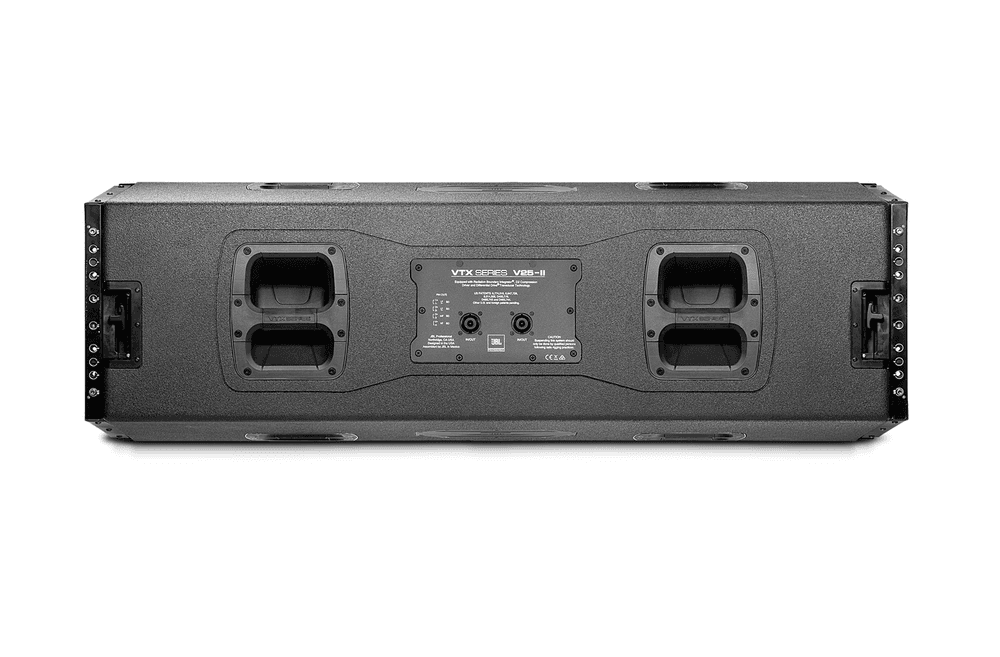

  • Connectivity:2 × Neutrik Speakon NL8 (LF1 1±, LF2 2±, MF 3±, HF 4±)
  • Processing and control:V5 Libraries (BSS® OmniDriveHD) for Crown I-Tech HD / VRack; JBL HiQnet Performance Manager
  • Enclosure materials:Cast aluminum front baffle; Finnish birch plywood; Black DuraFlex™ finish
  • Dimensions (H × W × D):414 × 1223 × 614 mm
  • Weight (unit):82.6 kg
  • Compatible accessories:VTX-V25-AF (frame), VTX-V25-AF-EB (extension bar), VTX-V20-DF (adapter)downfill)
  • Related subwoofers:VTX S28 (mountable, cardioid), VTX G28 (floor, cardioid)
  • Alternative option:VTX-V25-II-CS with compression suspension
  • Type New
  • Vendor JBL PROFESSIONAL
  • SKU VTX-V25-II
  • Bar-code 691991013102

Buy JBL Professional VTX-V25-II - Full-size 3-way line array with fixed-angle ASM suspension (SAFE)
