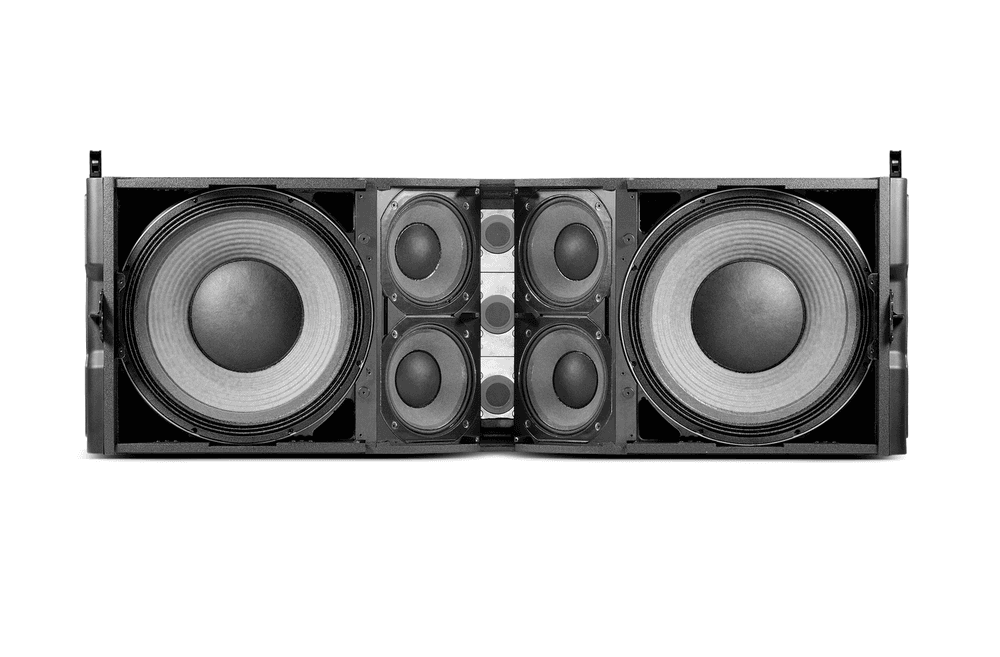

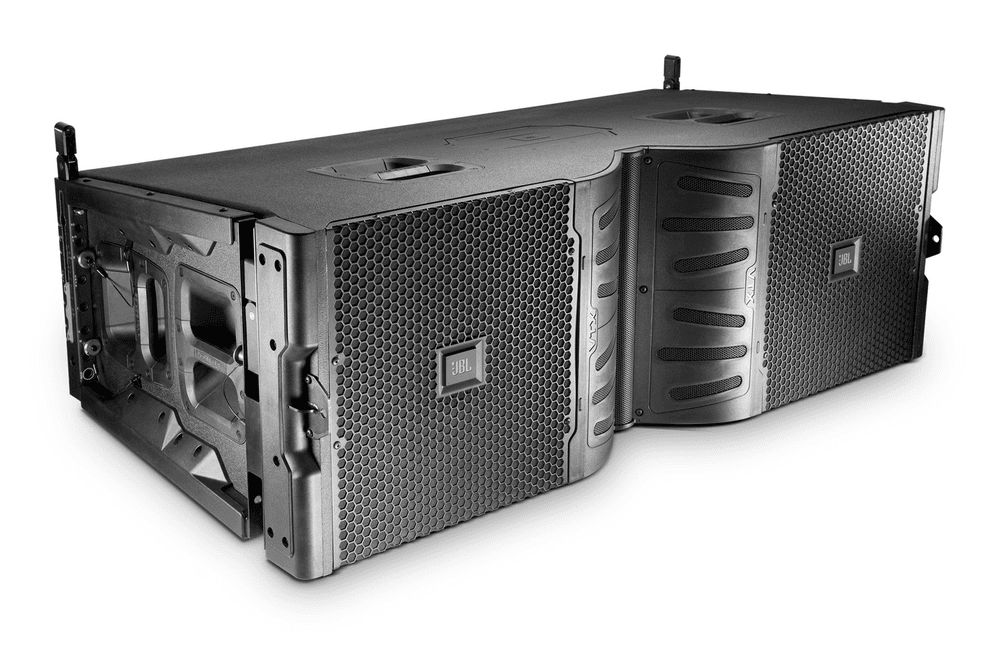

JBL Professional VTX-V25-II-CS - Full-size 3-way line array with compression suspension and controlled directivity

Out of stock
SKU: VTX-V25-II-CS EAN13: 691991013119
Regular price 32.711,72 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Features? New 4th-generation HF waveguide technology? Revolutionary D2 dual-diaphragm voice-coil compression driver? JBL's patented RBI (Radiation Boundary Integrator®)? Cardioid subwoofer enclosure models? Aluminum front baffles for reduced cabinet height and weight and improved heat transfer? New V25 compression suspension system? Optimized accessories for transport and vertical deployment? V5 processing with Crown I-Tech HD or VRACK? JBL HiQnet Performance Manager system setup and control? Available with fixed-angle tension suspension (V25-II) or compression suspension (V25-II-CS) hardware
  • Brand:JBL Professional
  • Model:VTX-V25-II-CS
  • Guy:High directivity 3-way line array element with compression suspension
  • Paths/configuration:3-way (LF/MF/HF)
  • Horizontal coverage:90° nominal (200 Hz–16 kHz)
  • Frequency range (−10 dB):35 Hz – 18 kHz
  • Maximum peak SPL (per channel):LF 141 dB; MF 140.5 dB; HF 149.5 dB
  • LF Transducers:2 × 15" JBL 2267H
  • MF Transducers:4 × 8" JBL 2168H
  • HF Transducers:3 × JBL D2 2430K (dual diaphragm/dual coil)
  • Nominal impedances:LF 2 × 8 Ω; MF 8Ω; HF 8Ω
  • Processing and control:V5 Presets; JBL HiQnet Performance Manager
  • Recommended amplification:Crown I-Tech HD / VRack
  • Angles between enclosures:0; 0.5; 0.75; 1; 2; 3; 4; 5; 6; 9°
  • Enclosure materials:Cast aluminum front baffle; Finnish birch plywood; Black DuraFlex™ finish
  • Handles:4 recessed
  • Dimensions (H × W × D):414 × 1223 × 614 mm
  • Weight (unit):82.6 kg
  • Compatible accessories:VTX-V25-AF, VTX-V25-AF-EB, VTX-V25-LH, VTX-V25-PB, VTX-V25-VTC, VTX-V25-VT-CVR
  • Related subwoofers:VTX S28 (suspendable, cardioid-arrayable); VTX G28 (floor-standing, cardioid-arrayable)
  • Hardware availability:V25-II (tension/fixed angle) or V25-II-CS (compression)
  • Type New
  • Vendor JBL PROFESSIONAL
  • SKU VTX-V25-II-CS
  • Bar-code 691991013119
