The JBL VTX-V25-CS-K is the official rigging upgrade kit , converting VTX V25-II arrays from fixed-angle ASM suspension to the compression suspension of the V25-II-CS . This solution speeds deployment from vertical carriers and facilitates fine-tuning of curvature, adding new angle steps of 0.5° and 0.75° to improve long-distance performance. The kit includes all necessary rods, hardware, and pins , plus suspension frame labels for proper on-tour identification. For array compression, the system works with the VTX-V25-PB (pull-back) and VTX-V25-LH (lever hoist) accessories, and is optimized for operation with the VTX-V25-VTC vertical carrier .

Main features

• Upgrade V25-II to V25-II-CS : Complete conversion to compression suspension with OEM parts.
• Rapid deployment from vertical conveyors, ideal for touring logistics.
• Increased angular resolution : Adds 0.5° and 0.75° steps to fine-tune the array curvature.
• Compatibility with VTX-V25-PB (pull-back) and VTX-V25-LH (hoist) to safely apply compression.
• Includes all necessary hardware for installation, along with frame labels for consistent marking.
• Optimized for “ truck pack ” together with the VTX-V25-VTC (vertical conveyor).

Kit contents

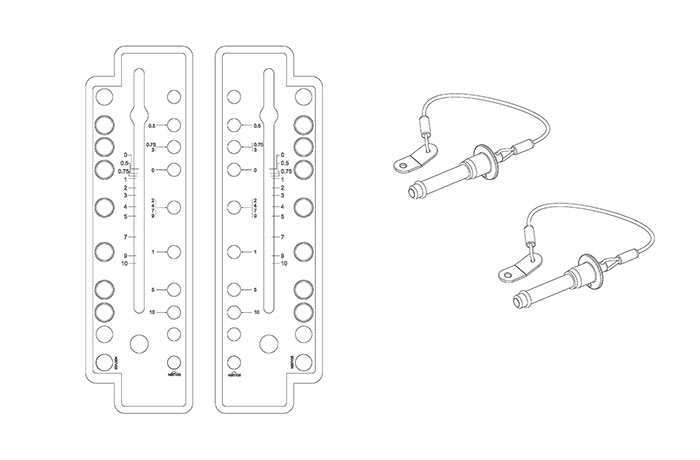

• 2 × suspension frame labels .

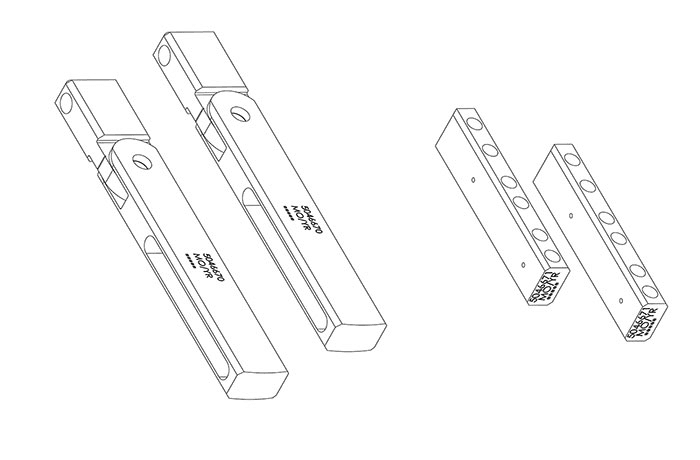

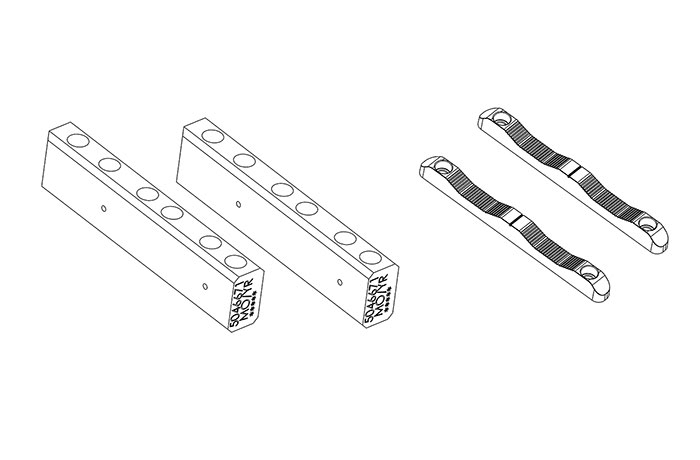

• 2 × slot hinge bars .

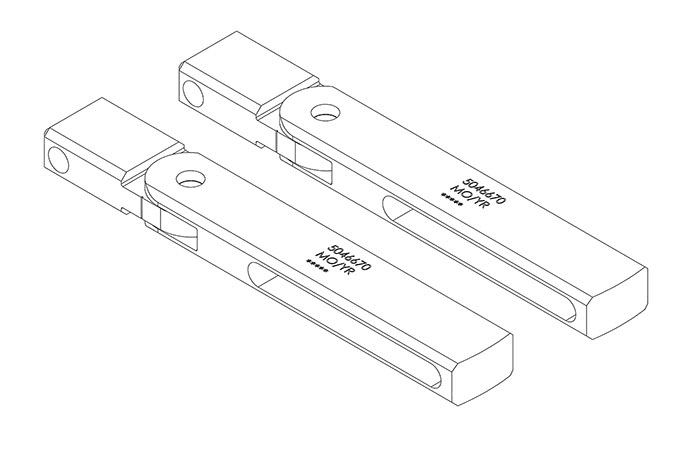

• 2 × ASM bars + 2 × ASM slider handles ( ASM bars + ASM slider handles ).
• 2 × Quick Release Pins (QRP) with lanyard ( Quick Release Pins with lanyard assemblies ).
• Complete set of screws and mounting hardware .

Benefits for production and rental

• Speed ​​and repeatability in rigging, reducing assembly and adjustment times.
• More precise bends thanks to higher angle resolution (0.5°/0.75°).
• Full compatibility with the VTX ecosystem (PB, LH, VTC) for safe and efficient operation.
• OEM Approval : Genuine JBL parts that maintain system integrity.

Compatibility and accessories

• Compatible systems: VTX V25-II (after update, the enclosure will operate as V25-II-CS).
• Required/Related Accessories: VTX-V25-PB (Pull-Back), VTX-V25-LH (Lever Hoist), and VTX-V25-VTC (Vertical Conveyor).
• Recommended: VTX-V25-CS-K-LJ (label kit with stencil) to ensure correct label placement and adhesion.

Installation and good practices

• Convert it into a padded and stable surface, protecting the front and finishes of the enclosure.
• Follow the installation and safety check procedure indicated by JBL for each assembly step.
• Check correct labeling and free movement of ASM bars/controls before lifting.

Description for projects

VTX-V25-CS-K — Compression Suspension Kit for VTX V25-II ; adds 0.5° and 0.75° angle steps ; compatible with VTX-V25-PB and VTX-V25-LH ; optimized for VTX-V25-VTC . Includes : 2 frame tags, 2 slot hinge bars, 2 ASM bars + 2 ASM slide levers, 2 QRP pins with lanyard and all necessary hardware. Recommendation : order VTX-V25-CS-K-LJ (tag installation template) with every order of VTX-V25-CS-K .
