JBL Professional VTX-V25-AF - Array frame for V25/V25-II and S28 with 9 pick points and ground stacking

JBL Professional VTX-V25-AF - Array frame for V25/V25-II and S28 with 9 pick points and ground stacking

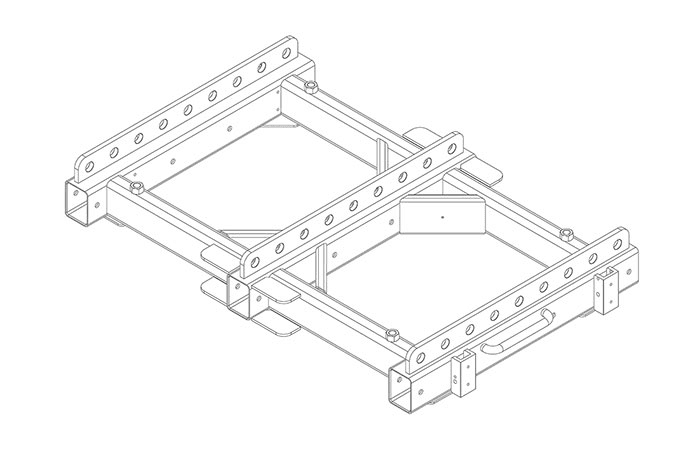

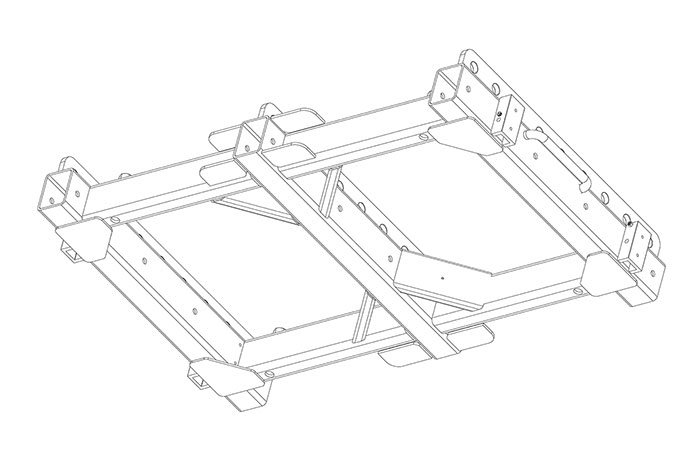

The JBL VTX-V25-AF is the official array frame for flying or ground-stacking VTX V25 Series systems. It is compatible with the V25, V25-CS, V25-II, V25-II-CS and the VTX S28 subwoofer, and incorporates 4 adjustable leveling feet for stable stacking. It offers 9 pick points for single-point suspension, allows front-to-back or side-by-side hoisting options, and supports up to 24 cabinets per column (depending on array geometry). The frame is constructed from steel with a black powder-coated finish and is supplied with 4 quick-release pins (QRPs) for securing the first cabinet to the frame. As an option, the VTX-V25-AF-EB extension bar can be extended to separate hoist points and enable compression mounting from the frame.

Main features

• Compatibility: VTX V25 / V25-CS / V25-II / V25-II-CS and VTX S28 subwoofer.
• Suspension: 9 pick points for one point; front-to-back and side-by-side options.
• Capacity: up to 24 enclosures per column (geometry dependent).
• Ground-stack: adjustable leveling legs included for ground stacking.
• Lifting hardware: Accepts 5/8" or 3/4" shackles at pick points.

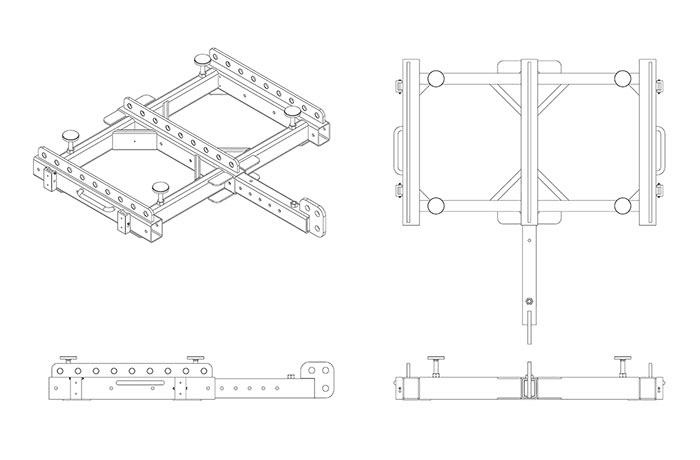

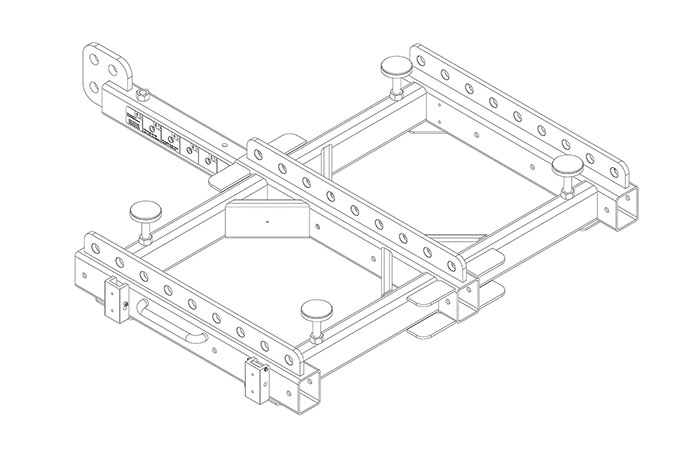

• Optional extension: VTX-V25-AF-EB for greater point separation and use in compression.
• Includes: 4 QRPs to secure the first enclosure to the frame.

Benefits for production and tours

• True versatility , serving both as a floor stacker and as a floor stacker with precise leveling.
• Fast and secure : 9 anchoring positions and included QRP speed up assembly.
• Scalability for long columns (up to 24 boxes), with direct compatibility with S28.
• Integration with VTX ecosystem (AF frame, AF-EB bar, V25-II/CS, S28).

Use cases

• Flying VTX V25/V25-II arrays on tours, festivals and large venues.
• Ground-stack of V25 or S28 when top rigging is not available.
• Configurations that require specific point separation using the AF-EB bar.

Description for projects

JBL VTX-V25-AF array frame in steel with black powder coat finish ; 9 pick points ( 5/8" or 3/4" shackle), front-to-back and side-by-side lifting options; ground-stack with 4 adjustable leveling legs; capacity up to 24 cabinets (depending on geometry); V25/V25-CS/V25-II/V25-II-CS and S28 compatibility ; includes 4 QRPs; dimensions 169.9 × 1225.6 × 762.0 mm (H × W × D); weight 80.3 kg ; optional accessory VTX-V25-AF-EB .
