JBL Professional VTX-V25-AF-EB - Extension bar for V25 array frame (compression/tension, 2 points, up to 24 cabinets)

JBL Professional VTX-V25-AF-EB - Extension bar for V25 array frame (compression/tension, 2 points, up to 24 cabinets)

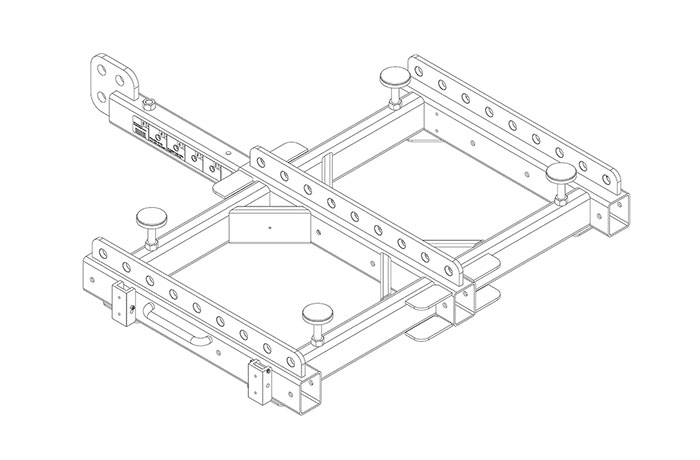

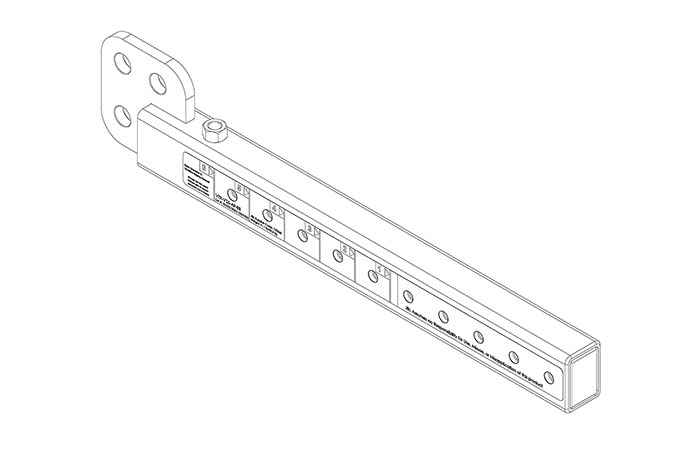

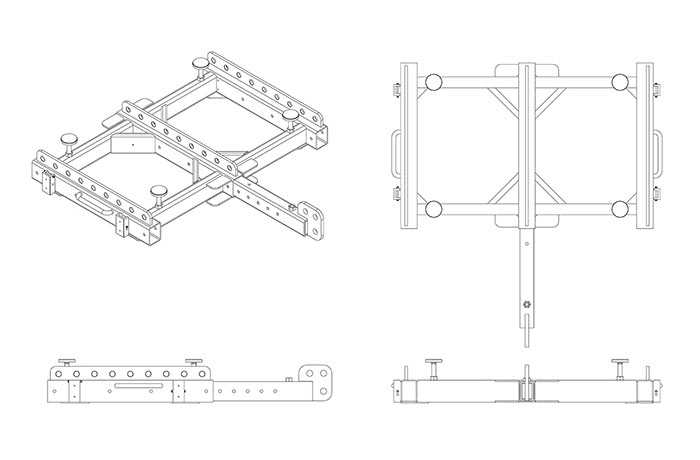

The JBL VTX-V25-AF-EB is the official extension bar for the VTX-V25-AF array frame. It adds new lifting point spacing options for 2-point suspension and adds flexibility for single-point suspension . It can be mounted in front of or behind the frame: front mounting increases up-tilt and rear mounting increases down-tilt and also provides the anchor point for compression suspension . It is designed to deploy VTX V25 systems in compression or tension mode , and supports up to 24 cabinets per column (depending on array geometry). It includes an adjustable leveling foot for ground-stack applications and quick-release pins (QRP) for secure attachment.

Main features

• Compatibility : Can be used in conjunction with the VTX-V25-AF frame for VTX V25 arrays in compression or tension.
• Suspension : 2 points with variable separation (5 positions) and greater flexibility at 1 point.
• Front/Rear Mount : More up-tilt (front) or more down-tilt (rear) and compression point when mounted behind.
• System capacity : up to 24 enclosures (dependent on array geometry).
• Lifting points : 2 points for single-point lifting; 1 point dedicated to the VTX-V25-LH level hoist .
• Shackles : Accepts 5/8" or 3/4" at lifting points.
• Includes : 1 × VTX-V25-AF-EB bar, 1 × adjustable leveling foot for ground-stack , 2 × QRP pins.
• Construction : Steel with black powder coat finish for high durability.

Benefits for production and tours

• Greater control of the array angle without adding hardware outside the VTX ecosystem.
• Faster deployment in compression (rear mounting) and security through the use of OEM hardware.
• Versatility in 1 or 2-point flying and extra stability when stacked on the ground thanks to the leveling foot.

Point spacing options (2-point suspension)

The bar offers five anchoring positions that determine the “L” separation between lifting points (identical in front or rear mounting): 1219.2 mm , 1155.7 mm , 1092.2 mm , 1028.7 mm and 967.2 mm .

Typical applications

• Flying VTX V25 arrays with increased tilt range (up/down-tilt) or optimized point separation per enclosure/enclosure.
• Deployments in compression mode using VTX-V25-LH (or pull-back configuration).
• Ground-stack configurations that require fine leveling of the assembly.

Description for projects

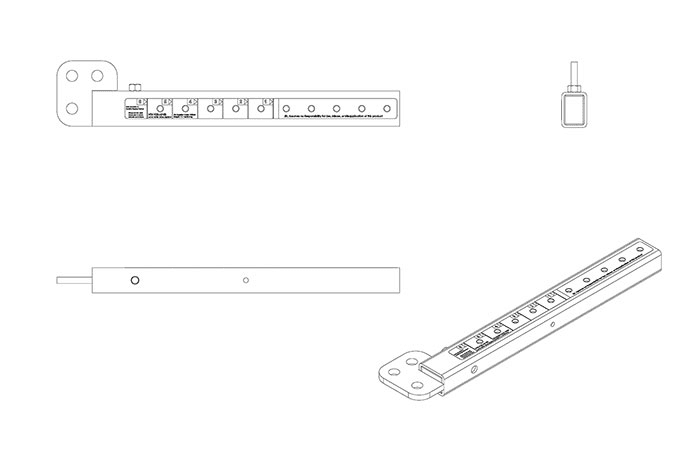

JBL VTX-V25-AF-EB — extension bar for VTX-V25-AF ; use in compression or tension ; 5 spread positions (L): 1219.2 / 1155.7 / 1092.2 / 1028.7 / 967.2 mm; lifting points compatible with 5/8" or 3/4" staples ; 1 point for VTX-V25-LH ; dimensions 165.1 × 63.4 × 863.6 mm (H × W × D); material steel, black powder-coated finish ; weight 32.3 kg; includes adjustable leveling foot and 2 QRP pins.
