JBL Professional VTX-V20-VT - Vertical Transport Unit for VTX V20 (3-4 Cabinets), Stackable and with Braked Casters

JBL Professional VTX-V20-VT - Vertical Transport Unit for VTX V20 (3-4 Cabinets), Stackable and with Braked Casters

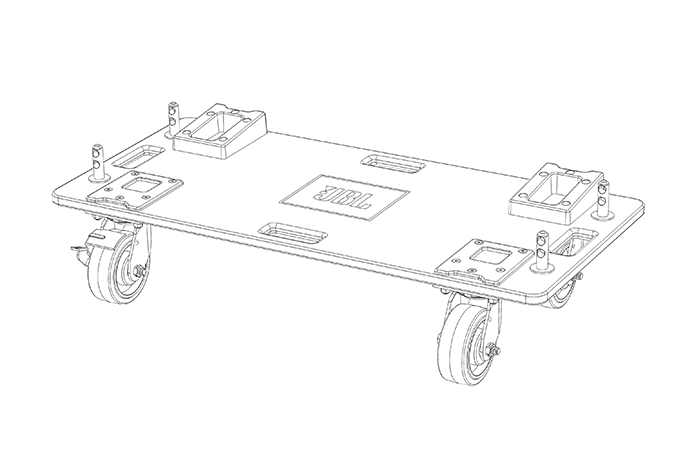

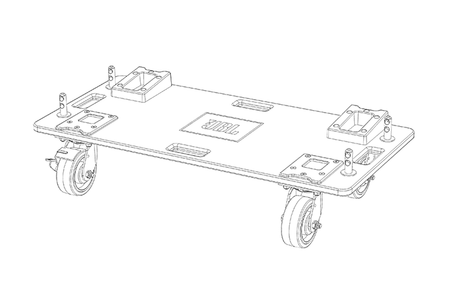

The JBL VTX-V20-VT is the official vertical transporter for quickly and safely moving 3 or 4 VTX V20 speaker stacks. Designed for everyday touring, it features heavy-duty braked wheels , a stackable platform and dimensions optimized for professional truck packing . Its exterior birch plywood deck with stainless steel / zinc-plated steel hardware offers durability and rigidity, while the specific VTX-V20-VT-CVR and VTX-V20-VT-CVRW protective covers (sold separately) protect the speaker during loading and storage. Measuring 940 × 440 × 245 mm (W × D × H) and weighing 16 kg , it allows five speakers to travel in parallel on standard 2.29 m wide trucks, taking advantage of the compact depth of the base.

Main features

• Capacity : vertical transport of 3 or 4 VTX V20 enclosures per cart.
• Mobility and safety : high-load brake wheels .
• Stackable to optimize warehouse and backstage space.
• Efficient truck pack : compact base designed for a 2.29 m wide truck.
• Touring construction : birch ply deck; stainless steel/zinc-plated hardware; matte black finish .
• Compatible accessories : VTX-V20-VT-CVR and VTX-V20-VT-CVRW covers (optional).

Benefits for production and tours

• Faster deployment of V20 stacks and reduced handling from box to box.
• Organized logistics thanks to the stackable design and standardized truck measurements.
• Longer equipment life by combining it with reinforced covers (optional).

Compatibilities and notes

• Compatibility: Exclusively for JBL VTX V20 (3 or 4-unit blocks).

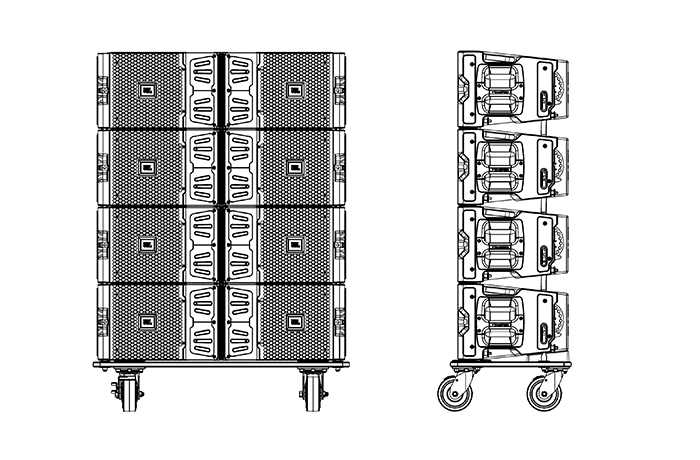

• Block height (approx.) above carriage: 3 × V20 ≈ 1036 mm ; 4 × V20 ≈ 1317 mm .
• Includes: 1 × VTX-V20-VT . VTX-V20-VT-CVR / VTX-V20-VT-CVRW covers not included.

Description for projects

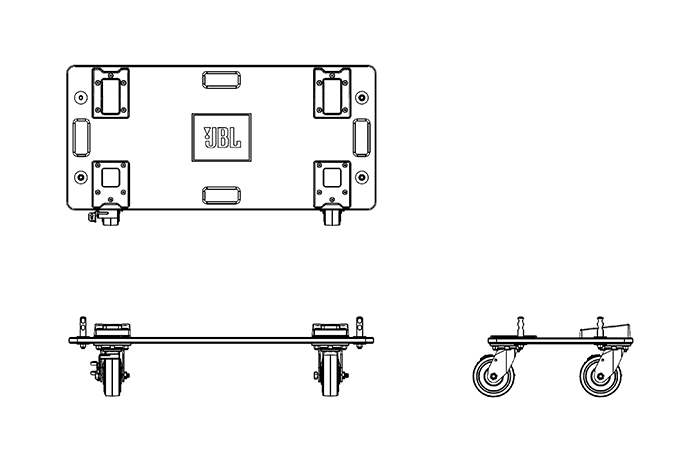

JBL VTX-V20-VT vertical transporter for 3–4 VTX V20s ; stackable ; heavy-duty braked wheels ; base dimensions 940 × 440 mm and total height 245 mm ; weight 16 kg ; materials: exterior birch plywood, stainless steel/zinc-plated hardware, matte black finish ; optimized for professional truck packs ; compatible decks: VTX-V20-VT-CVR and VTX-V20-VT-CVRW (optional).
