JBL Professional VTX-V20-PB - Pull-Back Clamp for VTX V20 Array Compression

JBL Professional VTX-V20-PB - Pull-Back Clamp for VTX V20 Array Compression

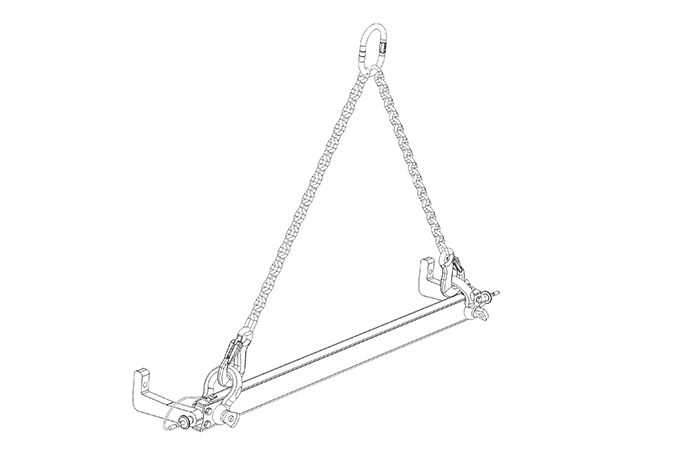

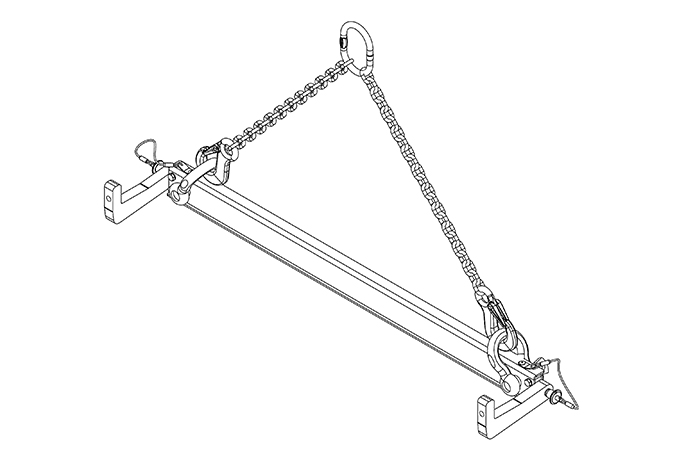

The JBL VTX-V20-PB is the official pull back accessory that attaches to the VTX V20 lower enclosure to facilitate compression suspension of V20 columns. It allows traction to be applied from a rear point with a dedicated chain motor ( Rear Motor Pullback ) or via the VTX-V20-LH lever hoist (or chain motor) coupled with the VTX-V20-AF-EB extension bar ( Extension Bar Pullback ). It is an integrated solution that includes a center bar with Quick Release Pins , left/right bracket pairs, 5/8" shackles and an 18" double-strand chain bridle with safety hooks. It supports up to ≈ 454 kgf ( 1000 lb ) of pulling force, with steel construction and a black powder coat finish for intensive touring use.

Main features

• Function : rear clamp for compression of VTX V20 arrays.
• Modes of use : with VTX-V20-LH or chain motor on the VTX-V20-AF-EB , or with dedicated rear point ( rear motor ).
• Pulling capacity : up to 1000 lb (≈ 454 kgf ).

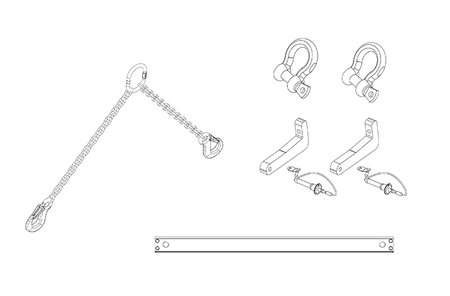

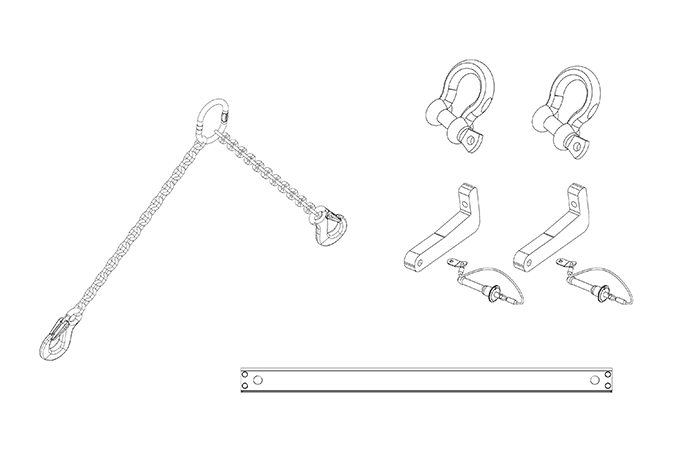

• Includes : pull-back bar with captive QRPs ; 2 L/R brackets; 2 × 5/8" shackles ; 18" chain bridle (double leg) with safety hooks and master link.
• Construction : steel , black powder coat finish .
• Reference dimensions : length approx. 933 mm ; height approx. 153 mm .

Benefits for production and tours

• Speed ​​and repeatability in V20 column rigging, with controlled compression.
• Operational safety thanks to OEM hardware and chain bridle with safety hooks.
• Versatility of integration with the VTX-V20-AF frame and its AF-EB , or with an independent rear point.

Use cases

• VTX V20 array compression for touring, festivals, and large venues.
• Configurations with rear lifting point or extension bar to adjust curvature and tension.

Description for projects

JBL VTX-V20-PB — pull back attachment for VTX V20 ; use with VTX-V20-LH or chain motor via VTX-V20-AF-EB , or on rear motor pullback ; steel with black powder coat finish ; pulling capacity ≈ 454 kgf (1000 lb); includes center bar with QRPs , 2 L/R brackets, 2 5/8" shackles, 18" double-end chain tie-down with safety hooks and master link; approx. dimensions: 933 mm (L) × 153 mm (H).
