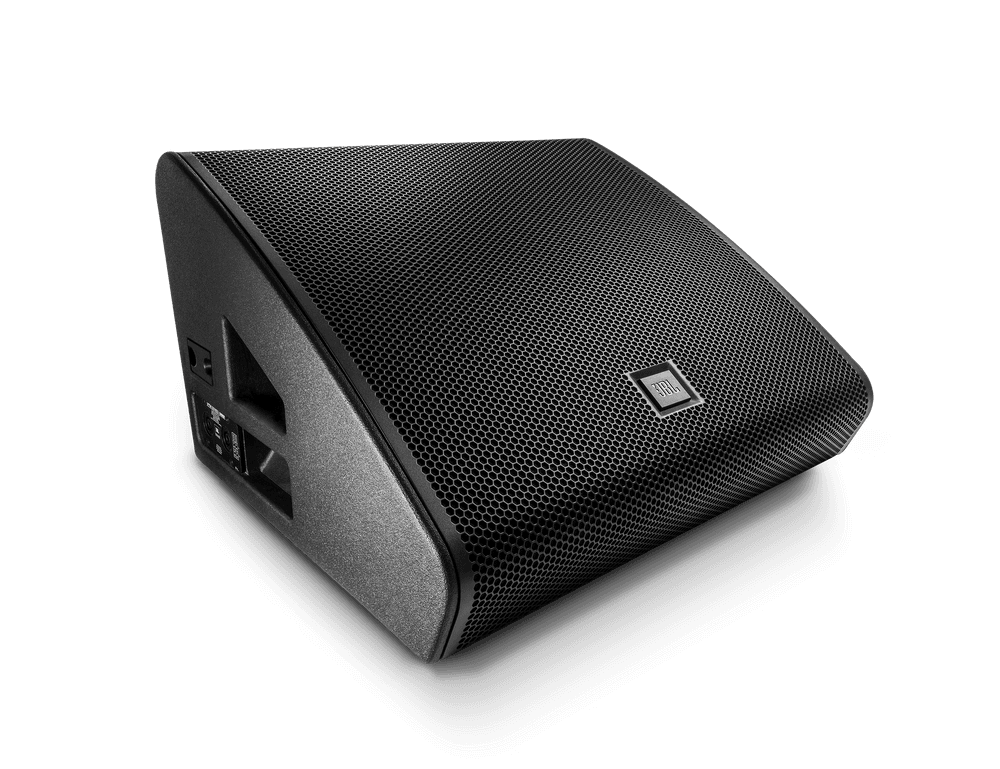

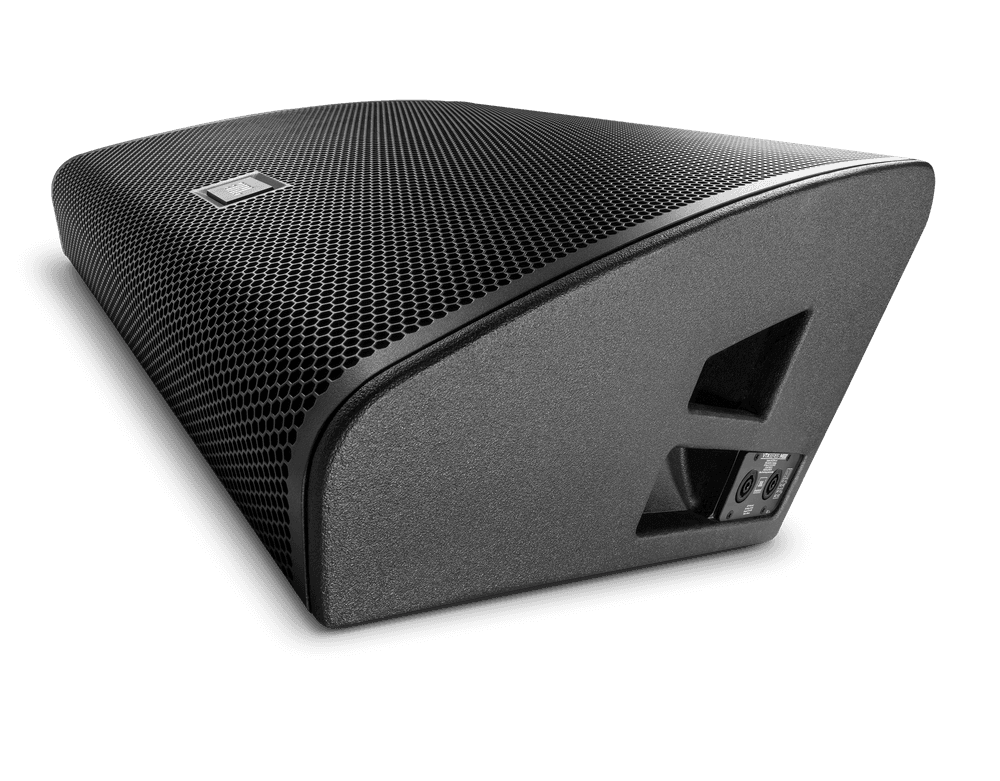

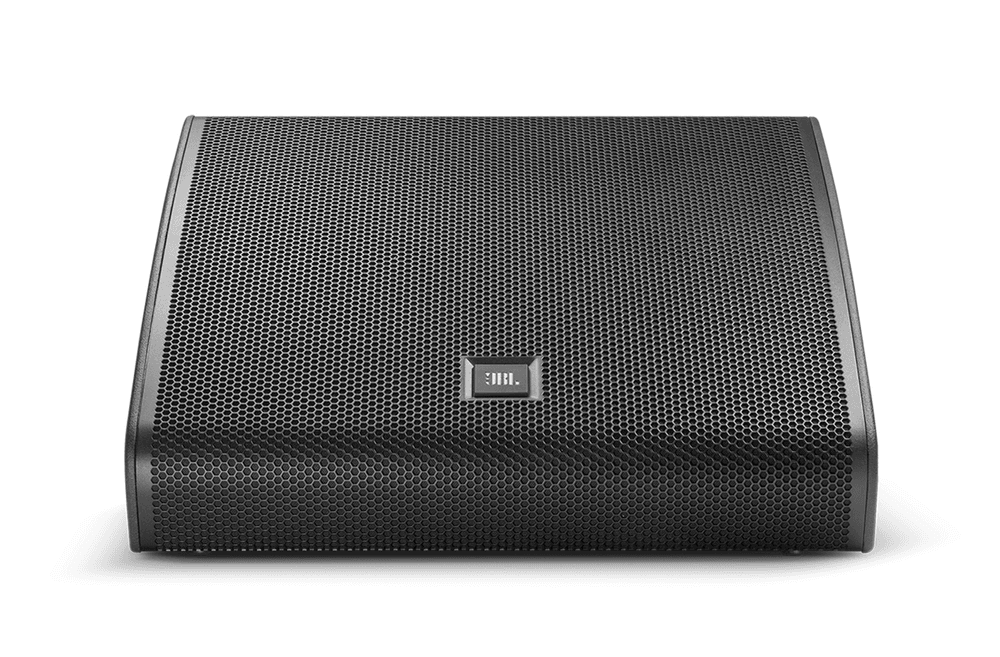

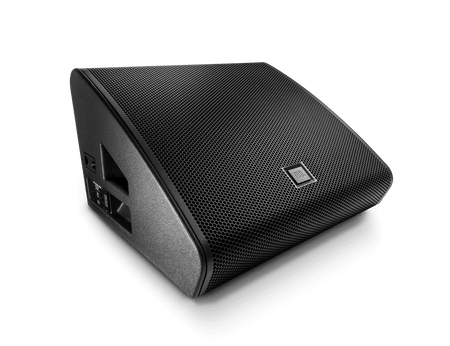

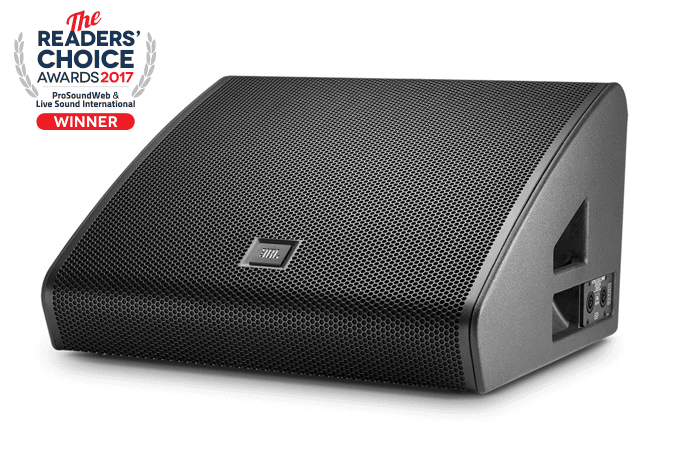

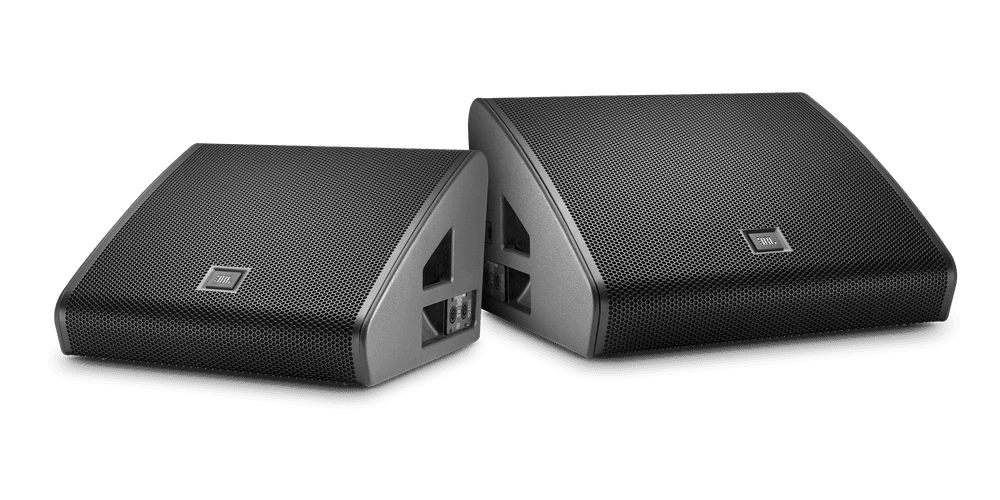

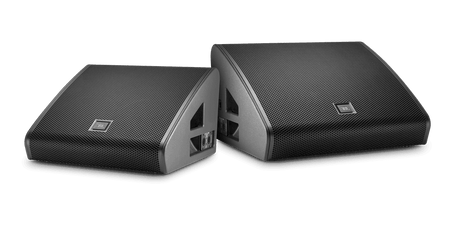

JBL Professional VTX-M22 - Dual 12" Stage Monitor with 60x60 Guide and Controlled Image

Only 2 left
SKU: VTX-M22 EAN13: 691991012969
(0)
7.224,17 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470
Features? Sleek, low-profile, and compact design suitable for touring and high-profile broadcast applications.? State-of-the-art JBL transducers, including Differential Drive cone transducers and D2 dual-diaphragm dual voice-coil compression driver? 60x60 high-frequency waveguide with JBL's patented Image Control Waveguide technology? Single-channel (passive) and dual-channel (Bi-Amp) operating modes for maximum flexibility in system configuration and deployment
  • Brand:JBL Professional
  • Model:VTX-M22
  • Guy:Professional dual 12" stage monitor
  • Coverage (-6 dB):60° horizontal × 60° vertical
  • Frequency range (-10 dB):45 Hz – 19.5 kHz
  • Maximum peak SPL (1 m):138 dB (preset VTX M22 FR)
  • Modes of operation:Passive (single channel) / Bi-Amp (dual channel)
  • Nominal impedance:Passive 4 Ω; Active LF 4 Ω / HF 8 Ω
  • System input power (IEC 100 h):Passive 1500 W continuous; Active LF 1500 W continuous / HF 100 W continuous

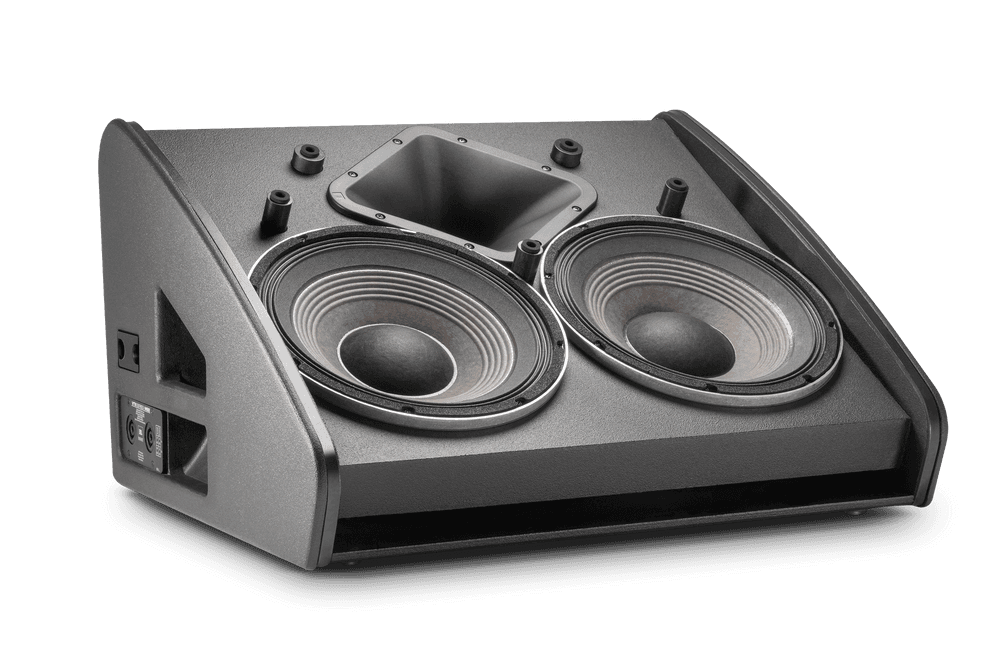

  • LF Transducers:2 × JBL 2262H, 12", 76 mm coil, NDD®, Direct Cooled™
  • HF Transducer:1 × JBL D2430H (D2), dual diaphragm and dual 76 mm coil

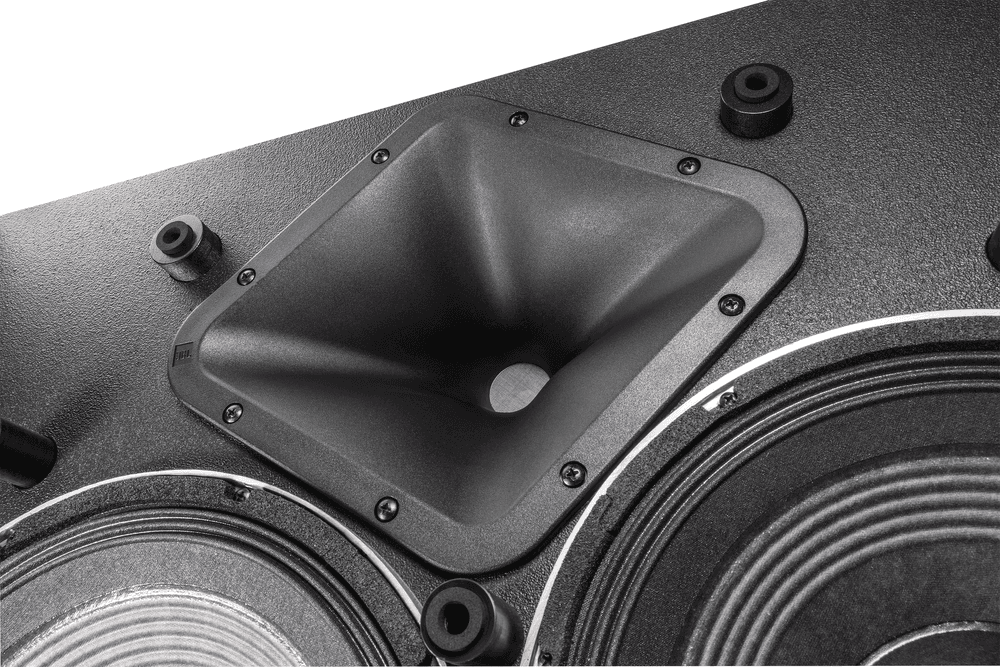

  • HF waveguide:60×60 with technologyImage Control Waveguide

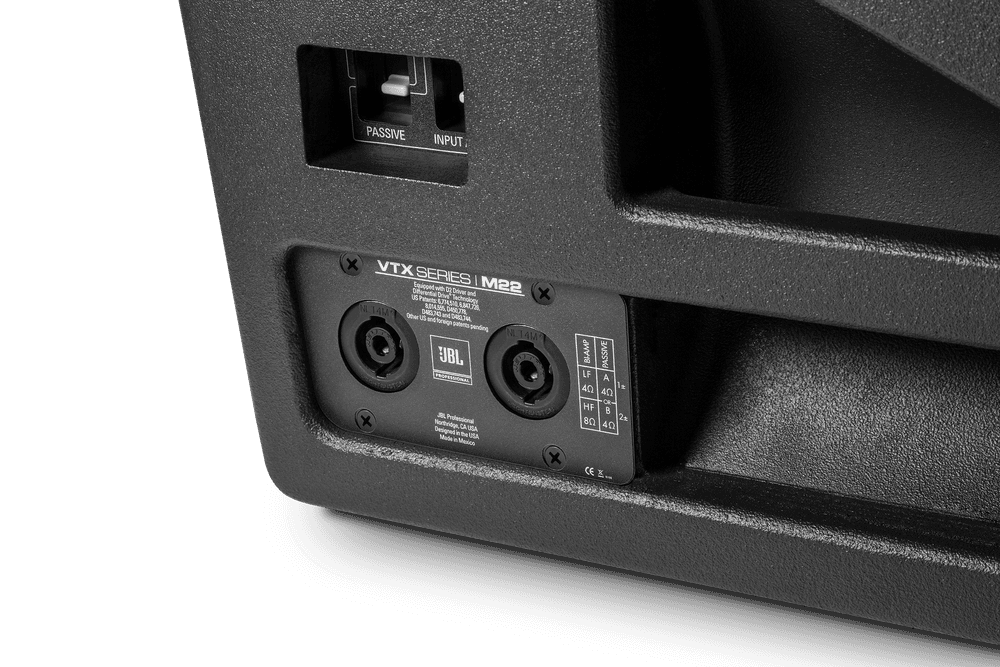

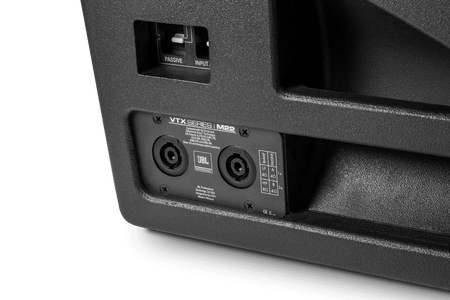

  • Input connectors:4 × Neutrik® Speakon® NL4 (passive: selectable 1± or 2±; active: 1± LF / 2± HF)
  • Monitor angle:30°
  • Enclosure:18mm Finnish birch plywood (11 layers)
  • Rack:14-gauge perforated steel with acoustic fabric
  • Dimensions (H × W × D):380 × 671 × 555 mm
  • Net weight:27 kg
  • Recommended amplification/processing:Crown I-Tech HD; management with JBL HiQnet Performance Manager (V5)
  • System latency:3.33 ms
