JBL PROFESSIONAL

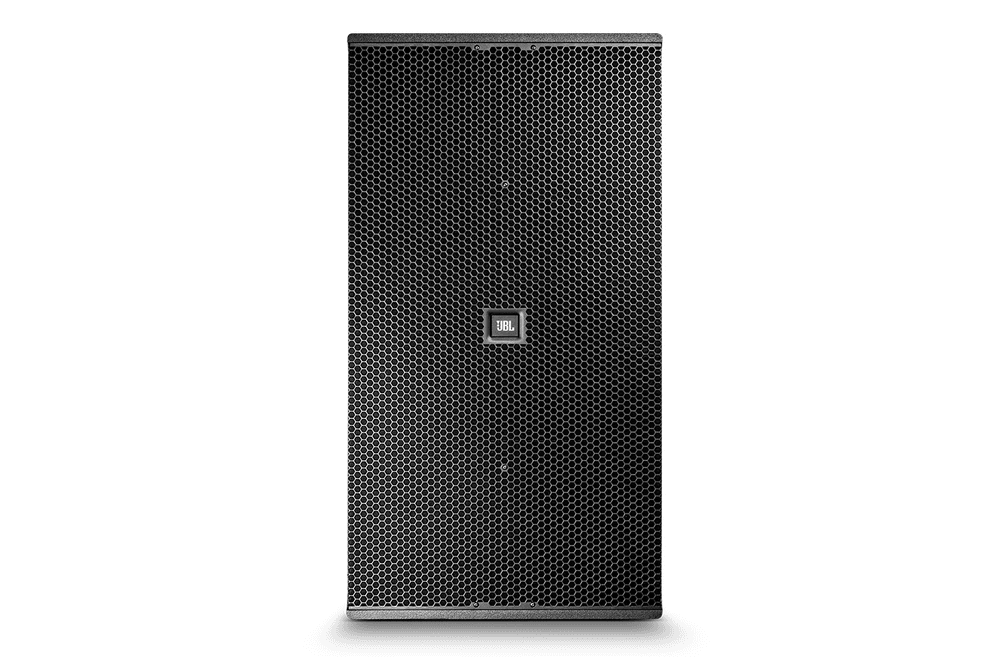

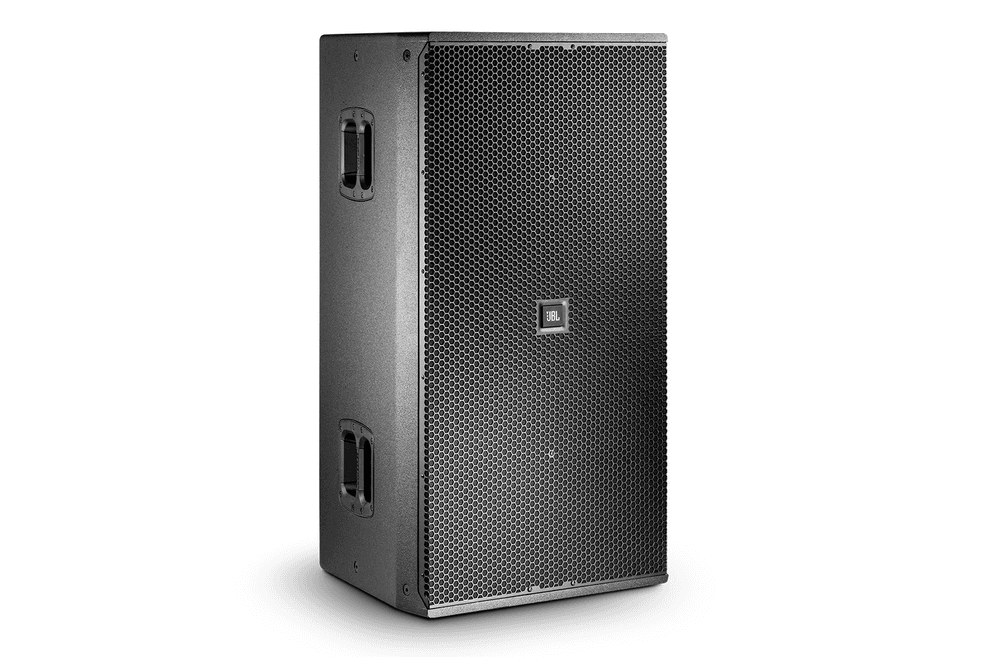

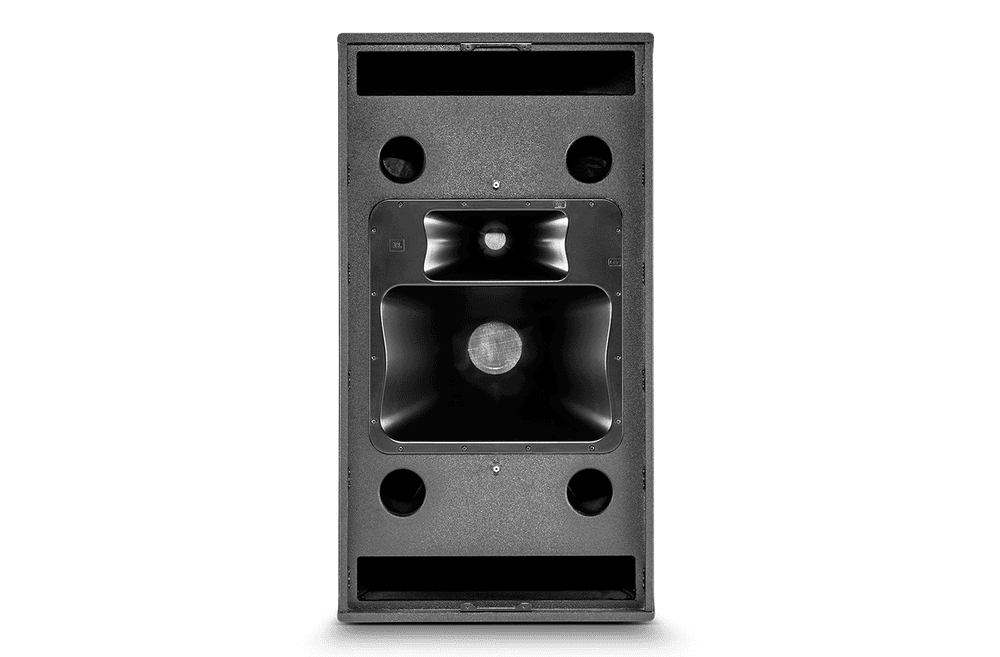

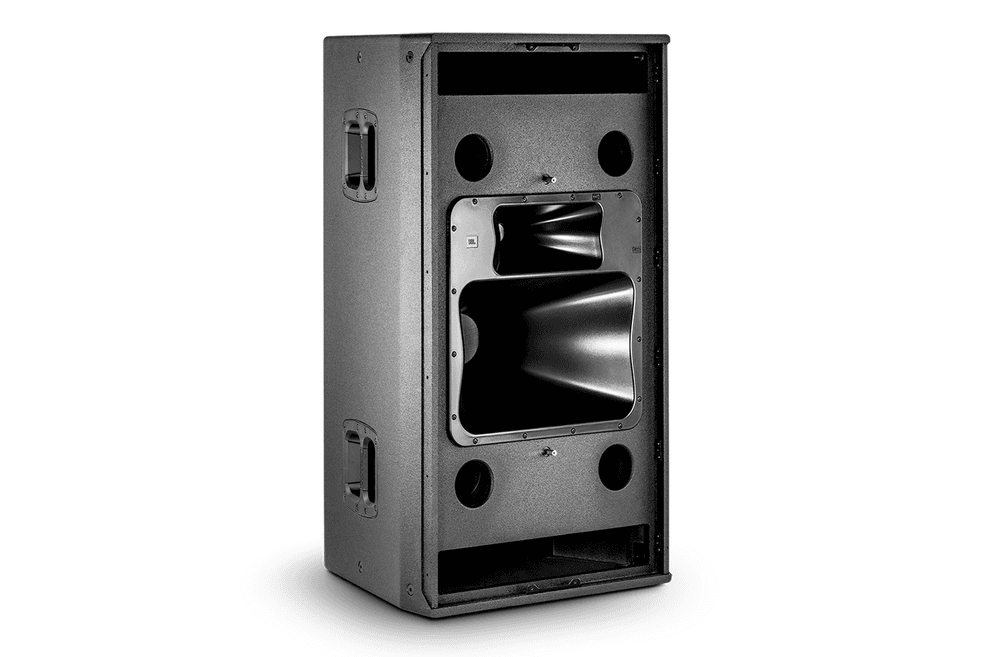

JBL Professional VTX-F35-64 - High-performance 3-way loudspeaker with dual 15" drivers and 60° × 40° coverage

Out of stock
SKU: VTX-F35-64 EAN13: 688705000824
(0)
7.720,59 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470
Features? High-performance 3-way enclosure featuring the D2 dual-diaphragm dual moving-coil high-frequency compression driver in a lightweight trapezoidal enclosure? Differential Drive?, dual neodymium magnet, dual moving coil, Direct Cooled MF and LF cone transducers? Multiple M10 mounting points facilitate a variety of mounting options? V5 processing for use with Crown Audio I-Tech HD series amplifiers
  • Brand:JBL Professional
  • Model:VTX-F35-64
  • System type:High-performance 3-way speaker with dual 15"
  • Coverage (-6 dB):60° horizontal × 40° vertical (rotatable PT guide)
  • Frequency range (-10 dB):39 Hz – 18 kHz
  • Maximum peak SPL (1 m):143 dB (preset VTX F35/64 FR)
  • Required amplification:4 channels (quad-amp: LF/LF/MF/HF)
  • Number of enclosures per circuit (4×3500HD):3 × VTX F35
  • System impedances:LF = 2 × 8 Ω; MF = 8Ω; HF = 8Ω
  • LF Transducers:2 × JBL 2265H, 15", 76 mm coil, NDD®, Direct Cooled™
  • MF Transducer:1 × JBL 2169H, 8", dual coil 76 mm, NDD®, Direct Cooled™
  • HF Transducer:1 × JBL D2430H (D2), dual diaphragm and dual 76 mm coil
  • Waveguide:Progressive Transition™ 60° × 40°, rotatable

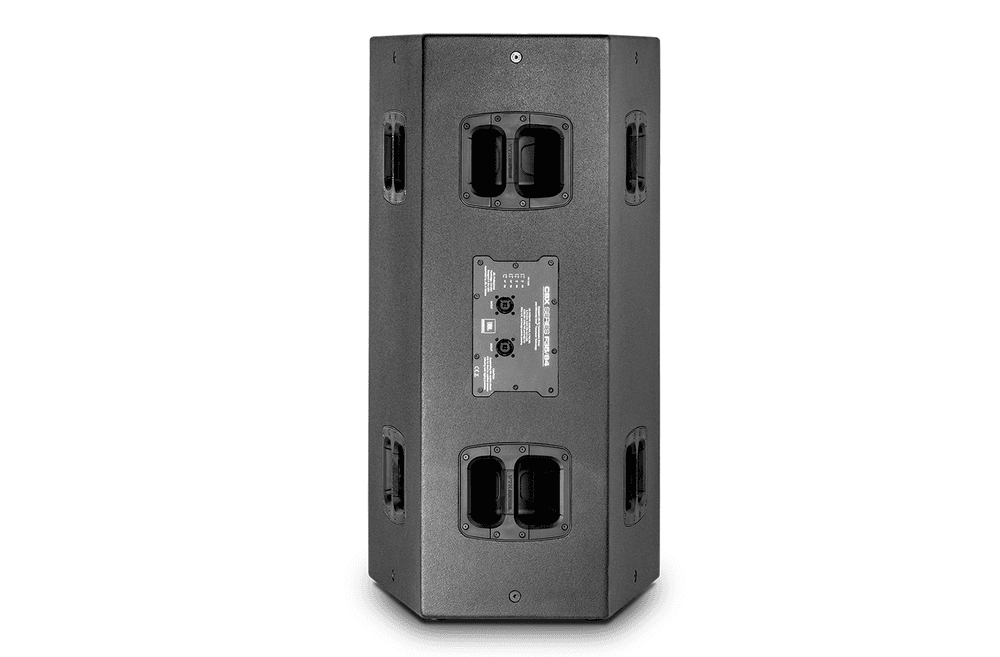

  • Connectivity:2 × Neutrik® Speakon® NL8
  • NL8 pin assignment:1± = LF1; 2± = LF2; 3± = MF; 4± = HF
  • Suspension/mounting:Multiple M10 fixing points
  • Construction of the enclosure:18mm Baltic birch plywood (11 layers), DuraFlex™ finish
  • Rack:14-gauge perforated steel with acoustic mesh
  • Dimensions (H × W × D):1,052.8 × 596.3 × 527.9 mm
  • Net weight:52.6 kg
  • Recommended processing:V5 Library for Crown Audio I-Tech HD / Performance Manager
  • Type New
  • Vendor JBL PROFESSIONAL
  • SKU VTX-F35-64
  • Bar-code 688705000824
