JBL Professional VTX-F18S - Compact 18" Reverse Cardioid Subwoofer with Reinforced M20

Only 1 left
SKU: VTX-F18S EAN13: 691991012921
(0)
5.153,94 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470
The VTX F Series is a line of multi-purpose loudspeakers designed to offer sound production companies a variety of flexible options for deploying high-quality audio, whether as a standalone FOH system, a satellite and subwoofer system (with the complementary VTX F18S), or as a floor monitor and stage fill speaker. Features: 2269H 18" Differential Drive Exceptionally High Power Handling (2000W Continuous, 8000W Peak AES 2hr) Massive Linear Excursion Capability (3.5" Peak-to-Peak) Reverse Cardioid Arrayable (NL4 Front) Reinforced M20 Extension Rod Receptacle 16 M10 Mounting Points (4 per side, 4 top/bottom) Convenient Handle Locations (4x) Tie-Down Plates Included as Standard for Stacked F18S Plus F12 or F15 Configurations
  • Brand:JBL Professional
  • Model:VTX-F18S
  • Guy:Compact 18" high-power subwoofer

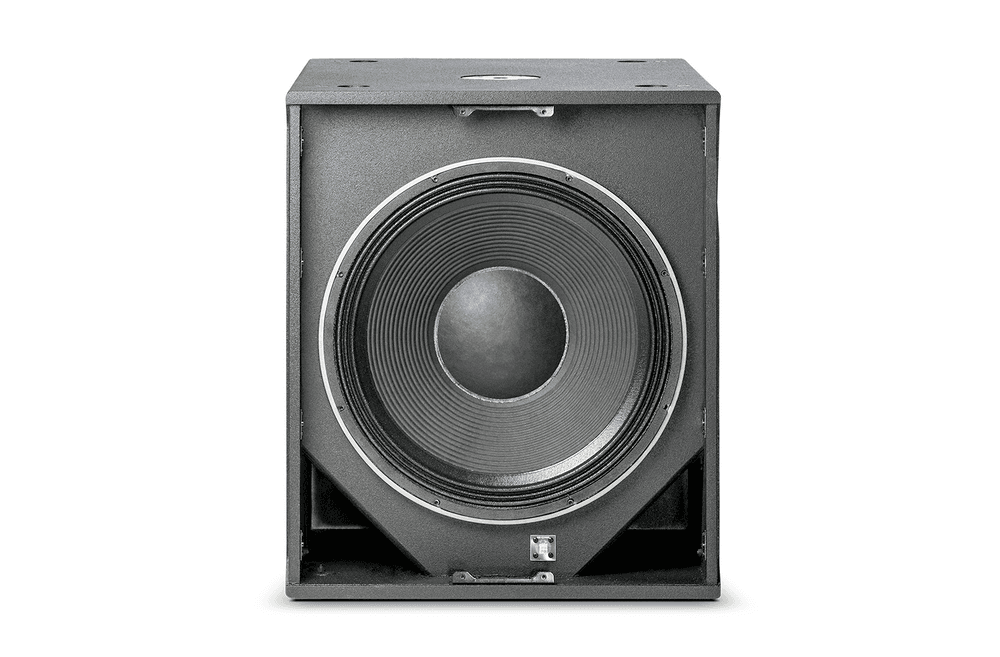

  • LF Transducer:1 × JBL 2269H, 18", Dual Coil, Dual Neodymium Magnet, Differential Drive, Direct Cooled
  • Frequency range (-10 dB):24.3 – 300 Hz
  • Frequency response (±3 dB):32.5 – 300 Hz
  • Recommended operating band:24 – 120 Hz
  • Maximum peak SPL:136 dB (half-space)
  • Band sensitivity:92 dB (1 W/1 m)
  • Nominal impedance:8 Ω
  • Power handling (AES 2 h):2000 W continuous / 8000 W peak
  • Linear excursion:89 mm peak to peak (3.5")

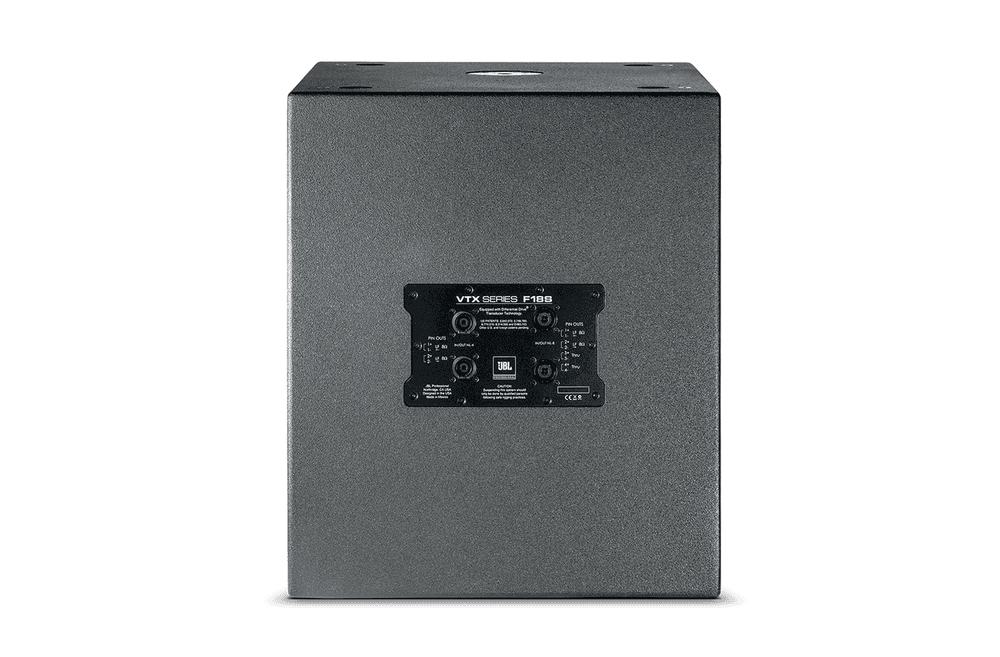

  • Rear connectors:2 × NL4 (1± LF; 2± step), 2 × NL8 (1± LF; 2±/3±/4± step)
  • Front connector:1 × NL4 (reverse cardioid; 1± LF; 2± pitch)
  • Assembly and rigging:Reinforced M20 rod receptacle; 16 × M10 points (4 per side, 4 top/bottom)
  • Handles:4 × recessed handles
  • Included accessories:Fixing plates for stacked configurations F18S + F12/F15
  • Construction of the enclosure:18mm Baltic birch plywood (11 layers); DuraFlex finish; 14-gauge steel grille with acoustic mesh
  • Dimensions (H × W × D):640.1 × 548.6 × 713.7 mm
  • Net weight:45.4 kg
  • Recommended amplification:3400 – 4000 W at 8 Ω
  • Recommended processing:Presets V5 for Crown I-Tech HD; management with JBL Performance Manager
  • Type New
  • Vendor JBL PROFESSIONAL
  • SKU VTX-F18S
  • Bar-code 691991012921
