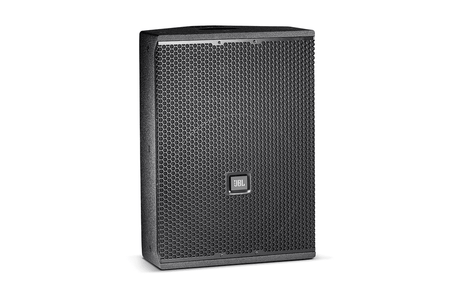

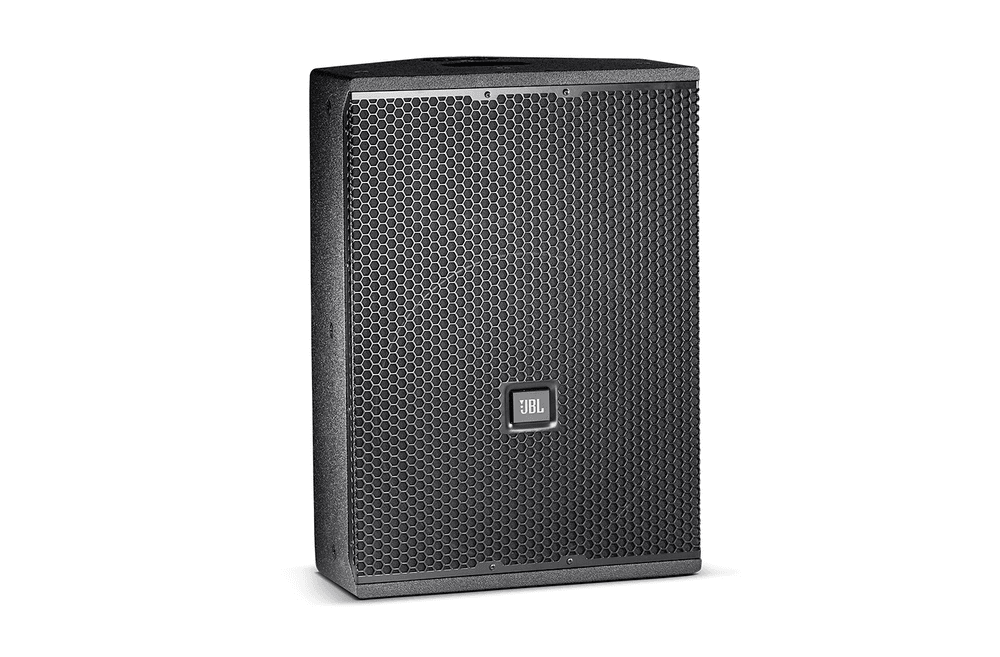

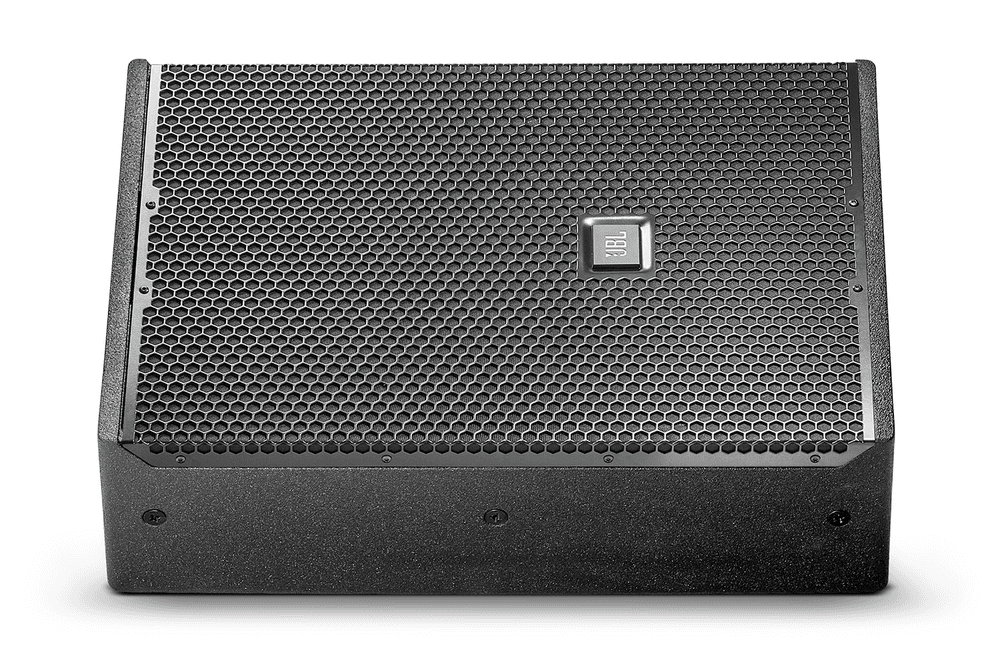

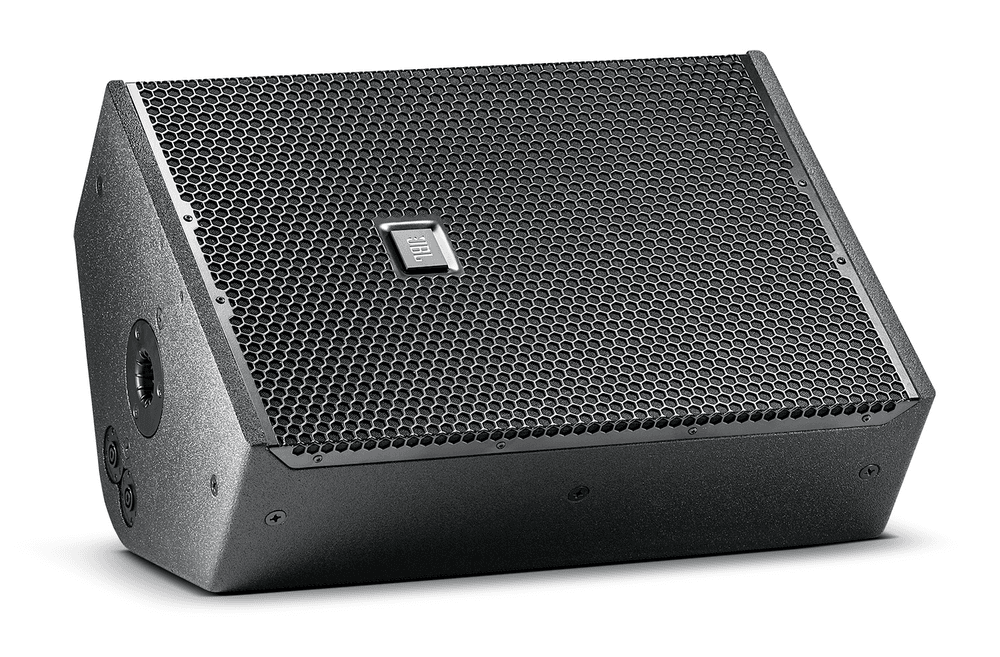

JBL Professional VTX-F15 - 15" 2-Way Bi-Amplified System with 90x50 Driver and D2 Motor

Out of stock
SKU: VTX-F15 EAN13: 691991012914
(0)
3.772,67 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470
The VTX F Series is a line of multi-purpose loudspeakers designed to offer sound production companies a variety of flexible options for deploying high-quality audio, whether as a standalone FOH system, a satellite and subwoofer system (with the complementary VTX F18S), or as floor monitors and stage fill speakers. Features? D2430K D2 Dual diaphragm dual driver? Transition waveguide (90° x 50°)? 2-way bi-amplified system? BSS Audio OmniDriveHD V5 processing? For use with Crown iTechHD and Crown VRack? JBL HiQnet Performance Manager control?
  • Brand:JBL Professional
  • Model:VTX-F15
  • System type:2-Way Bi-Amplified Multi-Purpose Speaker (15")
  • Nominal coverage:90° (H) × 50° (V)
  • Frequency range (−10 dB):43–21.5 kHz (short throw, free throw) / 42–21.5 kHz (monitor, semi-space)
  • Frequency response (±3 dB):59–20 kHz (short throw) / 58–20 kHz (monitor)
  • Maximum peak SPL (1 m):134 dB (Preset: VTX F15 80)
  • Sensitivity:LF 98 dB; HF 108 dB (1 W/1 m)
  • Nominal impedance:LF 8 Ω; HF 20 Ω
  • Power handling (AES 2 h):LF 1000 W continuous / 4000 W peak; HF 200 W continuous / 800 W peak

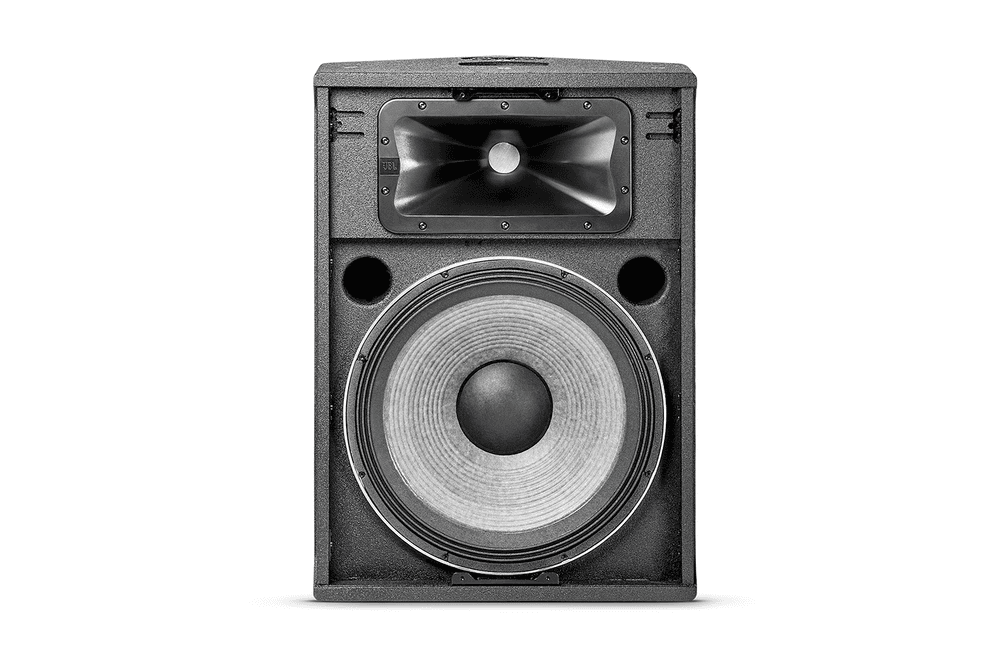

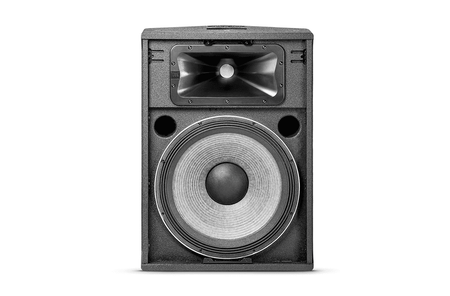

  • LF Transducer:1 × JBL 2265H, 15", 76 mm coil, Neodymium Differential Drive, Direct Cooled
  • HF Transducer:1 × JBL D2430K (D2), dual diaphragm and dual 76 mm coil, 38 mm exit

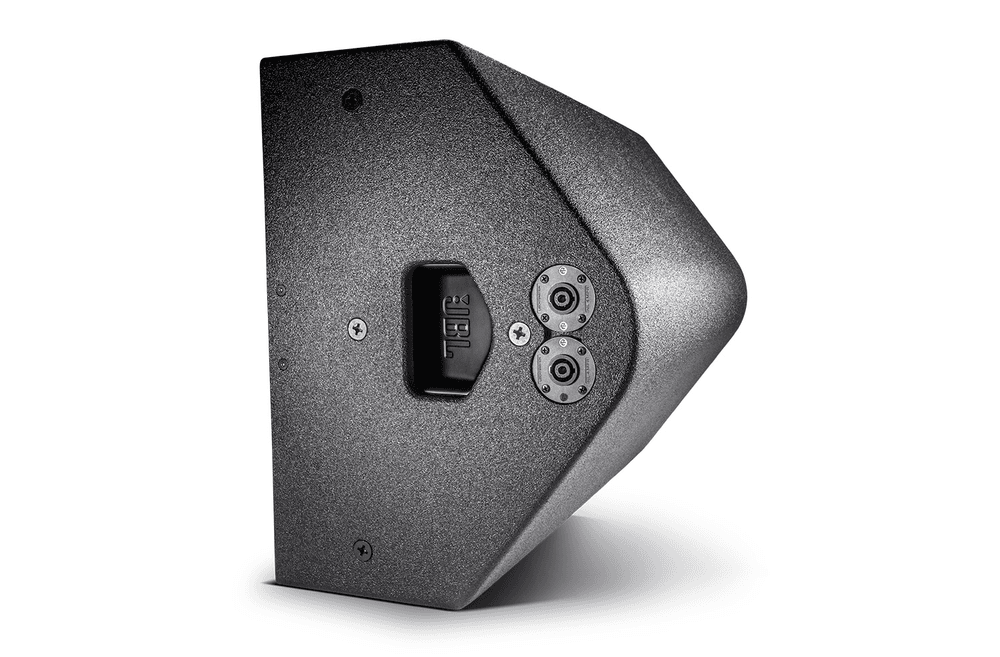

  • Connectivity:4 × Neutrik Speakon NL4 (1± LF; 2± HF)
  • Assembly and rigging:35 mm mast socket; 16 × M10 points; optional accessory VTX-F15-UB
  • Wedge angle:53° (symmetrical enclosure)
  • Construction of the enclosure:18mm Baltic birch plywood (11 layers), DuraFlex finish; 14-gauge steel grille with acoustic mesh
  • Dimensions (H × W × D):640.1 × 457.2 × 327.7 mm
  • Net weight:22.9 kg
  • Recommended processing:BSS OmniDriveHD V5; management with JBL HiQnet Performance Manager; Crown I-Tech HD / VRack amplification
  • Type New
  • Vendor JBL PROFESSIONAL
  • SKU VTX-F15
  • Bar-code 691991012914
