JBL Professional VTX-A8-SB - Lightweight Suspension Bar for A8/B18, Array Frame, or Pull-Back

Out of stock
SKU: VTX-A8-SB EAN13: 691991015632
(0)
2.061,58 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470

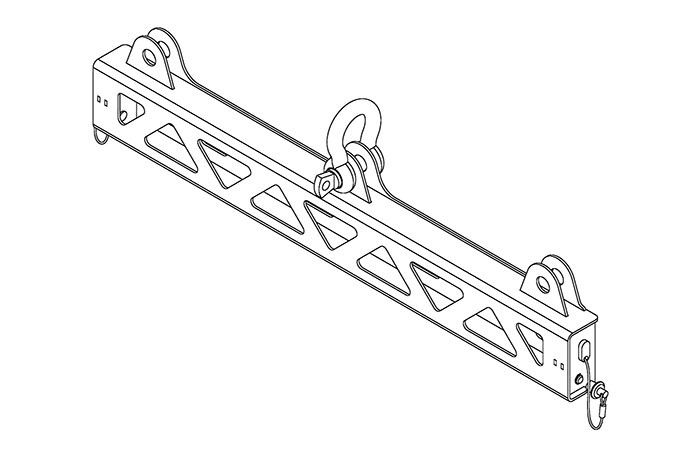

Suspension bar
  • Brand:JBL Professional
  • Model:VTX-A8-SB
  • Accessory type:Suspension bar (array frame / pull-back)
  • Compatibility:VTX A8 and VTX B18

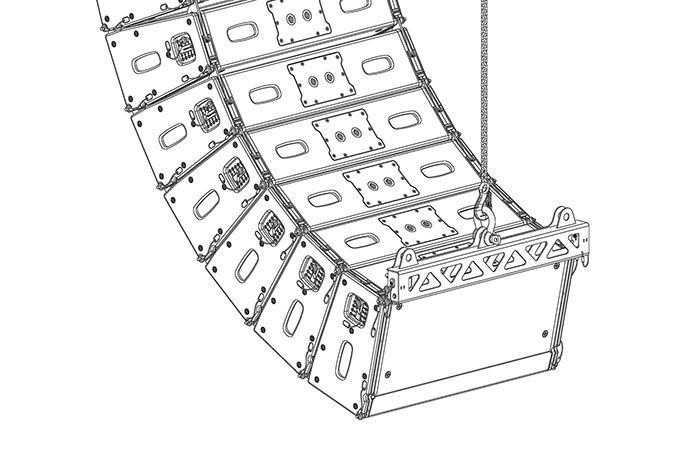

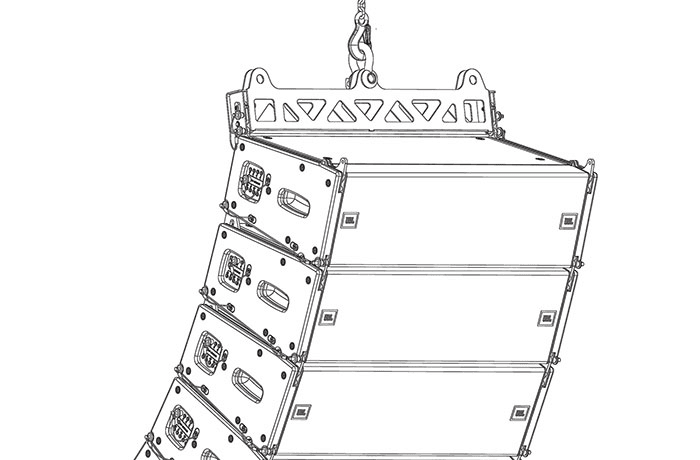

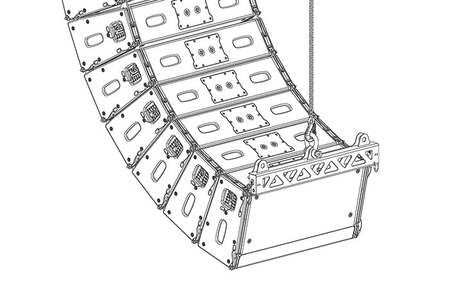

  • Functions:Array suspension; implementation ofpull-backfor greaterdown-tilt
  • Maximum mechanical limits:24 × VTX A8 / 16 × VTX B18
  • Safe mechanical limits:12 × VTX A8 / 14 × VTX B18 (depending on array geometry)
  • Dimensions (H × W × D):151 × 749 × 93 mm
  • Net weight:4.8 kg
  • Construction:High-strength steel with anti-corrosion coating
  • Finish:Black powder coating (black powder coat)
  • Compatible shackle size:5/8" (≈ 15.9 mm)
  • Includes:1 × VTX-A8-SB; 1 × 5/8" shackle (PN 5044448)

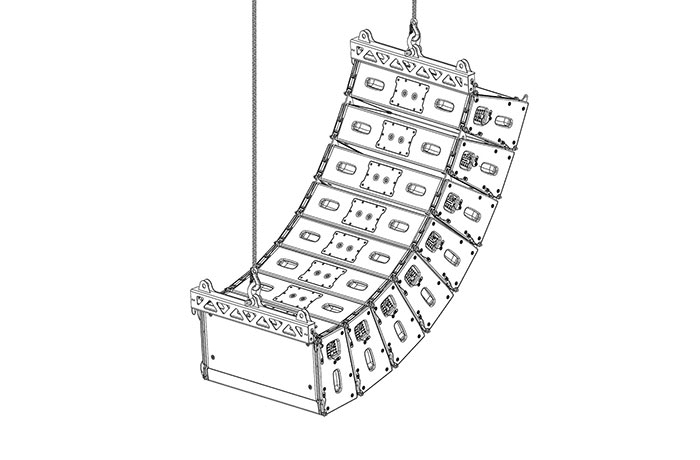

  • Application to two points:possible with2 × A8-SB(up and down) for greater aiming flexibility
  • Recommended software:Geometry and angle calculations using JBL Line Array Calculator (LAC)
  • Type New
  • Vendor JBL PROFESSIONAL
  • SKU VTX-A8-SB
  • Bar-code 691991015632
