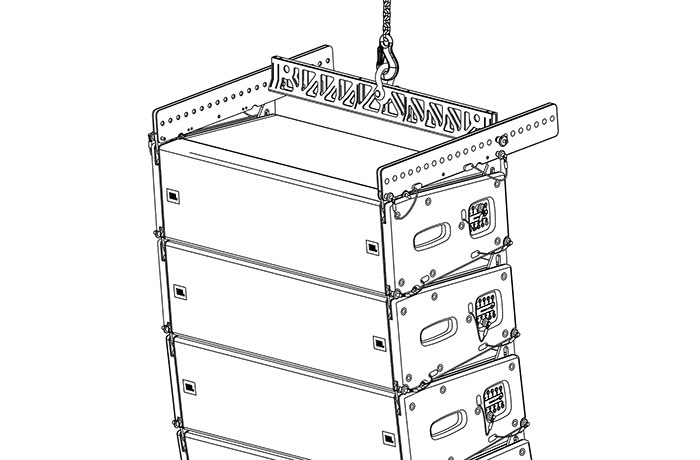

The JBL Professional VTX-A8-MF is a lightweight and compact array frame designed to fly small VTX A8 and VTX B18 arrays with maximum efficiency. Its three-piece collapsible architecture (two side arms and a spreader bar) facilitates transport and quick setup, offering pointing resolution in 0.5° increments via 22 arm mounting positions . It allows for single-point suspension —compatible with the VTX RC500 truss or pipe swivel clamp—and side-by-side suspension , especially useful when flying from lifting platforms.

To expand the range of angles, the mini frame can be mounted in Normal (the bar towards the rear of the array) or Reverse (towards the front) orientation, increasing the up-tilt . It includes two 1/2" shackles and is constructed of high-grade steel with an anti-corrosion coating and black powder coat finish , ensuring touring-grade durability with a net weight of only 7.0 kg .

Main features

• Direct Compatibility: Suitable for VTX A8 and VTX B18 enclosures.
• Two lifting modes: one point (with VTX RC500 ) and side-by-side (two points).
• Fine aiming: 0.5° resolution with 22 positions on the side arms.

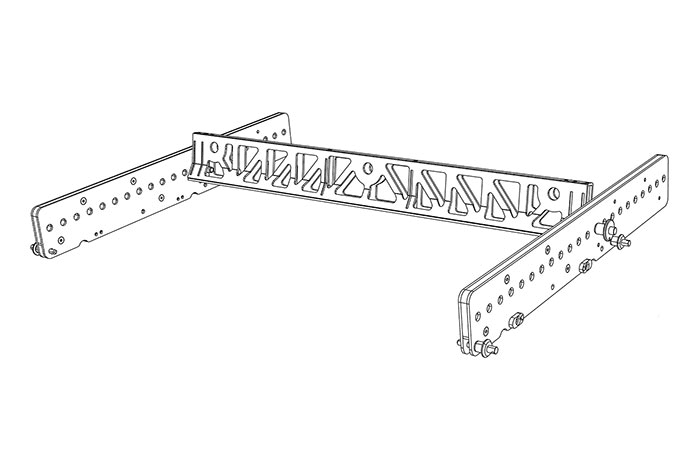

• Collapsible Design: 3 pieces (two arms + spreader-bar ) that lock together for storage.
• Normal/Reverse Orientation: Select to expand the up-tilt/down-tilt range; user guide with 4° pin on the first box.
• Includes hardware: 2 × 1/2" shackles (PN 5118578).

Product benefits

• Faster, cleaner assembly: Lightweight, foldable frame reduces loading times and the risk of lost parts.
• True versatility on tour: a single fixture solves A8 , B18 hangs or combinations, from truss, pipe or platforms.
• Precise coverage control: 0.5° steps and Reverse option to adjust the shot without compromising safety.

Use cases

• Main PA or outfills with VTX A8 compact arrays.
• Flown VTX B18 subwoofer arrays (omni or cardioid) or mixed A8+B18 configurations.
• Trade shows, roadshows and events with truss/pipe mounting using RC500 .

Frequently Asked Questions

What mechanical capacity does it support? Up to 10 × A8 VTX or 4 × B18 VTX per frame (maximum and safe limit; always validate with LAC before mounting).

What size shackle does it use? 1/2" ; package includes 2 shackles .

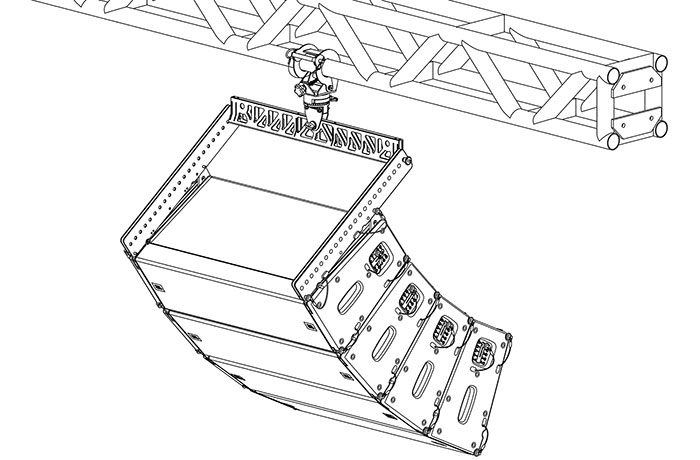

Can I hang from a single point on truss? Yes, with the VTX RC500 standard pipe swivel clamp .

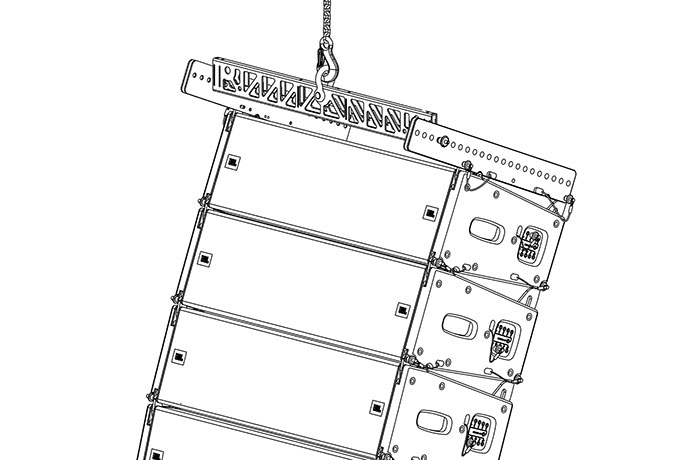

How to take advantage of Reverse mode? Mount the frame toward the front of the array for more up-tilt and set the first cabinet to 4° as a reference.

Description for projects

Mini frame for JBL VTX A8/B18 arrays. Modes: single-point (with RC500) and side-by-side. Resolution: 0.5° with 22 positions . Orientation: Normal/Reverse (first box at 4° ). Mechanical limits (max/safe): 10 × A8 / 4 × B18 . Construction: anti-corrosion coated steel; black powder coat finish . Shackle: 1/2". Dimensions (H × W × D): 105 × 794 × 595 mm . Net weight: 7.0 kg . Included: 1 × VTX-A8-MF + 2 × 1/2" shackles (PN 5118578).
