JBL PROFESSIONAL

JBL Professional VTX-A8-AF-EB - Extension bar for VTX A8 AF rack with 0.5° resolution

Out of stock
SKU: VTX-A8-AF-EB EAN13: 691991015502
(0)
3.178,27 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470

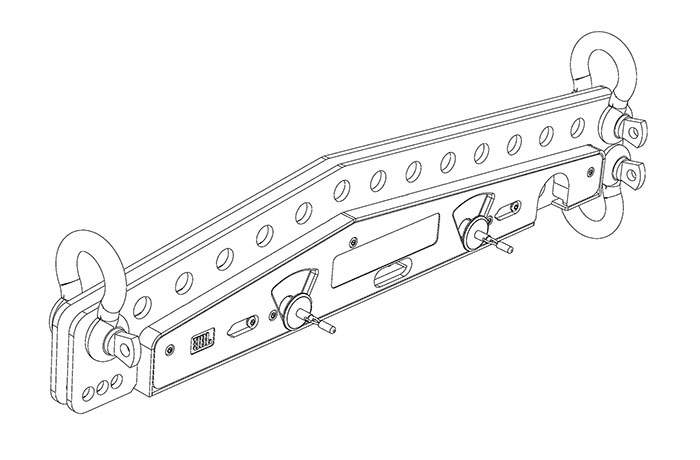

Extension bar
  • Brand:JBL Professional
  • Model:VTX-A8-AF-EB
  • Accessory type:Extension bar for array rack
  • Compatibility:JBL VTX A8 AF Rack (for VTX A8 and VTX B18 arrays)

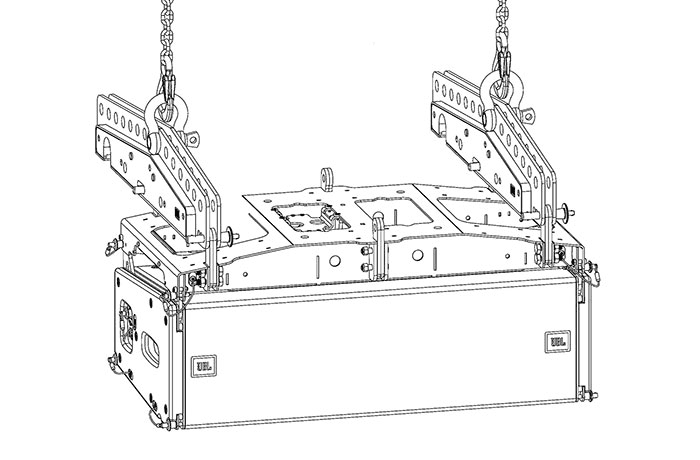

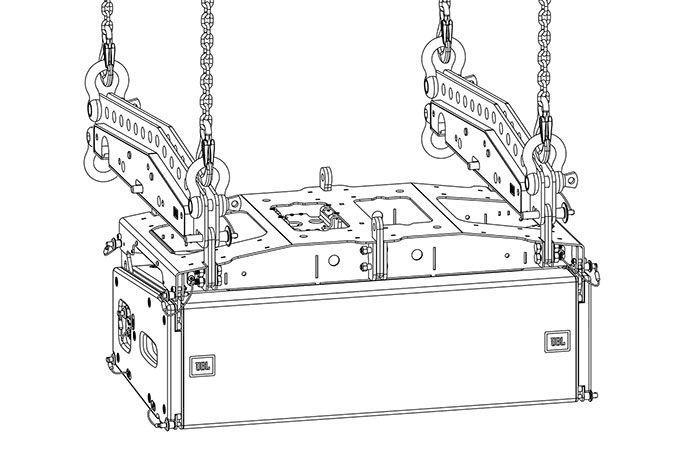

  • Suspension methods:Single point; two points (front–rear); side-by-side
  • Pick-point resolution:0.5°
  • Connection positions to the frame:3
  • Bar orientation:Extension to the front or back (up-/down-tilt)
  • Compatible shackle:5/8" (≈ 15.9 mm)
  • Maximum mechanical limits:24 × VTX A8 / 13 × VTX B18
  • Safe mechanical limits:22 × VTX A8 / 10 × VTX B18
  • Construction:High-strength steel with anti-corrosion coating
  • Finish:Black powder coating (black powder coat)
  • Dimensions (H × W × D):138 × 734 × 26 mm
  • Net weight:7.5 kg

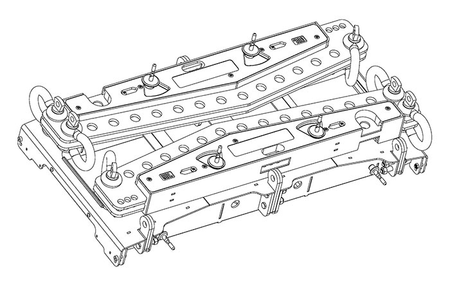

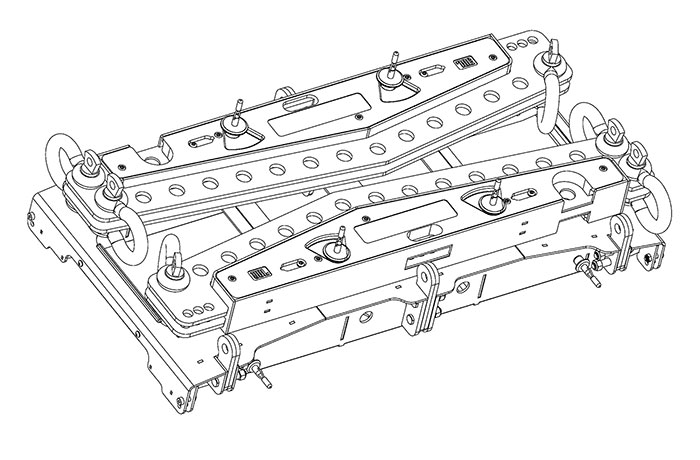

  • Storage in transport:Integrated position on the VTX A8 AF frame
  • Included items:1 × VTX-A8-AF-EB; 3 × 5/8" shackles (PN 5044448); frame attachment parts (e.g.,side tabsand pins) and set of screws
  • Recommended software:JBL Line Array Calculator (LAC-3)
  • Type New
  • Vendor JBL PROFESSIONAL
  • SKU VTX-A8-AF-EB
  • Bar-code 691991015502

Buy JBL Professional VTX-A8-AF-EB - Extension bar for VTX A8 AF rack with 0.5° resolution
