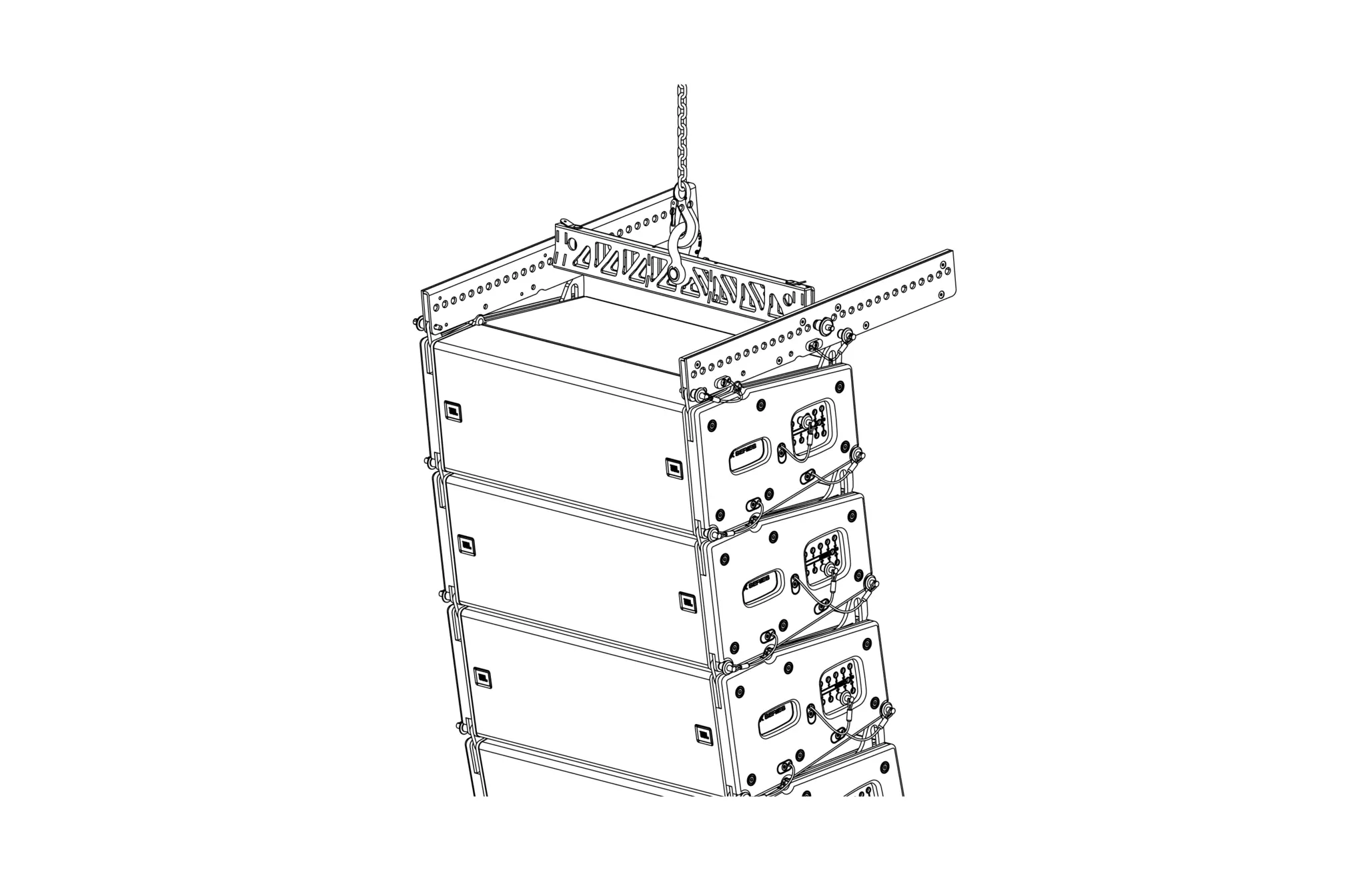

The JBL Professional VTX-A6-MF is a lightweight and compact array frame designed to fly small VTX A6 and VTX B15 arrays with maximum efficiency and safety. Its three-piece collapsible design (two side arms and a spreader bar) speeds setup and reduces transport volume. It allows for single-point suspension (in combination with the VTX RC500 swivel clamp ) and side-by-side suspension methods, offering 0.5° pointing resolution thanks to its 30-position aiming bar. Additionally, it can be used in Normal (extends to the rear of the array) or Reverse (to the front) orientation to extend the up-tilt / down-tilt range.

Constructed from high-grade steel with anti-corrosion coating and black powder coat finish , the VTX-A6-MF offers verified mechanical limits for arrays up to 24×A6 or 12×B15 (maximum limit) and 15×A6 or 11×B15 (safe limit), while maintaining a net weight of 5.3 kg and compact dimensions of 87 × 509 × 518 mm . It includes a 1/2″ (≈12.7 mm) shackle and is optimized for professional workflows with prior validation on JBL LAC-3 .

Main features

• Direct Compatibility: Suitable for VTX A6 and VTX B15 .
• Single-point and side-by-side suspension: single-point use with VTX RC500 and side-by-side option.
• Precision aiming: 0.5° resolution with 30 anchor positions on the bar.
• Normal/Reverse Orientation: To expand the up-/down-tilt range of the array; guide positioned at 6° in the first A6 box.
• Collapsible design: three pieces that fold and lock together for storage.
• Touring-grade construction: steel with anti-corrosion coating and black powder coat finish .

Product benefits

• Quick and tidy assembly: lightweight, foldable format that reduces loading times and the risk of forgotten parts.
• True versatility: a single frame solves single-point or side-by-side hanging of A6 or B15.
• Precise Coverage: Fine steps of 0.5° to adjust pointing without reconfiguring the array.
• Safety verified: defined mechanical limits and validation with Line Array Calculator (LAC-3) .

Use cases

• Main PA or outfills with compact VTX A6 arrays.
• VTX B15 flown subwoofer arrays (omni or cardioid) or A6+B15 combinations.
• Suspended from truss/pipe with RC500 or from telescopic platforms in side-by-side configuration.

Frequently Asked Questions

What capacities does it support? Maximum: 24 × A6 / 12 × B15. Maximum: 15 × A6 / 11 × B15 (always check with LAC-3).

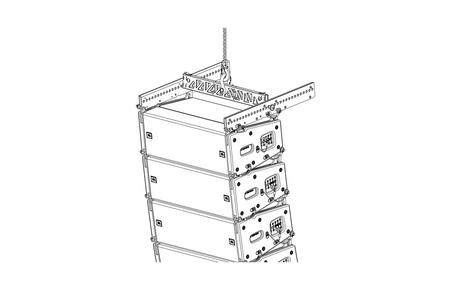

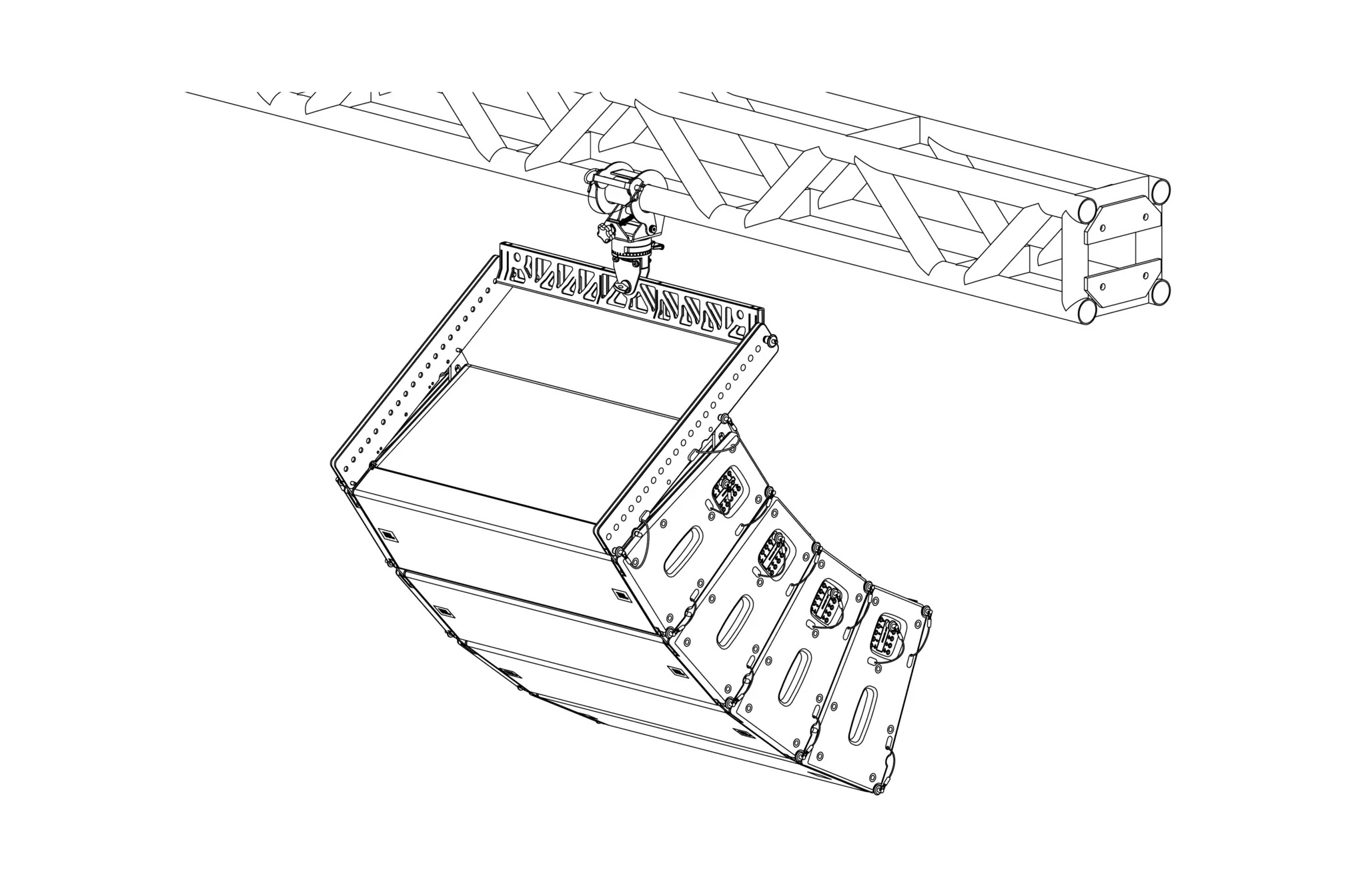

Can it be suspended from a truss point? Yes, with the VTX RC500 swivel clamp (compatible with the A6-MF).

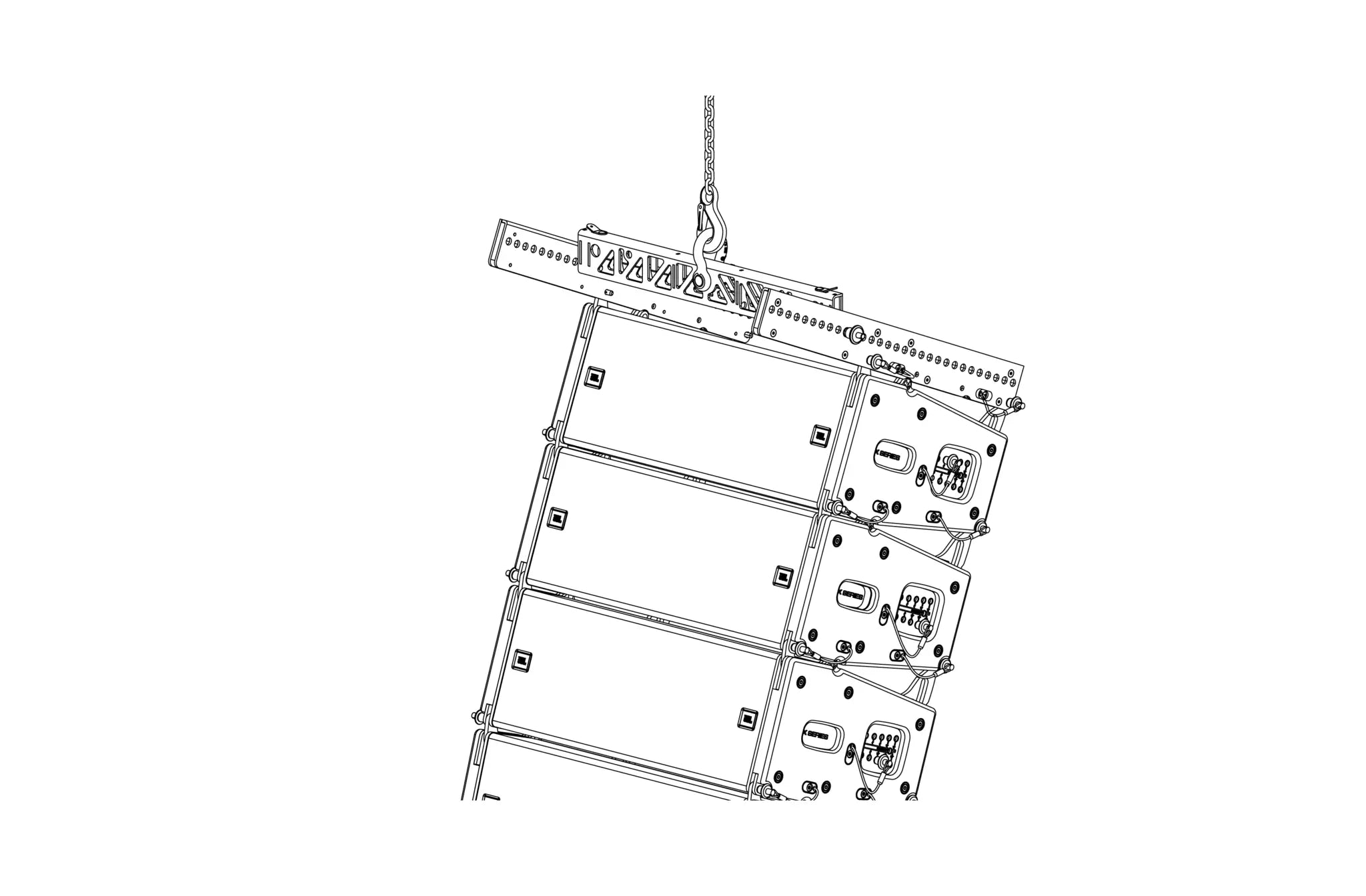

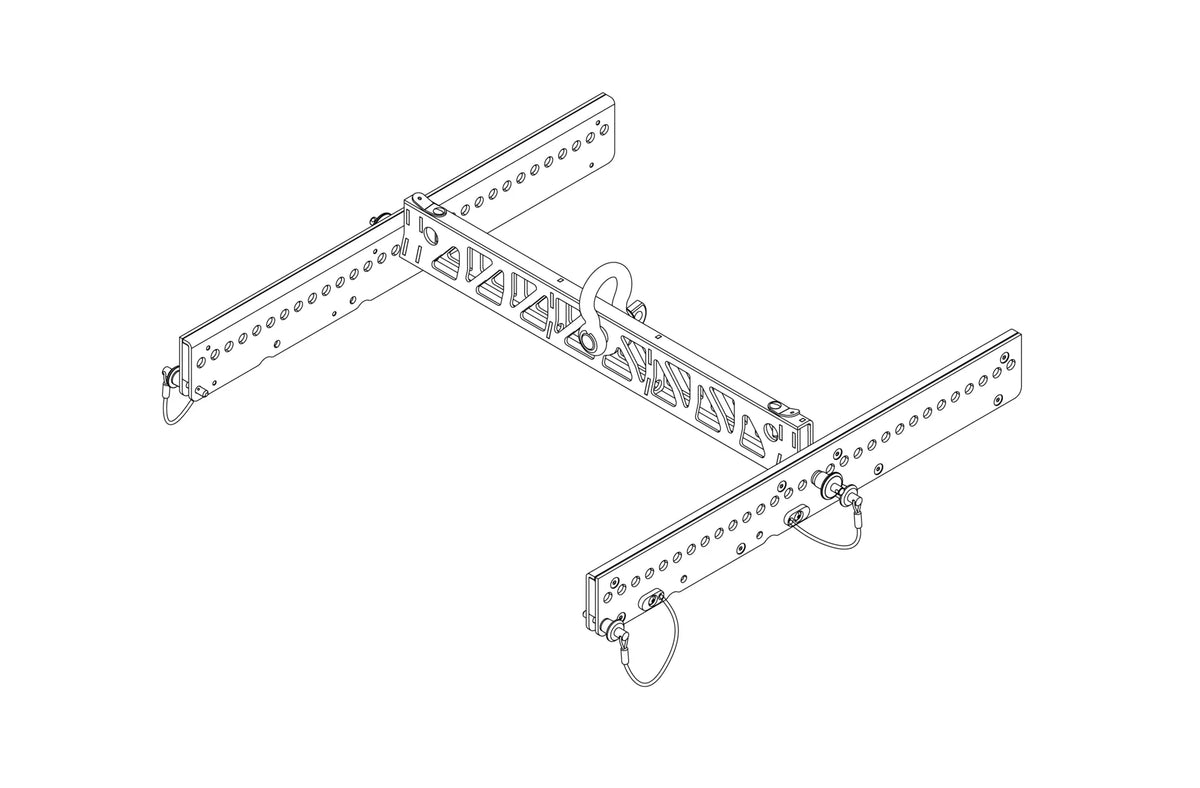

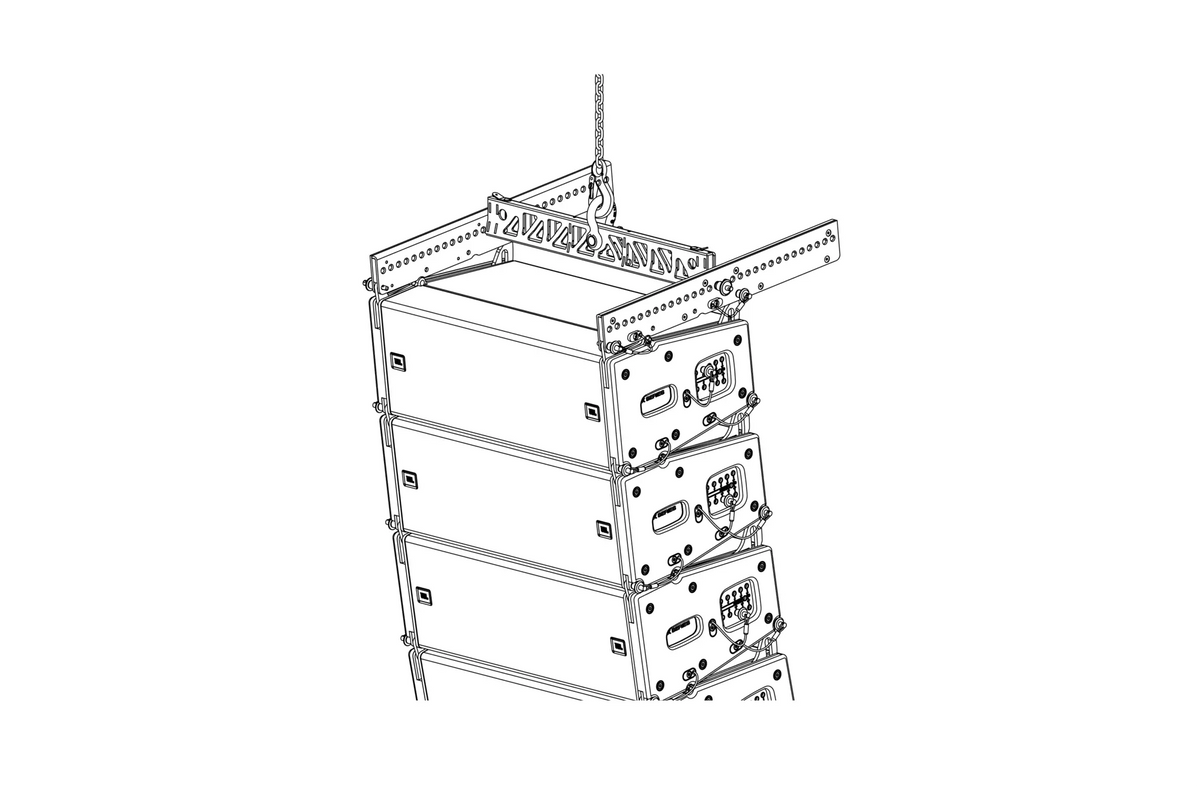

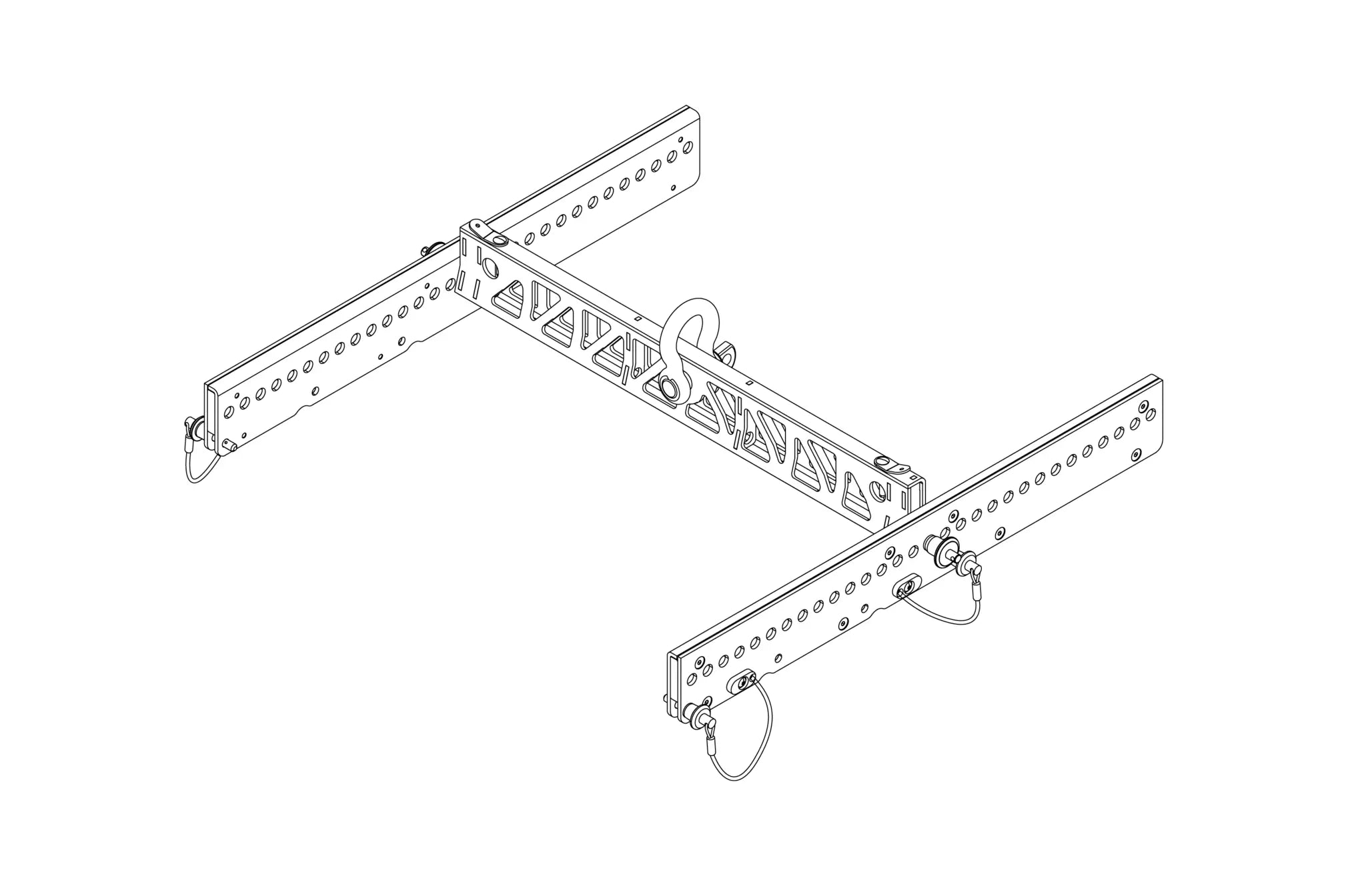

Does it include hardware? Yes: 2 side arms , 1 spreader bar , and 1 1/2″ shackle .

How do I adjust the first A6 box? In Normal or Reverse orientation, position the first A6 at a 6° angle to the frame to keep it parallel.

Description for projects

Collapsible array frame for JBL VTX A6/B15 . Methods: One-point (with RC500) and side-by-side . Resolution: 0.5° with 30 positions . Mechanical limits: Max. 24 × A6 / 12 × B15; safe 15 × A6 / 11 × B15. Orientation: Normal/Reverse (first A6 at 6° ). Construction: Steel with anti-corrosion coating; black powder coat finish . Dimensions (H × W × D): 87 × 509 × 518 mm / 3.4 × 20 × 20 in. Net weight: 5.3 kg / 11 lb. Includes: 2 × side arms, 1 × spreader bar, 1 × 1/2″ shackle.
