JBL Professional VTX-A6-COMP - Pack of 4 VTX A6 with official flightcase (road case for 4 units)

JBL Professional VTX-A6-COMP - Pack of 4 VTX A6 with official flightcase (road case for 4 units)

The JBL Professional VTX-A6-COMP is the official line array combo of four VTX A6 array elements and the truck-sized VTX A6 CASE flightcase . Designed for rental, touring, and projects requiring rapid deployment, this package packs all the VTX Series technology into a subcompact form factor for safe, clean transportation. Each VTX A6 is a 2-way passive line array featuring dual 6.5" Differential Drive® woofers (2186J) and a 3" annular diaphragm compression driver (2433H), housed in an RBI™ driver for a uniform 110° horizontal directivity , 134 dB max SPL , 67 Hz–20 kHz (−10 dB) range , and IP55 rating . Auto-lock rigging with captive plates and quick-release pins allows fine-step angle adjustment (0.5°–15°) on the ground and automatic locking during hoisting. With a nominal impedance of 10 Ω and 350 W continuous IEC (100 h) , up to 4 Crown iTech 4x3500HD cabinets per channel can be powered (up to 16 per amplifier), keeping wiring simple with two NL4 connectors with 1±/2± selectable .

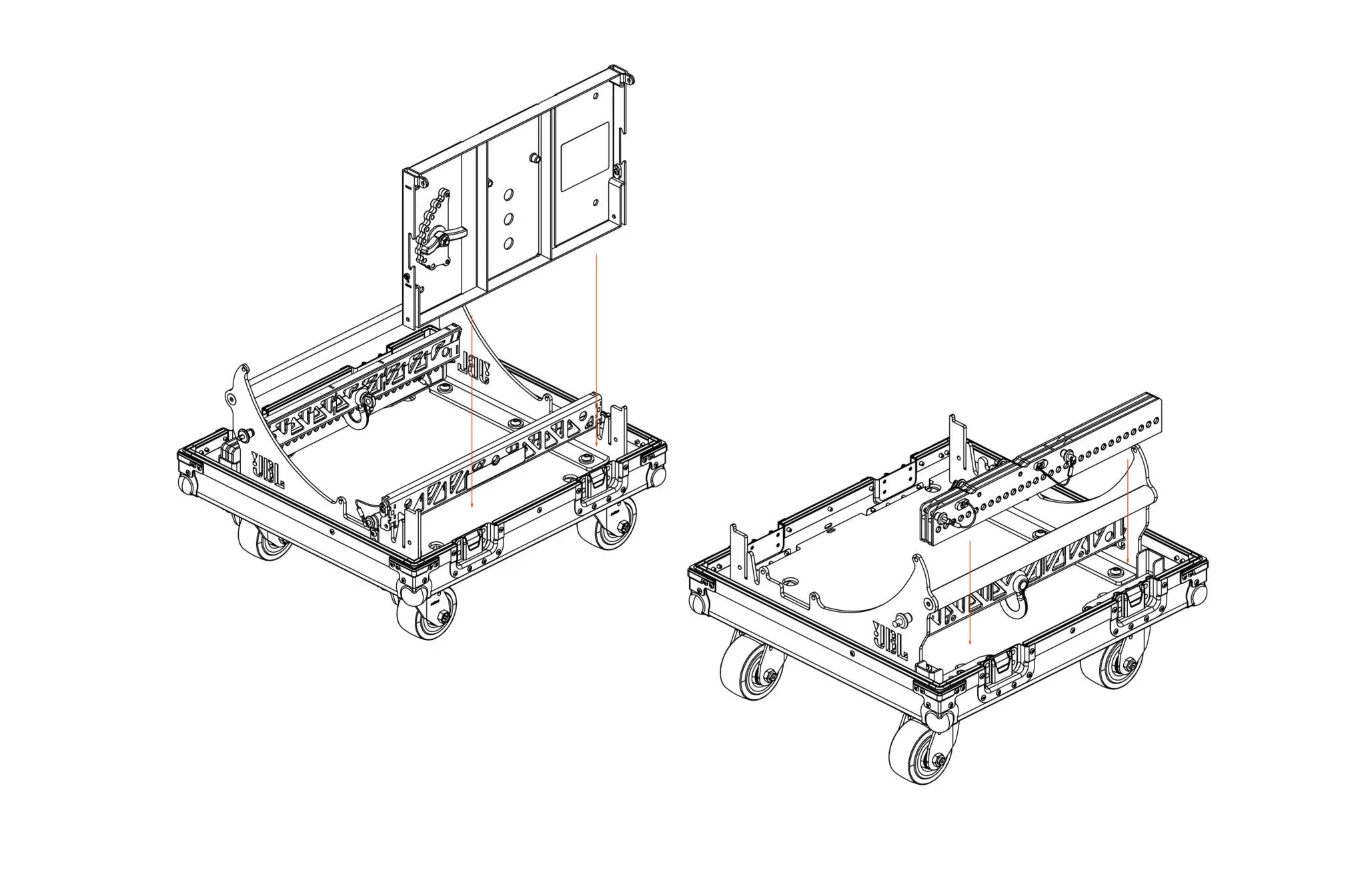

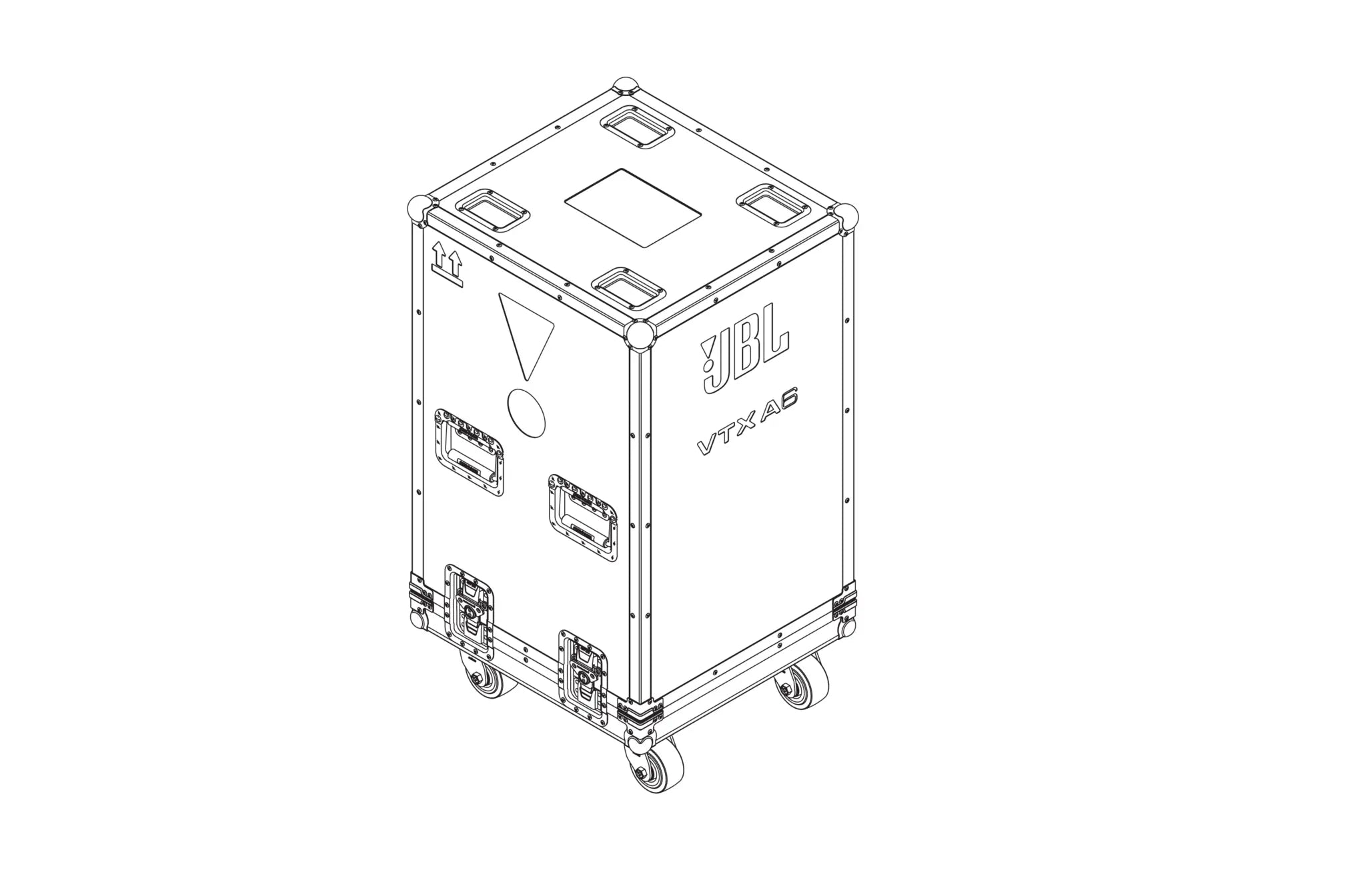

The VTX A6 CASE is a tour-grade flight case constructed from 9mm birch plywood (with aluminum and steel reinforcements and hardware) with a DuraFlex™ finish, heavy-duty casters , and integrated stacking capabilities . It houses 4 × VTX A6s with internal metal plates locking the enclosures together to form a vertical transporter ready for deployment, a low-profile base for access to quick-release pins, and internal compartments for accessories ( mini frame , suspension bar, base plate) and cables. Its 1,105 × 615 × 565 mm dimensions facilitate truck-packing ; the net weight of the case is 46.7 kg and 130.2 kg with 4 A6s loaded.

Main features

• Official Tour Ready Pack: 4 × VTX A6 + 1 × VTX A6 CASE ( Complete version).
• Subcompact array element (A6): 2 × 6.5" Differential Drive® (2186J) + 1 × 3" compression (2433H) on RBI™ guide; 110° (H) , 134 dB peak , IP55 .
• Rigging auto-lock: angle adjustment on the ground (0.5°, 1°, 1.5°, 2°, 3°, 4°, 6°, 8°, 10°, 12°, 15°) and automatic locking when hoisting.
• Flexible connectivity: 2 × NL4 per box with 1±/2± selection ; integration with Crown iTech HD and VTX library.
• Truck-ready flight case: stackable , transporter-style internal support plates , heavy-duty wheels , and accessory/cable compartments .
• Touring-grade construction: 12 mm A6 birch cabinet with DuraFlex™ and 1.5 mm grille; 9 mm birch case with DuraFlex™ finish.

Product benefits

• Faster and more predictable deployment: ground angle adjustment, auto-lock when hoisting, and clear 1±/2± cabling.
• Optimized logistics: truck-friendly , secure case stacking and internal accessory storage .
• High performance in a subcompact format: stable 110° horizontal coverage and extended response with low distortion.
• Electrical scalability: up to 4 A6 per channel and 16 per amplifier with iTech 4×3500HD.

Use cases

• Rental and tours that require compact arrays with safe and fast transport ( one-truck pack ).
• Corporate events, theaters, clubs, and churches where aesthetics, space, and setup time are critical.
• Fixed installations requiring simple maintenance and protection of out-of-use premises.

Frequently Asked Questions

What exactly does the VTX-A6-COMP pack include? 4 × VTX A6 and 1 × VTX A6 CASE with compartments for a mini frame , suspension bar, and base plate.

What amplification do you recommend? Crown iTech HD (e.g., iTech 4×3500HD ), up to 4 cabinets per channel (16 per amplifier).

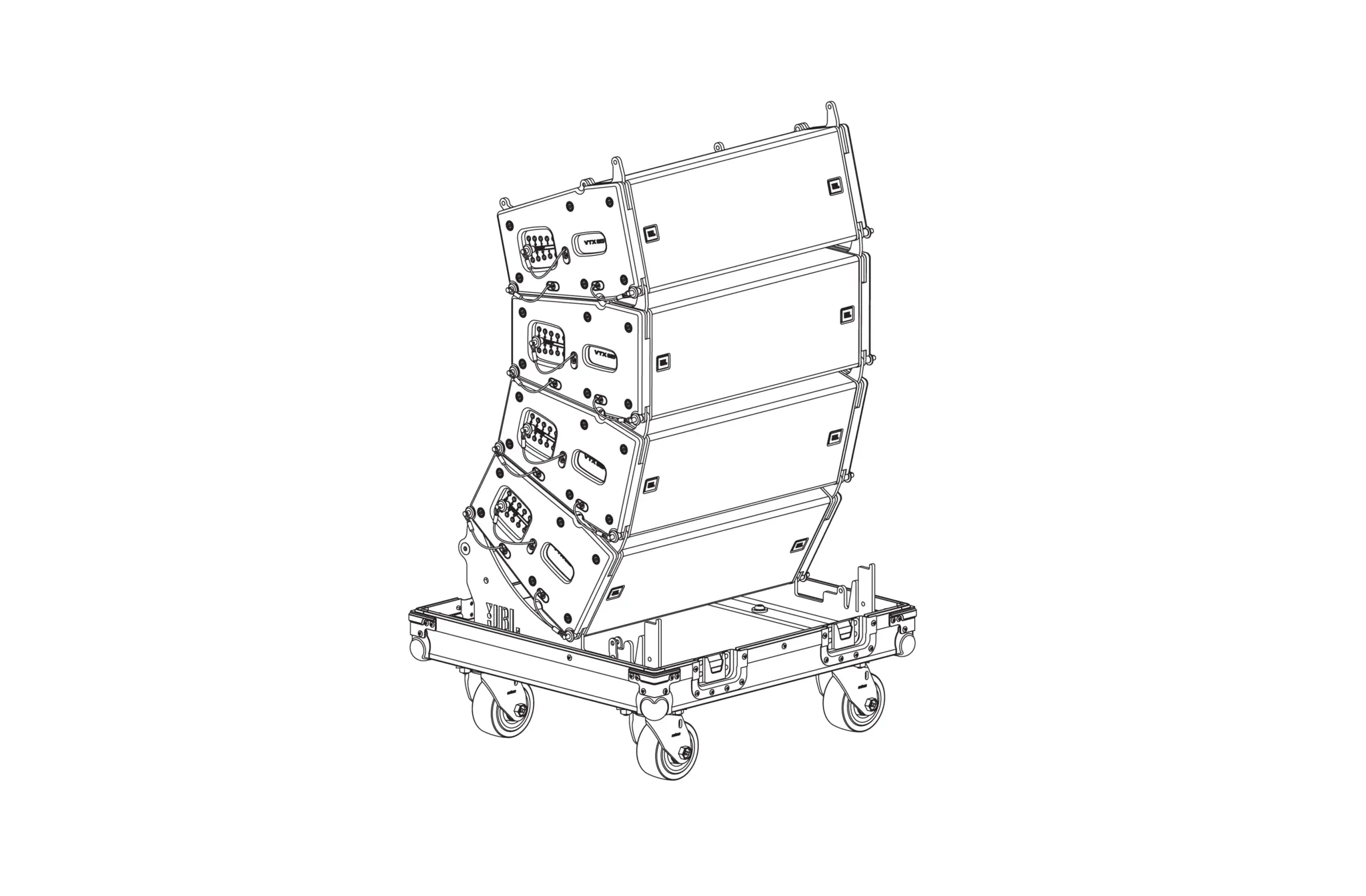

Does the case double as a rigging transporter? Yes, the internal metal plates hold the A6s, forming a vertical transporter with a low-profile base for accessing the pins.

Description for projects

Contents: 4 × JBL VTX A6 passive line array speaker + 1 × VTX A6 CASE (flightcase). VTX A6 — acoustics: 67–20,000 Hz (−10 dB), 80–19,000 Hz (±3 dB); coverage: 110° (H); max. peak SPL: 134 dB; power: 350 W continuous IEC/100 h; impedance: 10 Ω; transducers: LF 2 × 6.5" 2186J; HF 1 × 3" 2433H; connections: 2 × NL4 with 1±/2± selection; rigging: auto-lock with 0.5°–15° steps; protection: IP55. VTX A6 — physical (per unit): 190 × 536 × 301 mm; Weight: 18.4 kg. Flightcase: 9 mm birch, aluminum, and steel construction; DuraFlex™ finish; Dimensions: 1,105 × 615 × 565 mm; Net case weight: 46.7 kg; Weight with 4 × A6: 130.2 kg; Wheels: Heavy-duty; Storage: Mini frame, bar, and base plate compartments; Stackable and truck-safe.
