JBL Professional VTX-A12-AF - Array frame for suspension of the VTX A12 system

Out of stock
SKU: VTX-A12-AF EAN13: 691991007514
(0)
9.091,10 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470

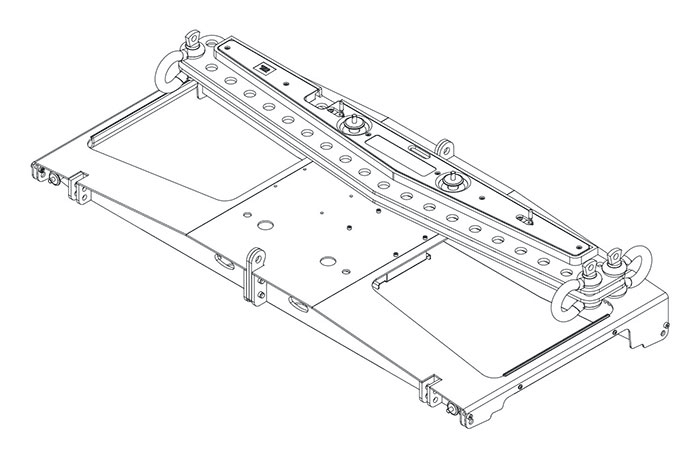

Frame for array
  • Brand:JBL Professional
  • Model:VTX-A12-AF
  • Guy:Array frame (rigging rack) for VTX A12
  • Material and finish:High-quality steel with anti-corrosion coating; black powder coating
  • Sleep Modes:One point, front–back, side–side (with additional AF-EB bars if needed)
  • Lifting point resolution:0.5°
  • Shackle Compatibility:5/8" (≈ 16 mm)
  • Inclinometer Compatibility:JBL VTX LZ, TEQ-SAS, Recline
  • Mechanical limits:Maximum 24 × A12 VTX; Safe limit 12 × A12 VTX (use JBL LAC-3 for arrays above the safe limit)
  • Dimensions (H × W × D):258 × 1054 × 492 mm
  • Net weight (AF + EB):41 kg (excluding shackles and other hardware)
  • Storage position:Integrated for the AF-EB bar
  • Bar fixing options:Normal (backward bar), Reverse (forward bar), Reverse Frame (inverted frame)
  • Includes:1 × VTX-A12-AF frame, 1 × AF-EB bar, 1 × laser mount, 3 × 5/8" shackles
  • Type New
  • Vendor JBL PROFESSIONAL
  • SKU VTX-A12-AF
  • Bar-code 691991007514
