JBL PROFESSIONAL

JBL Professional VRX932LA-1 - 2-Way 12" Line Array Speaker System, 100° × 15° Coverage (Available in White)

In stock
SKU: VRX932LA-1 EAN13: 50036902939
(0)
4.792,52 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470

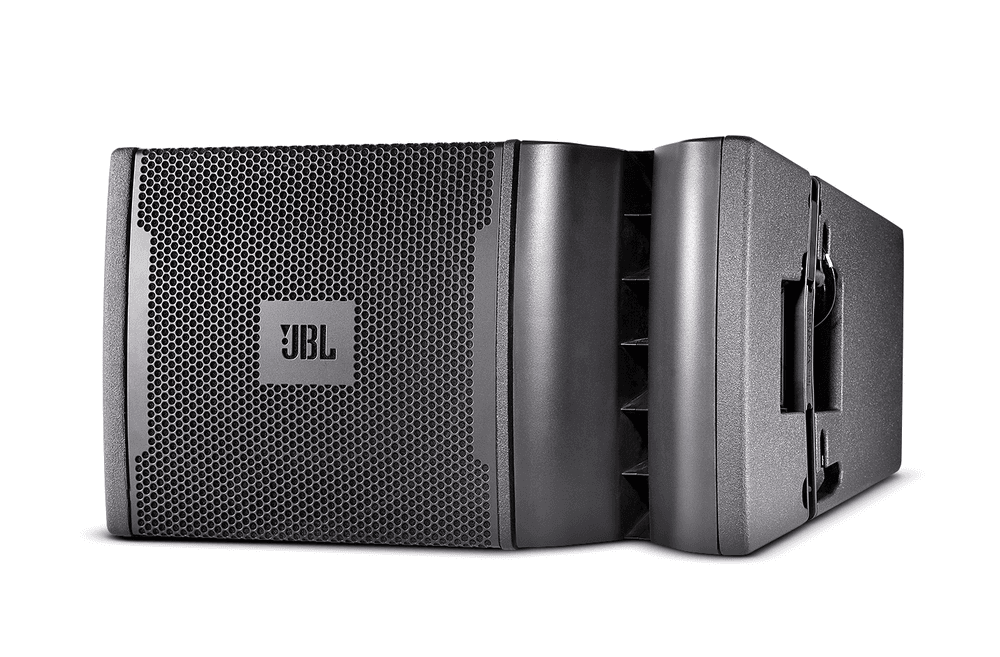

The VRX932LA-1 is a compact and lightweight (46 lb / 21 kg) 12" two-way line array speaker system, designed for use in arrays of up to six units. Features? JBL-exclusive Differential Drive® neodymium magnet woofer for high power handling and light weight.? VRX932LA-1 features 3 x 2408J annular diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.? Constant curvature waveguide for unprecedented array coherence.? Dual-angle pole plug for aiming flexibility. One or two speakers can be mounted on a 35mm pole or tripod.? Integral mounting hardware for simple connection of cabinets and optional array frame. Arrays of up to six enclosures can be flown.? Array configuration selector enables “array shadowing” in passive mode.
  • Brand:JBL Professional
  • Model:VRX932LA-1
  • Guy:2-way, constant curvature line array speaker system
  • Transducer Configuration:LF 1 × 12" JBL 2262H (neodymium, Differential Drive®); HF 3 × JBL 2408J (38 mm voice coil, annular diaphragm)
  • Coverage (H × V):100° × 15° per enclosure
  • Maximum recommended arrangement:Up to 6 enclosures per side
  • Array Configuration Selector (ACS):Passive shading with −3/0/+3 dB positions
  • Modes of operation:Passive or bi-amplified (external switching)
  • Crossover frequency:1.2 kHz
  • Frequency range (−10 dB):57 Hz–20 kHz
  • Frequency response (±3 dB):75 Hz–20 kHz
  • Sensitivity (1W/1m):95 dB SPL (passive mode)
  • Maximum SPL (1 m):130 dB peak (passive mode)
  • Admissible power (passive):800/1600/3200 W (continuous/program/peak)
  • Admissible power (biamp):LF 800/1600/3200W; HF 75/150/300W
  • Nominal impedance:Passive 8 Ω; Bi-amp LF 8 Ω; Bi-amp HF 8 Ω
  • Connectivity:2 × Neutrik® speakON® NL4
  • Enclosure material:18 mm birch plywood (11 layers)
  • Finish:DuraFlex™ Black (Standard Version)
  • Rack:Perforated steel (16 gauge) with acoustic foam
  • Mounting/suspension:Integrated rigging hardware; optional array frameVRX-AF; M10 thread (eyebolt kit)
  • Pole Mount (Black Version):Double angle post socket, 35 mm
  • Dimensions (H × W × D):349 × 597 × 381 mm
  • Net weight:21 kg
  • Compatible subwoofers:VRX918S (black) / VRX918S-WH (white)
  • White variant:VRX932LA-1WH (white DuraFlex finish, white grille, no handles or post socket; optimized for fixed installation)
  • Optional accessories:VRX-AF (array frame), SS2-BK (tripod), SS3-BK / SS4-BK (pole bars), M10 eyebolt kit (#229-00009-01)
  • Type New
  • Vendor JBL PROFESSIONAL
  • SKU VRX932LA-1
  • Bar-code 50036902939

Buy JBL Professional VRX932LA-1 - 2-Way 12" Line Array Speaker System, 100° × 15° Coverage (Available in White)
