JBL PROFESSIONAL

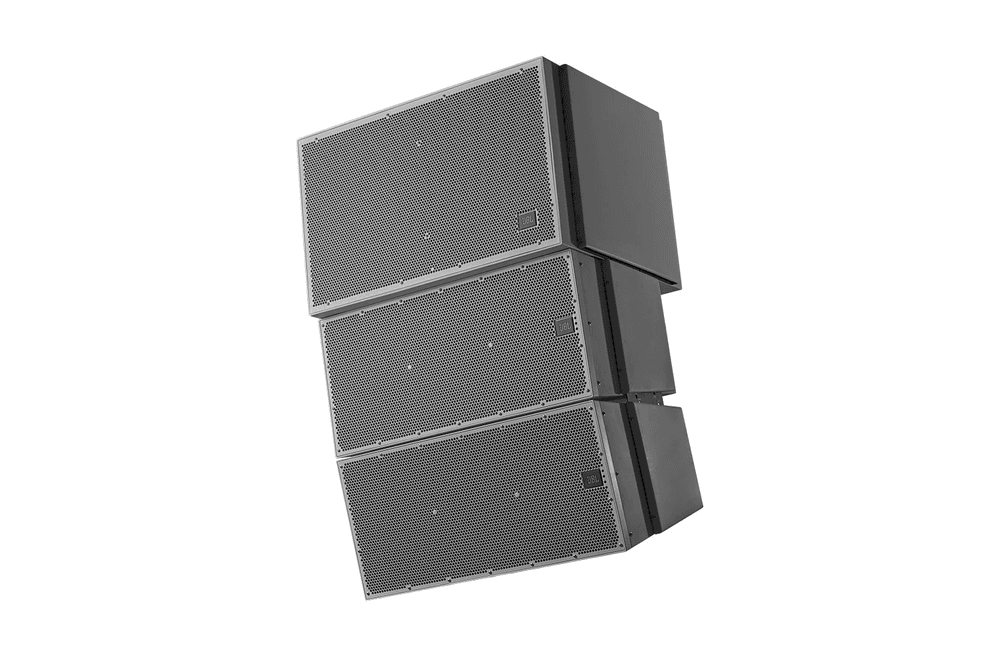

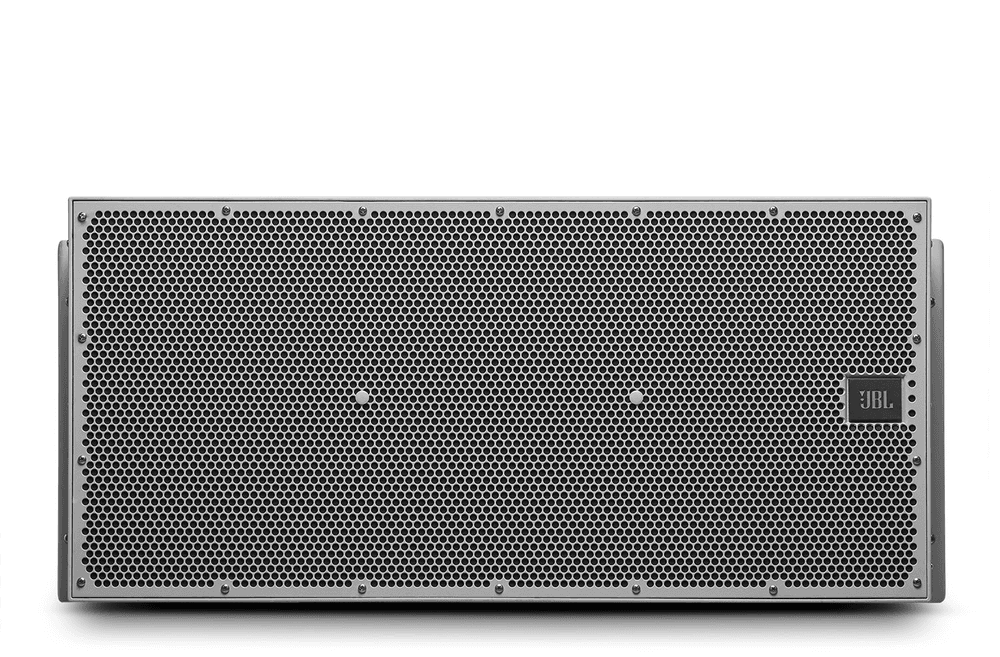

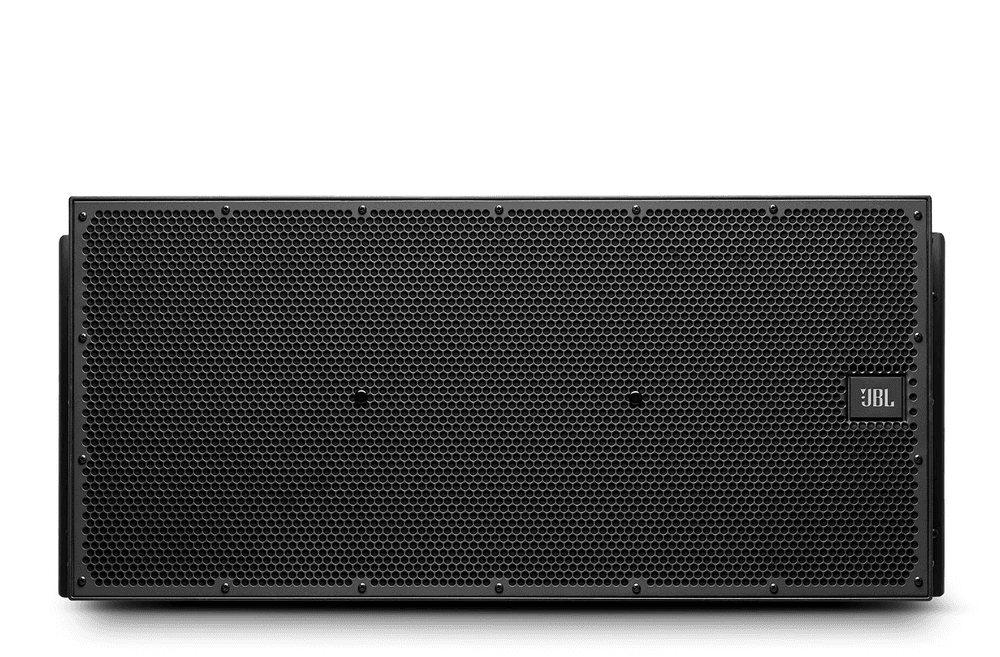

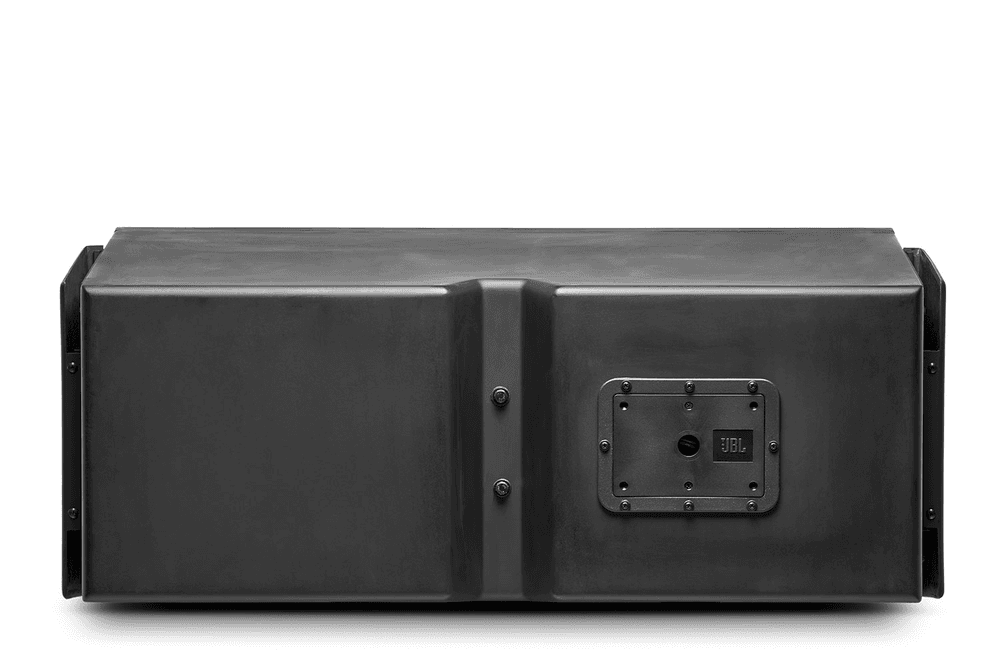

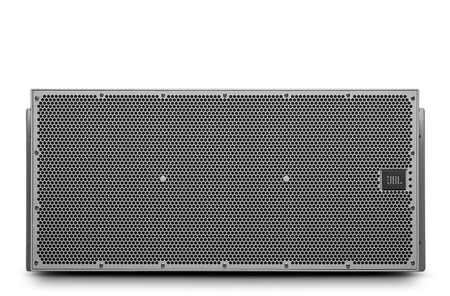

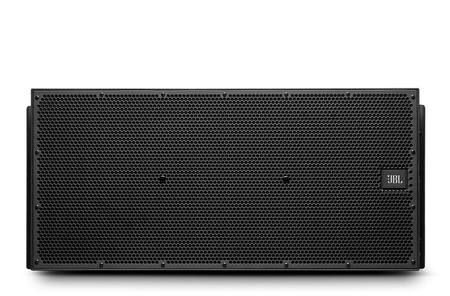

JBL Professional VLA-C265 - 2-way line array speaker with 2 × 10" Differential Drive®, 65° horizontal coverage (IP55)

Out of stock
SKU: VLA-C265 EAN13: 691991032479
(0)
10.712,96 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470

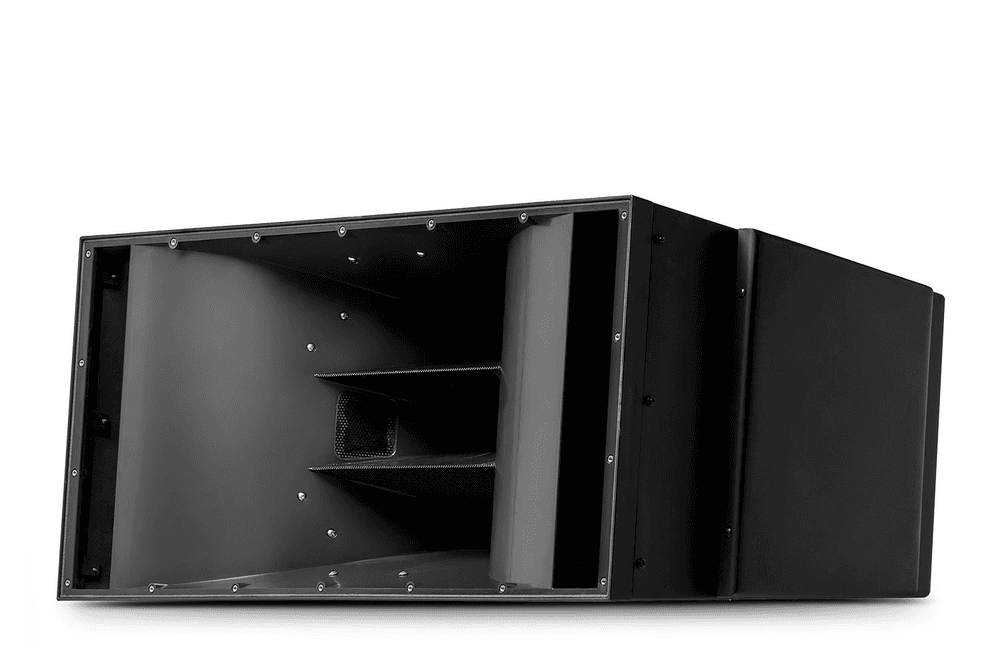

The VLA-C265 uses JBL-proven technology components. The high-frequency section is horn-loaded for maximum sensitivity and optimal pattern control and features three D2415 drivers featuring 1.5” annular diaphragms, 1.5” voice coils, and neodymium motors. The low-frequency section uses two 3” Differential Drive® dual-10” 2261 voice coil drivers. The enclosures feature multi-layered, fiberglass-reinforced steel end panels. The grilles are made of 14-gauge, zinc-plated, and powder-coated perforated steel with acoustically transparent black fabric, a hydrophobic underlay, and a weatherproof rail system. The rigging system is inherent to the system design. Angles between enclosures are selected when assembling the array. Other accessories include a rigging frame, a recoil bar, and a cardioid kit for the subwoofer. Features: Compact line array module optimized for permanent installation applications. Advanced technology component? Transducers for low weight and high performance? IP55-rated outer enclosure for? protection against dust and water? Complete mounting points to create a? line array configuration? Weather-resistant, fiberglass enclosure construction.? components? Can be bi-amped for maximum SPL, or? passively powered to reduce amplification costs? 65° horizontal coverage pattern
  • Brand:JBL Professional
  • Model:VLA-C265
  • Guy:2-way full-range speaker for line array (fixed installation)
  • LF Transducers:2 × 10"JBL 2261FF, each with dual 76 mm (3") coils, Neodymium Differential Drive®, Direct Cooled™
  • HF Transducers:3 ×JBL 2415K(D2 family), dual diaphragm/dual coil 38 mm (1.5"), exit 21 mm (0.8")
  • Coverage (−6 dB):Horizontal 65° (+15°/−10°, 1.5 kHz–15 kHz); Vertical dependent on array size/curvature
  • Mode of operation:Passive (full-range) or Bi-amplified
  • Frequency range (−10 dB):85 Hz–19 kHz
  • Frequency response (±3 dB):108 Hz–16.5 kHz
  • Sensitivity (2.83 V/1 m, 4π):Full-range 102 dB; Bi-amp LF 100 dB (85 Hz–950 Hz); Bi-amp HF 108 dB (950 Hz–19.2 kHz)
  • Maximum SPL (1 m):131 dB continuous (2 h) / 137 dB peak
  • Admissible power (IEC, pink noise):Full-range 800 W cont. (3200 W peak, 2 h) / 400 W cont. (1600 W peak, 100 h); Bi-amp LF 800/3200 W (2 h) / 400/1600 W (100 h); Bi-amp HF 150/600 W (2 h) / 50/200 W (100 h)
  • Max input voltage:Full-range 80 VRMS (2 h) / 160 V peak; Bi-amp LF 80 VRMS / 160 V peak; Bi-amp HF 50 VRMS / 135 V peak
  • Nominal impedance:Full-range 8 Ω (min. 6.6 Ω @ 162 Hz); Bi-amp LF 8 Ω (min. 6.8 Ω @ 162 Hz); Bi-amp HF 16 Ω (min. 16.2 Ω @ 11 kHz)
  • Enclosure material:Housing offiberglasswith gel-coat finish and internal reinforcement of 18 mm birch plywood
  • Grille and protection:14-gauge zinc-primed perforated steel, acoustic fabric and hydrophobic mesh;IP55(IEC 529)
  • Connections:Shrouded barrier terminals (up to 10 AWG / 5.2 mm²), coverstouch-proof
  • Inter-box angles (C265↔C265):1.5°, 2.4°, 3.8°, 6.0°, 9.5° (plates included)
  • Inter-model compatibility:C265↔C2100: 1.9°, 3.0° (C2100 plate) and 4.7°, 7.5°, 11.9° (C265 plate); C265 below C125S: 0°, 5°
  • Recommended amplifiers:SeriesCrown DCi(DCi 2|1250N; DCi 4|1250N/ND/DA; DCi 2|2400N; DCi 4|2400N)
  • Dimensions (H × W × D):381 × 848 × 460 mm
  • Net weight (unit):37.7 kg
  • Weight with packaging:44.0 kg
  • Available colors:Black (-BK) and Gray (-GR, similar Pantone 420C)
  • Included accessories:2 ×bracket plates, M10 × 35 mm stainless steel screws and decorative caps
  • Optional accessories: VLA-C-SB Suspension Bar Kit(2 bars and 4 ¾" shackles),pull-back bar,cardioid kitfor sub VLA-C125S
  • Type New
  • Vendor JBL PROFESSIONAL
  • SKU VLA-C265
  • Bar-code 691991032479

Buy JBL Professional VLA-C265 - 2-way line array speaker with 2 × 10" Differential Drive®, 65° horizontal coverage (IP55)
