JBL Professional SRX906LA-PM - Pole Mount Adapter for SRX906LA, Tilt -15° to +5°

JBL Professional SRX906LA-PM - Pole Mount Adapter for SRX906LA, Tilt -15° to +5°

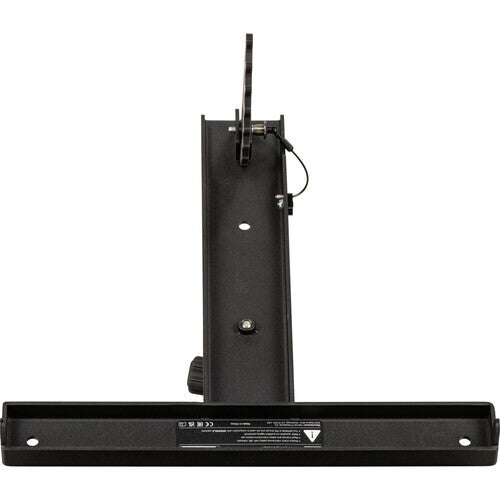

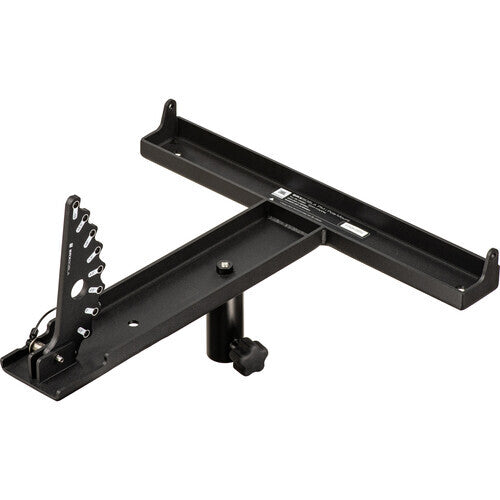

The JBL SRX906LA-PM is the official 35mm pole mount accessory for the SRX900 Series SRX906LA array elements. Its heavy-duty, corrosion-coated steel frame with a black powder-coated finish allows up to two SRX906LA enclosures to be securely mounted on a pole or tripod, with a rear angle selection bar offering adjustable tilt from -15° to +5° to fine-tune audience coverage. It incorporates three M10 pass-through holes for permanent structure fixing and is supplied with a Pole Mount frame , M10 pole mount and angle plate .

Compatibility note: if you are looking for the base for ground stacking , the corresponding model is SRX906LA-BP (Base Plate) , which allows ground-stacking and coupling arrays to subwoofers using an M20 thread.

Main features

• Universal Pole Mount: Compatible with 35mm (standard rods and tripods).
• Angle range: -15° to +5° via rear selection bar, to orient the array towards the audience area.
• Mechanical capacity: safe limit 1 × SRX906LA; maximum limit 2 × SRX906LA (always verify in JBL simulation software).
• Touring construction: high-quality steel with anti-corrosion coating and black powder coat finish .
• Permanent fixing: 3 M10 through holes for anchoring to structures when fixed installation is required.
• Kit included: Pole Mount adapter frame, M10 pole mount and angle plate.

Product benefits

• Fast and versatile deployment: allows SRX906LA to be used in pole or tripod applications without the need for full rigging frames.
• Optimized Coverage: Adjustable tilt helps focus energy on the audience and minimize reflections.
• Documented safety: validated load and usage limits; M10 fixing option for permanent mounting.

Use cases

• Mobile events and portable reinforcement where compact arrays are mounted on subwoofers with 35 mm rods.
• Temporary installations requiring fine angle adjustment without complex structures.
• Corporate and AV sets that alternate between tripod and pole over sub.

Compatibility and mounting

• Compatibility: Exclusively for JBL SRX906LA .
• Poles/Tripods: standard 35mm diameter.
• Angle: continuous selection within -15° to +5° .
• Safety Requirements: Verify configurations and loads with JBL simulation software and follow the SRX900 Series Rigging Manual .
• Differences with Base Plate (SRX906LA-BP): The BP enables ground-stack and subwoofer coupling via M20 , and supports up to 6 SRX906LA (depending on use); the PM model is designed for 35 mm pole mounting and up to 2 enclosures (maximum limit).

Frequently Asked Questions

• How many cases can I mount? 1 SRX906LA as a safe limit; 2 SRX906LA as a maximum limit (confirm in simulation).
• What's included in the package? Pole Mount frame, M10 pole mount, and angle plate.
• Does it work for other SRX models? It is specifically designed for SRX906LA .

Description for projects

Pole adapter for SRX906LA; universal mount 35 mm ; tilt range -15° to +5° ; safe limit 1 × SRX906LA / maximum limit 2 × SRX906LA; steel construction with anti-corrosion coating and black powder coat finish; 3 M10 pass-through holes for permanent fixing; dimensions 155 × 467 × 451 mm (H × W × D); net weight 4.0 kg ; weight with packaging 5.4 kg ; includes Pole Mount frame, M10 pole mount and angle plate.
