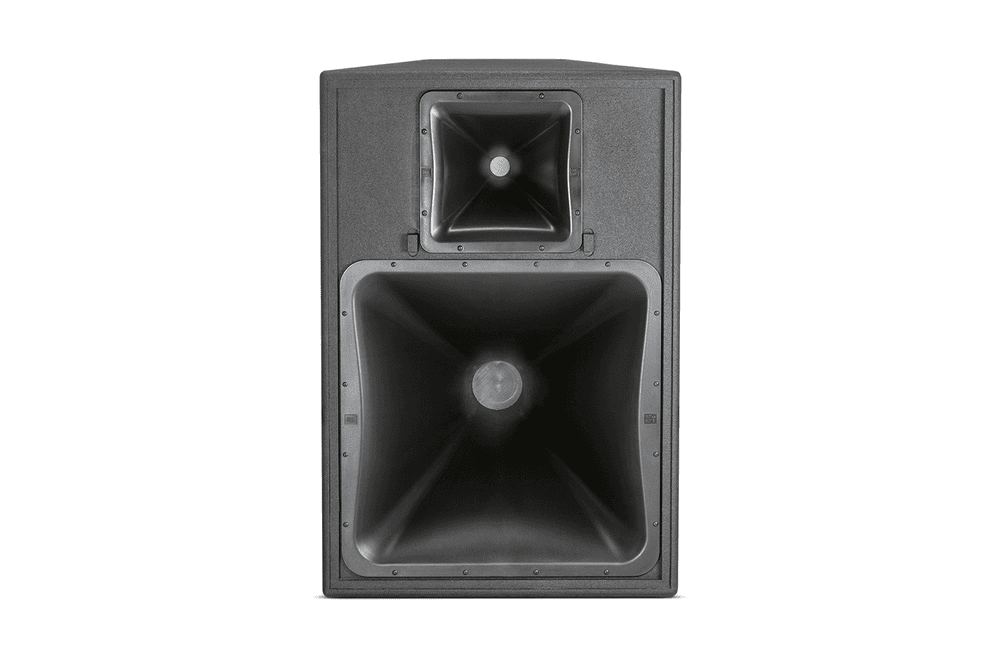

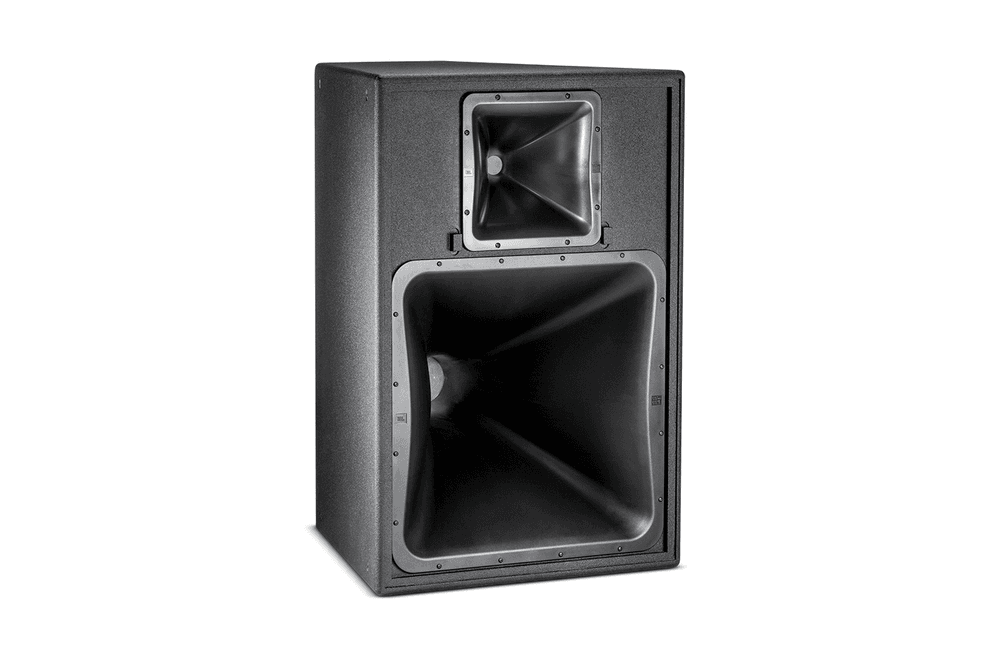

JBL Professional PD6200-64 - 2-Way Horn-Loaded Mid-High Frequency Loudspeaker 60° × 40°

Out of stock
SKU: PD6200-64 EAN13: 691991014512
(0)
6.743,87 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470
The PD6200 Precision Directivity Series of mid- and high-frequency loudspeakers are designed for applications requiring high output capability with excellent pattern control. Features: High-power 200 mm (8 inch) dual-voice-coil cone CMCD™ midrange compression driver provides high sensitivity and high continuous SPL capability along with low distortion, extended bandwidth, and improved phase coherence. Large-format neodymium HF driver provides clear, intelligible high-frequency projection. Oversized PT™ Progressive Transition™ waveguides provide excellent pattern control, low distortion at high SPL levels, and smooth frequency response. Rotatable waveguides permit horizontal or vertical cabinet orientation.
  • Brand:JBL Professional
  • Model:PD6200-64
  • Guy:Horn-loaded 2-way mid/high speaker
  • Nominal coverage pattern:60° × 40°
  • Frequency range (−10 dB):200 Hz – 18 kHz
  • Frequency response (±3 dB):240 Hz – 16 kHz
  • Directivity Index (DI):13.5 dB
  • Directivity factor (Q):22.4
  • Modes of operation:Switchable bi-amp/passive
  • Passive crossover:Linkwitz–Riley 6th order, 1.5 kHz
  • System sensitivity (1 W/1 m):110 dB SPL (passive mode)
  • Maximum SPL (1 m):Passive 135 dB cont. / 141 dB peak; Bi-amp MF 135 dB cont. / 141 dB peak · HF 135 dB cont. / 141 dB peak
  • AES power of transducers:MF 350 W (peak 1400 W, 100 h); HF 75 W (peak 300 W, 2 h)
  • System power (IEC, passive mode):300 W (peak 1200 W, 100 h)
  • MF Transducer:JBL CMCD-82H, 200 mm (8"), dual coil,Dual Differential Drive®, 8 Ω
  • HF Transducer:JBL 2432H, 38 mm (1.5") output, 75 mm (3") voice coil, aluminum diaphragm, neodymium magnet, 8 Ω
  • MF Guide:PT-N64MF-1, 600 × 600 mm (rotatable)
  • HF Guide:PT-H64HF-1, 300 × 300 mm (rotatable)

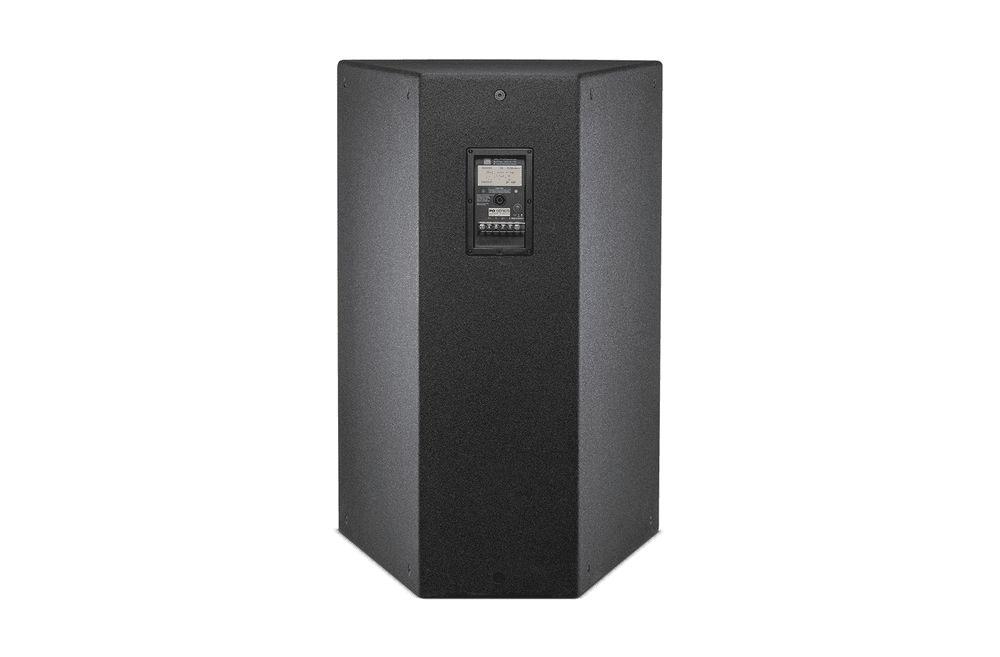

  • Connectivity:Speakon® NL4 and CE-covered terminal block in parallel (up to 5.2 mm² / 9 mm spades)
  • Suspension:20 M10 threaded points (5 top, 5 bottom, 4 per side, 2 rear)
  • Enclosure:Trapezoidal, 16 mm Finnish birch plywood, 15° sides
  • Finish:DuraFlex™ black; white version (-WH) on request
  • Rack:14-gauge powder-coated perforated steel with acoustic foam
  • Environmental specifications (standard model):Mil-Std 810; IP-x3
  • Heavy duty versions:WRC (protected exterior) / WRX (direct exposure)
  • Dimensions (H × W × D):991 × 673 × 706 mm
  • Net weight:58.8 kg
  • Optional accessories:Kit of 3 forged eyebolts M10 × 35 mm (ref. 229-00009-01)
  • Type New
  • Vendor JBL PROFESSIONAL
  • SKU PD6200-64
  • Bar-code 691991014512
