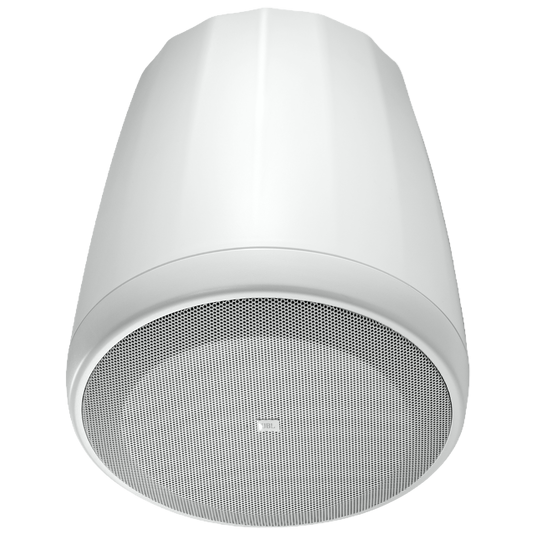

JBL Professional Control 67HC/T-WH - 75° Narrow Coverage Pendant Speaker for High Ceilings (2-Pack, White)
The JBL Professional Control 67HC/T-WH is a two-way pendant loudspeaker with a narrow 75° coverage , designed to achieve greater speech intelligibility and musical clarity in spaces with high ceilings or complex acoustics (convention centers, atriums, museums, transit hubs, exhibition areas, hospitality venues, retail spaces). Its unique RBI (Radiation Boundary Integrator) waveguide combines a large HF horn with LF projection ports to seamlessly integrate both transducers and maintain a highly controlled pattern over the listening area.
The coaxial design features a 165 mm (6.5″) woofer with a polypropylene-coated paper cone and a 25 mm voice coil, along with a 25 mm (1″) textile dome tweeter with a neodymium motor and ferrofluid cooling. It offers operation at 8 Ω or on 70/100 V distributed lines via a 60 W multi-tap transformer, maintaining high output levels: 112 dB SPL continuous and 118 dB SPL peak at 1 m.
It includes two complete suspension systems (main and safety) with 4.5 m galvanized steel cables and Gripple turnbuckles for continuous height adjustment . The high-impact polystyrene housing and zinc-plated (paintable) steel grille ensure durability; it also features an IP44 rating for protected outdoor use and exceeds MIL-Spec 810 environmental testing. This reference corresponds to the white (-WH) color and is supplied in a pack of 2 units .
Main features
-
Controlled 75° coverage to focus acoustic energy on the audience and improve intelligibility in tall or reverberant rooms.
-
JBL RBI Technology : Smooth integration between LF and HF with a uniform pattern across the entire usable area.
-
6.5″ + 1″ coaxial architecture with textile dome and neodymium motor for smooth response and high fidelity.
-
System flexibility : operation at 8 Ω or 70/100 V (60/30/15/7.5 W sockets at 70 V; 60/30/15 W at 100 V).
-
Safe and quick installation : single point suspension with 4.5m cables and SWL 45kg per cable.
-
Robust construction : HIPS enclosure and powder-coated steel grille; Euroblock connectors with rubber covers.
-
Certifications : UL listed speaker and hanging system; IEC/CE and IP44 compliant.
Benefits for your installation
-
Greater clarity with fewer reflections : the narrow pattern reduces wall/ceiling excitation and improves the direct/reverberated ratio.
-
Uniformity of coverage : the RBI guide maintains consistent response so that all listeners perceive a balanced sound.
-
Design versatility : the same box serves for low impedance or voltage lines, facilitating expansions and multi-site standards.
-
Easy maintenance : stepless access to Euroblock terminals and height adjustment, ideal for construction and reconfiguration.
Use cases
-
Atriums and convention centers where focus and projection from a great height are needed.
-
Museums, galleries and exhibition spaces that require coverage defined by zones.
-
Retail and hospitality with exposed ceilings and a need for careful aesthetics.
-
Transit centers and stations with intelligible voice announcements and background music.
Project description
JBL Control 67HC/T-WH 2-way pendant speaker (white), 75° coverage (+15°/−20°), frequency response 75 Hz–17 kHz (−10 dB) / 110 Hz–16 kHz (±3 dB) , sensitivity 93 dB , max SPL 112 dB continuous / 118 dB peak (1 m), power 75 W AES (100 h) / 150 W program , impedance 8 Ω , multi-socket transformer 70 V: 60/30/15/7.5 W ; 100 V: 60/30/15 W ; Euroblock 2-pin connectors (input/loop), HIPS enclosure, zinc-plated steel grille (paintable), IP44 , single point suspension with 2 x 4.5 m cables ( SWL 45 kg ), dimensions Ø 333 × 344 mm (369 mm to support), weight 5.9 kg per unit; supply: pair (2 pcs) .
