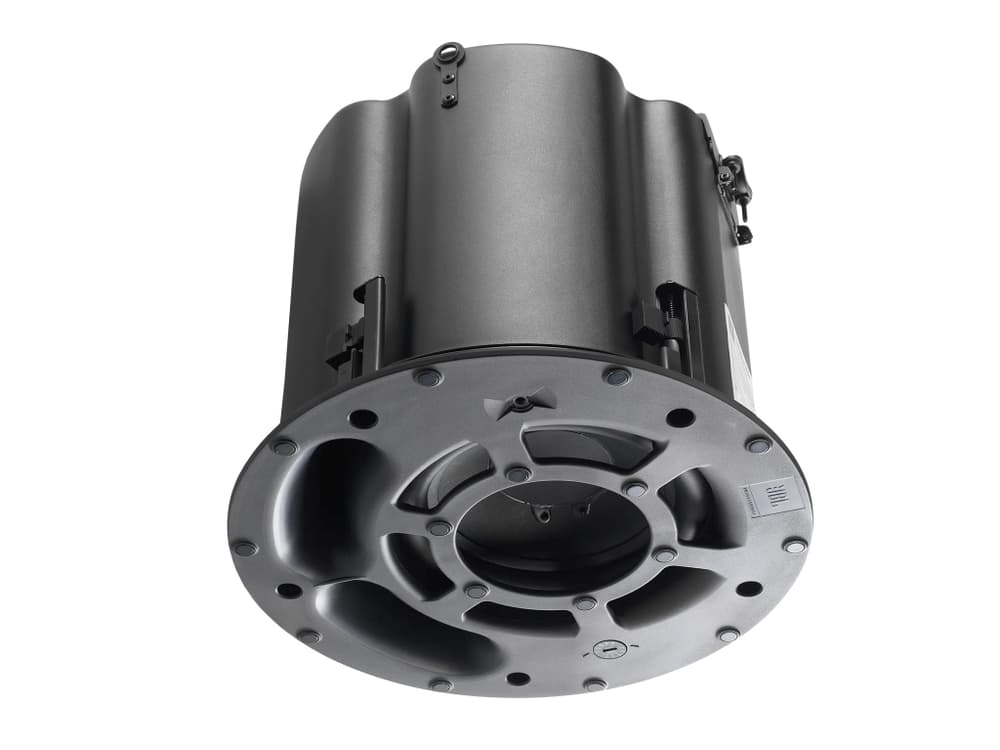

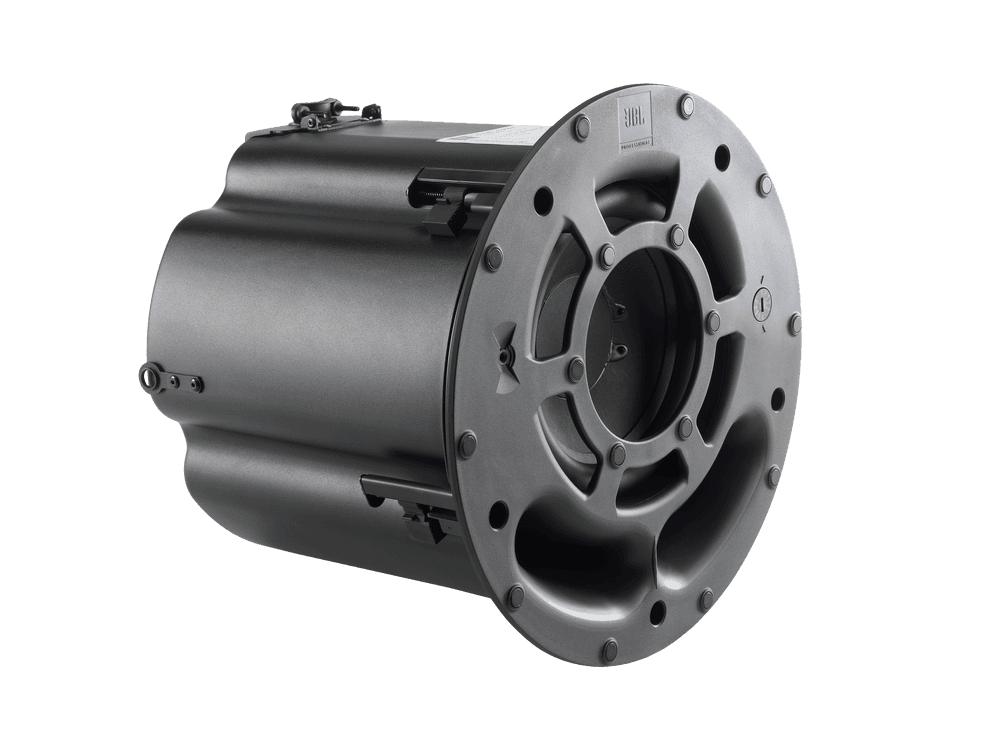

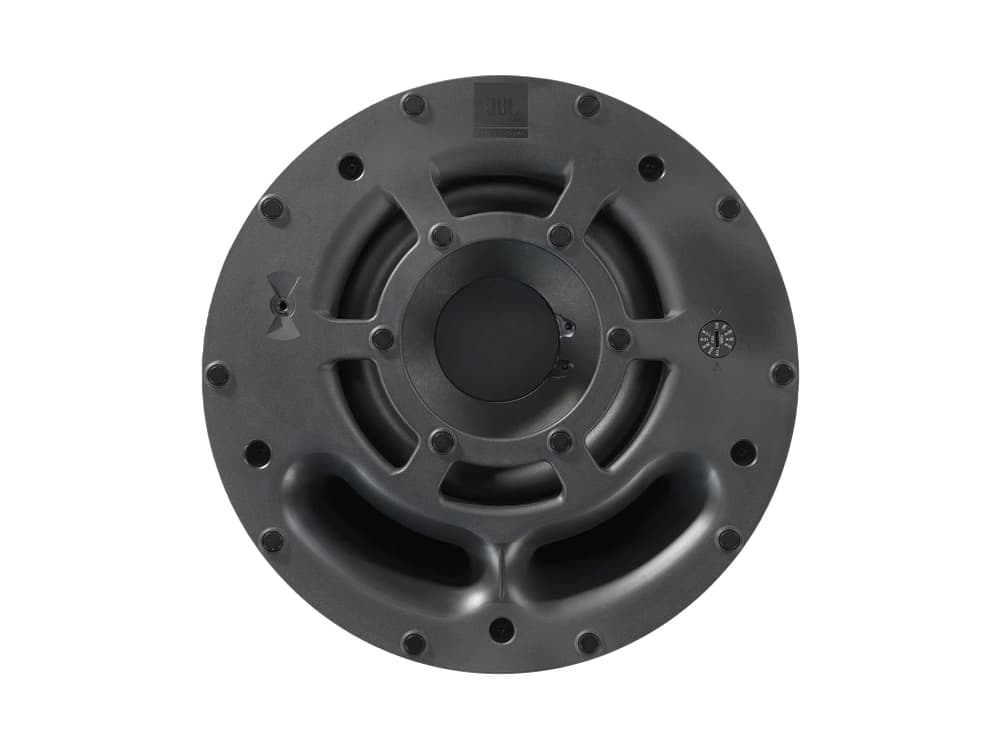

JBL Control 419CS-T - Professional 8-Inch Ceiling Subwoofer
The JBL Control 419CS-T is a high-performance in-ceiling subwoofer designed to blend discreetly into any high-end professional or residential environment, delivering deep, powerful bass with very low distortion. This subwoofer is the perfect solution for sound systems requiring robust, high-fidelity low-frequency extension, perfectly complementing JBL's Control Contractor Series full-range speakers and other premium sound systems.
Equipped with an 8-inch (200 mm) long-excursion driver, the Control 419CS-T is built to last and perform. Its polypropylene cone and 38 mm (1.5-inch) copper-wound voice coil on a fiberglass former ensure high power handling and exceptional low-frequency clarity. Its computer-optimized dual-ported bass reflex design enhances bass response, delivering a warm, defined sound with no audible turbulence, even at high volumes.
Main Features
The design of the JBL Control 419CS-T has been carefully conceived for both acoustic performance and aesthetic integration and ease of installation.
-
Superior Sound Quality: Thanks to its heavy-duty 8-inch transducer, it offers a frequency response of 47 Hz to 320 Hz, adding a solid and powerful foundation to any music or audio playback.
-

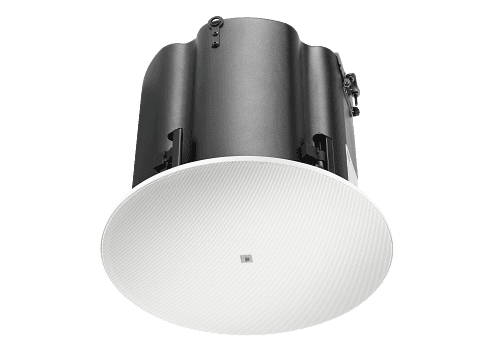

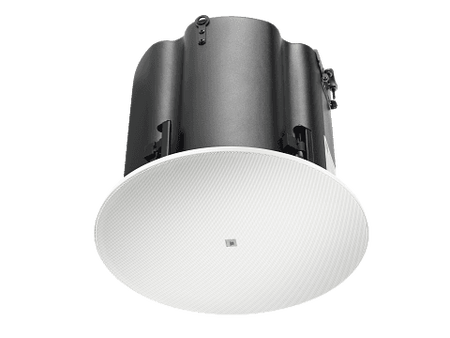

Discreet and Elegant Design: Features a frameless magnetic grid that can be painted to match any décor. Its low profile allows it to blend seamlessly into the ceiling without drawing attention.
-
Connection Flexibility: It incorporates a high-quality, low-saturation 60W transformer for use in 70V or 100V distributed audio systems, with selectable power taps. It can also be operated in direct 8-ohm mode for low-impedance systems.
-
Integrated Low-Pass Filter: Includes passive low-pass filter networks, allowing it to be used in parallel with full-range satellite speakers connected to the same amplifier output, greatly simplifying system design and wiring.
-
Easy and Safe Installation: Supplied with all necessary accessories for quick and reliable installation, including a C-ring bracket and support rails for suspended ceilings. Connections are made via a removable Euroblock locking connector.
Benefits for the Installer and the User
The Control 419CS-T not only delivers exceptional sound performance, but is also designed with practicality and reliability in mind. For the installer, flexibility is key: the ability to choose between low-impedance or 70V/100V line operation, along with integrated filters, reduces system complexity and cost by eliminating the need for an external digital signal processor (DSP). Included accessories and a streamlined mechanical design facilitate mounting on a wide variety of ceilings.
For the end user, the result is a dramatic improvement in audio quality. The addition of deep, accurate bass creates a much richer and more immersive listening experience. Whether for background music in a restaurant, the impact of a presentation in a boardroom, or the soundtrack in a luxury store, the Control 419CS-T enhances the sound without compromising the aesthetics of the space.
Use Cases
Thanks to its versatility and performance, this subwoofer is the ideal choice for a multitude of commercial and residential applications where sound quality and aesthetics are paramount:
-
Hospitality: Restaurants, bars, hotel lobbies and lounges.
-
Retail Trade: Fashion stores, boutiques and department stores.
-
Corporate Spaces: Conference rooms, boardrooms and reception areas.
-
Public Places: Museums, art galleries and transport centers.
-
Residential Systems: High-end home theaters and whole-house distributed audio systems.
Frequently Asked Questions
Can the grille be painted?
Yes, the frameless grid is designed to be paintable and thus perfectly match the color of any ceiling, ensuring seamless visual integration.
How does it integrate with other ceiling speakers?
The Control 419CS-T can be integrated in several ways. The simplest is by connecting it in parallel with full-range speakers (satellites) thanks to its internal low-pass filter. For more advanced control, it can be used with a DSP amplifier or an external active crossover to define precise crossover points and optimize the response of the entire system.
What does it mean that it is compatible with 70V and 100V?
Compatibility with 70V and 100V systems allows multiple speakers to be connected on a single cable run to a single amplifier channel, using thinner gauge wire over long distances. This is ideal for large commercial installations, as it simplifies wiring and reduces costs compared to traditional low-impedance (8 ohm) systems.
Project description
Passive ceiling subwoofer with an 8-inch (200 mm) driver, polypropylene cone, and 38 mm voice coil. Frequency response: 47 Hz to 320 Hz. Continuous program power: 160W (320W peak) in direct mode into 8 ohms. Integrated transformer for 70V (60W, 30W, 15W, 7.5W) and 100V (60W, 30W, 15W) line inputs. Sensitivity: 90 dB (1W/1m) and maximum SPL: 112 dB. Includes a passive low-pass filter. Removable Euroblock connectors. Includes C-ring and mounting rails. Diameter: 346 mm, Depth: 289 mm. Weight: 8.8 kg. Frameless, paintable magnetic grille.
