JBL Professional ASB6125 - Dual 15" High Power Subwoofer for Fixed Installation (AE Series)

Only 2 left
SKU: ASB6125 EAN13: 691991011733
(0)
5.943,11 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470

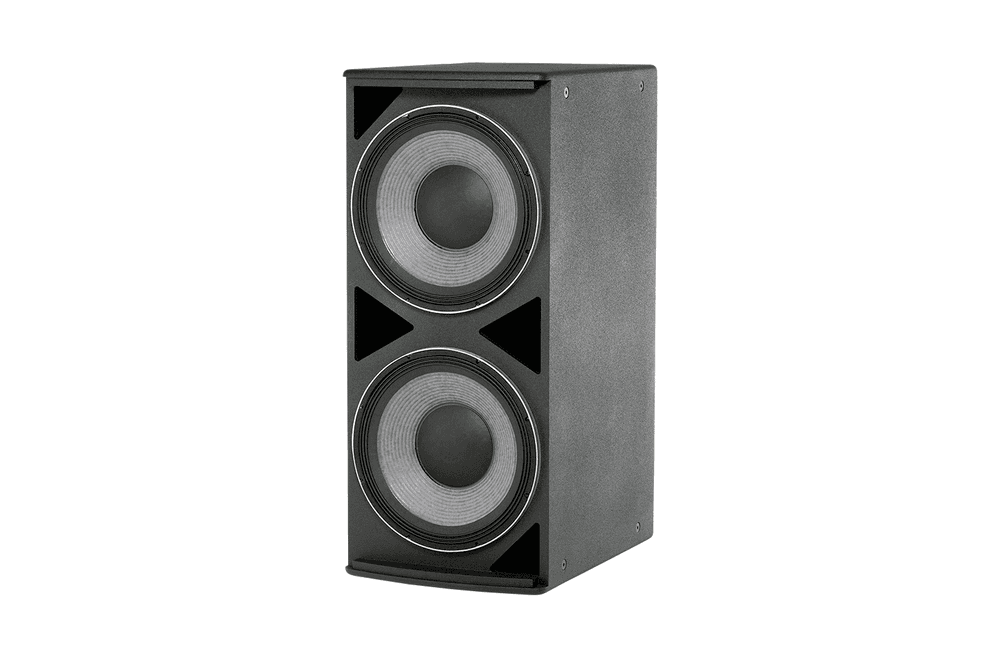

The ASB6125 is a lightweight, high-power, front-loaded vented subwoofer enclosure that houses two 15" JBL 2265H-1 Differential Drive® dual-voice coil neodymium magnet drivers. These drivers feature neodymium magnets and ultra-rugged cones for extra-long life. Features: Two 15" JBL 2265H-1 Differential Drive® dual-voice coil neodymium magnet transducers. 1600 watts of continuous pink noise, 6400 watts peak power handling capability. Parallel/Discrete switchable input mode. Large vent area for high output with low distortion. FIR tuning array matches the phase profile of the full-range models. For flown or ground-stacked applications in stand-alone arrays or in combination with other AE Series products.
  • Brand:JBL Professional
  • Model:ASB6125
  • Series:AE Series (Application Engineered)
  • Guy:Dual 15" front-loading, vented subwoofer
  • LF Transducers:2 × 15" (380 mm) JBL 2265H-1 Differential Drive®, neodymium magnet, dual voice coil/dual air gap
  • Frequency range (−10 dB):32 Hz – 1 kHz
  • Frequency response (±3 dB):38 Hz – 1 kHz
  • Sensitivity (35–400 Hz, 2π):100 dB (1 W/1 m; 2.0 V)
  • Maximum SPL (35–400 Hz, 1 m):132 dB continuous / 138 dB peak
  • Transducer power (AES, 2 h):1600 W (6400 W peak)
  • System power (100 h):1350 W (5400 W peak)
  • Input modes:SwitchableParallel Drivers / Discrete Drivers
  • Nominal impedance:4 Ω (parallel) / 2 × 8 Ω (discrete)
  • Connectivity:NL4 Neutrik Speakon® in parallel with covered terminal block (accepts up to 10 AWG / 5.2 mm²; lugs up to 9 mm)
  • Construction of the enclosure:16mm (11-ply) birch plywood, heavily braced
  • Finish:Textured paintDuraFlex™in black (white on request)
  • Rack:14-gauge perforated steel with acoustic foam
  • Rigging points:16 × M10 (4 on top, 4 on the bottom, 4 on each side)
  • Environmental protection:Mil-Std 810;IP-X3according to IEC 529
  • Dimensions (H × W × D, vertical):965 × 419 × 597 mm
  • Net weight:36.7 kg
  • Optional accessories:M10 × 35 mm eye bolts (forged, with washer)
  • System compatibility:Tuning setsSIGNATUREfor alignment with AE full-range models
  • Typical applications:Theatres, auditoriums, clubs, sports venues and themed entertainment
  • Color:Standard black; WRC/WRX versions available for outdoor use (dimensions may vary)
