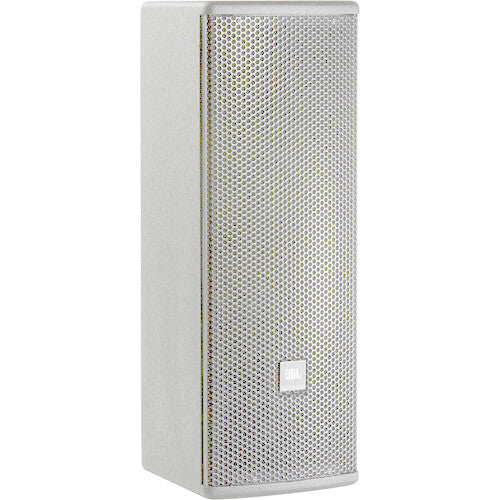

JBL Professional AC28-95-WH - Compact 2-Way Loudspeaker with 2 x 8" Drivers and 90° x 50° PT Frame (White)

JBL Professional AC28-95-WH - Compact 2-Way Loudspeaker with 2 x 8" Drivers and 90° x 50° PT Frame (White)

The JBL Professional AC28-95-WH is a compact , 2-way full-range loudspeaker from the AE Compact family, in white (-WH) finish , engineered to deliver maximum bandwidth , high SPL , and an unobtrusive visual presence in fixed installations. It features two × 8″ JBL 228J ( Symmetrical Field Geometry SFG™ technology, 64 mm voice coil) and a 1″ exit 2408H-1 compression driver (38 mm voice coil) over a rotatable PT™ waveguide with 90° × 50° coverage , maintaining directivity in both vertical and horizontal orientations. The 2 kHz passive crossover includes a switchable driver to ensure pattern accuracy when rotating the horn, while Filtered Array Technology (FAT™) controls the two woofers for smooth power response and consistent coverage.

The enclosure is constructed from 12/15mm multi-ply plywood with a white DuraFlex™ finish and a 16 gauge steel grille with acoustic foam (fabric on white units). For installation, it offers 6 × M8 points (1 top, 3 bottom, 2 rear) and 4 × M8 rear points compatible with MultiMount® MM-120-BT , plus optional MTU-28 U-bracket and foot accessories. Connectivity combines 2 × Neutrik Speakon® NL4 in parallel with shrouded CE terminals (up to 5.2 mm² or 9 mm spade). With a sensitivity of 94 dB (1 W/1 m) , max. SPL 120 dB. With 120 dB , 8 Ω impedance , and IEC 375/750/1500 W and 700 W AES power ratings, the AC28-95-WH delivers powerful performance in theaters, auditoriums, houses of worship, sports venues, and themed venues. It features FIR tunings and preset libraries for Crown amplification (CDi/DCi/I-Tech HD).

Main features

• PT™ Guide 90° × 50° rotatable to hold pattern vertically or horizontally.
• JBL Transducers : 2 × 228J (8″) with 64 mm coil and 2408H-1 (1″ exit, 38 mm coil).
• 2 kHz passive filter with orientation selector and FAT™ for magnitude and phase control.
• 750 W (IEC) and 700 W AES program; impedance 8 Ω ; Max SPL 120 dB .
• Connections : 2 × NL4 (in parallel) + covered CE terminal block .
• Mounting : 6 × M8 (1 top, 3 bottom, 2 rear) + 4 × M8 rear (MultiMount®); optional MTU-28 U-bracket .
• Construction : 12/15 mm plywood with white DuraFlex™ ; 16 gauge steel grille with foam.
• Environment : Mil-Std 810 • IPx3 ; weatherproof WRC/WRX versions available.
• Preset Libraries : FIR libraries and tunings for Crown CDi, DCi and I-Tech HD.

Product benefits

• Controlled 90° × 50° coverage improves intelligibility and reduces unwanted reflections.
• Integration flexibility thanks to its narrow format, M8 fixings and official accessories.
• Agile implementation : Official FIR presets and tunings simplify system voicing .
• Professional reliability : 2408H-1 motor, SFG™ woofers and rugged construction with DuraFlex™.

Use cases

• Under balconies, on columns or attached to walls/ceilings where proximity to the enclosure is required.
• Theaters, auditoriums, places of worship, sports facilities and hospitality .
• Reinforcement zones or main systems in medium-sized rooms with high fidelity requirements.

Frequently Asked Questions

• Is the waveguide rotatable? Yes; it maintains the 90° × 50° pattern whether installed vertically or horizontally.
• Does it have official tunings? Yes; it includes FIR tunings and libraries for Crown amplifiers.
• Are there outdoor versions? Yes; WRC/WRX available upon request (dimensions may vary from the standard model).

Description for projects

2-way passive loudspeaker, 2 × 8″ (JBL 228J, 64 mm voice coil) + 2408H-1 driver (25 mm exit, 38 mm voice coil) on rotatable PT-D95HF-1 guide; 2 kHz crossover with orientation selector; response 65 Hz–20 kHz (±3 dB) / range 53 Hz–20 kHz (−10 dB); sensitivity 94 dB (1 W/1 m); max. SPL 120 dB (1 m); impedance 8 Ω; power IEC 375/750/1500 W (cont./prog./peak) and AES 700 W (2 h); connectors 2 × NL4 + CE terminal block in parallel (up to 5.2 mm² / 9 mm spatula); 12/15 mm plywood enclosure with white DuraFlex™ ; Mil-Std 810 / IPx3 protection ; 6 × M8 mounting (1 top, 3 bottom, 2 rear) + 4 × M8 rear (MultiMount® MM-120-BT); dimensions 679.5 × 237.5 × 254.0 mm; weight 18.6 kg; accessories: MTU-28 U-Bracket and M8 × 38 mm screw kit.
