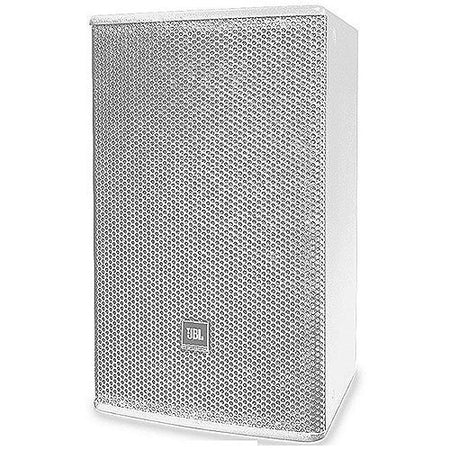

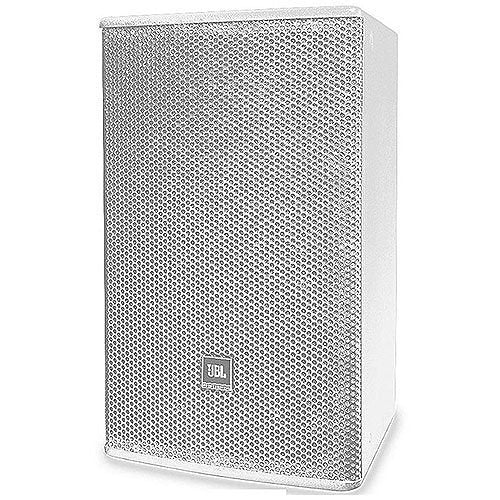

JBL Professional AC266-WH - 2-Way Passive Loudspeaker (12") with 60° × 60° Coverage in White

JBL Professional AC266-WH - 2-Way Passive Loudspeaker (12") with 60° × 60° Coverage in White

The JBL Professional AC266-WH is a 2-way AE Series full-range loudspeaker designed for fixed installations requiring controlled 60° × 60° coverage , high intelligibility, and a sleek white (-WH) finish . It combines a 310 mm (12″) woofer with a 66 mm (2.5″) voice coil (P/N 5050730) and a 2408H-2 compression driver with a 25 mm (1″) exit and a 35 mm (1.5″) diaphragm/voice coil, mounted on a waveguide that maintains the pattern in vertical or horizontal orientation. The high-slope passive crossover minimizes overlap between paths and ensures a well-controlled off-axis response.

The enclosure is constructed from 15mm hardwood plywood with a white textured paint finish and features a 1.5mm perforated steel grille with acoustic foam. For installation, it features 14 M10 suspension points and four rear M10 threads for attaching MultiMount® or similar mounts. Connectivity combines dual Neutrik NL4 connectors with parallel, covered screw terminals . With a sensitivity of 97dB (1W/1m) , an 8Ω impedance , IEC 250/500/1000W and AES 350W (1400W peak, 2h) power ratings, and a maximum SPL of 121dB (127dB peak) , the AC266-WH delivers an authoritative performance in theaters, houses of worship, education, retail/hospitality, and corporate venues.

Main features

• Stable 60° × 60° coverage vertically or horizontally for maximum accuracy and intelligibility.
• JBL transducers : LF 12″ (66 mm coil) + HF 2408H-2 (25 mm exit, 35 mm diaphragm).
• Passive crossover at 1.5 kHz with high slopes for minimal overlap between tracks.
• Professional construction : 15mm multi-layer wood and 1.5mm steel grille with acoustic foam.
• Versatile installation : 14 × M10 suspension + 4 × M10 rear for MultiMount® bracket; U-bracket , L-bracket and wall mount accessories available.
• Dual connectivity : 2 × Neutrik NL4MP + covered screw terminal block (in parallel).
• Finish : white (-WH) ; not available with WRC/WRX trim.

Product benefits

• Intelligibility and control : 60° × 60° pattern that focuses energy on the audience and reduces reflections.
• Easy integration : multiple M10 anchors and Speakon + terminal block connectivity for clean loop wiring.
• Box-to-box consistency : Controlled off-axis response that facilitates uniform clusters and coverage.
• White aesthetics : integrates into projects with architectural requirements without sacrificing performance.

Use cases

• Theaters, auditoriums, and multipurpose halls requiring controlled coverage.
• Worship spaces, educational centers, conference and presentation rooms.
• Commercial and hospitality environments requiring high performance with discreet design.

Installation and connectivity

The AC266-WH includes 2 × NL4MP and a covered screw terminal block (in parallel) for loop-through . The enclosure integrates 14 × M10 for suspension and 4 × M10 rear connectors compatible with MultiMount® or equivalent wall mounts. U-bracket , L-bracket and wall mount are available as official accessories.

Description for projects

2-way passive speaker in white (-WH) finish; 60° × 60° coverage; LF 1 × 12″ (310 mm, 66 mm voice coil, P/N 5050730) + HF JBL 2408H-2 (25 mm exit, 35 mm voice coil); crossover 1.5 kHz; response 80 Hz–18 kHz (±3 dB) / range 63 Hz–20 kHz (−10 dB); sensitivity 97 dB (1 W/1 m); impedance 8 Ω; max. SPL 121 dB (127 dB peak, 1 m); IEC 250/500/1000 W (cont./prog./peak) and AES 350 W (2 h, 1400 W peak) powers ; connections 2 × NL4MP + terminal block; 15 mm multi-layer enclosure with 1.5 mm steel grille and foam; 14 × M10 + 4 × M10 rear mounting (MultiMount®); dimensions 600 × 370 × 392 mm; weight 17.4 kg; not available with WRC/WRX trim.
