JBL PROFESSIONAL

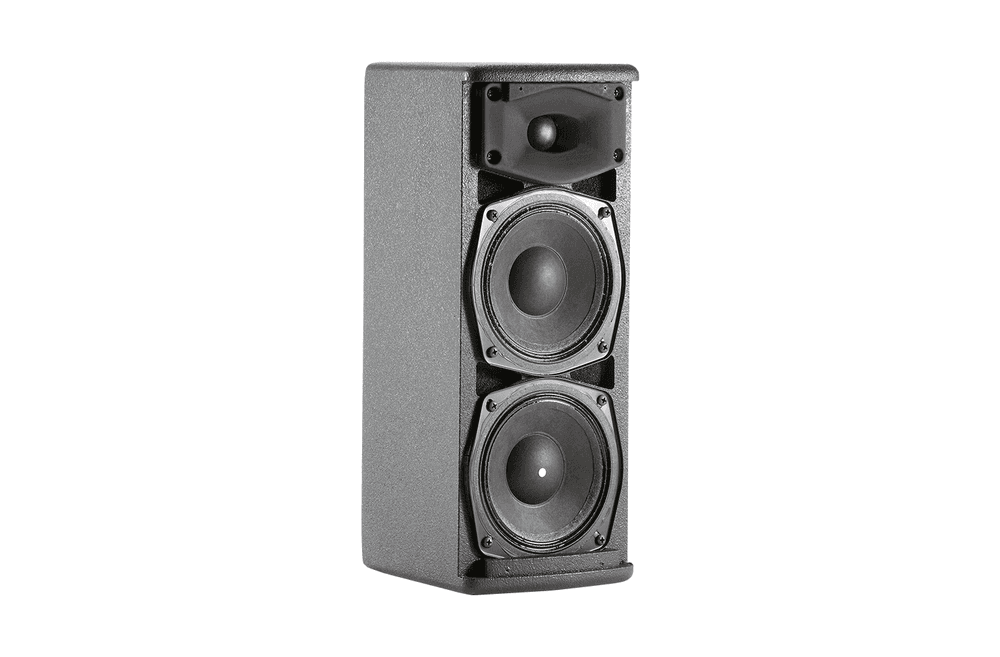

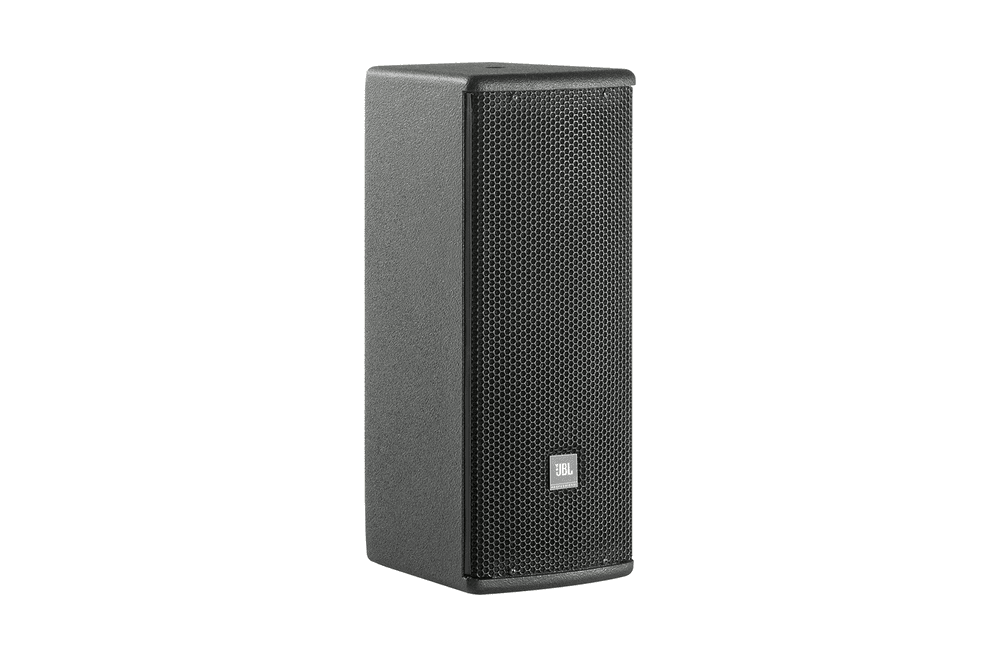

JBL Professional AC25 - Ultra-compact 2-way loudspeaker with 2 × 135 mm drivers and 90° × 90° coverage

Out of stock
SKU: AC25 EAN13: 691991010842
(0)
1.455,06 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470
High-output 2-way speakers that combine flexibility with high fidelity. Features? 90° x 90° waveguide with 25 mm (1 in) dome tweeter? 135 mm (5.25 in) LF transducer? Ultra-compact 2-way speaker with 2 x 5.25? LF? 450W program? Dual Neutrik NL4 connectors plus screw terminal? FIR tuning array delivers optimized phase and frequency response, coverage consistency, and sound quality? Fixing points for optional U-bracket
  • Brand:JBL Professional
  • Model:AC25
  • Series:AE Compact
  • Guy:2-way passive speaker for fixed installation
  • Nominal coverage:90° (H) × 90° (V)
  • LF Transducers:2 × JBL 225H, 135mm (5.25"), 38mm coil, SFG™
  • HF Transducer:1 × JBL 201J, 25mm (1") dome
  • HF waveguide:constant coverage 90° × 90°
  • Frequency response (±3 dB):90 Hz – 18 kHz
  • Frequency range (−10 dB):80 Hz – 20 kHz
  • Sensitivity (1 W/1 m):91 dB SPL
  • Maximum SPL (1 m, calculated):115 dB
  • Nominal impedance:16 Ω
  • IEC Power (continuous/program/peak):225 W / 450 W / 900 W
  • AES Power:300 W
  • Crossover frequency:3.3 kHz (passive crossover)
  • Connectors:2 × Neutrik Speakon® NL4 in parallel + covered screw terminal block
  • NL4 pin wiring:+1/−1 in parallel with the terminal block; +2/−2 for loop-through
  • Anchor points:4 × M8 (1 top, 1 bottom, 2 rear) and 4 × M6 rear (MultiMount®)
  • Hardware Compatibility:U-bracketMTU-25; MultiMount®MM-015-BT/MM-016-BT; supportsUltimate Support™ BMB-200K,K&M 195/8and wallK&M 24470
  • Enclosure:12 mm multi-layer plywood; DuraFlex™ finish
  • Rack:18-gauge perforated steel with acoustic foam; fabric in white units (-WH)
  • Dimensions (H × W × D):377.8 × 150.3 × 177.8 mm
  • Weight:7.5 kg
  • Environmental specifications:Mil-Std 810; IPx3 (IEC 529)
  • Available finishes:Black; white (-WH) on request
  • Recommended processing:Preset libraries for Crown I-Tech HD, DCi and CDi
  • Simulation files:EASE GLL, CLF and Revit/BIM available
  • Technologies:SFG™ (Symmetrical Field Geometry), FAT™ (Filtered Array Technology), FIR tuning
  • Type Audio
  • Vendor JBL PROFESSIONAL
  • SKU AC25
  • Bar-code 691991010842
